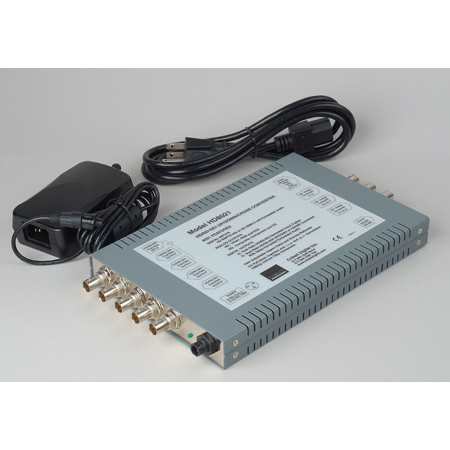

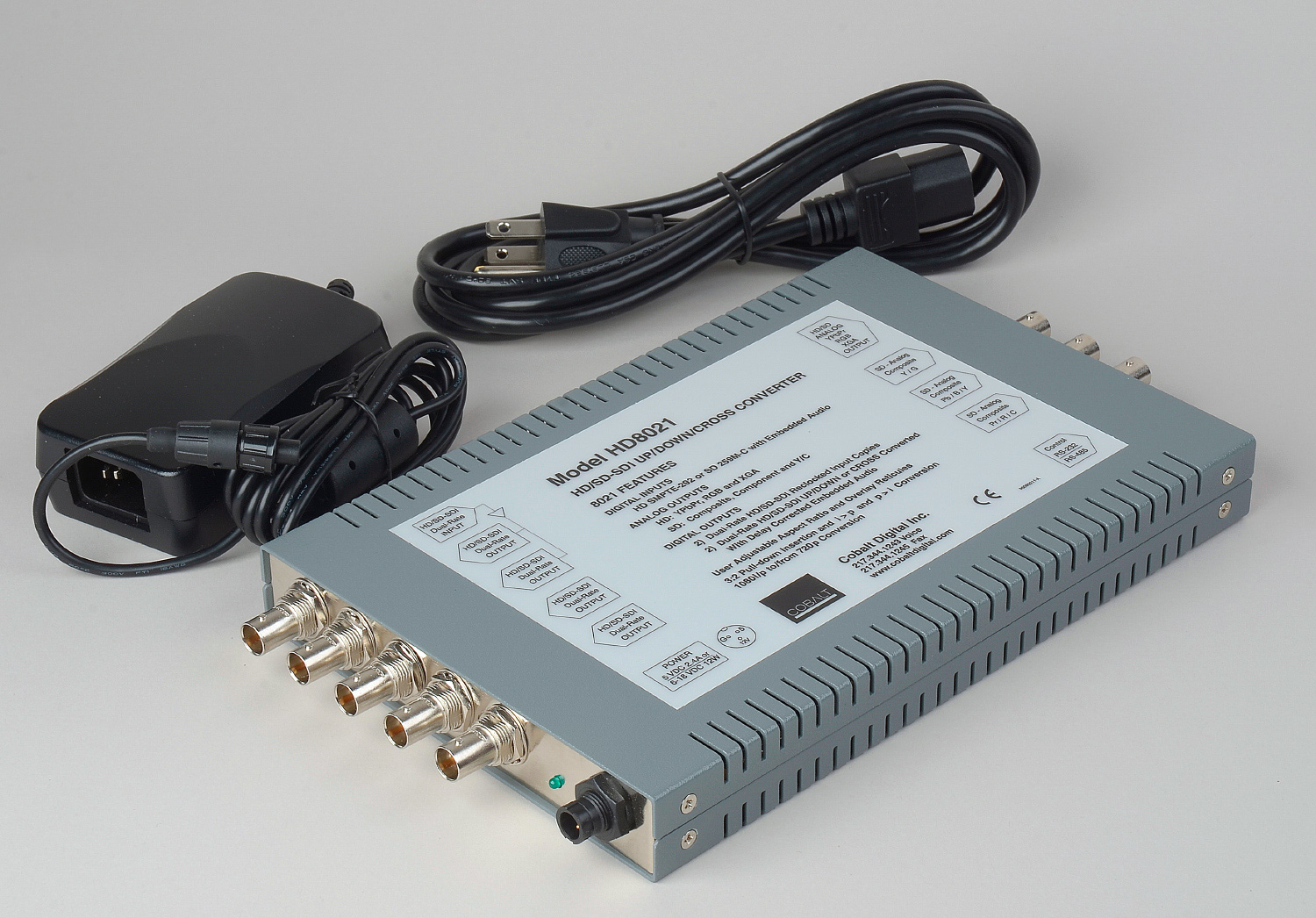

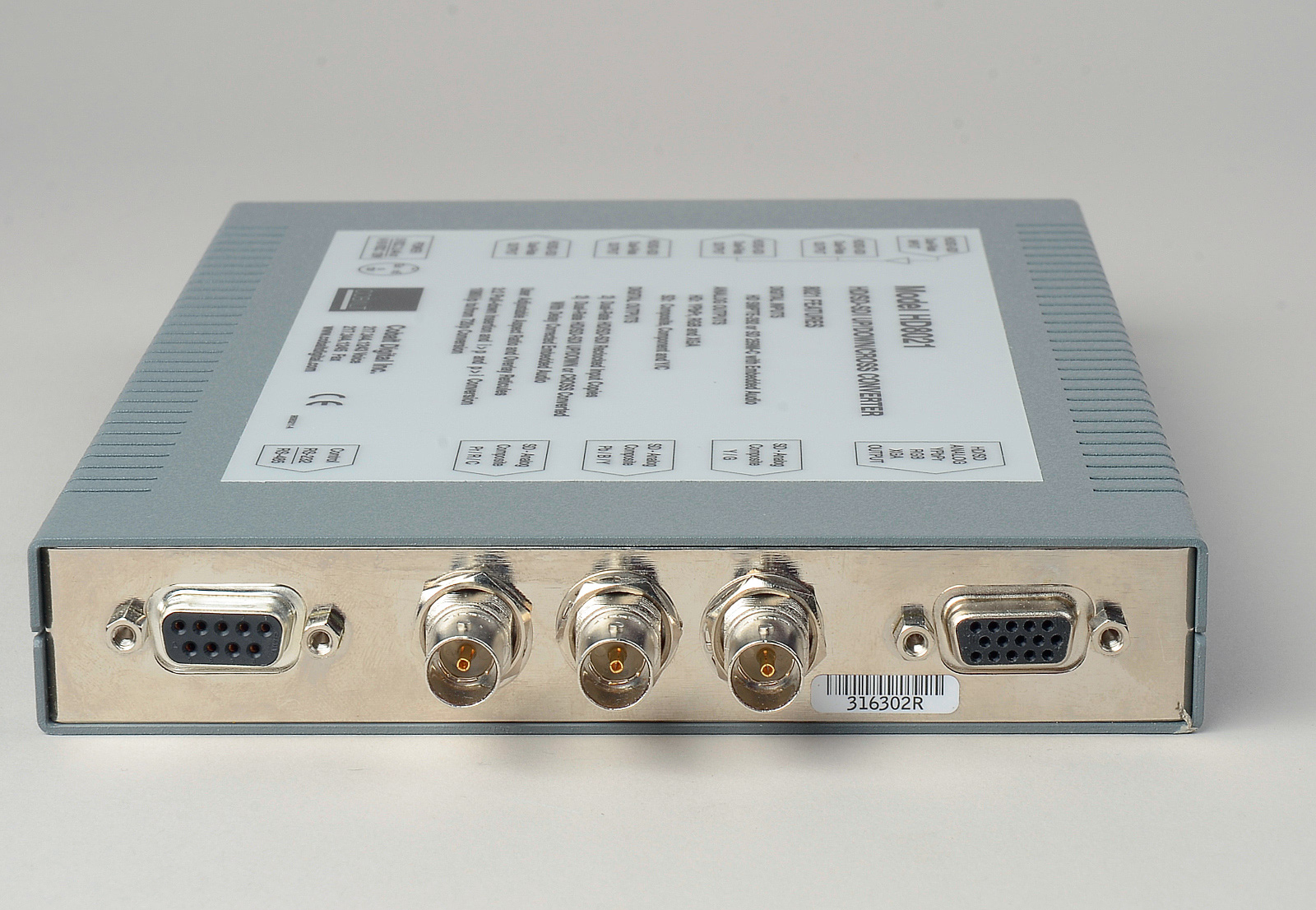

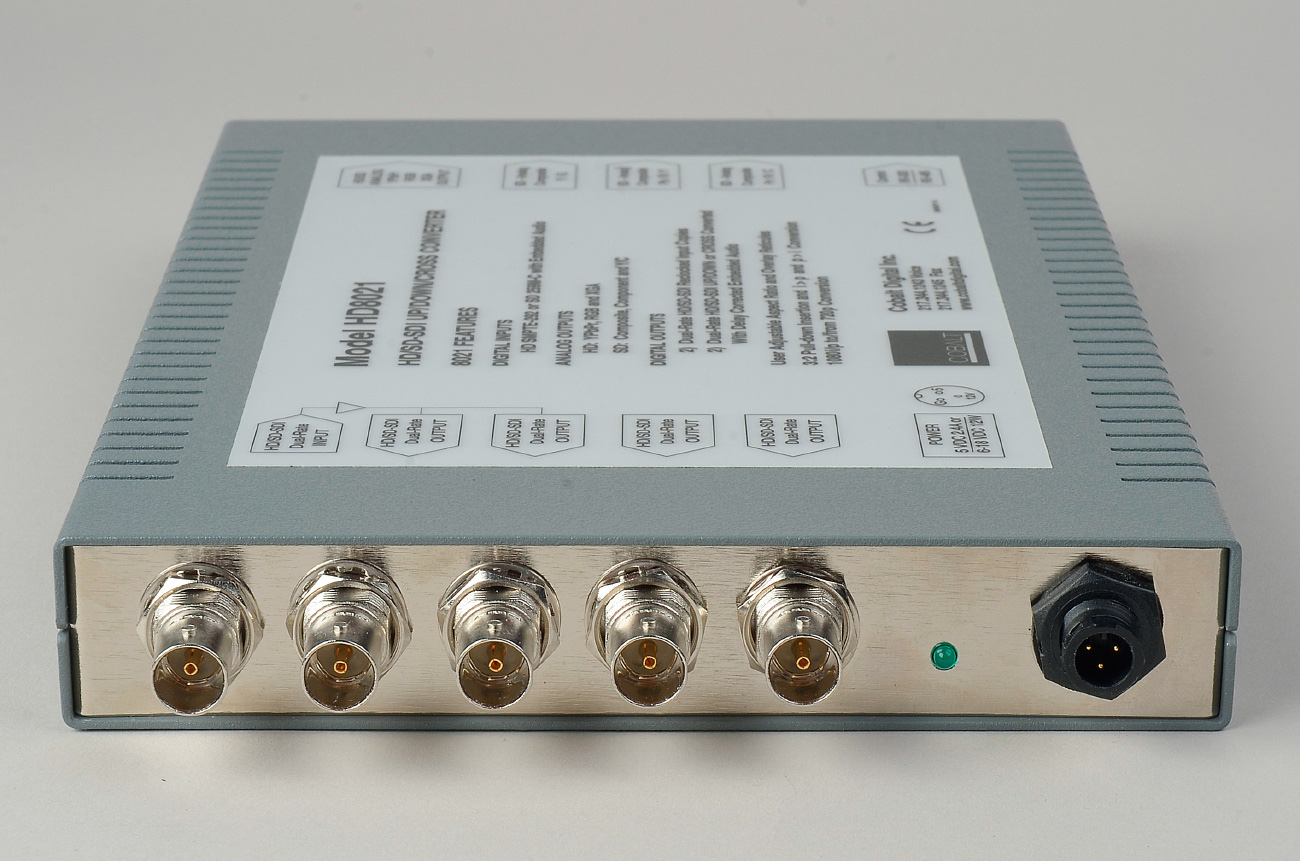

Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply
  • Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply
  • Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply
  • Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply
  • Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply
  • Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply


Cobalt 8021 HD/SD Up/Down and Cross Converter - Includes Power Supply

Manufacturer: Cobalt Digital

Item #: CB-8021   •   MFG #: 8021 & PS24



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the CB-8021





The 8021 is an extremely versatile HD/SD tool; the unit accepts dual rate HD/SD SMPTE-292/259M-C digital inputs and can up or down convert incoming signals and re-aspect to 4x3 or 16x9. In addition, the 8021 can cross convert HD signals between 1080 and 720. Both digital and analog HD/SD and XGA outputs are available. The 8021 can rate convert 24 frame video to 60 frames and move interlace to progressive and back. The unit also has user configurable reticle overlays. The 8021 has full 10-bit video processing with 12-bit analog encoding. The 8021 allows you to pick your monitor or scope, HD or SD (analog or digital) or XGA analog and view HD-SDI or SDI. User setups are by external switch controls or a serial PC interface. The unit can be controlled remotely for monitoring wall applications.


  • Features

    • High quality down and monitoring quality up conversion
    • Three outputs: HD/SD digital or analog HD and SD
    • Auto standard detect and configuration SMPTE 292/259M-C
    • Outputs wideband analog YPbPr, RGB or XGA
    • Four user programmable reticules
    • PC remote control available
    • 3:2 frame rate and HD standards conversion
    • Two dual rate HD/SD reclocked input copies
    • 10-bit video path and 12-bit analog encoding
    • Adjustable output gain control

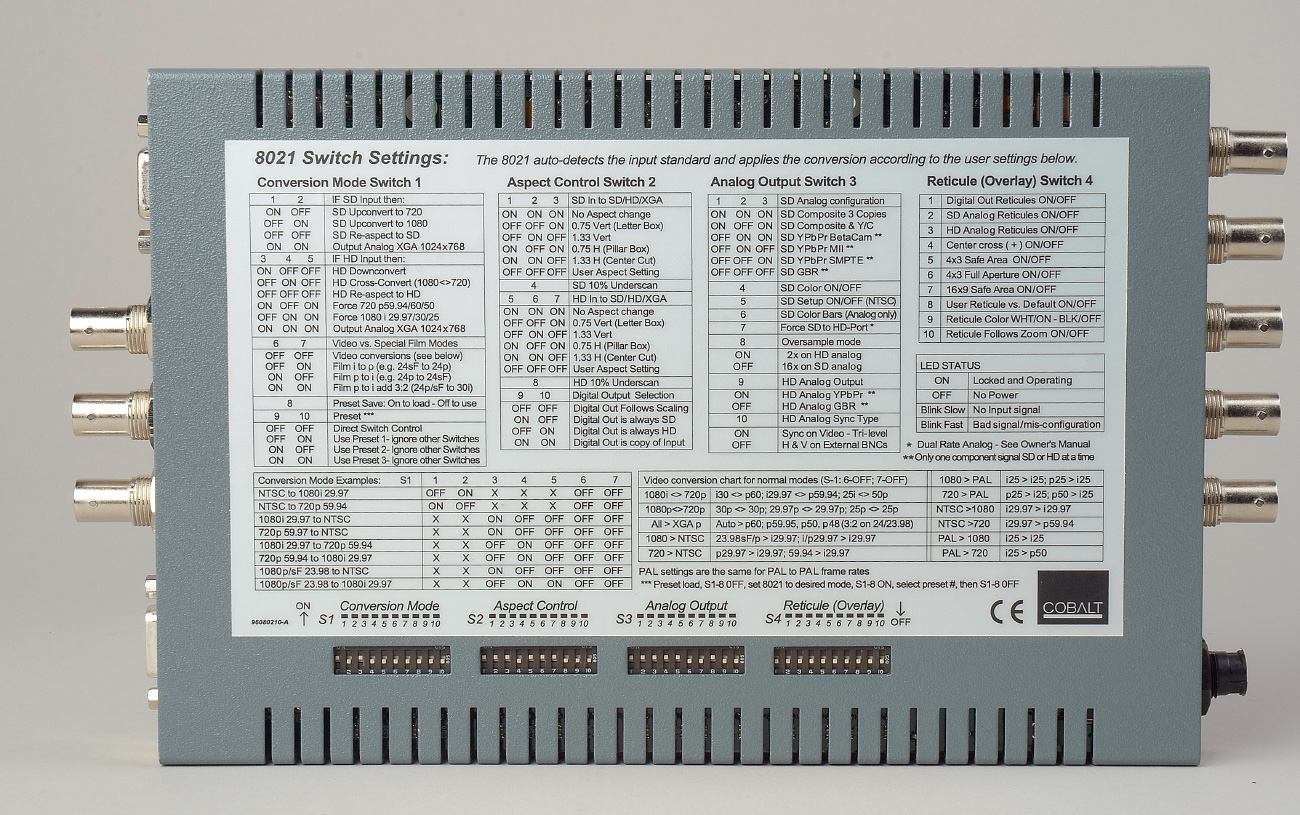

    • External configuration switches and remote port
    • Supports 16 channels of embedded audio in all conversion formats
    • Automatic audio delay tracking with user offset
    • Five year warranty

  • Specifications

    • Input: Dual rate HD-SDI SMPTE-292 and SD-SDI SMPTE-259M-C
    • Output:
    • Two reclocked dual rate HD/SD input copies
    • HD: YPbPr, RGB or XGA w/tri/bi or H&V sync
    • SD: composite, component and Y/C
    • Two up or down converted HD/SD outputs
    • Frequency Response: HD: Y:28MHz ± 0.25 dB, Pb/Pr:13 MHz +/- 0.25 dB
    • SD: 0-5.25 MHz ± 0.25 dB
    • Overlay Reticules: Four presets types: center cross, 4x3 safe area, 4x3 full aperature, and 16x9 safe area with userprogrammable size and thickness. Colors: black, white or user defined color.
    • Proc. Control: Digital control of gain, DC, saturation & hue with user values saved and factory presets
    • Power: 5-18 VDC @ 9 watts
    • Size: 10.3" x 5.9" x 1" (260.x150x25mm)
    • Requires Power Supply PS24
    • (PS24 Power Supply Included)
