Electro-Voice TX1122 12in 2-Way Passive Tour X Speaker System - EACH

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

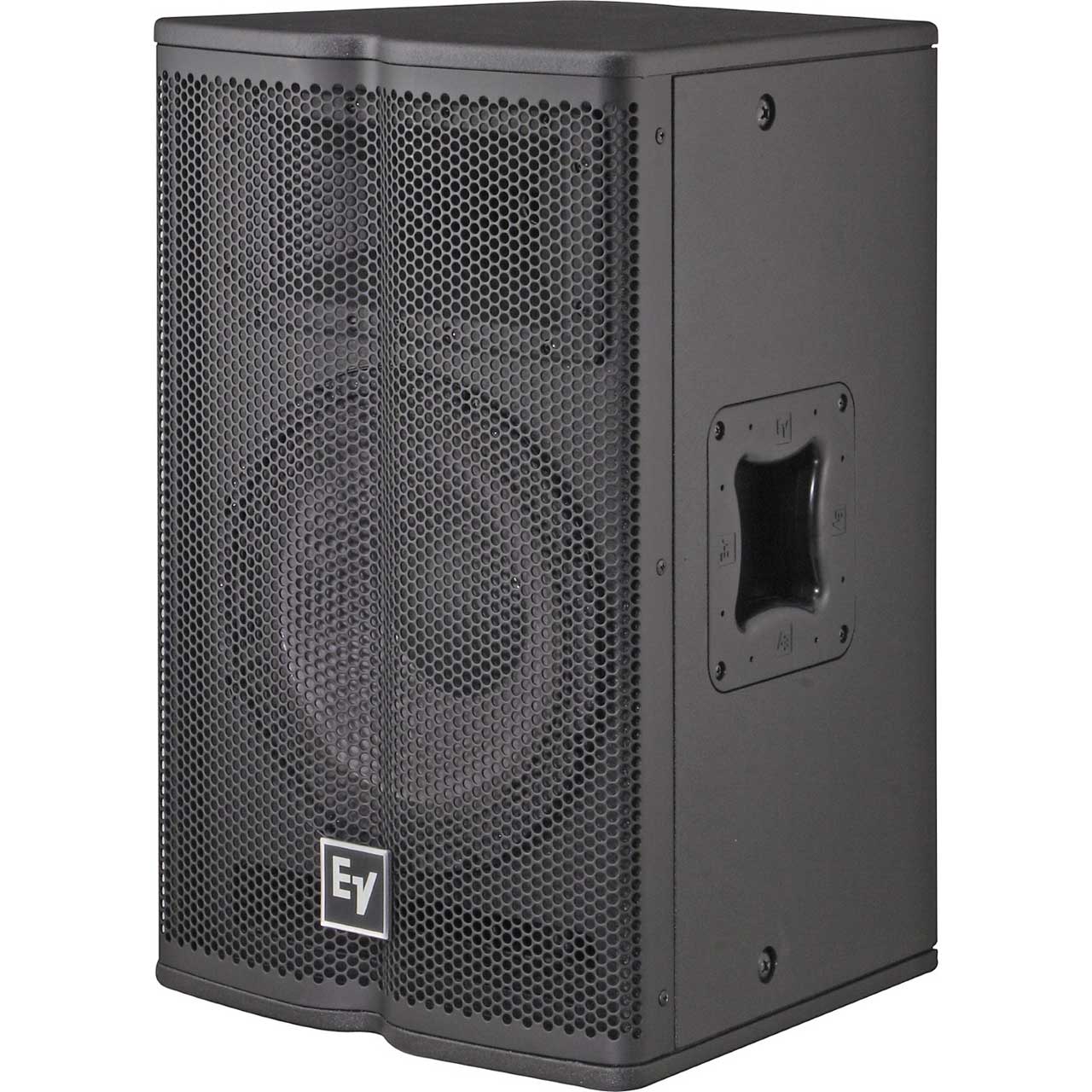

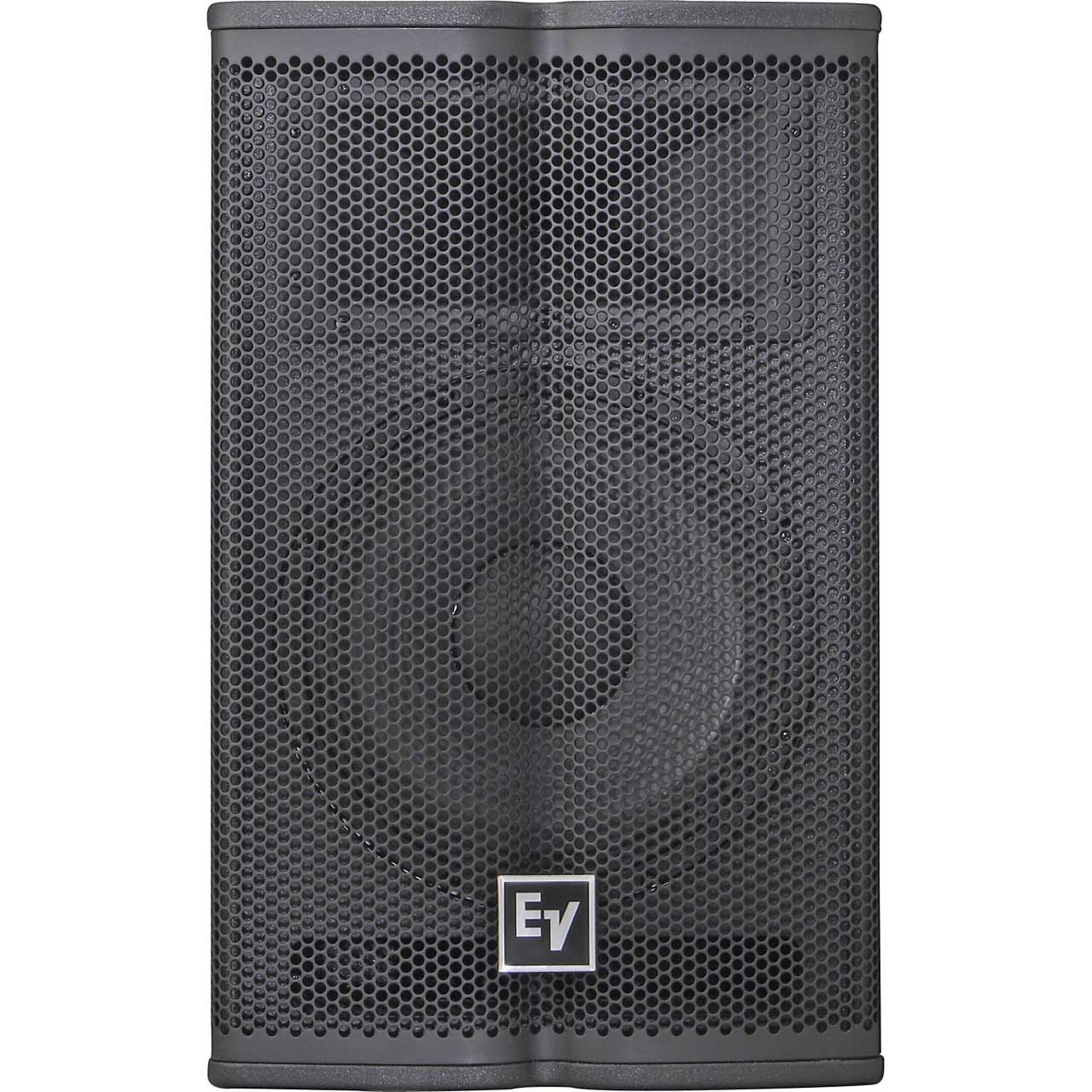

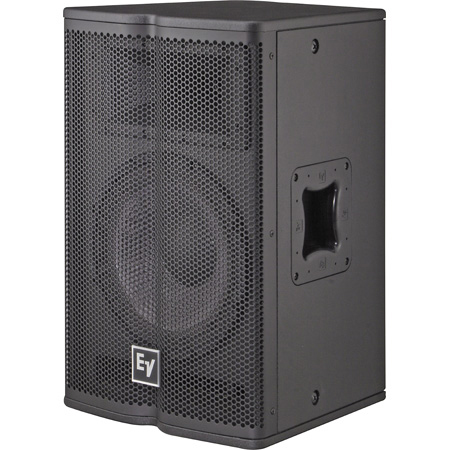

    Electro-Voice TX1122 12in 2-Way Passive Tour X Speaker System - EACH

    Manufacturer: Electro-Voice

    Item #: EV-TX1122   •   MFG #: EV-TX1122








    Versions:





    Share!

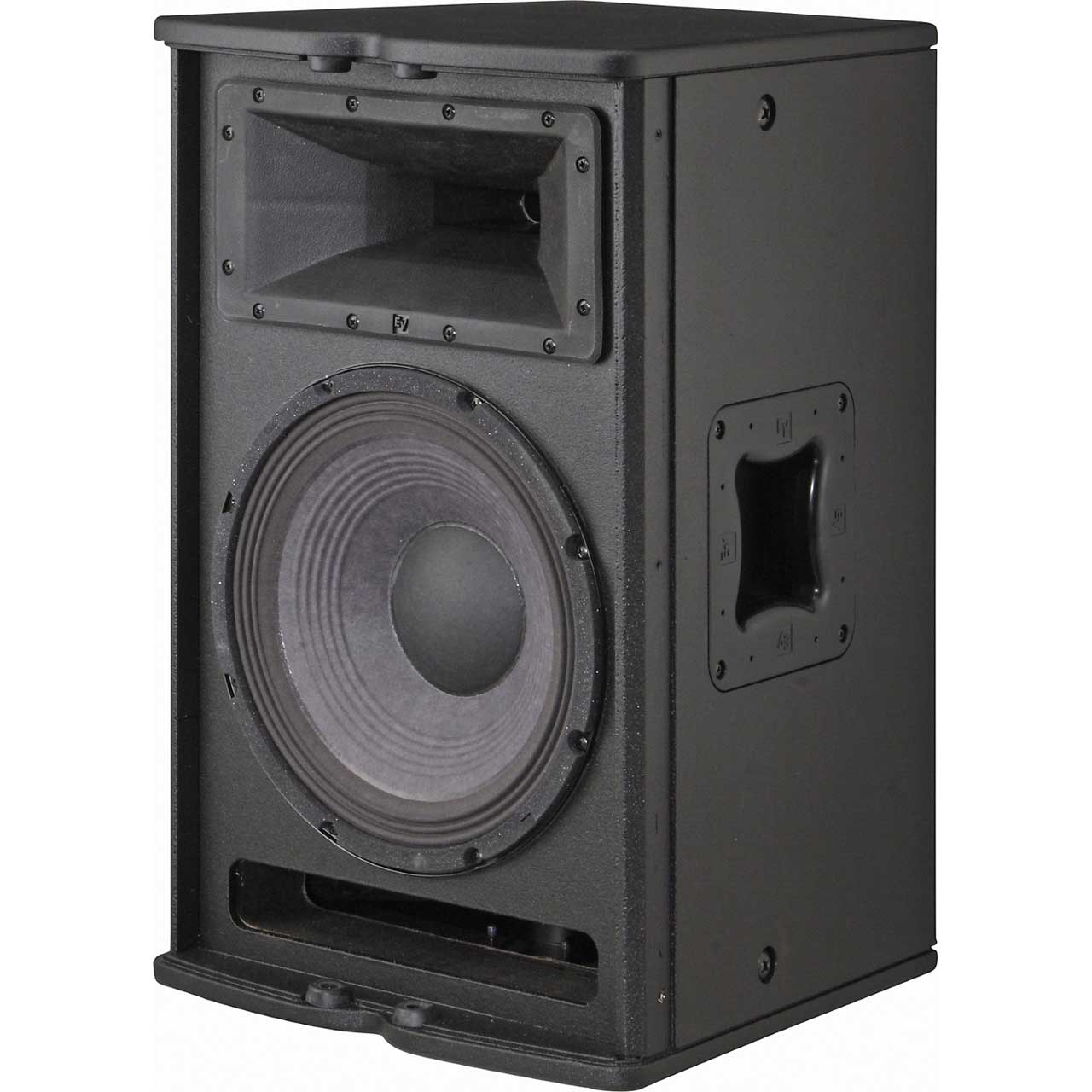

    The Electro-Voice TX1122 is truly designed to be the compact over achiever of the Tour X family. Employing the same space saving 90 degree x 50 degree horn as the FM models, and the incredibly low distortion SMX2120 12-inch woofer, the TX1122 will astound you with performance that blows away competitive 15-inch two-ways.

    The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1122 easy to transport and employ in a variety of applications.


    • Features

      • High-quality sound at high levels
      • Excellent pattern control for short-to-medium throw
      • Low-distortion SMX2120 woofer with fully symmetric drive
      • 1.25-inch DH3/2010A titanium HF compression driver
      • Constant-directivity 90§ H x 50§ V horn
      • Advanced 4th-order crossover with HF protection
      • 97 dB sensitivity, 130 dB maximum SPL
      • Power handling: 500 W continuous, 2000 W peak
      • Lightweight trapezoidal plywood/MDF enclosure
      • Pole mount for use with subwoofer or stand
      • Six 3/8-inch threaded suspension points
      • Black EVCoatT finish

    • Specifications

      • Freq. Response1 (-3 dB): 60 Hz - 20 kHz.
      • Freq. Range1 (-10 dB): 45 Hz - 20 kHz.
      • Rec. Hipass Frequency: 45 Hz.
      • Axial Sensitivity: 97 dB (1W/1m).
      • Max. Calculated SPL: 130 dB.
      • Horizontal Coverage: 90°.
      • Vertical Coverage: 50°.
      • Power Handling: 500W Continuous, 2000W Peak.
      • LF Transducer: SMX2120, 12 in (305mm) Driver.
      • HF Transducer: DH3, 1.25 in (32mm) Diaphragm Compression Driver.
      • Crossover Frequency: 1750 Hz.
      • Nominal Impedance: 8 Ohms.
      • Minimum Impedance: 5.4 Ohms.
      • Connectors: (2) Neutrik Speakon NL4's.
      • Enclosure Material: Plywood and MDF with EVCoatTM.
      • Grille: 16 GA Steel, Black Powdercoat, with Rotatable Logo.
      • Suspension: (6) 3/8" Threaded Points - (2) on Each Side and (2) on the Rear of Enclosure.
      • Dimensions (H x W x D): 24.3" x 15.0" x 15.0" (616mm x 382mm x 380mm).
      • Net Weight: 44.5 lbs (20.2 kg).
      • Shipping Weight: 50.0 lbs (22.7 kg).
