Innovox MLA-8-BLK Line Source Speaker - Eight 1 Inch Drivers - 12 Inch Line Length

ITEM #: MLA-8-BLK MFG #: MLA-8 BLK

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$430.00

Our Price:

$346.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MLA-8 BLK - Overview

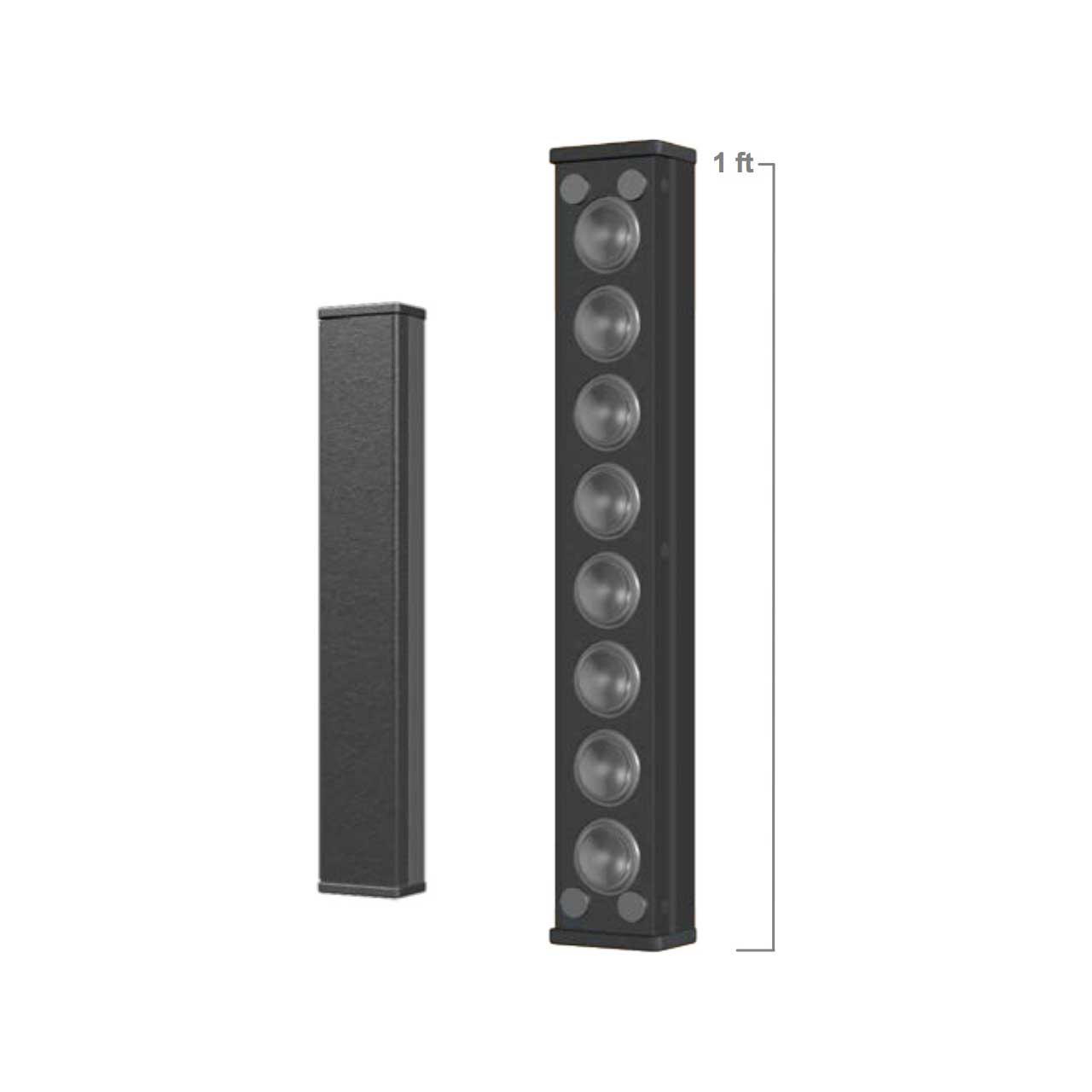

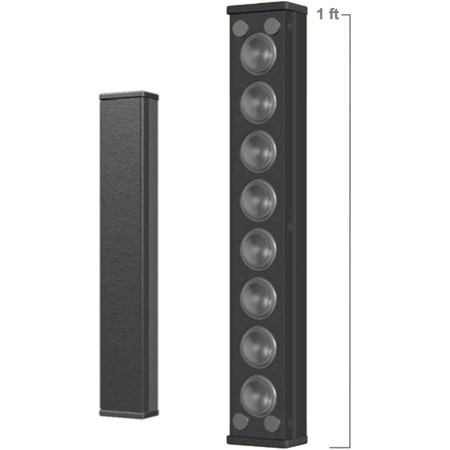

    The MLA-8 is an extremely slim line-source loudspeaker designed to present the absolute minimum visual profile (2" x 2" in cross section). The MLA-8 employs eight 1" full-range inverted dome drivers in a continuous line array configuration. It is frequently used in a vertical orientation for delayed room fill applications. When oriented horizontally it can provide the wide vertical and narrow horizontal dispersion that is ideal for retail point of sale and museum displays.

    • Features:

      • Ultra-slim profile (only 2" by 2" in cross section)
      • 140° H x 20° V coverage
      • Optimized for speech

    • Specifications:

      • Frequency Response: 200 - 12,000 Hz ± 3 dB
      • Sensitivity: 84 dB @ 2.83 volts / 1M
      • Impedance: 16 Ω (4Ω available)
      • Power Handling: 20 W long term (AES-2)
      • Maximum Output: 99 dB long term; 103 dB peak
      • Nominal Coverage Angles: 140° H x20° V
      • Height: 12.38" / 314 mm
      • Width: 2.00" / 51 mm
      • Depth: 2.06" / 52 mm
      • Net Weight: 4.5 lbs / 2.0 kg
      • Shipping Weight: 5.0 lbs / 2.3 kg
      • System Configuration: Ultra-slim continuous line array
      • Components & Loading: (8) 1 " full-range inverted dome drivers
      • Recommended High-Pass Filter: 24 dB / octave @ 200 Hz
      • Enclosure Type: Sealed enclosure
      • Enclosure Material: Steel, aluminum, with composite endcaps
      • Finish: Black or White
      • Connectors: Dual binding-head screws
      • Suspension Hardware: (4) #8-32 threaded points on back; (2) 1/4-20 threaded points on endcaps (2 slotted L-brackets provided)
      • Grille: Perforated steel


    MLA-8 BLK - Required Accessories
