Electro-Voice TX1181 18-inch Direct Radiator Subwoofer - EACH
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

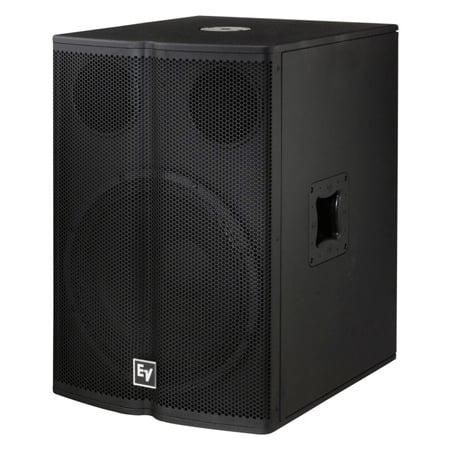

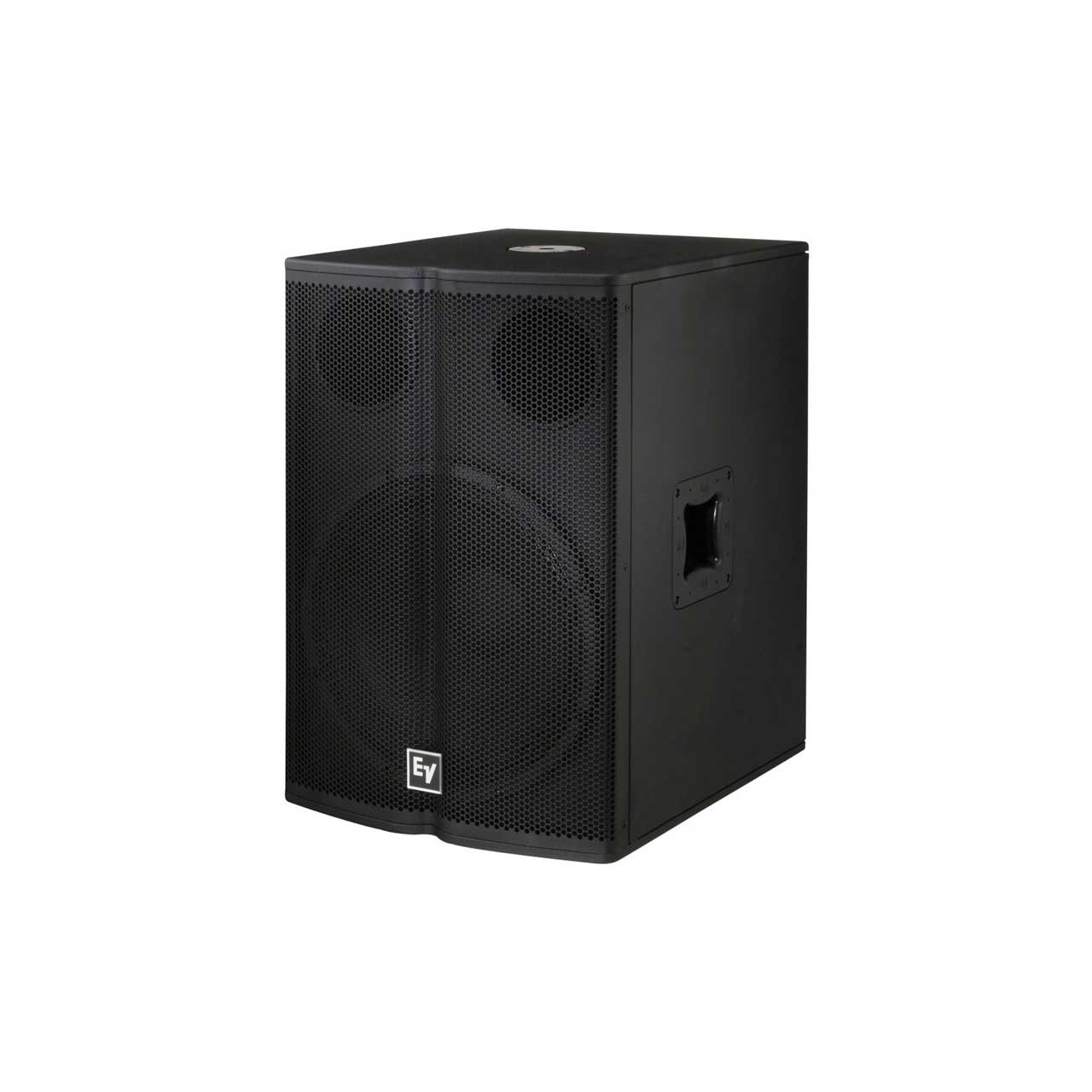

    Electro-Voice TX1181 18-inch Direct Radiator Subwoofer - EACH

    Manufacturer: Electro-Voice

    Item #: EV-TX1181   •   MFG #: TX1181


    List Price:$887.00
    Our Price:$849.00

    no free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Drop-shipped (normal delivery time 2-7 business days) shipping truck freight. (Sales tax may apply)



    The TX1181 is the perfect companion sub to the TX1122 and TX1152 when compact and portable performance is required. Utilizing the proven EVS18S woofer, the TX1181 effortlessly provides the low frequency energy needed to keep up with Tour X top boxes, as well as many other EV loudspeaker products. The integrated low-pass input filter allows for "single amp drive", and the high sensitivity and excellent power handling don't require an enormous, expensive amplifier to generate high SPL.

    The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, and integrated screw-in style pole mount make the TX1181 easy to transport and employ in a variety of applications.

    • Features

      • EVS-18S 18" (457mm) LF Transducer
      • 100 dB Sensitivity, 132 dB Maximum SPL
      • Integrated Low Pass Filter with 6 dB/Octave Slope
      • 500W Continuous (2000W Peak) Power Handling
      • Pole Mount to Elevate a Two-Way Loudspeaker
      • Mounting Points to Attach Optional Wheel Kit
    • Specifications

      • Freq. Response1 (-3 dB): 50 Hz - 160 Hz.
      • Freq. Range1 (-10 dB): 45 Hz - 700 Hz.
      • Rec. Hipass Frequency: 30 Hz.
      • Axial Sensitivity1: 100 dB (1W/1m).
      • Max. Calculated SPL1: 132 dB.
      • Horizontal Coverage: Omnidirectional.
      • Vertical Coverage: Omnidirectional.
      • Power Handling: 500W Continuous, 2000W Peak.
      • LF Transducer: EVS-18S, 18 in (457mm) Driver.
      • Nominal Impedance: 8 Ohms.
      • Minimum Impedance: 7.5 Ohms.
      • Connectors: (2) Neutrik Speakon NL4's.
      • Enclosure Material: Plywood and MDF with EVCoatTM.
      • Grille: 16 GA Steel, Black Powdercoat, with Rotatable Logo.
      • Dimensions (H x W x D): 30.3" x 20.0" x 23.3" (769mm x 508mm x 591mm).
      • Net Weight: 74.5 lbs (33.8 kg).
      • Shipping Weight: 88.0 lbs (40.0 kg).
