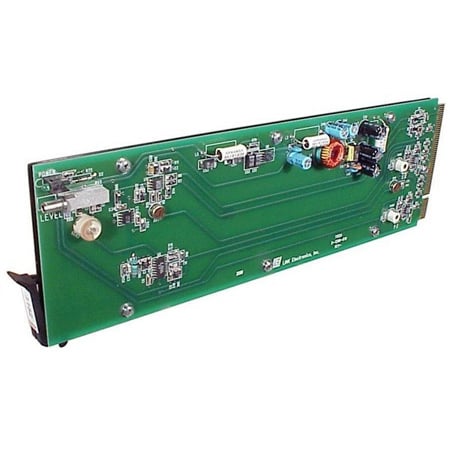

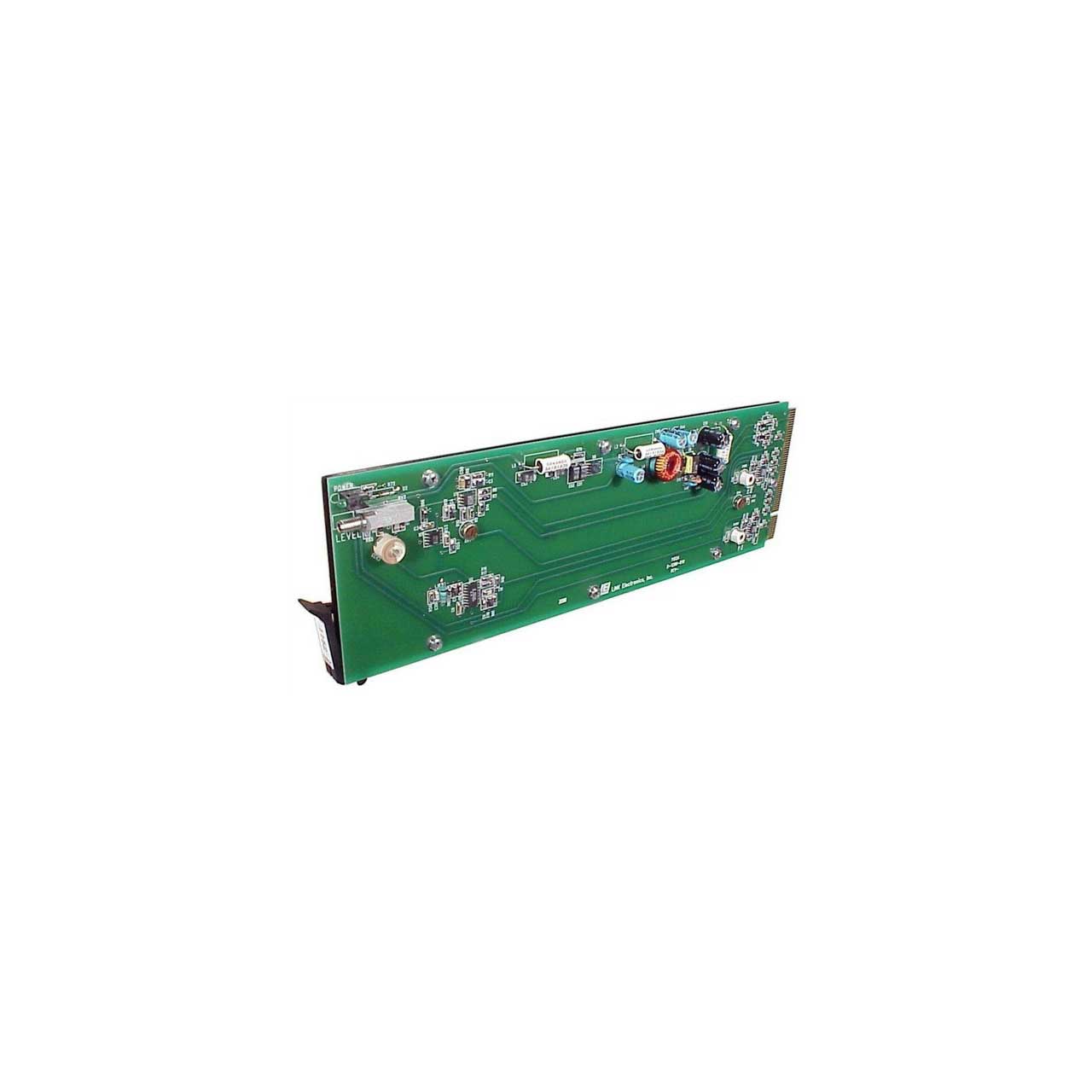

The DigiFlex 1152 Video DA represents the state of the art in analog video distribution. The 1152 provides high-performance video distribution in the LINK DigiFlex 1000 Frame. The advantage is obvious: both analog and digital distribution amplifiers can operate side-by-side in a single frame!
Utilizing the latest CMF Op-Amp technology, the 1152 combines wide bandwidth, low noise, and low power consumption. The video path is truly transparent, with differential phase and gain errors of <0.1° and <0.1%, respectively. Video signal-to-noise ratio exceeds 65dB. DC-coupled differential input is a standard feature, providing high common-mode rejection. Eight outputs are available on the companion rear cell, model 1011. The front panel gain control adjusts the level to ±3dB.
The attention to detail in the design of the 1152 extends to the power supply, which features a simple switching regulator. While slightly more complex than a linear supply, this offers the highest possible efficiency. Backed by a ten-year warranty including parts and labor. The 1152 will provide years of trouble-free service.
