Burst MCG-2Y/C Micro Character Generator for SVHS
  • Burst MCG-2 Micro Character Generator
  • Burst MCG-2 Micro Character Generator
  • Burst MCG-2 Micro Character Generator
Questions? Ask a Markertek Expert:
800-522-2025 Email

Burst MCG-2Y/C Micro Character Generator for SVHS

Manufacturer: Burst Electronics Inc

Item #: MCG-2S   •   MFG #: MCG-2S







Real Time Clock Option Composite and S-Video Versions

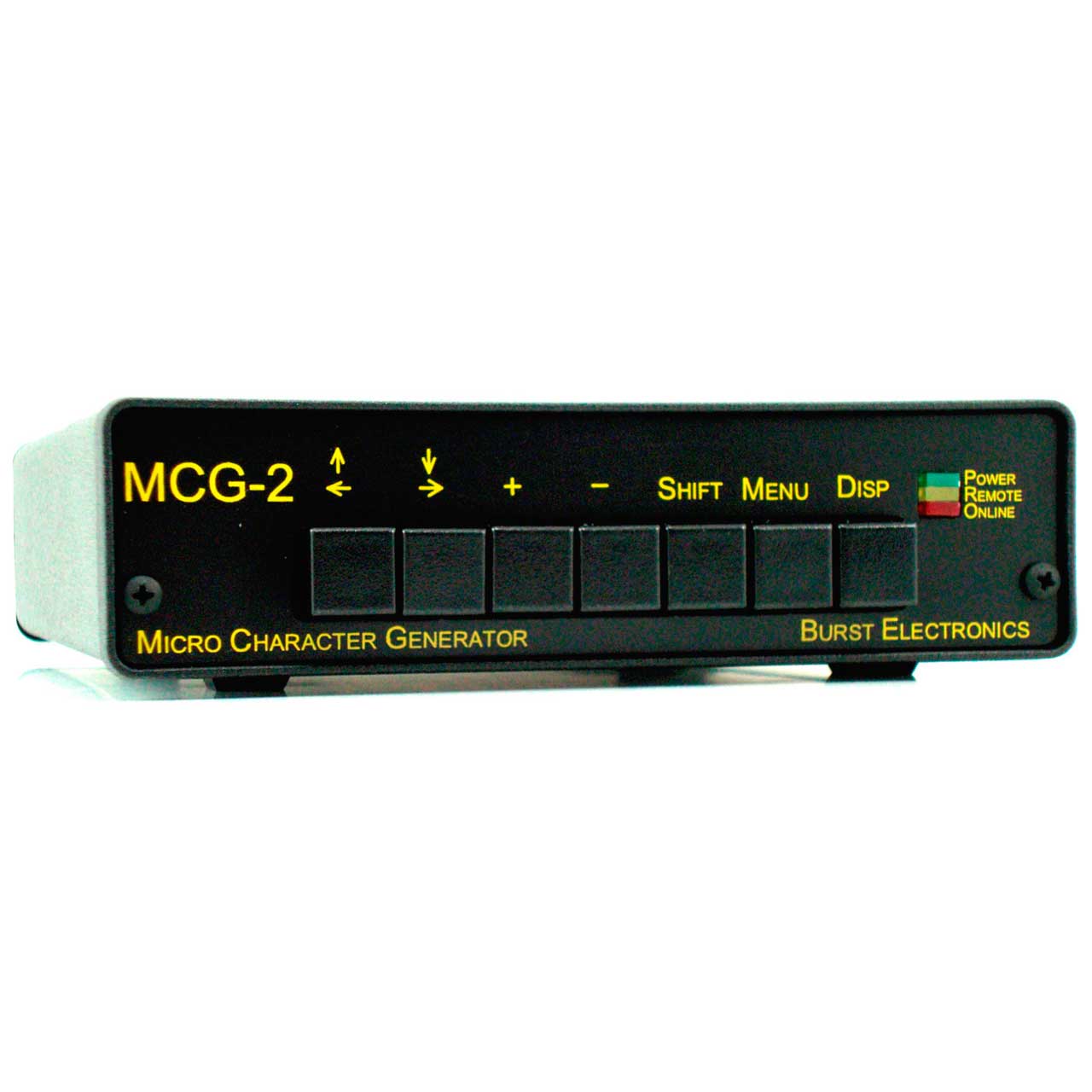

The Burst Electronics MCG-2 Micro Character Generator is a genlockable unit that accepts a standard NTSC (or PAL) video signal and overlays basic black and white characters with a selectable black and white background. Character and background intensity are independently adjustable from white through black. A video input is required for operation.

Maximum number of characters displayable at one time is 180 (20 characters by 9 lines). There are 16 character sizes (4 character heights and 4 character widths) allowing page by page text emphasis control.

Display pages can be highlighted by the use of an adjustable background, and individual characters may also be set to blink for an additional effect. Built-in Menus, Help Screens and Self-test all add to ease of use.

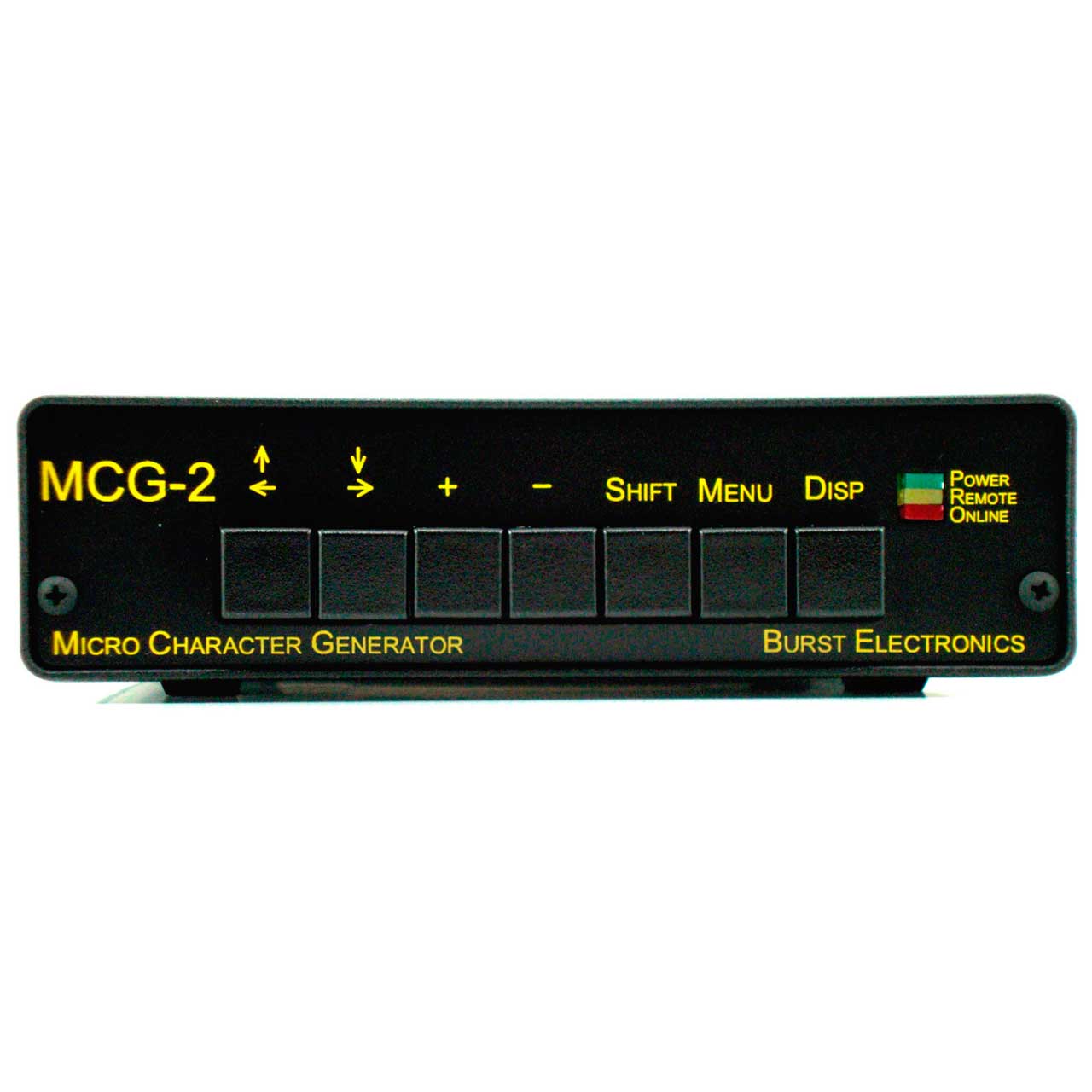

Text input is performed with front panel push buttons in a "letter up/letter down" and "cursor left/cursor right" fashion. Up to 10 pages of text can be stored and recalled from battery backed memory. An RS232 interface for connection to a PC is standard. Text can be downloaded from a PC.

A Real Time Clock Option is available that allows Time of Day and Date information to be overlayed on video. The RTC is battery backed. The RTC can be programmed by the front panel or via the RS232 link for additional flexibility.

Applications include Source ID, Bulletin Board Displays, Subtitling, Message Screens, Time Keeping and Clock Display Applications.

  • Features

    • Overlays Text on Video
      Front Panel Programmable or via RS232 Computer Link
      Up to 32 MCG-2 on one RS232 bus
      Genlocks to either NTSC and PAL automatically
      Character/Background Brightness Adjustable
      Four Character Heights and Four Character Widths
      A-Z, 0-9 and Punctuation Marks Character Set
      Built in Menus, Help Screens and Self-test
      Real Time Clock (RTC) option

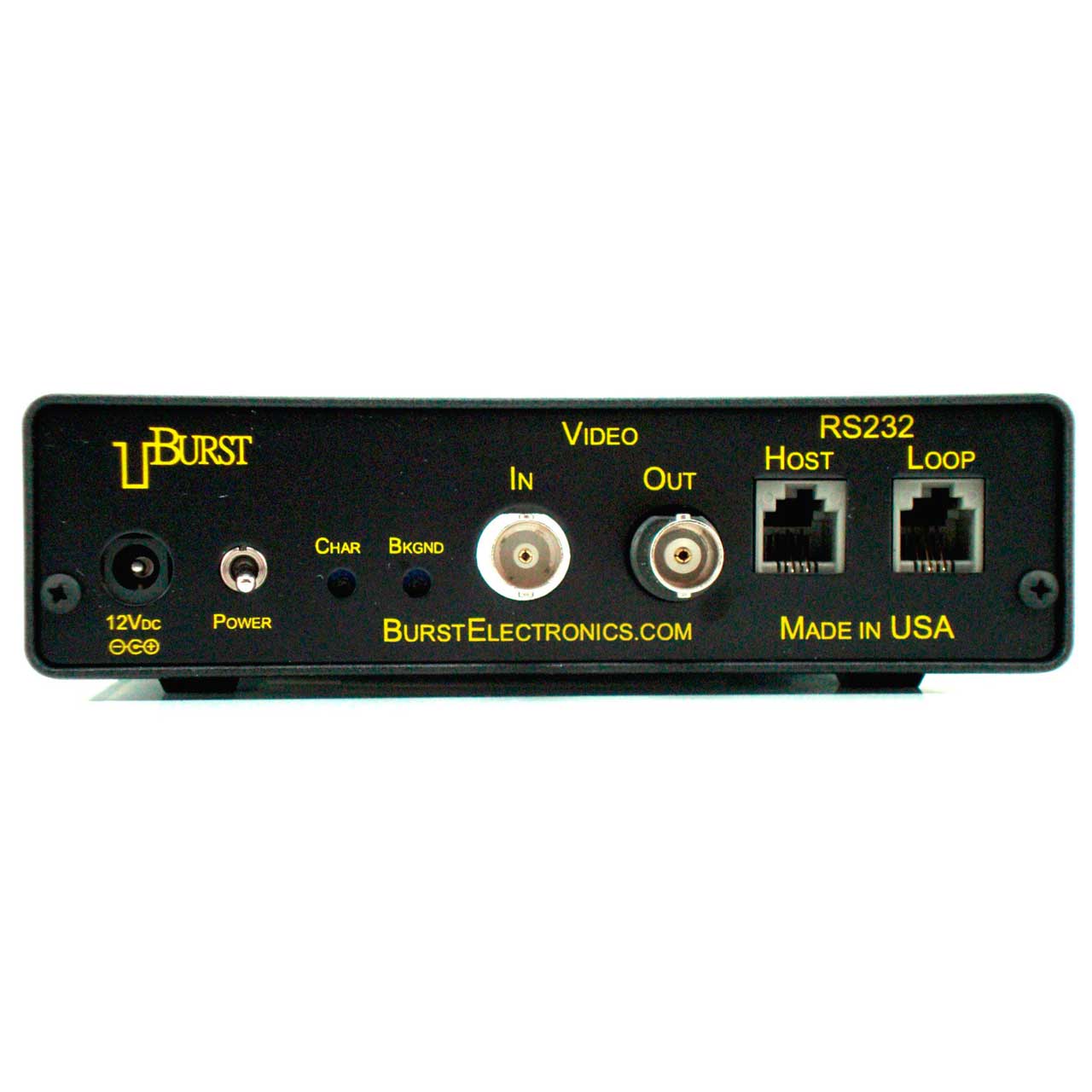

      Remote Control via RS232 (RJ11 Connector)
      BNC Video Connectors, 4 Pin MiniDIN on S-Video
      Ten Pages of Text Storage in Memory
      Lithium Battery Backup (10 Year Life)
      Can be powered from external 12Vdc, for Field use
      Compact Size in a Rugged Aluminum and Steel Enclosure
      One Year Warranty, Made in USA
