Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging
  • Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging
  • Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging
  • Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging
  • Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging

Questions? Ask a Markertek Expert:
800-522-2025 Email

Chyron ChyTV Plus II Dynamic Video Graphics Character & Logo Generator w/ Ethernet Port For Digital Signage & Messaging

Manufacturer: ChyTV

Item #: CHYTV-PLUS-II   •   MFG #: CHYTV-PLUS-II



List Price:$2,495.00
Our Price:$2,465.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

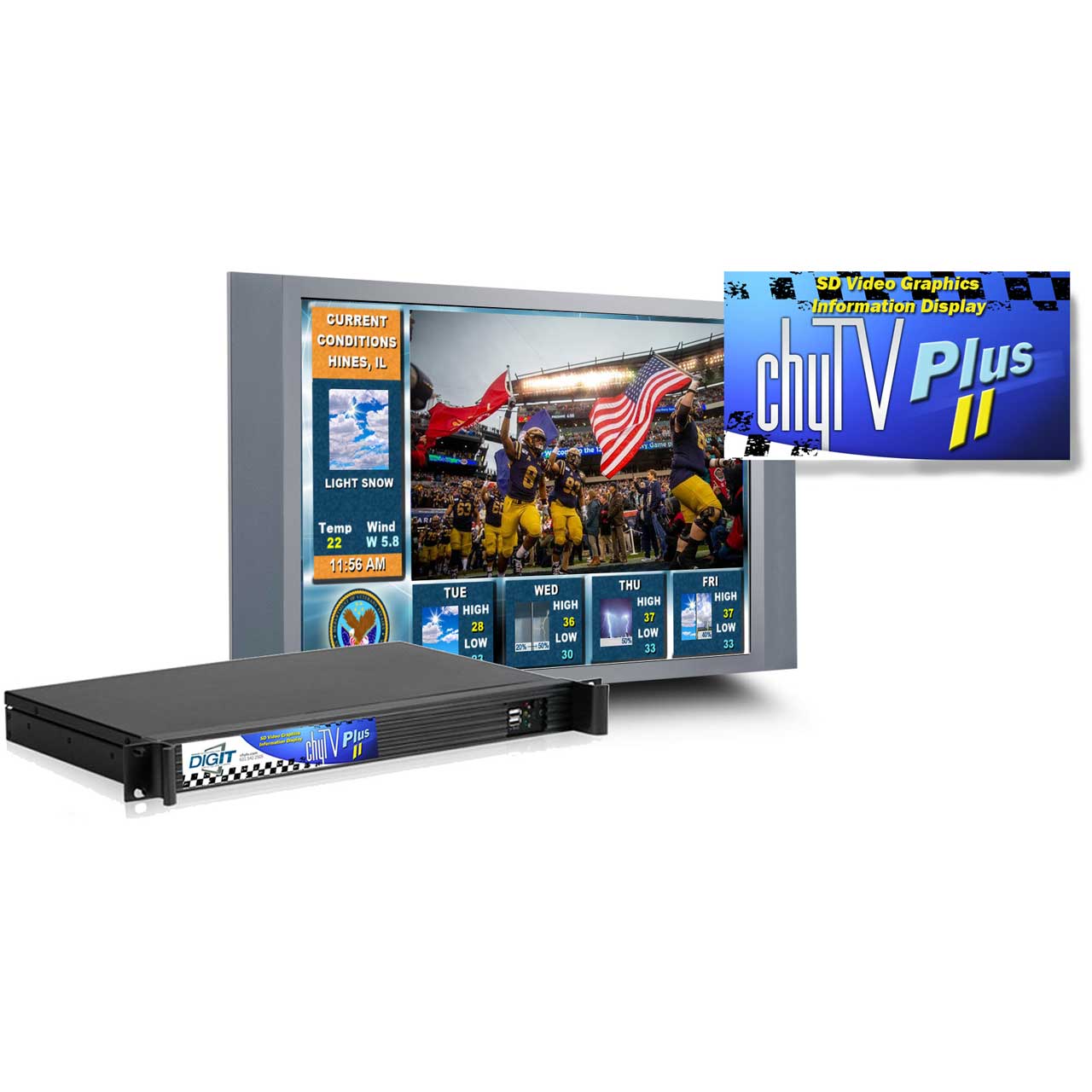

    The ChyTV Plus II is a unique product combining graphics and text with live standard definition NTSC and PAL video both in overlay or squeeze-back modes.

    As standard definition products are vanishing, the ChyTV Plus II carries on the ability to combine live SD video in composite or component formats both In and Out within a true SD video infrastructure. Still commonly in use in many public, education, government (PEG) and military installations, SD continues to be an important format to professionally support.

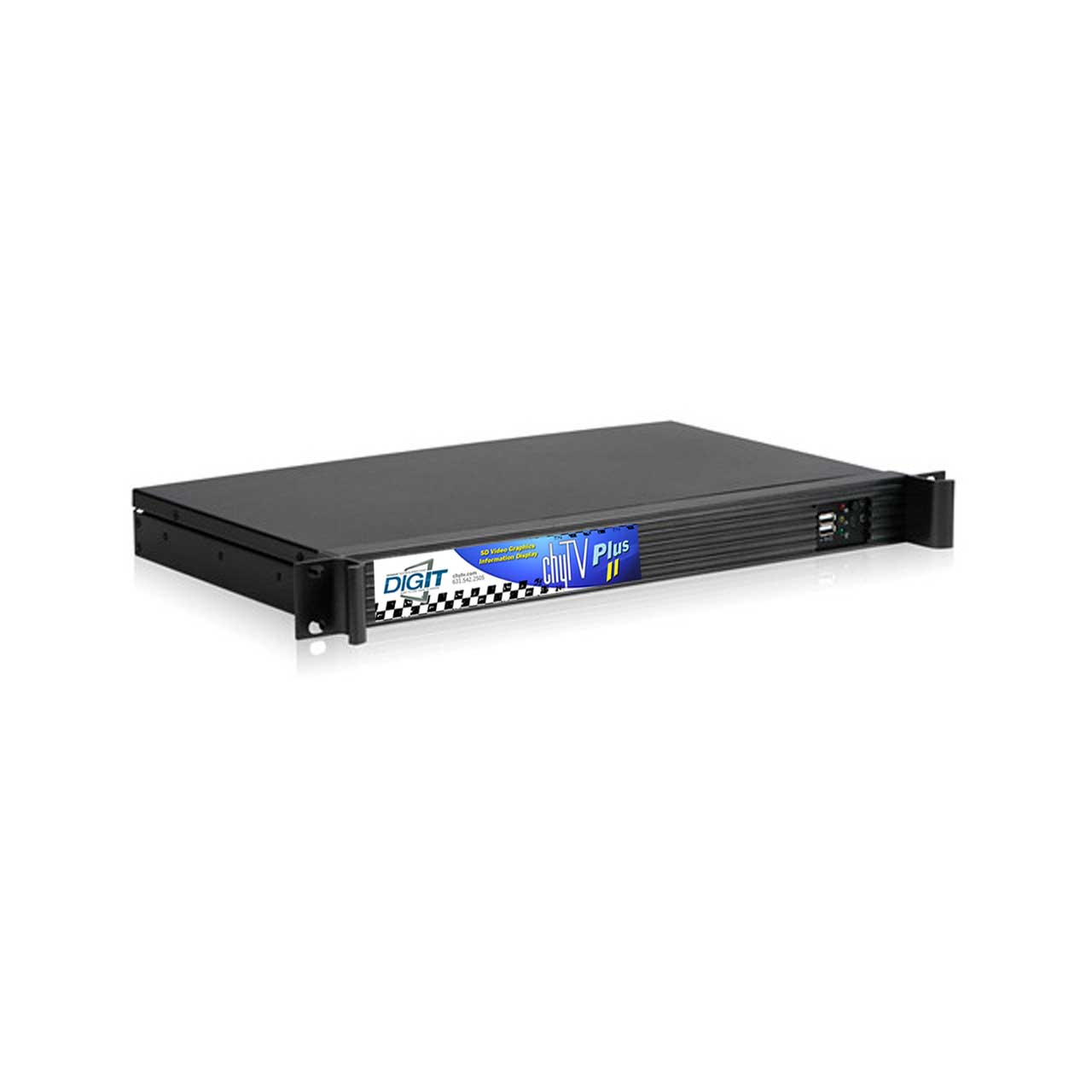

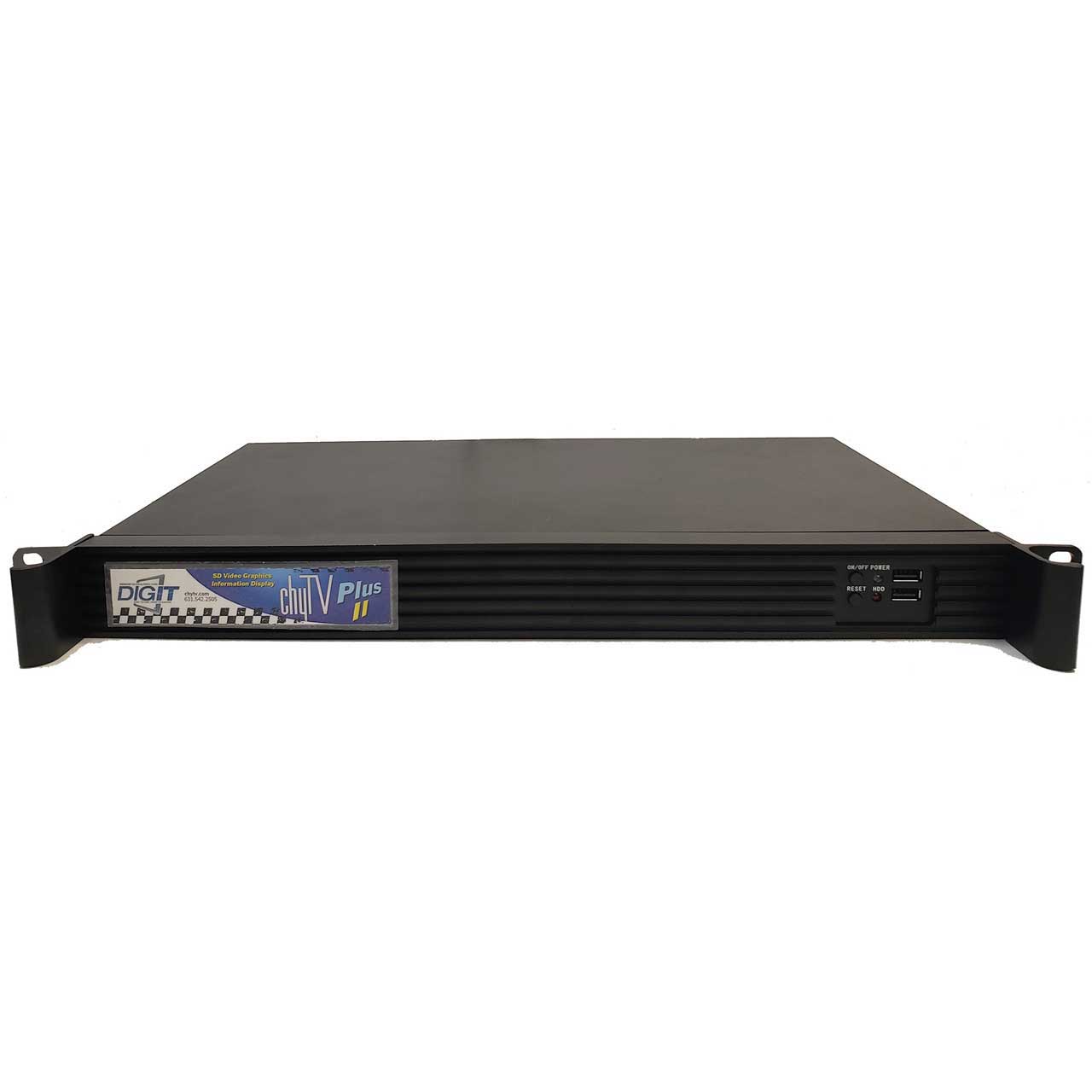

    ChyTV Plus II provides the same basic functionality as the legendary ChyTV Plus that now includes close capturing of live video input, internal video clip playout, HDMI preview output with added Internal operating system security with hardening measures to prevent unwanted external intrusions or hacking. The ChyTV -Plus II system is Built inside a Standard 1 R/U chassis including mounting bracket and video break out cable.


    • Features

      • Live SD Input, both windowed or full-screen overlaid. Component, YUV, S-Video and Composite
      • Same features as the legendary ChyTV Plus and more
      • Layered page elements include live video, clips, text, graphics and backgrounds
      • Full-screen clips as animated backgrounds overlaid with dynamic text and graphics.
      • Dynamic real-time Text and Graphics
      • Squeeze and position live video and clip player windows, including dynamic transitions
      • Dynamic broadcast quality effects such as text pushes, fades and crawls
      • Animated Text, Graphics and Logos using GIF, TGA, MPEG and more
      • Multiple text and graphic zones may be independently sized and positioned
      • Page scheduling, including looping durations or specific day, date and time control
      • External data interfaces for realtime data updates such as news, sports, stock and weather
      • Interfaces with a variety of peripheral devices including RFID, touch screen, contact closure switches, serial control and more.

    • Specifications

      • Dimensions (HxWxD): 19 x 11 x 1.75" (48 x 28 x 4cm)
      • Packaged Weight: 10 LBS

        Power Supply
      • Output Power: 270W
      • AC Input 90V to 264V Full Range 47Hz ~ 63Hz
      • Complied with Flex ATX and ATX12V Standard
      • Active Power Factor Correction (PFC) Meet EN61000-3-2
      • Compatible with European Union Directive 2002/95/EC (RoHS)
      • 80 Plus High Efficiency
      • Low Noise and Ripple
      • Thermal Fan Speed Control Function
      • Output Over Voltage, Short Circuit, and Over Current Protection

        Video Inputs:
      • Analog YUV Component, S-Video and Composite
      • HDMI

        Analog Video Outputs:
      • Analog YUV Component, S-Video and Composite
      • HDMI

        Audio Inputs:
      • Analog Left and Right

        Audio Outputs:
      • Analog Left and Right
      • Digital AES / SPDIF

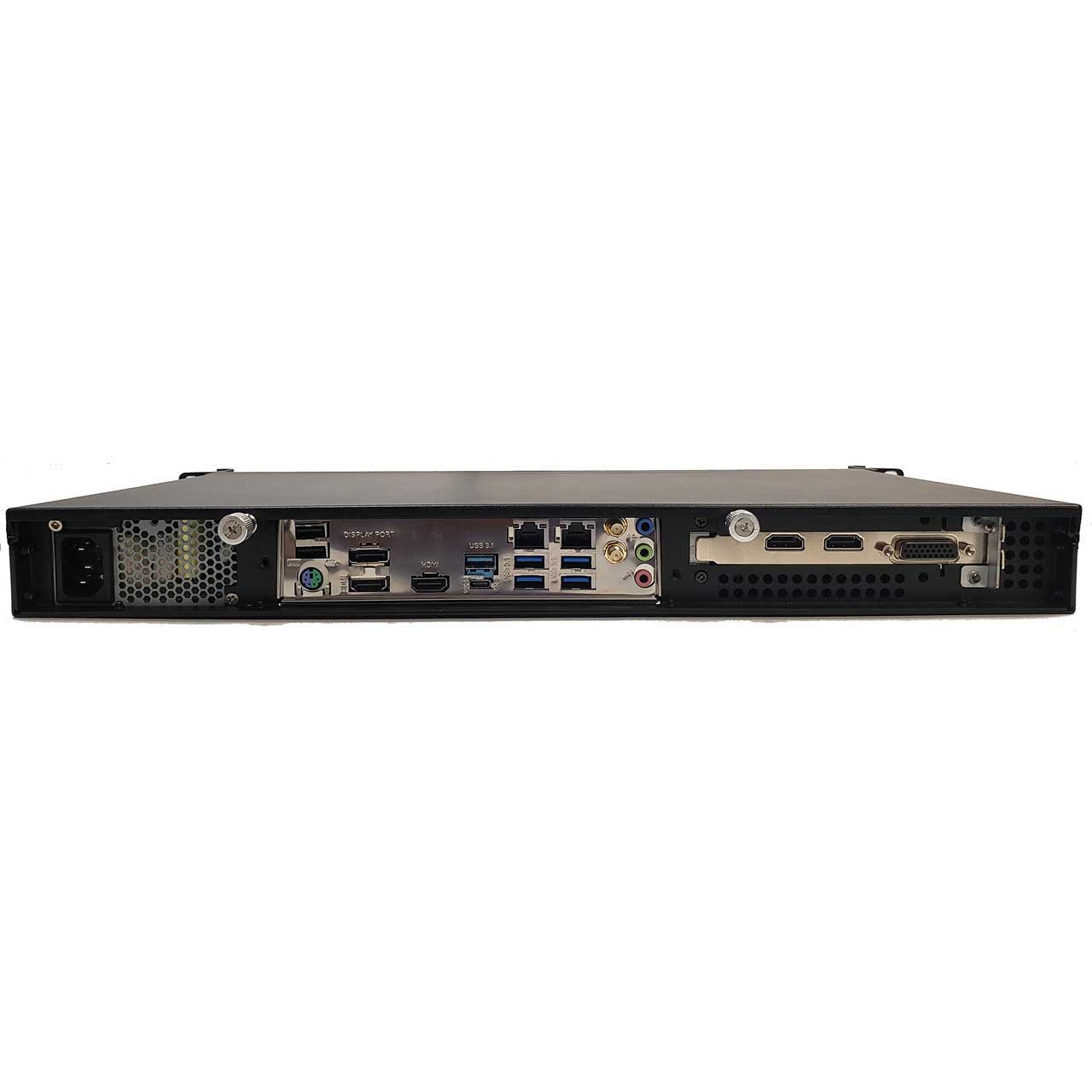

        Additional Connections:
      • HDMI: 1 x HDMI
      • RJ45: 1 x RJ45
      • USB 3.1 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
      • USB 1.1/2.0 2 x USB 2.0
      • Audio Ports: 3 Ports
