    OMX-04SISI0001 - Overview

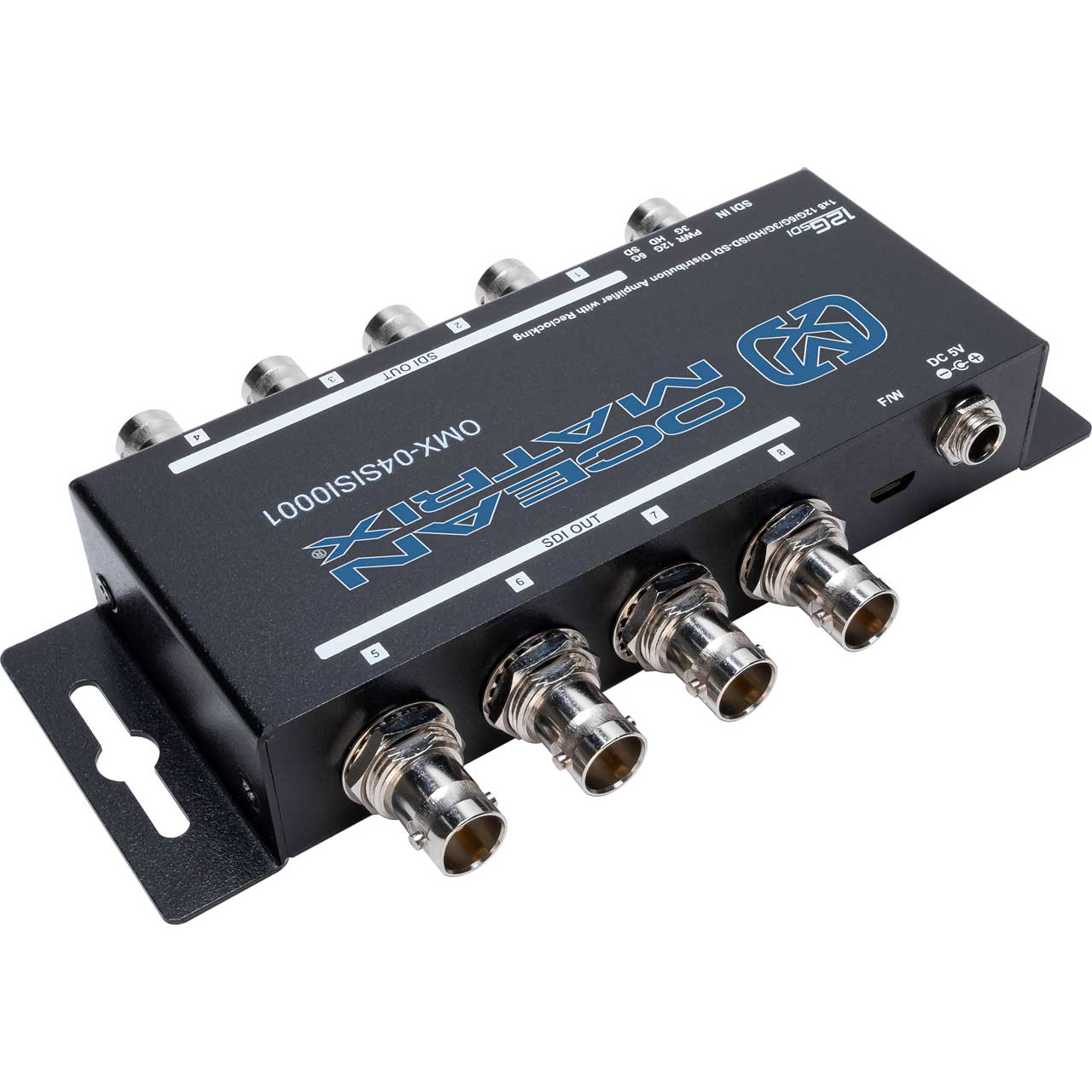

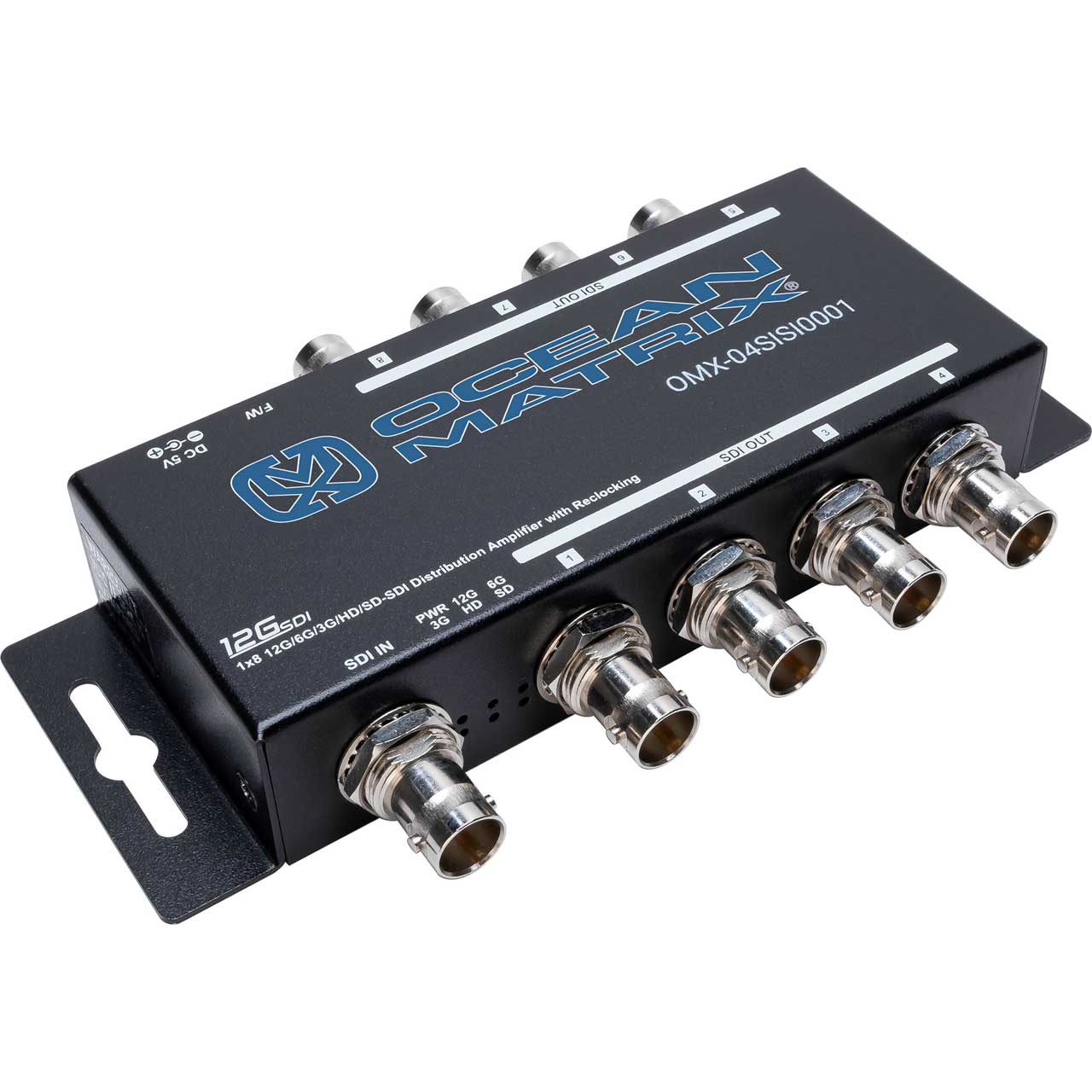

    The Ocean Matrix 04SISI0001 is a low cost, stand-alone 1x8 distribution amplifier for signals from 12G-SDI to SDI. Input any signal, whether it's SDI, 3G-SDI or even 12G-SDI, and split it into 8 pristine reclocked outputs to devices across your facility.

    The Ocean Matrix 04SISI0001 utilizes automatic input cable equalization allowing it to drive 12G-SDI signals up to 200 feet and 3G-SDI signals to 594 feet when utilizing Belden 4694R and equivalent broadcast grade RG6 cable. It Passes ancillary data as well as embedded audio and also features a locking power supply.

    This unit supports the latest SMPTE standards from SMPTE 2082 down to SMPTE 259M as well as DVB-ASI protocols at 270Mbps. A road tough full metal enclosure ensures high quality performance in all outside broadcast and studio facility applications.

    • Features:

      • 12G/6G/3G/HD/SD-SDI Distribution
      • Eight Separately Buffered and Re-Clocked Outputs
      • Cable Equalization and Signal Retiming
      • LED Indication of Signal Lock and Video Rate
      • Passes Ancillary Data and Embedded Audio
      • Provides Automatic Input Cable Equalization up to 180m (594ft) @3G, 100m (330ft) @6G and 70m (230ft) @12G
      • Re-Clocks SDI Signals for Cascading and Longer Transmission

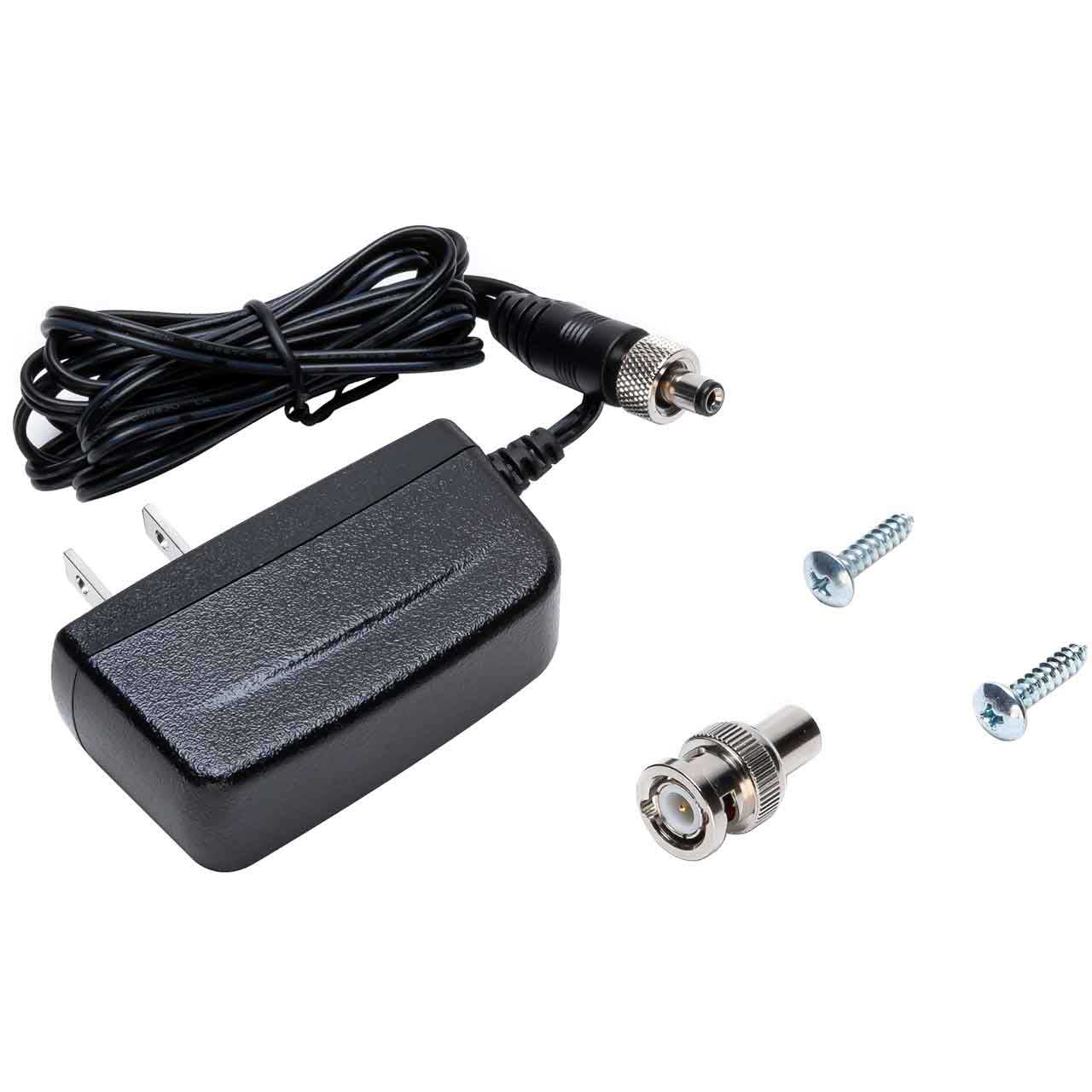

      • Locking Power Supply


    • Specifications:

      • HDMI Compliance: 2.0
      • SDI Formats: SMPTE 2082; 11.88 Gbps/12G-SDI?2160p at 50/59.95/60 Hz | SMPTE 2081; 5.94 Gbps/6G-SDI?2160p at 25/29.97/30 Hz | SMPTE 424M; 2.97 Gbps/3G-SDI 1080p at 50/59.94/60 Hz (4:2:2) | SMPTE 274M; 1.485 Gbps/HD-SDI?1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz | SMPTE 296M; 1.485 Gbps/HD-SDI?720p at 23.98/24/25/29.97/30/50/59.94/60 Hz | SMPTE 292M; 1.485 Gbps/HD-SDI?1080i at 30 Hz, 720p at 60 Hz | SMPTE 259M; 270 Mbps/SD-SDI?NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
      • HDMI Formats: 4K UHD Video Standards/2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz | UHD Video Standards/1080p at 50/59.94/60 Hz (4:2:2) | HD Video Standards/720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz | SD Video Standards/NTSC at 59.94 Hz, PAL at 50 Hz
      • SDI Bitrate: 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps
      • Video Sampling: 4:2:2
      • Audio Sampling: 48 kHz & 24 bit
      • Auto Switching: Auto switching between SD/HD/3G/6G/12G-SDI
      • Cable Reach: [12G-SDI] up to 60m (200ft) | [6G-SDI] up to 75m (250) | [3G-SDI] up to 90m (300ft) | [HD-SDI] up to 150m (500ft) | [SD-SDI] up to 300m (1000ft)
      • Eye-pattern Measurements: Amplitude: within 800mV | Raise & Fall Time: <45ps> | Timing jitter?<8> | Alignment jitter?<0.3 (100KHz to 1188MHz)
      • ESD Protection: 8 KV-Contact Discharge | 15KV-Air Discharge
      • Power Supply: 5V DV, 1A
      • Power Consumption: 3.5W (Max)
      • Operating Humidity: 20-90% RH (no condensation)
      • Operating Temperature: 32°F-104°F (0°C-40°C)
      • Weight: 0.4lbs (198g)
      • Certifications: CE, FCC, RoHS
