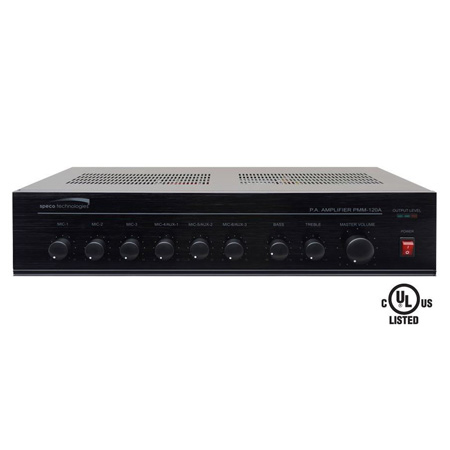

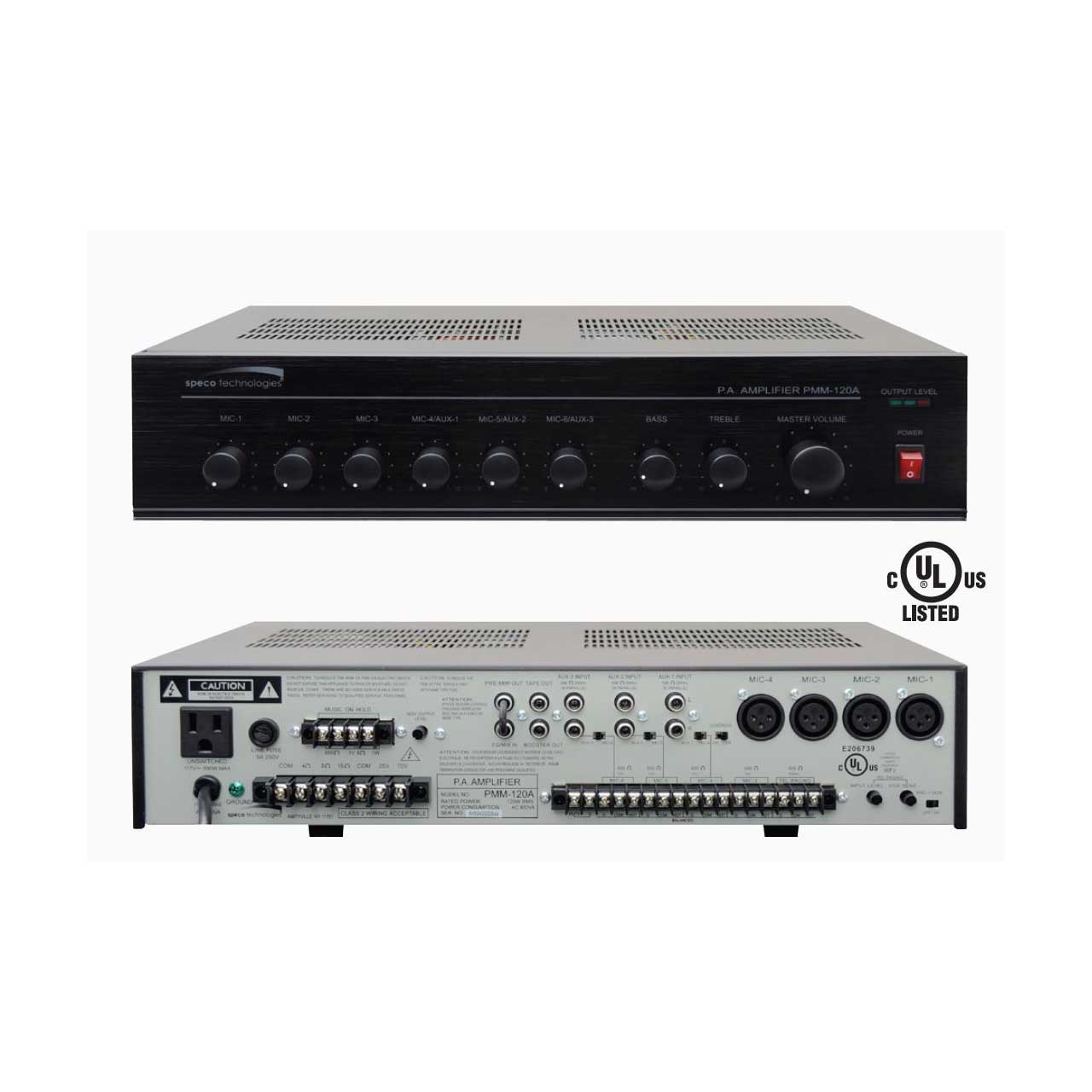

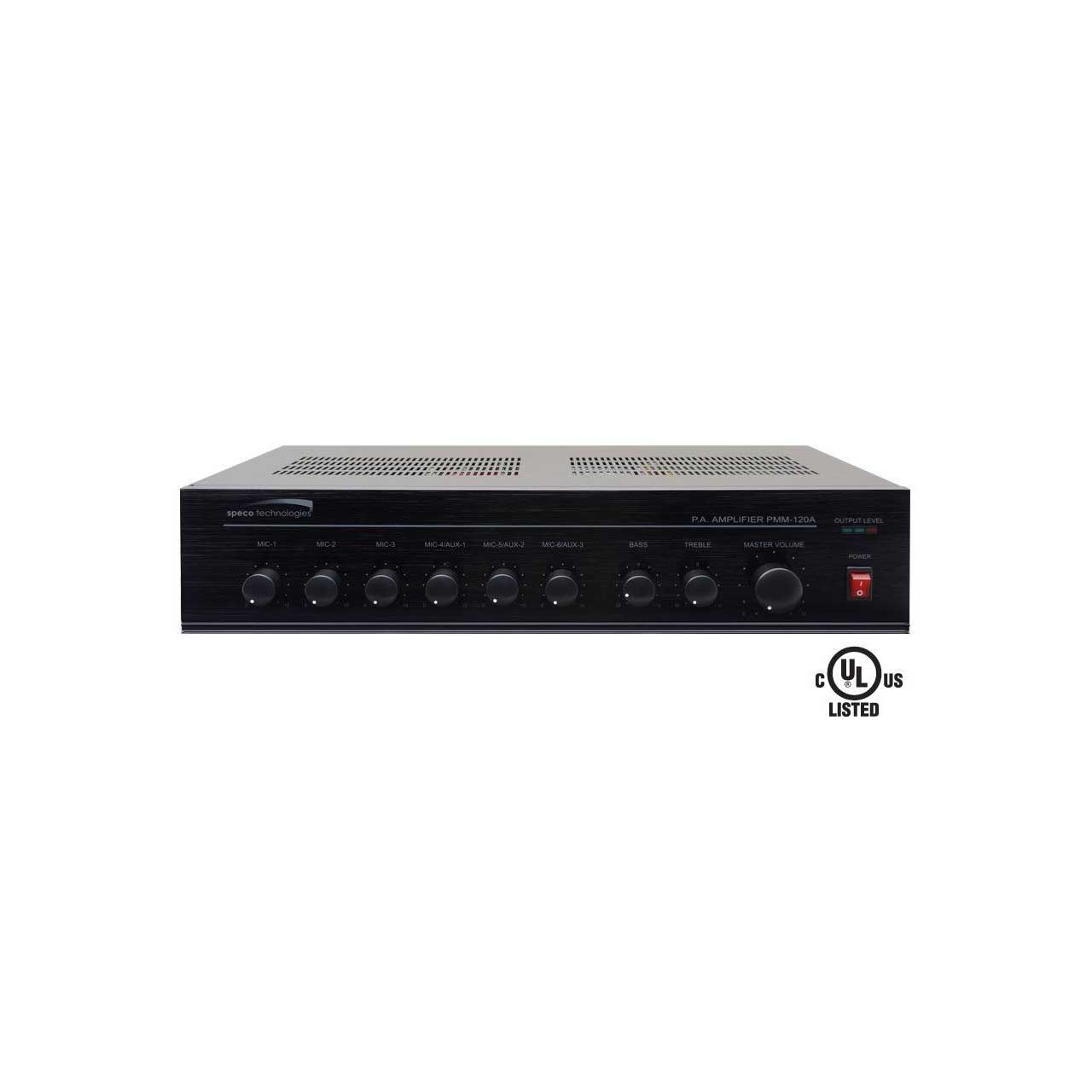

SPECO PMM120A 120W PA Mixer Power Amplifier with 6 Inputs

Manufacturer: SPECO

Item #: PMM-120A   •   MFG #: PMM-120A




Share!





Speco Technologies' UL listed Contractor Series amplifiers are designed for long-running, every day use. They can stand on their own to run a smaller installation, or be incorporated into a much larger job. With RMS power ranging from 30W to 120W, microphone and source-mixing ability, telephone paging interface and music-on hold capability, there's practically no job where one of these amplifiers wouldn't be a perfect fit!

UL LISTED, 120 Watt RMS; AC 120V, 50/60Hz; 50-15kHz; 6 MIC Inputs, 4 XLR Connectors (1.0mv/250 Ohms); 1 Aux Input (200mV 47K), 1 Telephone (0.1-1V 600 ohm); 4/8/16 ohms & 75/25 V Line Inputs, Music on Hold Features, Separate Bass and Treble Controls.


  • Specifications

    • RMS Output Power........120W.
    • Max. Output Power.........180W.
    • AC Power Consumption...850W.
    • Power Supply..................AC 120V, 50/60Hz.
    • Zones..............................1.
    • Speaker Outputs.............4/8/16 Ohms, 70/25V.
    • Other Outputs.................Tape (RCA), Booster (RCA), Pre-Amp (RCA).
    • Inputs....3 x Mic (XLR), 1 x Mic (XLR or Terminal), 3 x Mic/Aux (Terminal or Stereo RCA), 1 x EQ/Mix (RCA), 1 x TEL (Terminal).
    • Frequency Response........... 50Hz ~ 15KHz (±3dB).
    • Tone Control............Bass ± 10dB, Treble ± 10dB.
    • THD........................Less than 1% @1KHz.
    • Signal/Noise Ratio......Microphone: >60dB, TEL: >60dB, Line: >70dB.
    • Controls........Volume for each source, Master Volume, Vox Sensitivity,TEL Input Level, MoH Volume, Tone.
    • Telephone.....................TEL in and MoH Out.
    • Indicators.......................Power, power level.
    • Dimensions...................16.9" (W) x 3.5" (H) x 11.8" (D).
    • Weight..........................23.6 lbs.
    • Listings.........................UL, cUL, CE, FCC.
