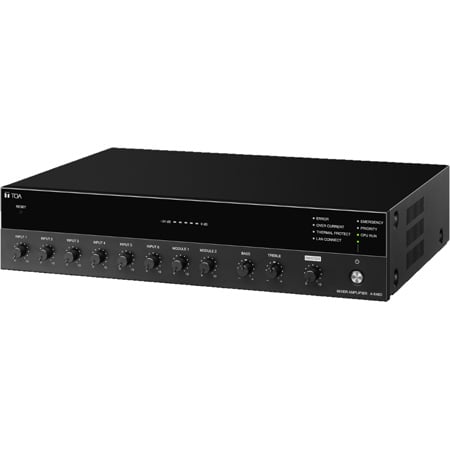

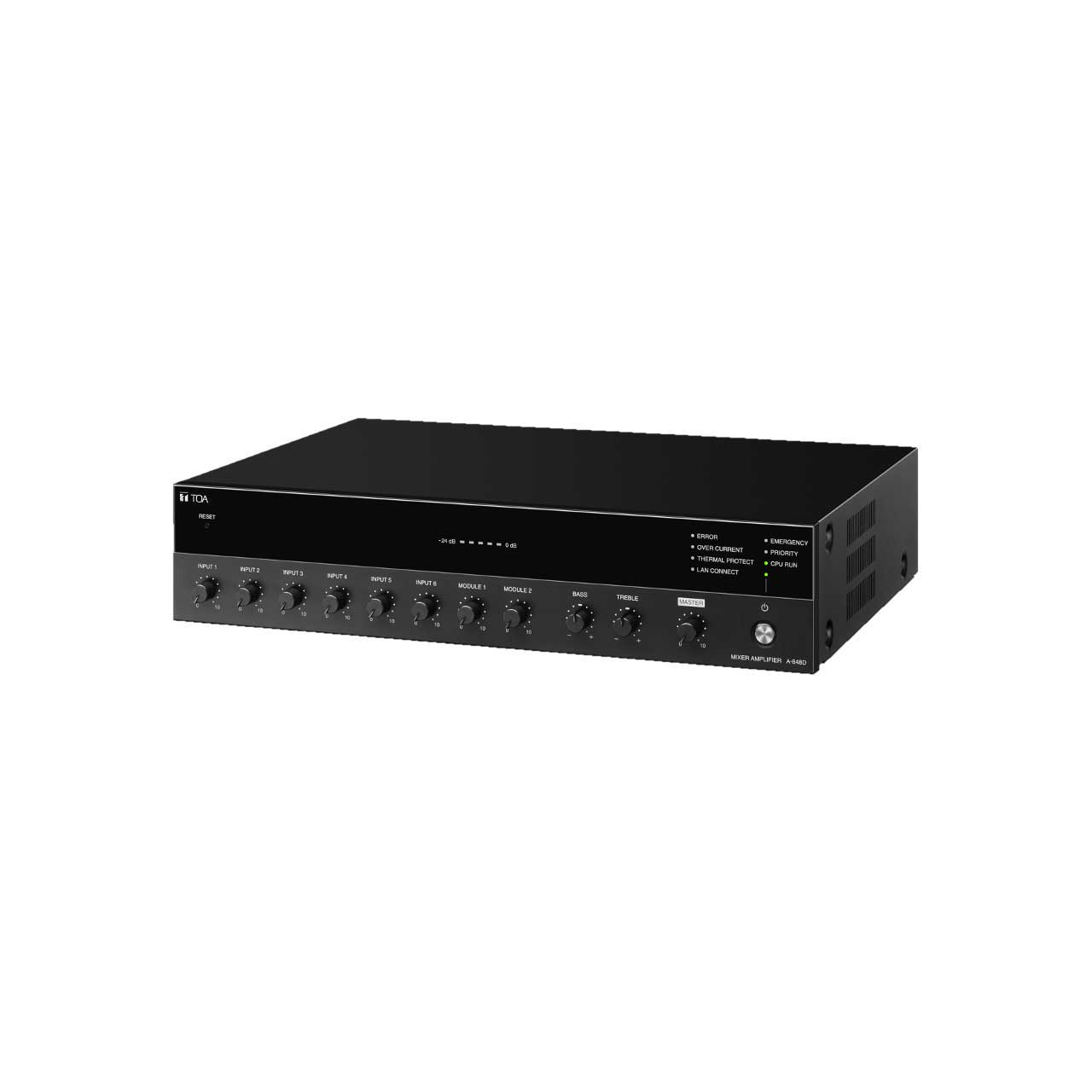

TOA A-848D3CUE00 Digital Mixer / Amplifier - DSP - MOH - Total 8 Inputs - Includes Two Modules - Networked - 480Watt

ITEM #: TOA-A-848D3CUE00 MFG #: A-848D3CUE00

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,679.00

Our Price:

$1,357.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    A-848D3CUE00 - Overview

    This digital mixer amplifier A-848D from TOA provides maximum flexibility with up to eight inputs and up to 480 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek new appearance, MOH output, two available 900 series module slots and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.

    • Features:

      • TOA Class D Amplifiers for Maximum Efficiency
      • Auto Gain Control for microphone inputs
      • Onboard DSP
      • Assignable Input Priorities
      • Built-In defeatable pre-announce chime
      • Log Data
      • IP protocol available

    • Specifications:

      • General:
      • Power Source: 120 V AC, 60 Hz
      • Rated Output: 480W
      • Power Consumption: 621 W (rated output), 103 W (based on UL62368), 200 mA or less (when power switch is OFF)
      • Frequency Response: 50 Hz to 20 kHz ±3 dB (1/8 rated output)
      • Total Harmonic Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
      • Tone Control: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
      • Signal to Noise Ration: 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted)
      • Operating Temperature: -10 to +40 °C (14 to 104 °F)
      • Operating Humidity: 85 % RH or less (no condensation)
      • Finish Panel: ABS resign, black
      • Case: Surface-treated steel plate, black, paint
      • Dimensions: 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54" x 3.78" x 12.33"
      • Weight: 5.4 kg or 11.9 lb

        Input:
      • 1-2: -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).
      • 3-4: -60 dB*, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable).
      • 5-6: MIC/LINE selectable MIC: -60 dB* , 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2
      • Module 1-2: -20 dB*, 10 kΩ

        Output:
      • Speaker: High impedance: 70 V line/42 Ω/Low impedance 4 to 16 Ω. Removable terminal block (5.00 mm, 3 pins) selectable
      • REC: 0 dB *, 600 Ω, unbalanced, RCA pin jack x 2
      • PRE AMP: 0 dB *, 600 Ω, unbalanced, RCA pin jack

        Control Input:
      • 4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
      • REMOTE VOLUME: No-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)

        Control Output:
      • Power Remote: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
      • Emergency Out: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable

        Indicators:
      • LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indi-cator
