The QSC MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
Installers can easily configured the MP-MFC for use with the MP-M Series mixer (using the free MP Install app for Android/iOS tablets as well as Mac and PC desktops) to control source selection and volume for one or more zones as well as recalling scenes.

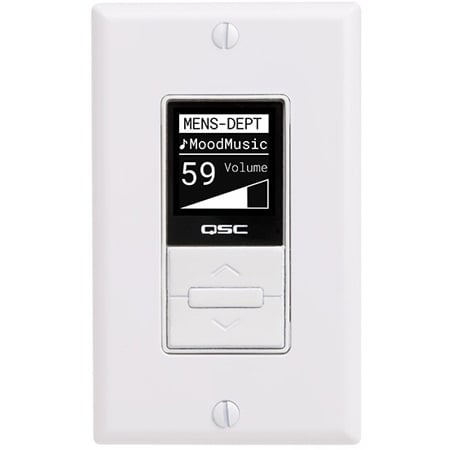

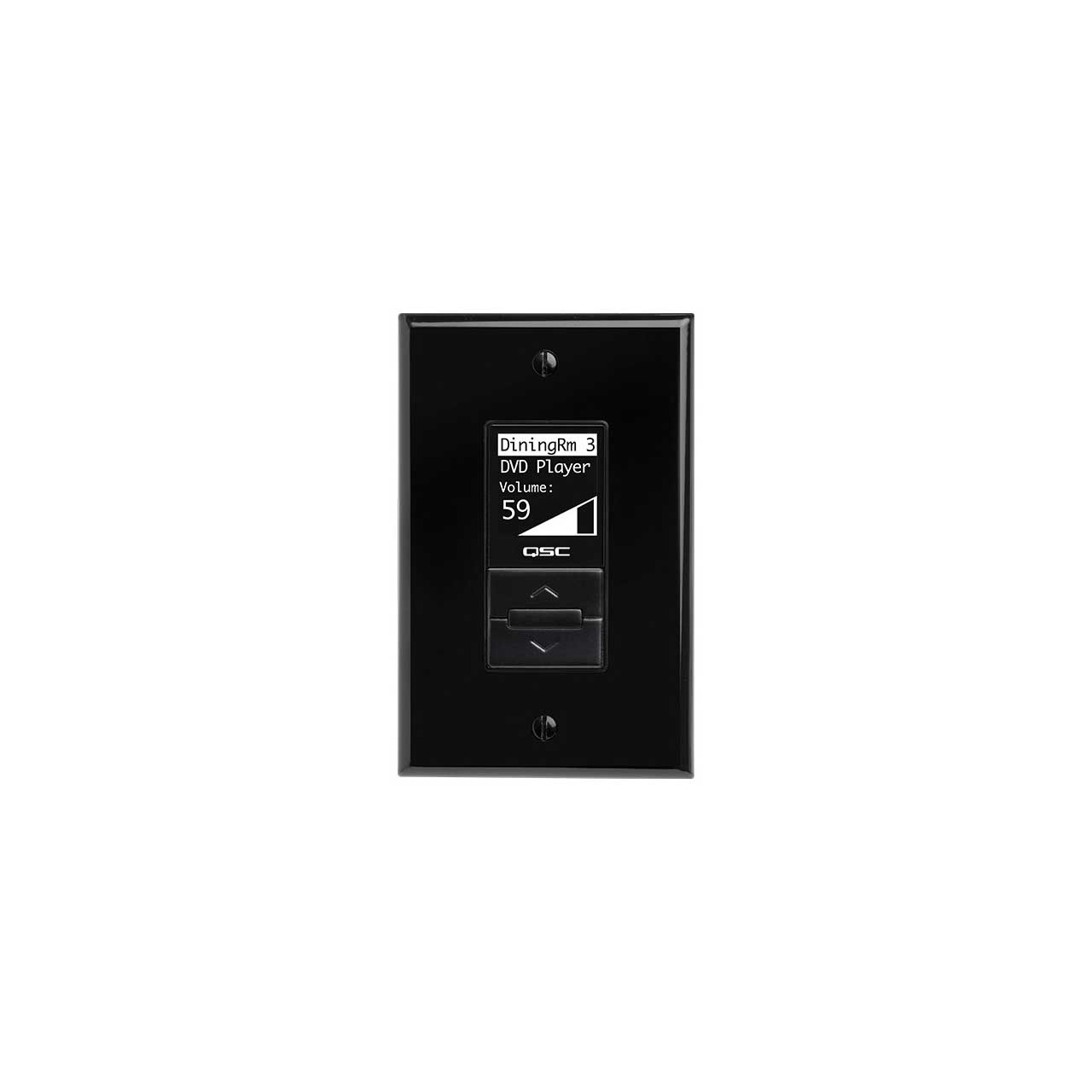

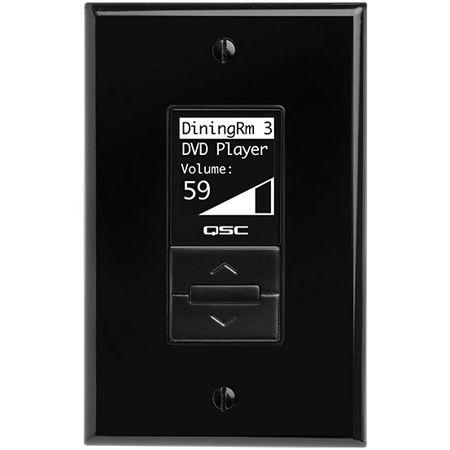

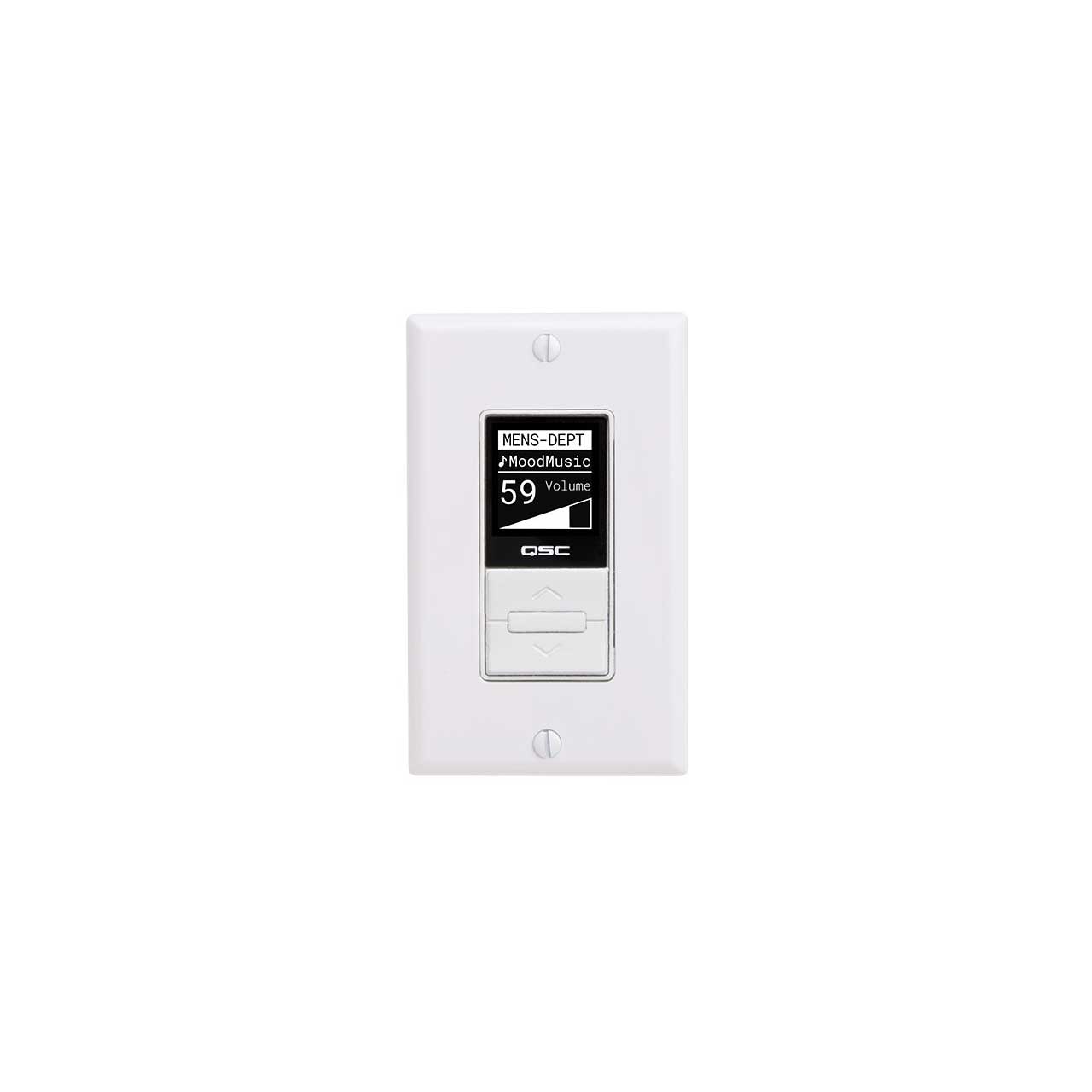

The MP-MFC controller features three large buttons (increment, decrement, select) as well as a crisp 27 mm x 26 mm graphic display which clearly labels selectable functions and options.
The MP-M Series mixer has two ports for MP-MFC connectivity, each of which can accommodate four daisy-chained MP-MFC controllers with a maximum total cable length of 250 meters per port. Up to eight MP-MFC controllers may be connected to a single MP-M Series mixer using standard CAT5 (RJ45) cabling.
