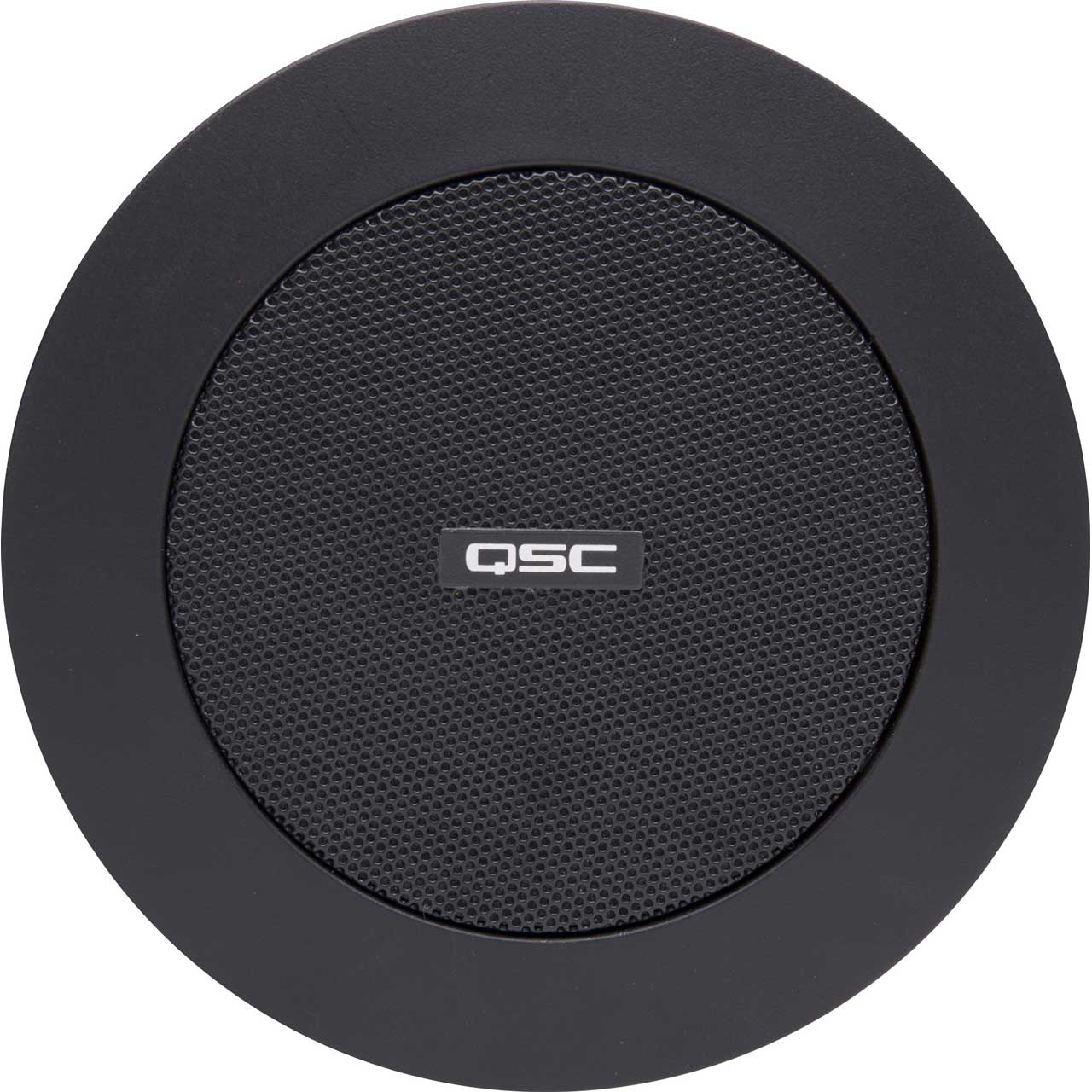

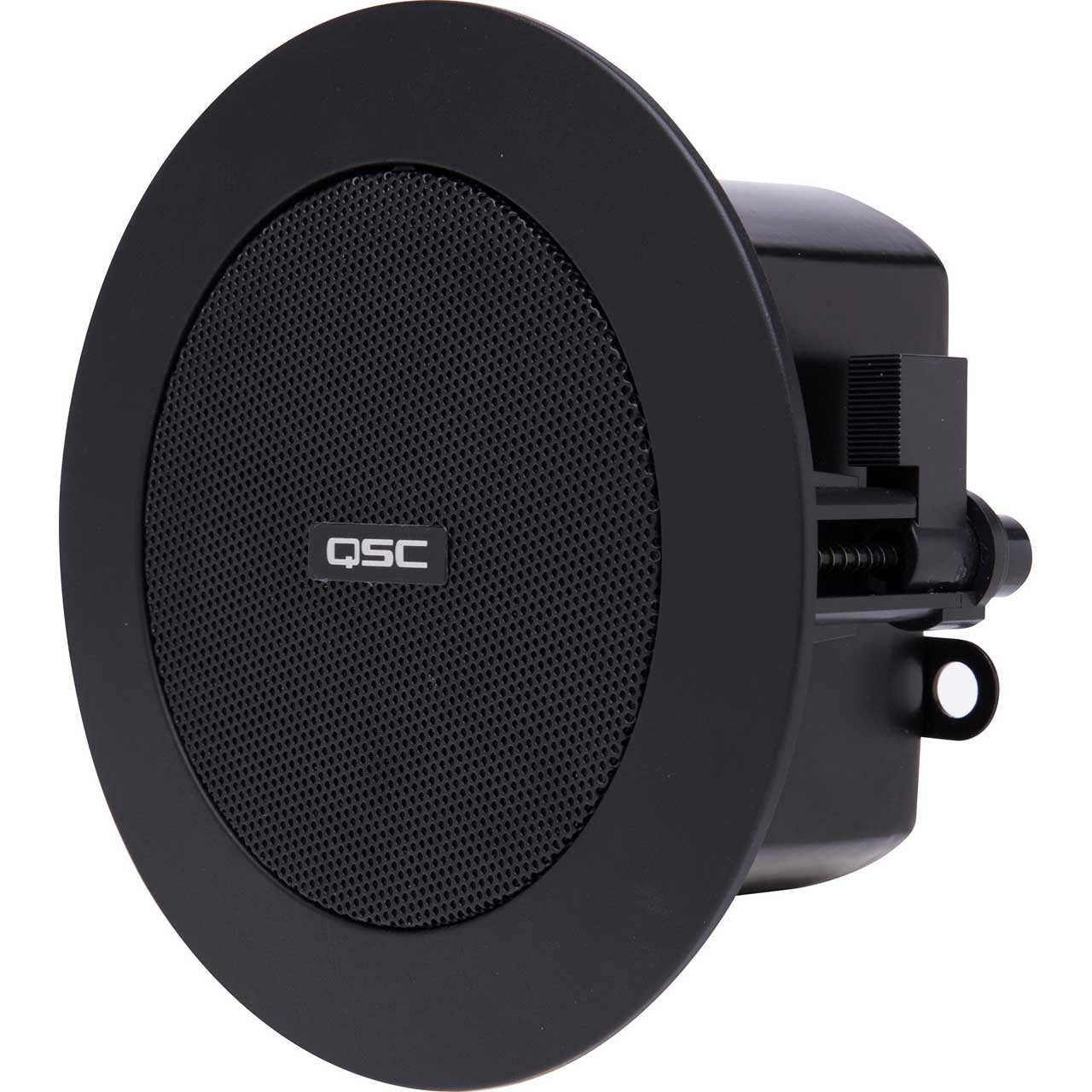

QSC AD-C.SAT 2.75-inch Small Format Ceiling Satellite Loudspeaker - Black - Pair

ITEM #: QSC-AD-C-SAT-BK MFG #: AD-C.SAT-BK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$224.95

Our Price:

$209.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AD-C.SAT-BK - Overview

    The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

    The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

    The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

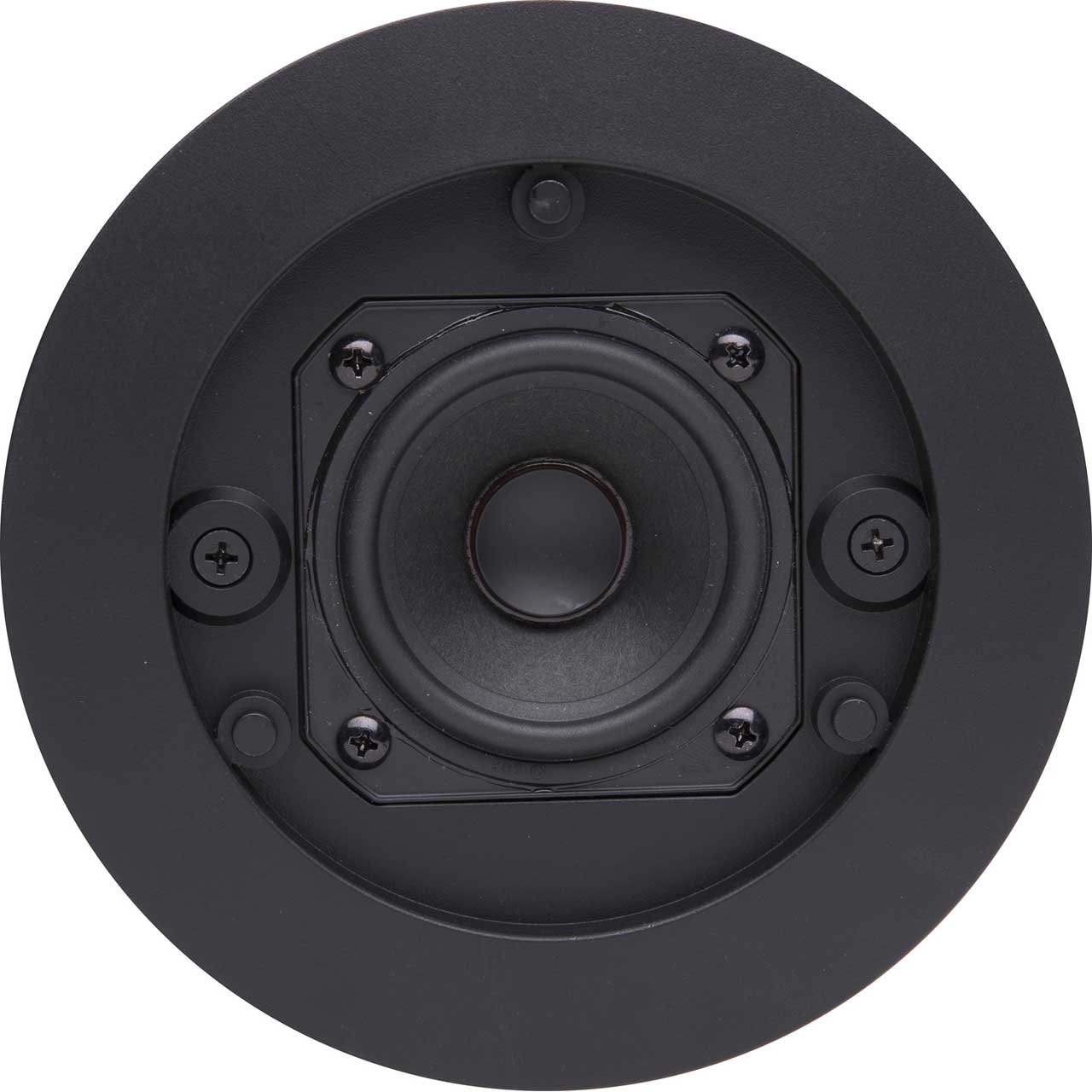

    The AD-C.SAT features a high quality 2.75-inch weather treated paper cone woofer with an inverted aluminum dust cap for extended high frequency presence within a sealed enclosure.

    These loudspeakers are rated at 16 Ω, and up to four satellites may be connected to any AcousticDesign Series SUB/SAT subwoofer's high-pass filtered outputs. Satellites also may be used as stand-alone loudspeakers using an external high-pass filter.

    • Features:

      • Inverted aluminum dome dust cap
      • Rated at 16 Ω
      • Locking 2-pole Euroblock connectors
      • Snap-fit magnetic grills
      • Removable conduit cover plate

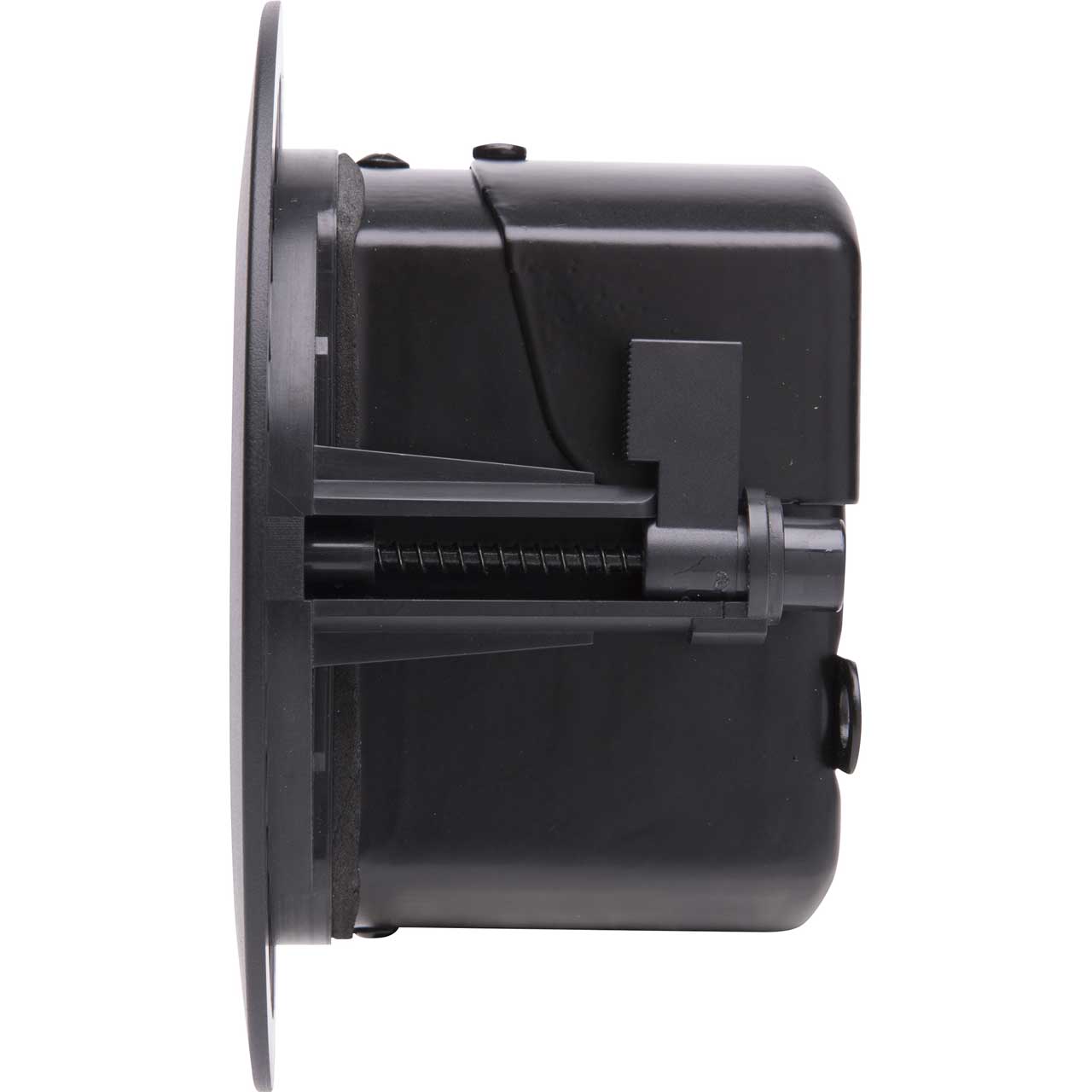

      • 2x long travel dog-ear blind mount system
      • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
      • Available in black (RAL 9011) or white (RAL 9010)
      • UL1480 and UL2043 certified

    • Specifications:

      • HF transducer: 2.75-inch (70 mm) weather treated paper cone woofer
      • Effective frequency range: 150 Hz - 20 kHz
      • Rated noise power / voltage: 25 W / 20 V (rms)
      • Sensitivity [dB] (rated @ 1 W, 1 m): 82
      • Coverage (-6 dB): 170° Conical
      • Maximum SPL [dB](continuous / peak): 90 / 96
      • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
      • Transformer taps / impedance: Bypass: 16 Ω
      • Connector: 2-pole Euroblock connectors
      • Enclosure material: ABS baffle on powder coated steel back can
      • Grille material: Powder coated steel
      • Ingress protection: IP-34
      • Operating environment: Designed for indoor use
      • Operating temperature range: -4 to 122° F (-20 to 50° C)
      • Cutout dimension: Ø 4.5-inch (Ø 115 mm)
      • Net weight: 1.39 lb (630 g)
      • Product dimensions (Ø x H): Ø 5.9 x 3.4-inch (Ø 150 x 86 mm)
      • Included accessories: C-ring, Euroblock connector, cut-out template, grill (pair packed)
      • Safety agency: UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.

    • Item Includes:

      • C-ring
      • Euroblock connector
      • Cut-out template
      • Grill (pair packed)

    • GTIN:

      0684284075826
