Rolls DB24 Stereo Direct Interface
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Rolls DB24 Stereo Direct Interface

    Manufacturer: Rolls Corporation

    Item #: DB24   •   MFG #: DB24


    List Price:$90.00
    Our Price:$69.00

    free ship
    In Stock
    Item is Available for immediate shipping from our warehouse.

      California Residents:
      Cancer and Reproductive Harm -

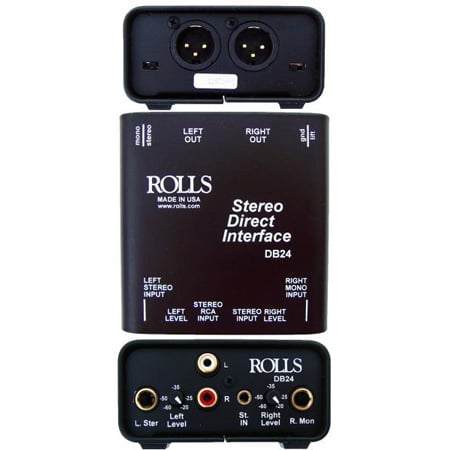

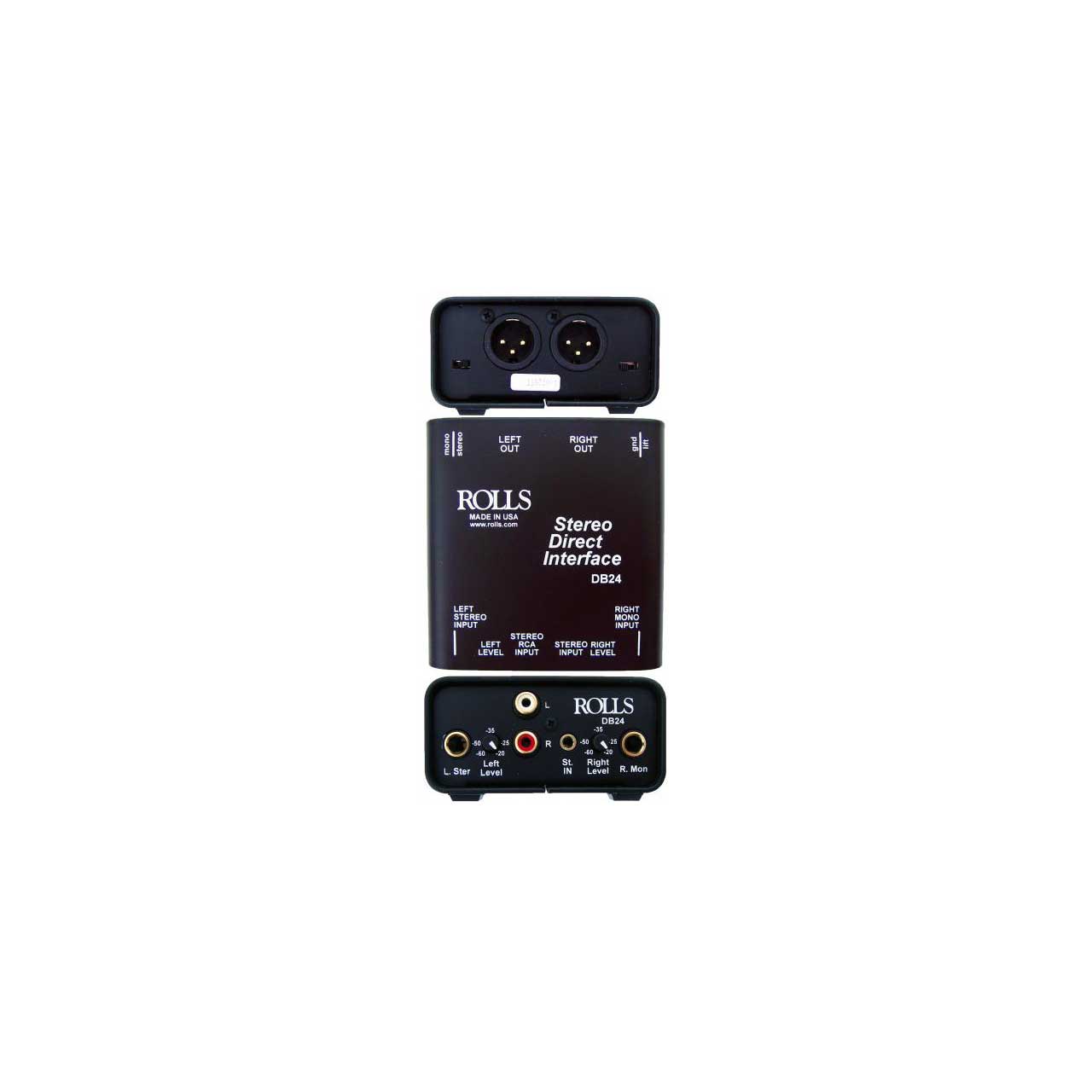

      Introducing the Rolls DB24 Stereo Direct Interface. This unit is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications.

      A variety of inputs are provided including stereo and mono 1/4", stereo RCA, and stereo 1/8" (3.5mm).

      The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.

      • Features

        • Completely passive uses no external power
        • Stereo RCA, 1/8" (3.5mm), and dual 1/4 Inputs
        • Balanced XLR Outputs
        • Ground Lift for each channel
        • Individual variable attenuators
      • Specifications

        • Input Impedance : 20k - 600 Ohms
        • Frequency Response: 50 - 15kHz +/- 3 dB
        • Output Impedance: 600 Ohms
        • Max Output Level: +4 dBm
        • Connectors: 2 ea; XLR Male, 1; Stereo RCA, 1; 1/8" (3.5mm) TRS, 2 ea; 1/4" TRS
        • Controls: 2 ea; Variable attenuators, 2 ea; Ground Lift switches
        • Weight: 1.5 lbs.
        • Dimensions: 3.42" w x 1.45" h x 3.325" d
      • GTIN:
