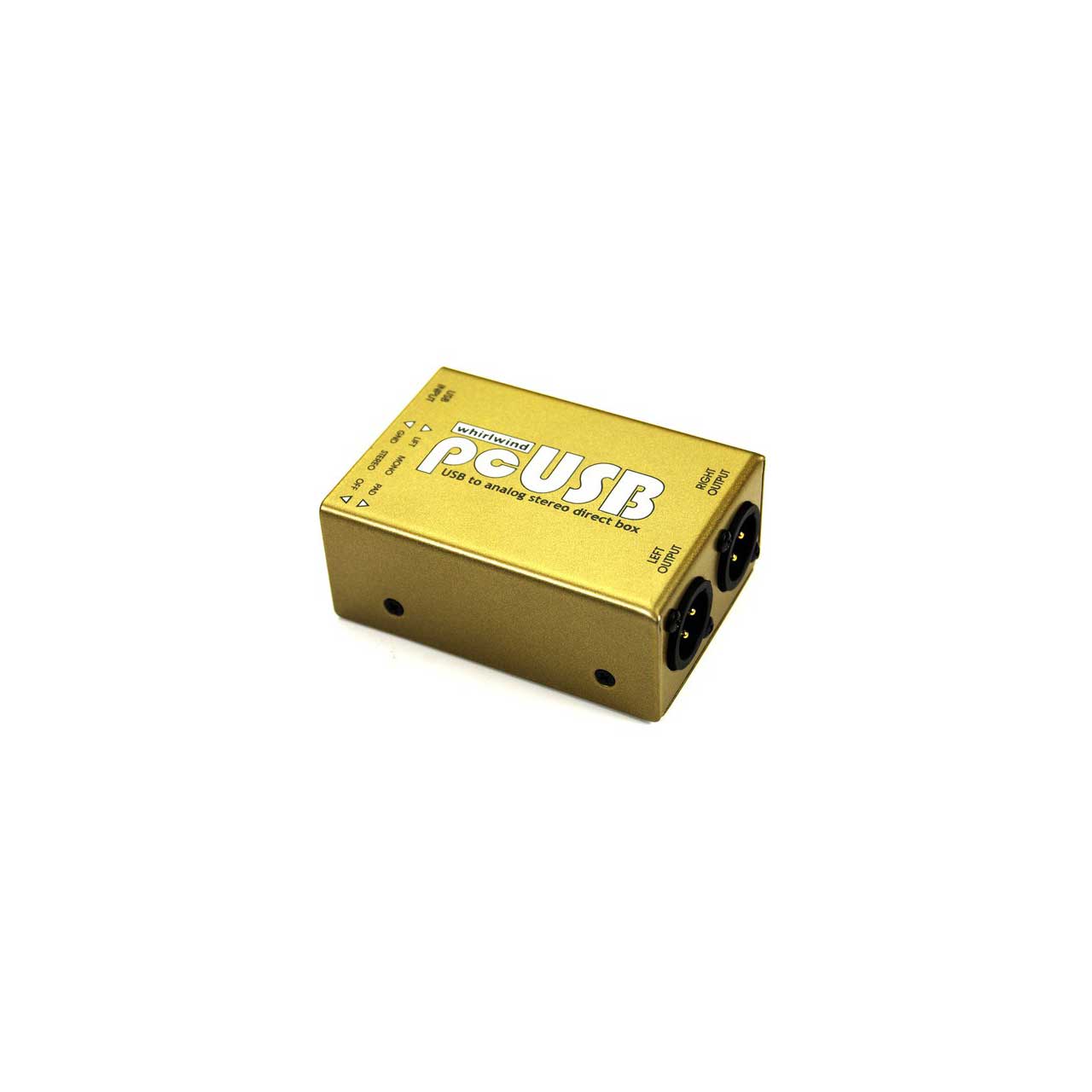

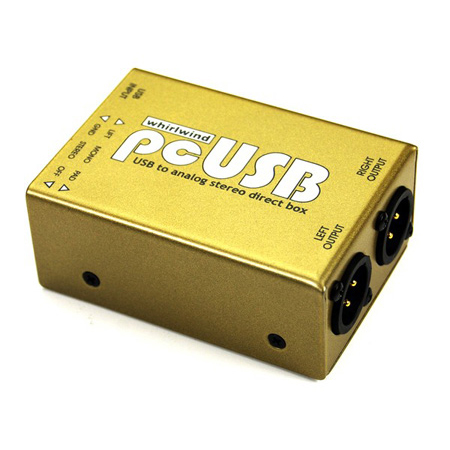

Whirlwind PCUSB Direct Box - USB-B Input - Stereo XLR Balanced Output

ITEM #: WW-PCUSB MFG #: PCUSB

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$272.17

Our Price:

$248.00

Availability: In Stock
iAvailability Description Popup


    PCUSB - Overview

    The Whirlwind pcUSB converts the digital audio from USB outputs to high quality analog, stereo, balanced audio for easy connection to PA systems, mixing boards, etc.

    USB 2.0 compliant with no device driver requied. Operating power is supplied from the USB port in the host device. Sample rates of 32 kHz, 44.1 kHz and 48 kHz are supported at 16 bits. A USB hookup cable is included.

    Digital signal is input via a standard USB Type B jack. Output is via left and right balanced XLRs. A digital 0 dBfs input signal level delivers -3.4 dBV balanced at the analog outputs.

    Features a STEREO/MONO switch to combine stereo sources into a mono signal and a 20 db PAD switch to reduce the analog output level into sensitive microphone inputs. A GROUND LIFT switch disconnects the outputs from the circuit ground to help eliminate hum and buzz.

    • Specifications:

      • Max output: -3.4 dBV balanced with 0 dBfs input
      • Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz
      • Input pad attenuation: -20 dB

    • Warranty:

      • 3 Years

    • GTIN:

      0692465023665
