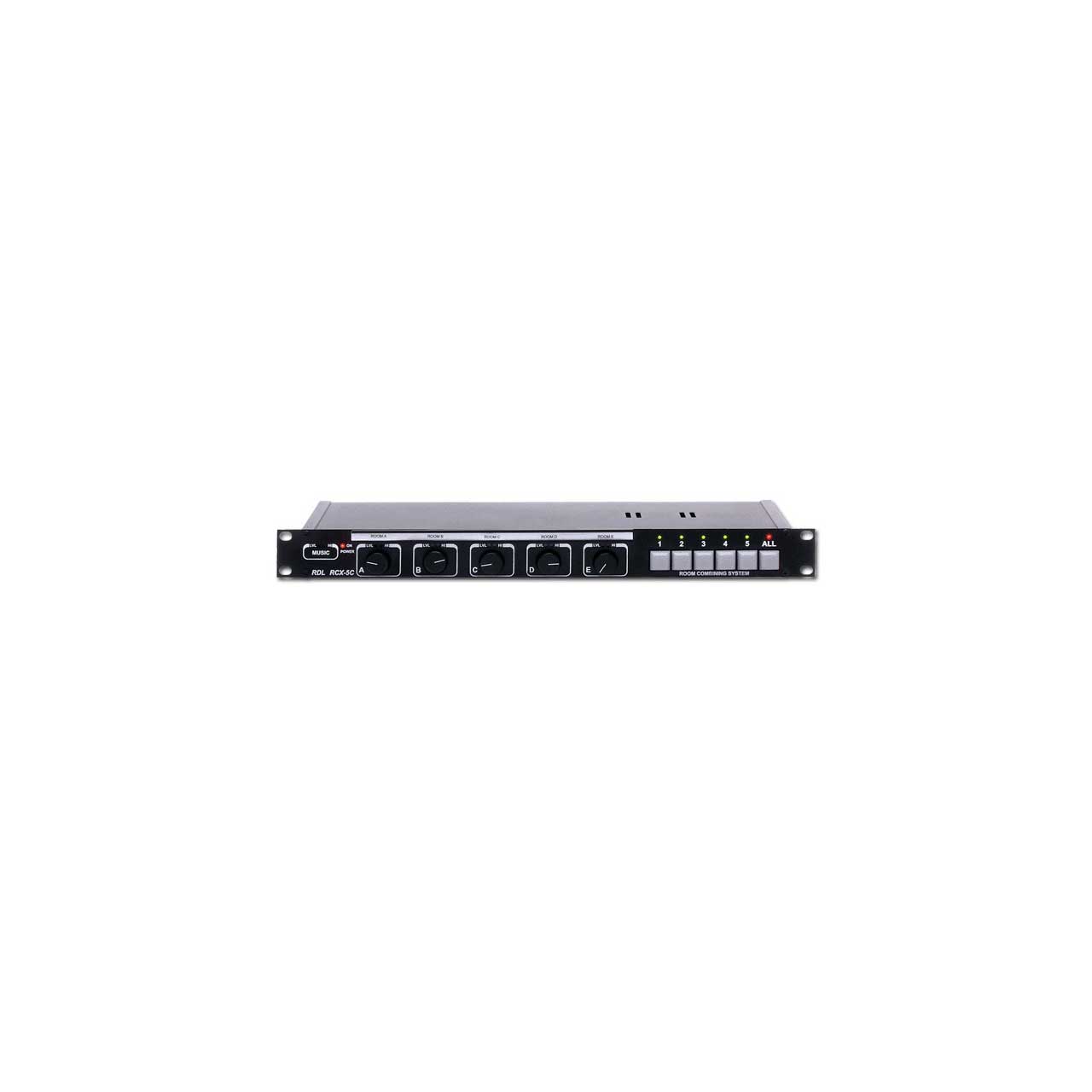

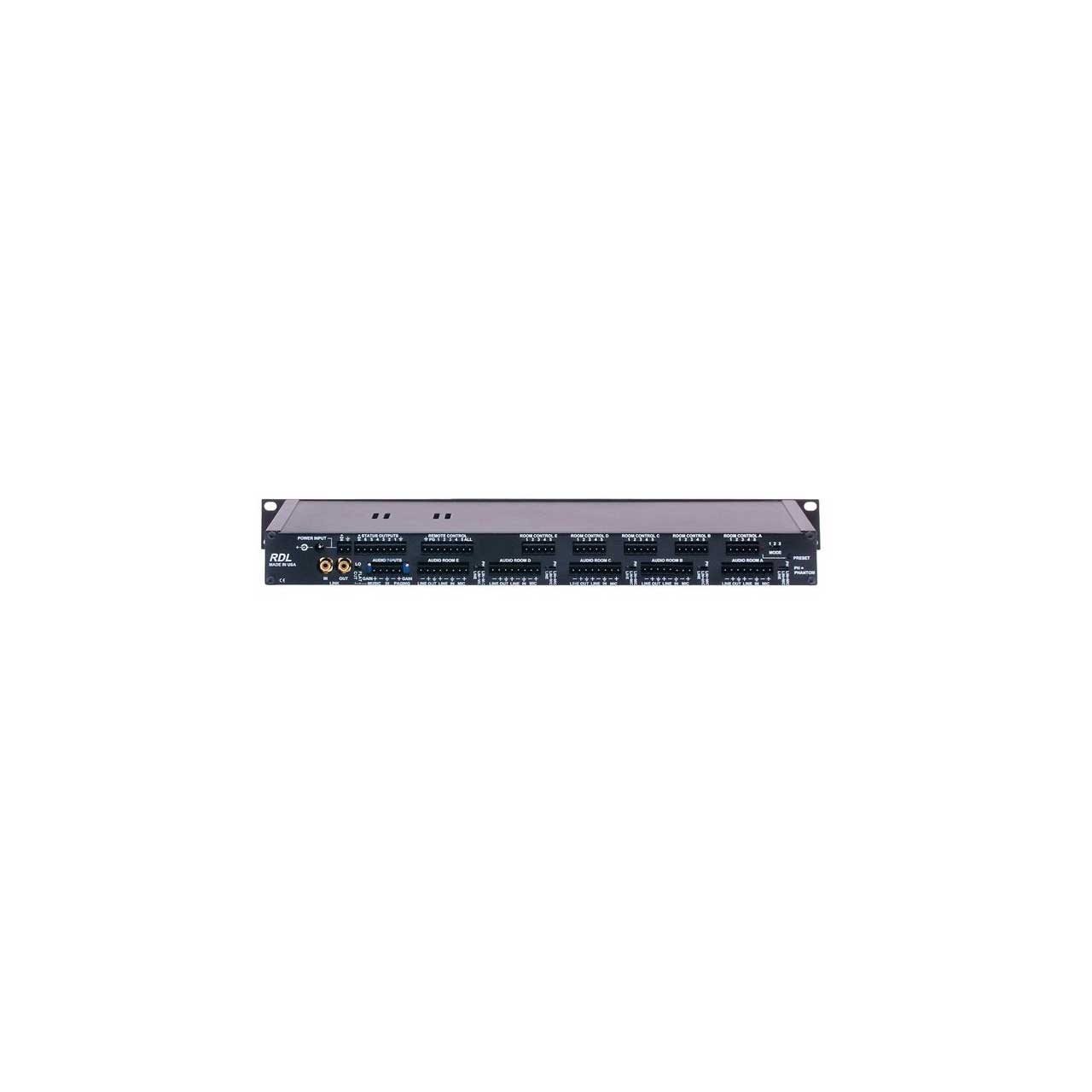

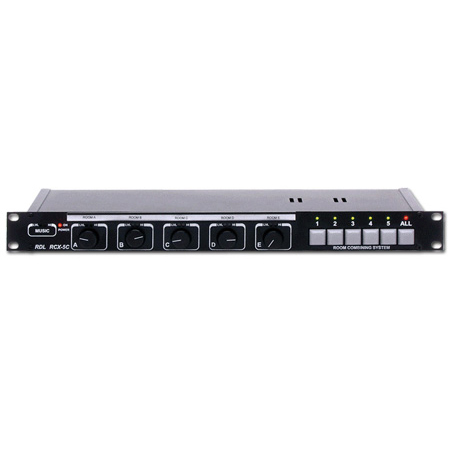

RDL RCX-5C RCX Room Combining System Controller

Manufacturer: Radio Design Labs

Item #: RCX-5C   •   MFG #: RCX-5C


List Price:$1,659.08
Our Price:$1,178.95

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
  • This item is not returnable unless shipped in error or defective.

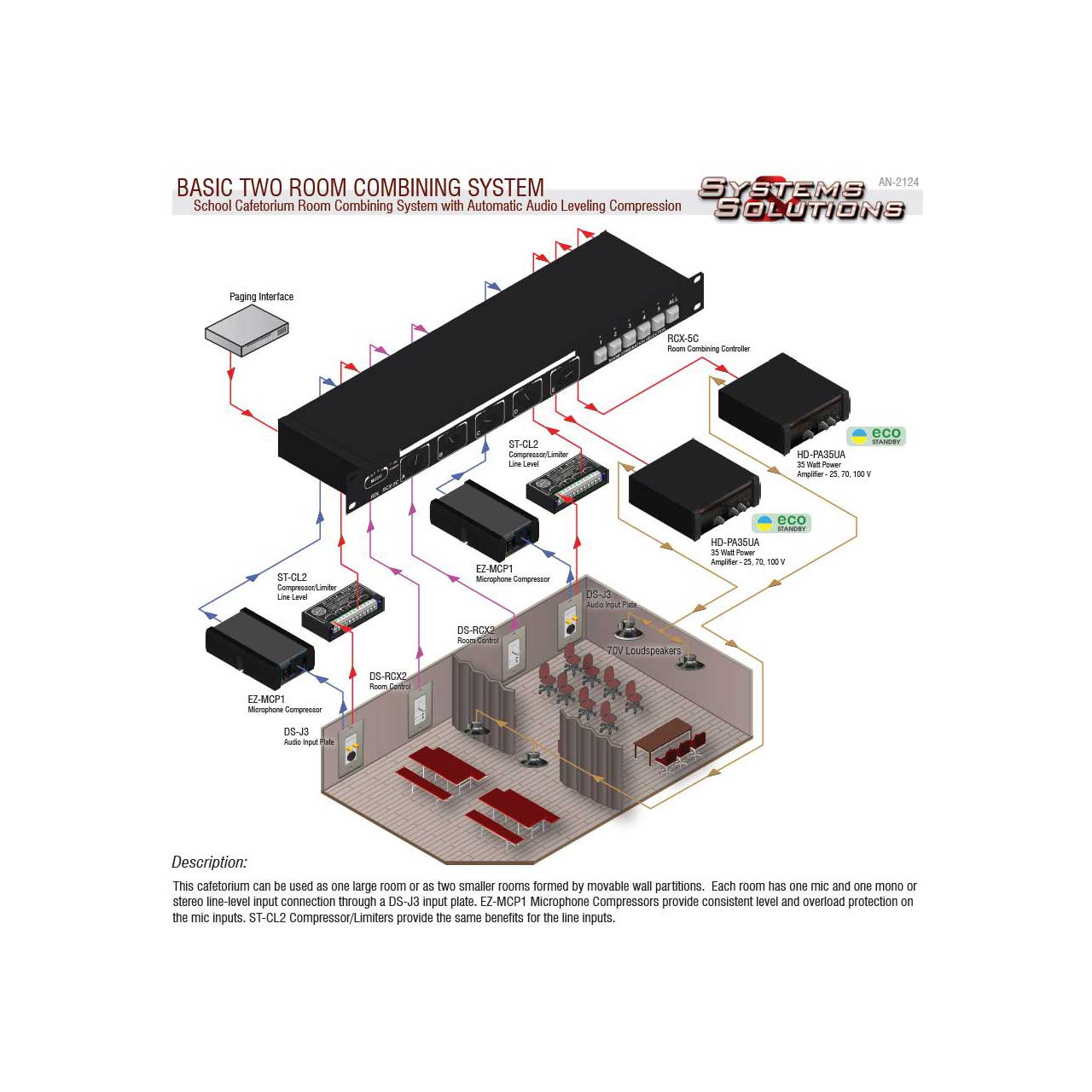

The system controller accommodates a maximum of 5 rooms, combined in any adjacent arrangement. Audio inputs from each room are Line only, MICLINE dynamic mic, MICLINE condenser mic. A front-panel level knob with LED metering is provided for each room input. MUSIC and PAGING inputs may feed each room if desired. Two RCX-5Cs may be linked in larger systems where two groups of rooms need to be combined. The standard RCX-5C does not mute mics in a room while listening to music. - Power Supply Included

  • Features

    • Controls audio sources and amplifier inputs for up to 5 rooms
    • Music input may be selected from a non-combined room
    • Paging input can override normal operation if required
    • Simple, straightforward programming and operation
    • Programmable to accommodate a wide range of room layouts
    • Connects to wall mounted remote input panels
    • Mic and/or Line input for each room
    • Front-panel volume adjustment per room
    • RDL Dual-LED VU metering for each source
    • All electronic switching and gain control with memory
    • Two controllers may be linked in larger systems
