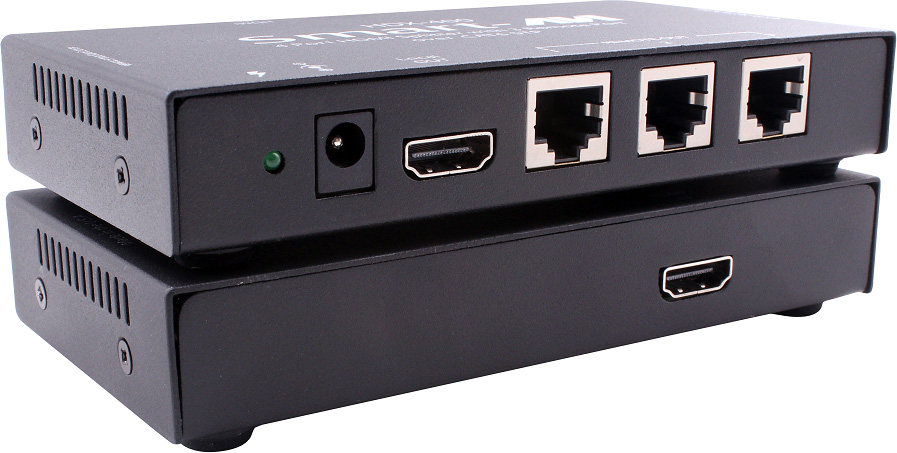

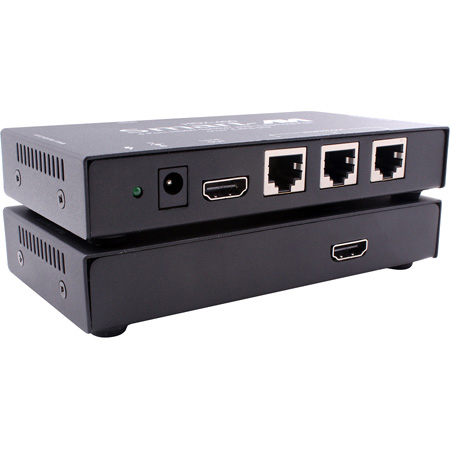

SmartAVI HDX-400S 4-Port HDMI Over a Single CAT6 Cable - Transmitter

Manufacturer: Smart-AVI

Item #: SAVI-HDX-400S   •   MFG #: HDX-400S



List Price:$299.00
Our Price:$259.45

free ship


Type:




Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The HDX-400 Extends any HDMI Signal up to 150 Feet to Display Monitors and One Local Screen Using HDMI-to-Cat6 STP Cabling while Retaining High-Definition Images at 1080p up to 1920 x 1200 Resolution

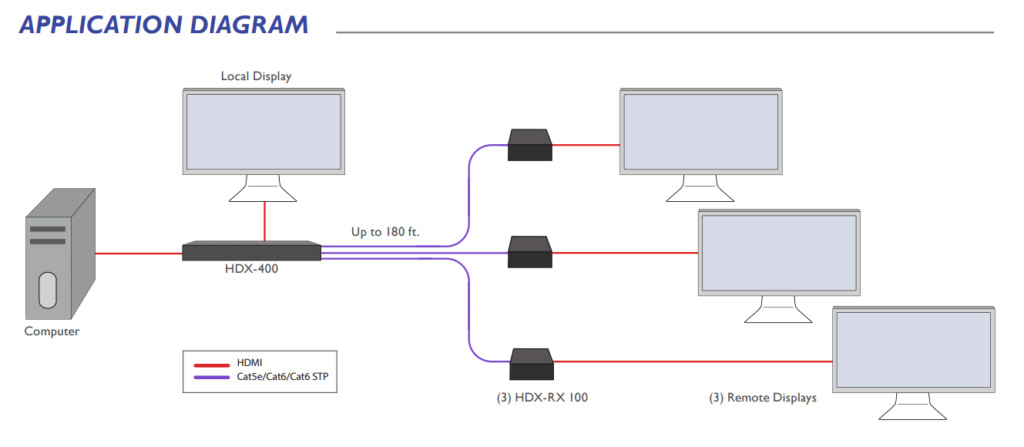

SmartAVI's HDX-400 is an innovative solution to extending any HDMI signal - be it a gaming console, Blueray player, computer, etc. - over inexpensive Cat6 STP cabling up to 150 feet away to one to three remote displays and one local screen for real-time monitoring of content.

This is the perfect solution for broadcasting high-definition content easily and inexpensively from a source to display screens for customers to view while keeping the CPU in a remote, secure location such as a computer room or back office of a business. Utilizing the HDX-400, you can monitor what's being shown to your customers in real-time via a local display as you retain full control over the CPU or HDMI source, accessible only by key personnel.

The HDX-400 is a compact, dynamic unit that is small and easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into your infrastructure very simple and handy.


  • Features

    • Compact Transmitter/Receiver Units
    • Local HDMI Output
    • Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
    • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
    • Bandwidth to 1.64Gps
    • Automatic DDC Learning from Local Monitor
    • Unit Operates Regardless of Local Monitor Connectivity
    • Distances up to 150 Feet using Cat6 STP Cabling
    • Compatible with all Operating Systems
    • Plug-and-Play - No Software Required

  • Specifications

    • Resolution 1920 x 1200 @ 60Hz
    • Input Interface HDMI (Single Link)
    • Upgradeable Onboard Flash
    • Power Supply Universal Switch Mode PSU(90-240 Input) 5VDC
    • Dimensions 3.75"W x 5.00"L x 8.75"H

  • Item Includes

    • HDX-400
    • PS5VD2A
