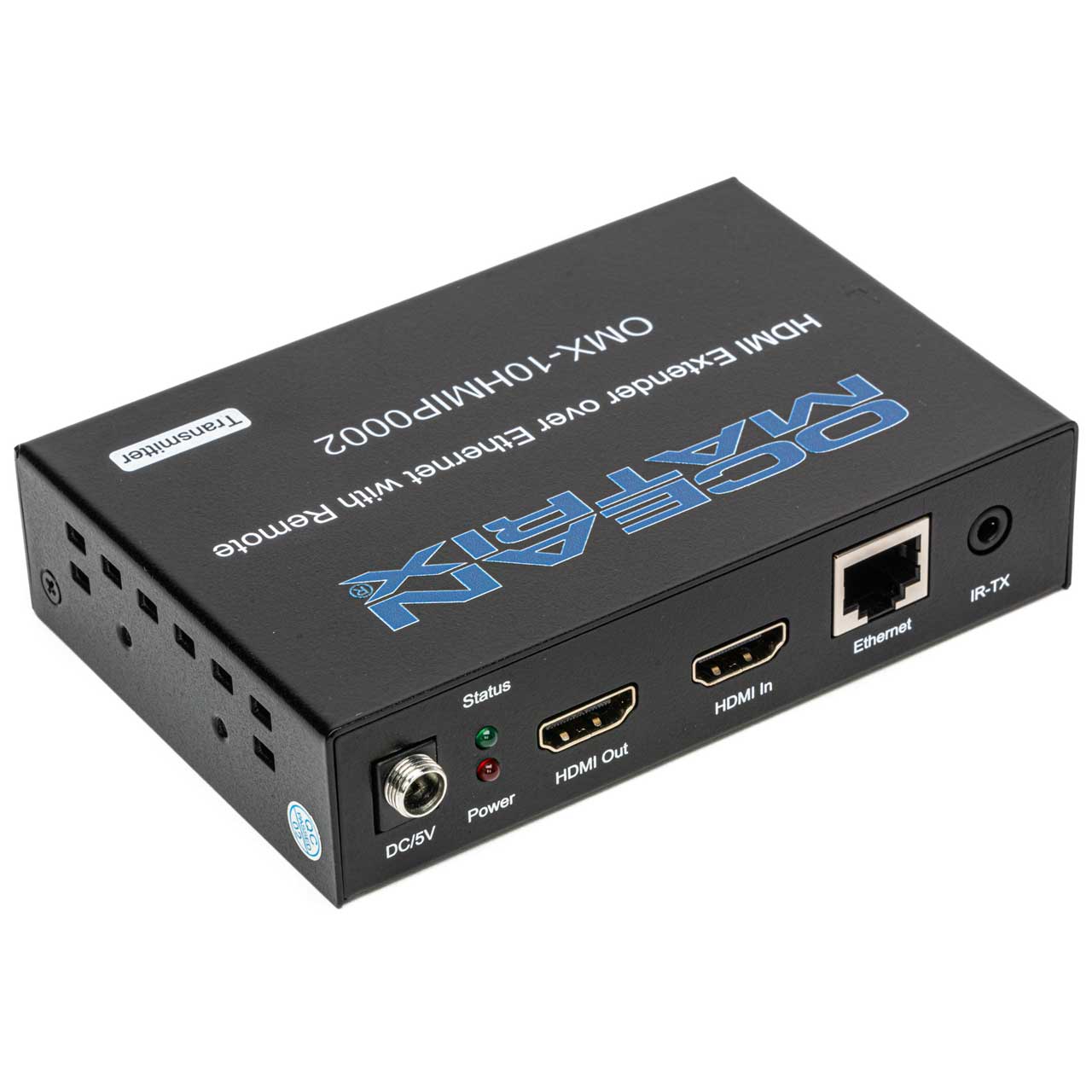

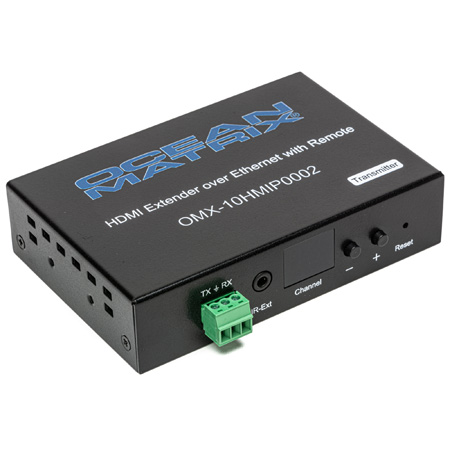

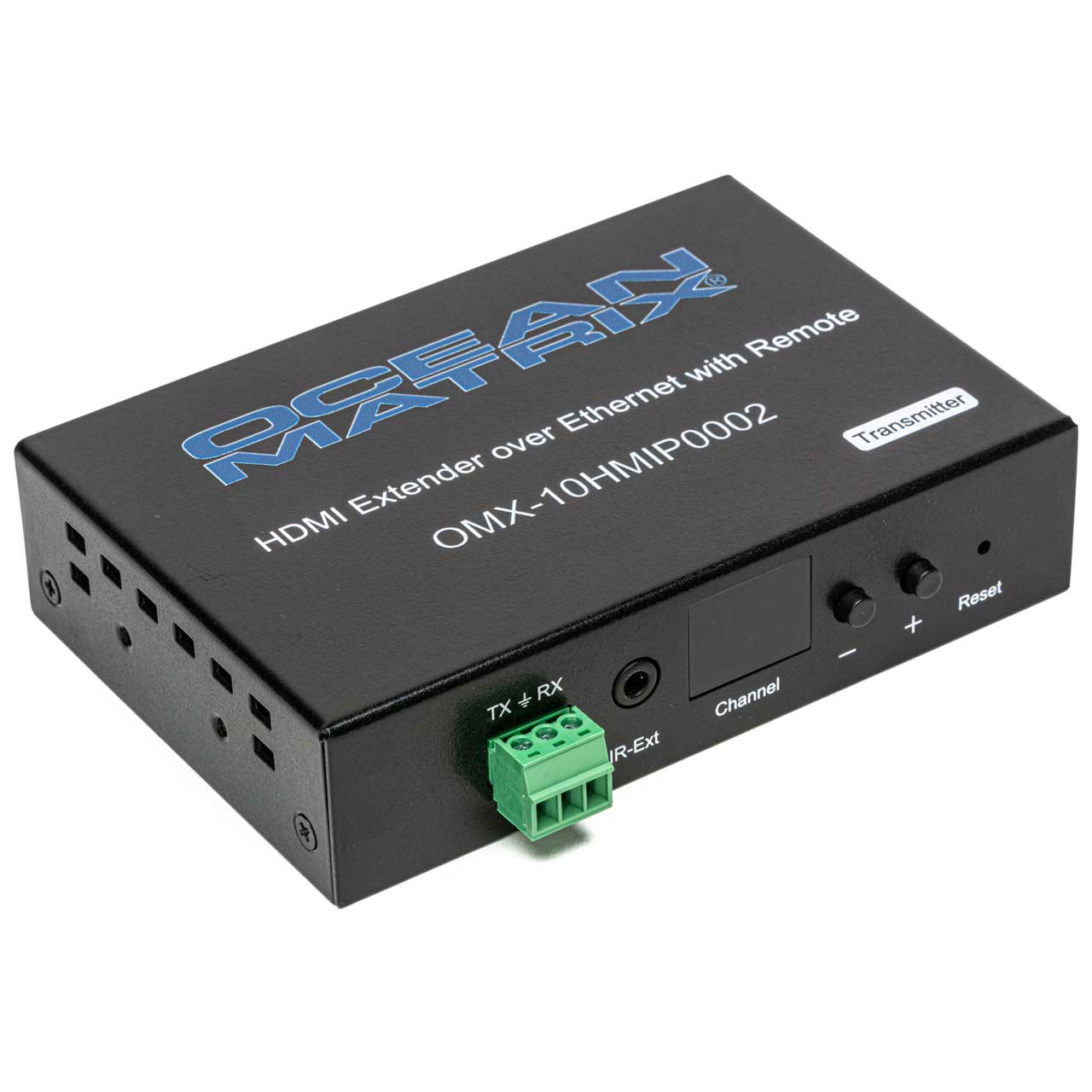

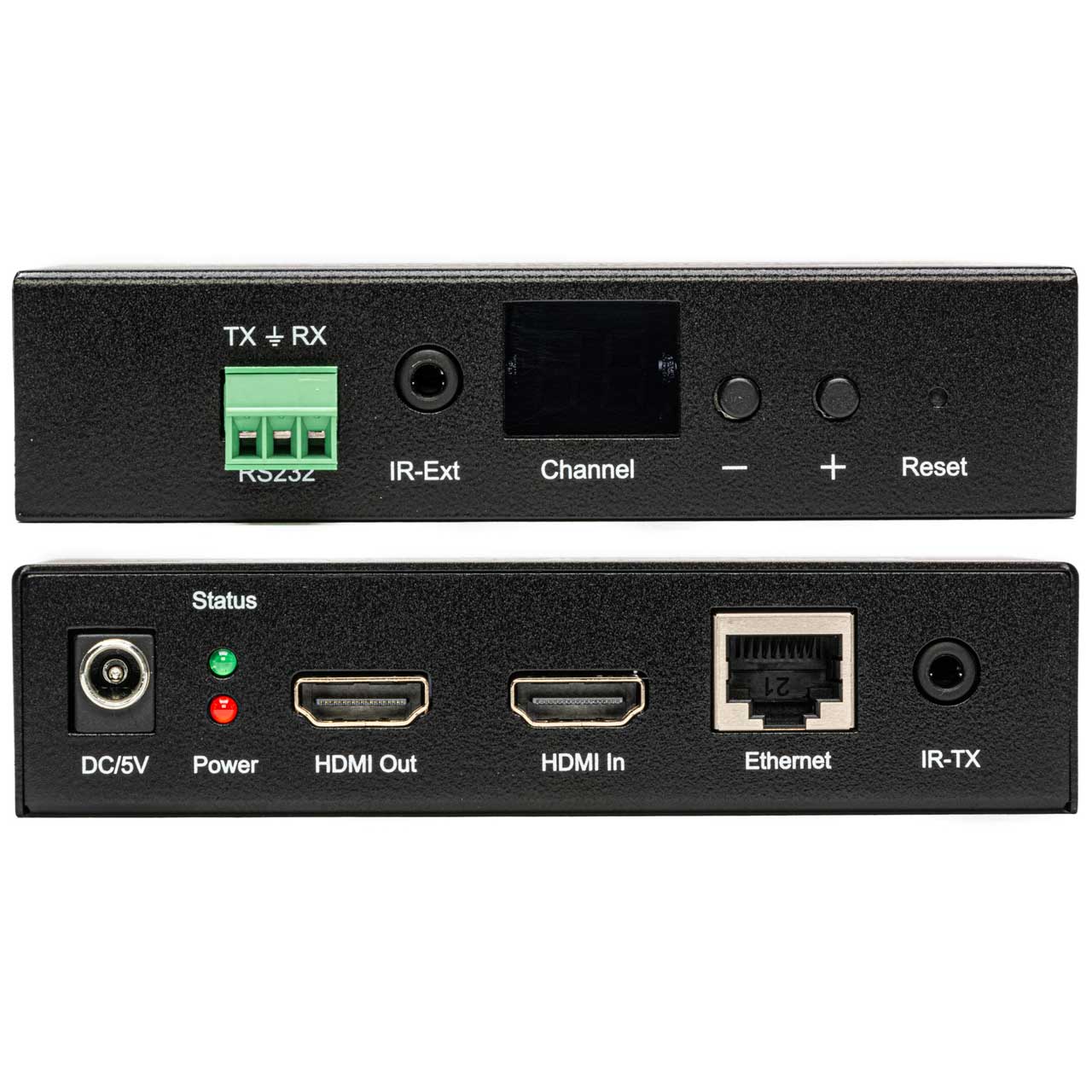

Ocean Matrix OMX-10HMIP0002 H.264 1080p/60 HDMI Over IP Extender with PoE RS-232 IR Transmitter ONLY

ITEM #: OMX-10HMIP0002 MFG #: OMX-10HMIP0002

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$130.95

Our Price:

$118.95

Availability: In Stock
iAvailability Description Popup


    OMX-10HMIP0002 - Overview

    The HDCP compliant Ocean Matrix 10HMIP0002 transmits 1080p/60 HDMI over IP via your LAN or over 375 feet of point-to-point CAT5e/6 cable. Utilizing advanced H.264 compression, its bandwidth requirements are low making it a perfect HDMI over IP solution in conference rooms, huddle spaces, educational distribution, sports bars, municipalities and retail outlets.

    With its Power Over Ethernet functionality, the Ocean Matrix 10HMIP0002 delivers smoother installations with the least amount of wiring possible. The transmitter can feed multiple Ocean Matrix 11IPHM0002 receivers when used with a network switch. It also offers IR control and supports dynamic host configuration protocol (DHCP).

    • Features:

      • Low Bandwidth
      • Looping HDMI output
      • Local or PoE Power Input: Includes 5V/1A power supply; PoE compliant when using a PoE Switch
      • Supports Dynamic Host Configuration Protocol (DHCP)
      • Wide-Band IR Control (38khz to 56khz)
      • Bidirectional RS232
      • Cascade Capability
      • LPCM Audio Format
      • PoE 802.3 and HDCP Compliant
      • Black Powder-Coated Steel Cabinet

    • Specifications:

      • Protocol H.264 encoder over TCP/IP
      • Transmission Distance: 394 feet/120m over Cat5e/6
      • Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
      • Audio format LPCM, Audio sampling rate 48KHZ
      • Streaming Bit Rate 15Mbps
      • Default Baud Rate 2400bps
      • IR Frequency 38 -56 KHz
      • Dimensions: 4 3/4 x 3 1/8 x 1 1/8 inches
      • Weight: 9.88 oz

    • Item Includes:

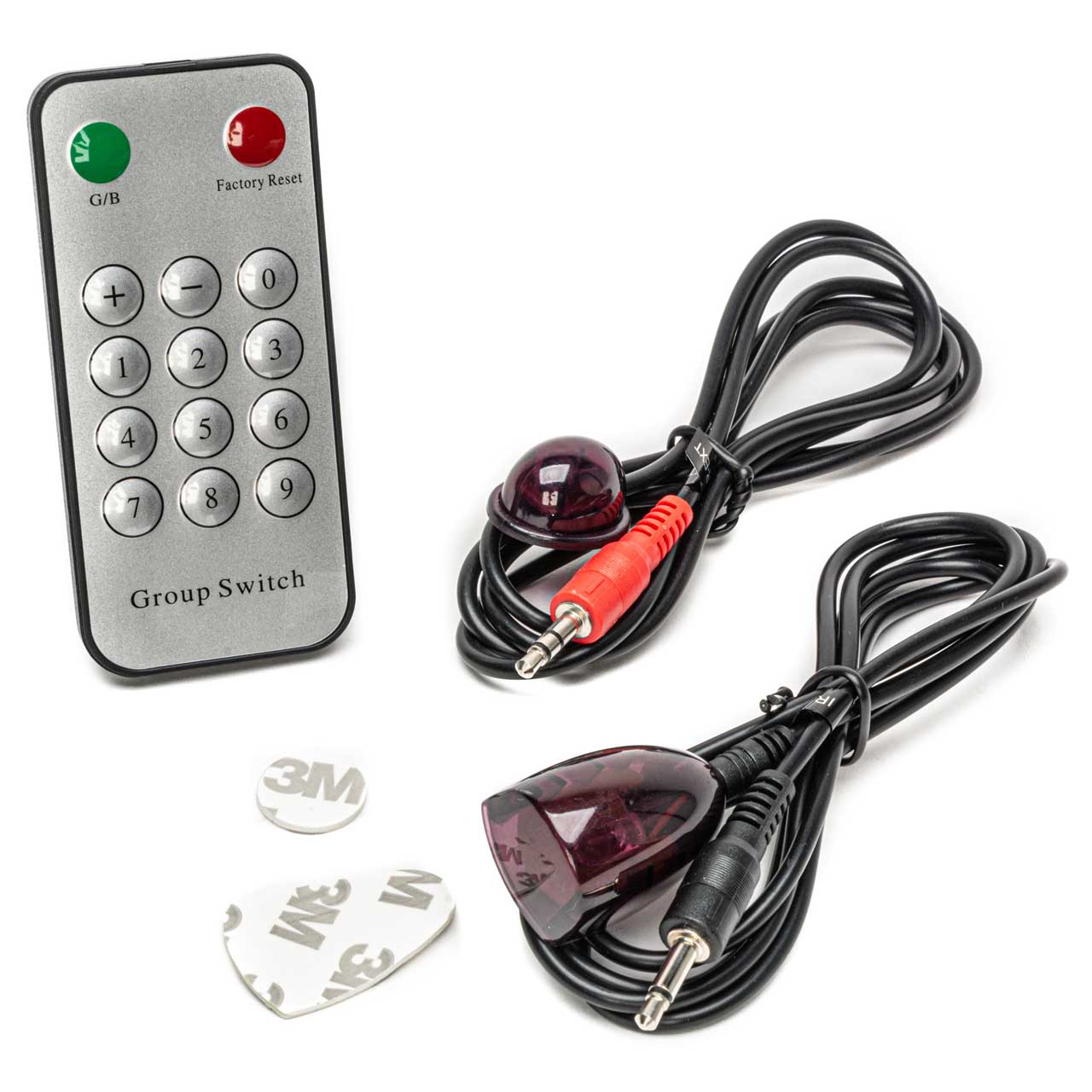

      • 1-5VDC/1A Power Supply, IR-TX and IR-Ext with mounting pads, Remote Control, 2 Brackets, 2 Screws, 1 Phoenix Plug for RS232 Cable Termination

    • Warranty:

      • 1 Year
