SWIT S-4601 HDMI to 3G/HDSDI Converter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

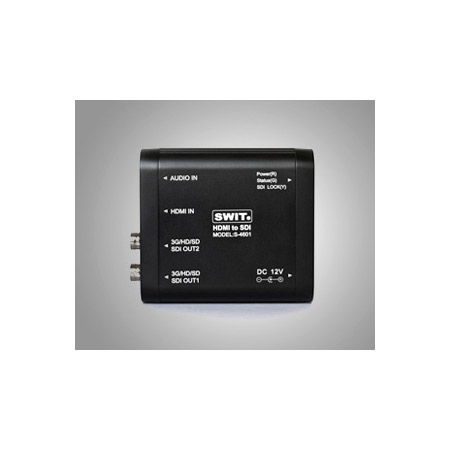

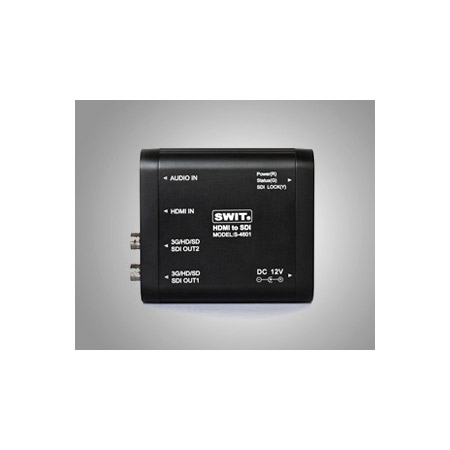

    SWIT S-4601 HDMI to 3G/HDSDI Converter

    Manufacturer: SWIT Electronics USA

    Item #: SWIT-S-4601   •   MFG #: S-4601



    List Price:$245.00
    Our Price:$225.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    S-4601 is a HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded into SDI output; analog audio (3.5mm socket) input, embedded into SDI output.
    S-4601 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing, and future accessories (battery mount, etc)


    • Features

      • Portable HDMI to 3G/HD/SD-SDI Converter
      • 1 HDMI input, 2 SDI output,
      • 1 analog audio (3.5mm) input
      • Embed HDMI audio to SDI output
      • Embed analog audio (3.5mm) to SDI output
      • HDCP content not supported
      • Power/input/output status indicator
      • Heavy duty housing
      • Bottom screw threads for installing

    • Specifications

      • Input: HDMI(1.3)x1, analog audio (3.5mm)x1
      • Output: 3G/HD/SD-SDIx2
      • Format
      • SDI: SMPTE-425M 1080p (60 / 59.94 / 50)
      • SMPTE-274M 1080i (60 / 59.94 / 50)
      • 1080p (30 / 29.97 / 25 / 24 / 23.98)
      • SMPTE-RP211 1080PSF (30 / 29.97 / 25 / 24 / 23.98)
      • SMPTE-296M 720p (60 / 59.94 / 50)
      • SMPTE-125M 480i (59.94)
      • ITU-R BT.656 576i (50)
      • HDMI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) / 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      • Power=3W
      • Working Voltage DC 6-18V
      • Working Environment
      • Temperature: 0°C-+70°C, Humidity:10%-90%
      • Dimension 73x74.3x29 mm
      • Net weight 138.5g

    • Item Includes

      • SWIT S-4601 & power adaptor
