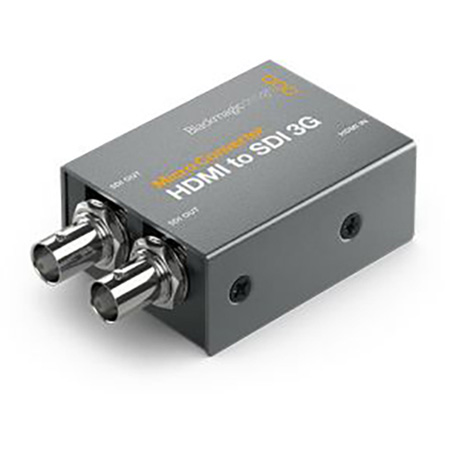

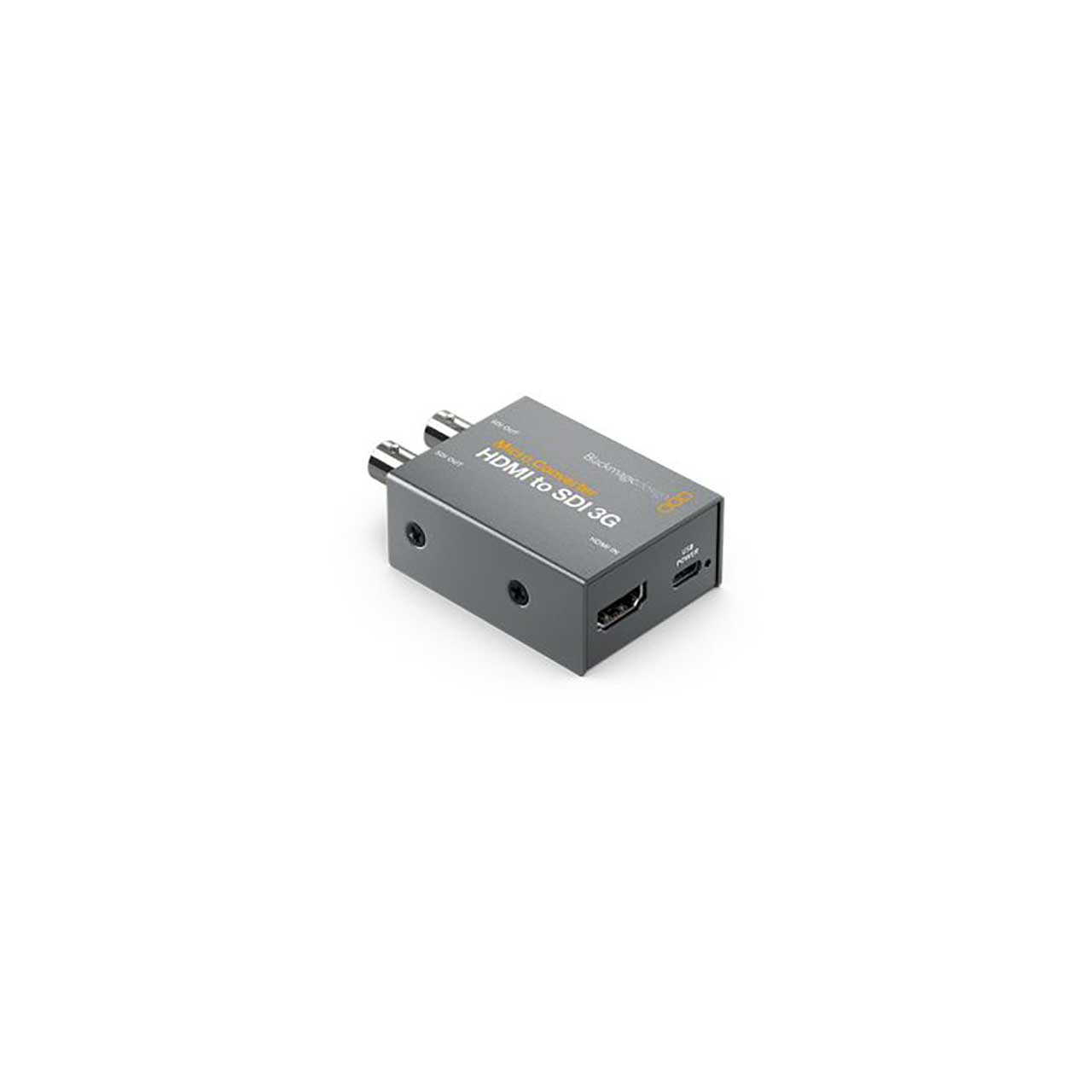

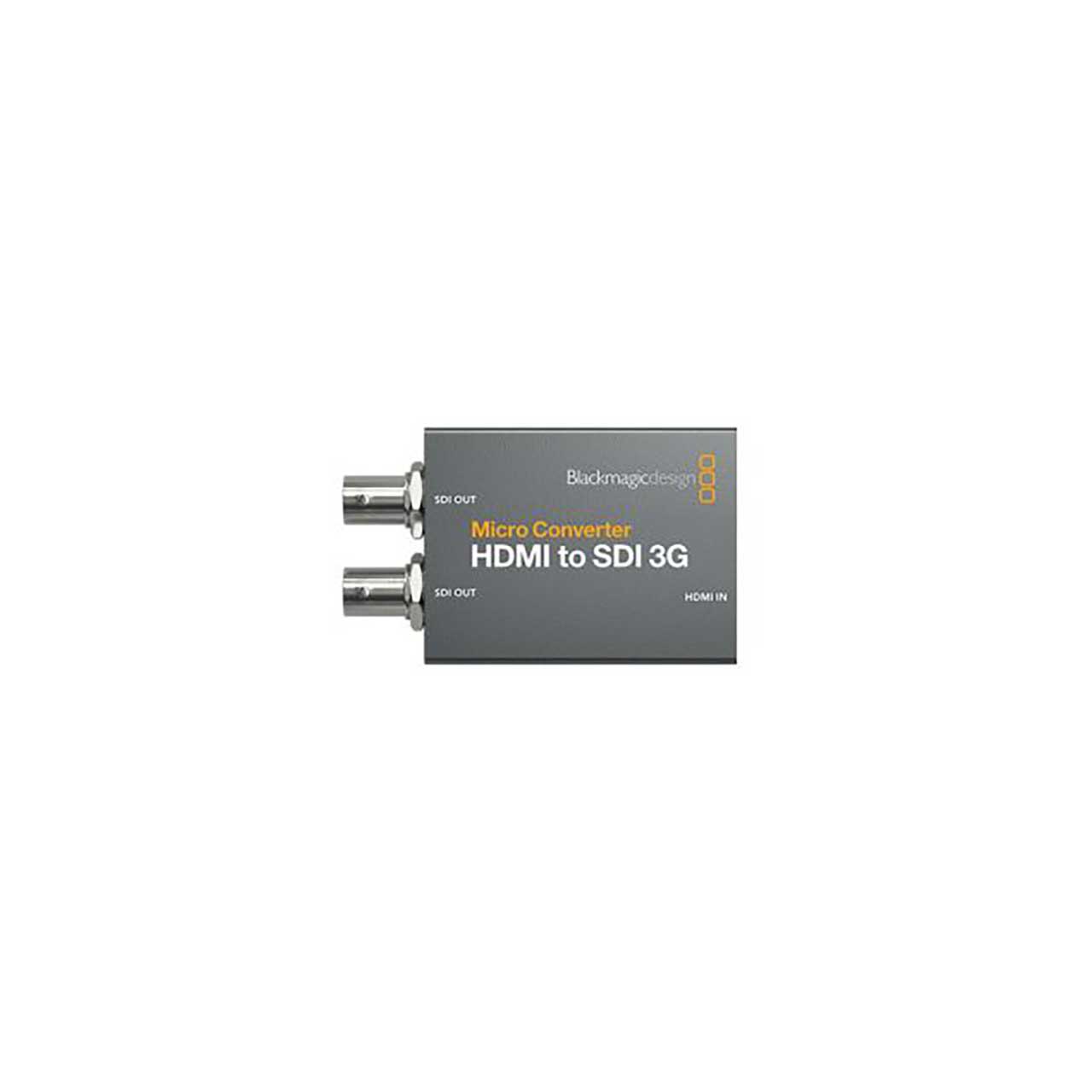

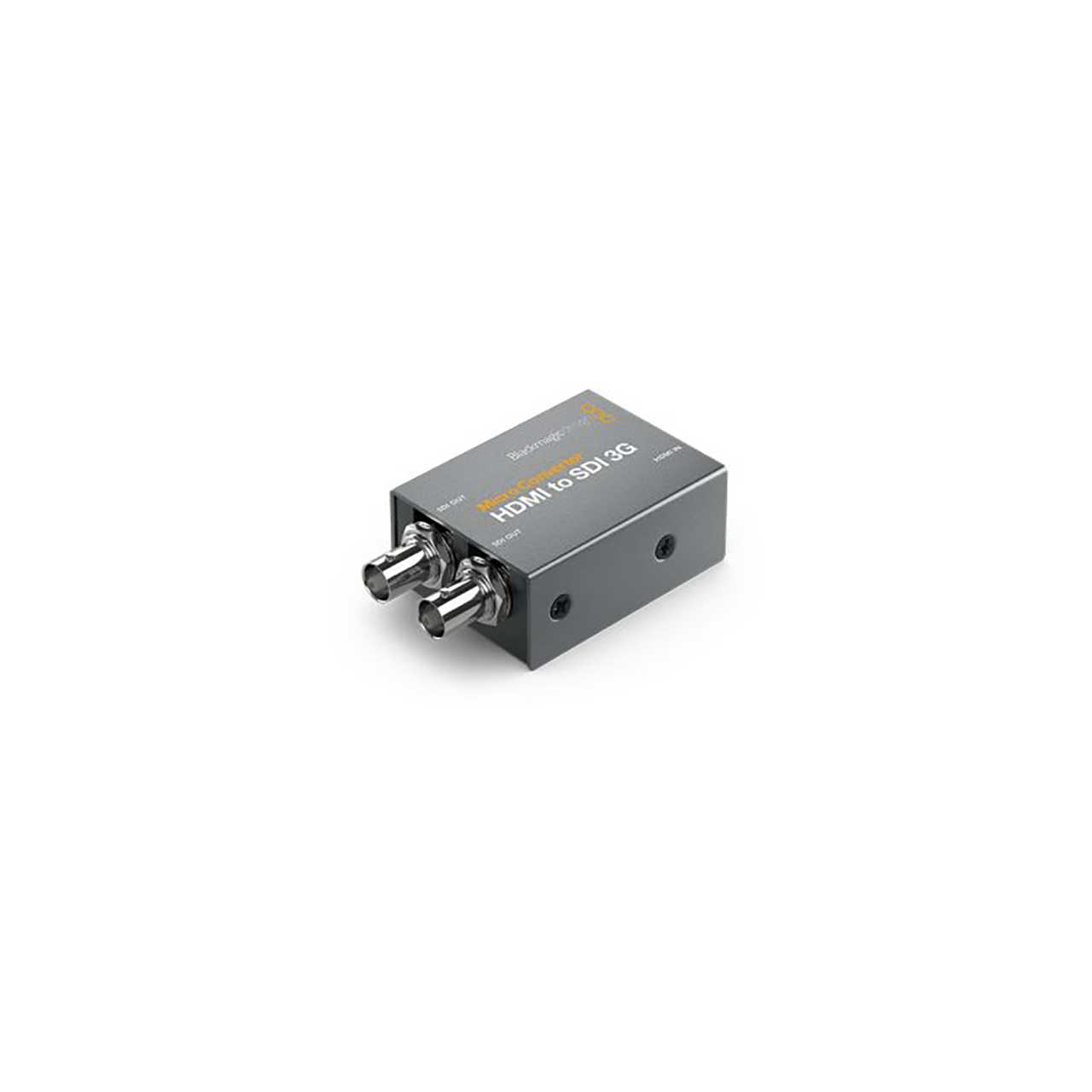

Blackmagic Design CONVCMIC/HS03G/WPSU Micro Converter - HDMI to SDI 3G with Power Supply

ITEM #: BMDCONVCMICHS3GW MFG #: CONVCMIC/HS03G/WPSU

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$65.00

Availability: In Stock
iAvailability Description Popup


    CONVCMIC/HS03G/WPSU - Overview

    Blackmagic Micro Converter - HDMI to SDI with Power Supply
    The Blackmagic Design Blackmagic Micro Converter - HDMI to SDI with Power Supply is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.

    Use Anywhere - Pocket sized broadcast quality converters!
    Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them for turning any computer display, television or video projector into high quality color calibrated broadcast monitoring. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending long HDMI distances using SDI.

    Precision engineered broadcast grade converters!
    Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has industrial standard 3G-SDI and HDMI connections with strong high quality connectors. Blackmagic Micro Converters include a USB connection for power, as well as changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for power and video status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

    Big converter quality, miniaturized!
    Unlike cheap converters, Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so you get very low SDI jitter, allowing you to extend SDI cables over long distances. That's vital for live production where equipment such as cameras can be a long distance from switchers. Blackmagic Micro Converters work with both 8 and 10-bit video formats, in RGB or YUV, and in all SD and HD formats up to 1080p60. They even support 1080p24, 1080p47.95 and 1080p48 film rates! Plus you get fully embedded audio and timecode support.

    • Specifications:

      • Connections
      • SDI Video Outputs: 2 x SD, HD or 3G-SDI Automatically matches the HDMI input.
      • HDMI Video Inputs: HDMI Type A in.
      • Multi Rate Support: Auto detection of SD or HD.
      • Updates, Configurations and Power: USB Type-C.
      • Reclocking: Yes

        Standards
      • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards:720p50, 720p59.94, 720p60/1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,1080i50, 1080i59.94, 1080i60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
      • SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G-SDI via setup utility.
      • SDI Color Precision: 4:2:2
      • SDI Color Space: YUV
      • SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G-SDI.
      • HDMI Video Standards:525i29.97 NTSC, 625i25 PAL/720p50, 720p59.94, 720p60/1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,1080i50, 1080i59.94, 1080i60
      • HDMI Color Precision: 4:2:2.
      • HDMI Color Space: YUV
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

        Software
      • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
      • Internal Software Upgrade: Via USB.
      • Settings Control: Via software utility.

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.

        Power Requirements
      • +5V universal power supply included with international socket adapters for all countries.
      • Power Consumption: 2.0 Watts
      • Operational Voltage Range: 4.4V to 5.25V DC

        Environmental Specifications
      • Operating temperature: 0° to 40° C (32° to 104° F)
      • Storage temperature: -20° to 60° C (-4° to 140° F)
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x Blackmagic Design BMD-CONVCMIC/HS03G/WPSU Micro Converter - HDMI to SDI 3G with Power Supply

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty.

    • GTIN:

      9338716003864
