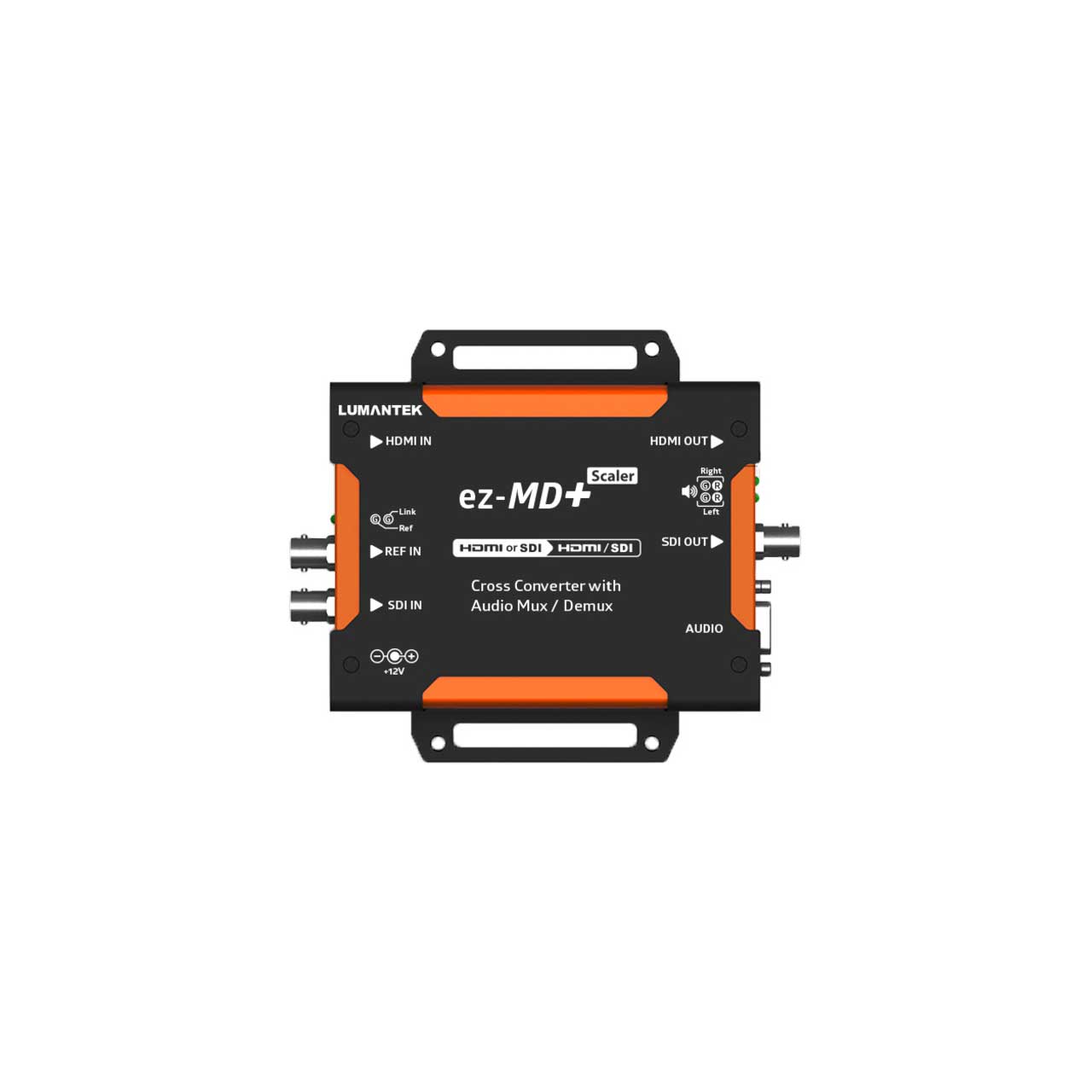

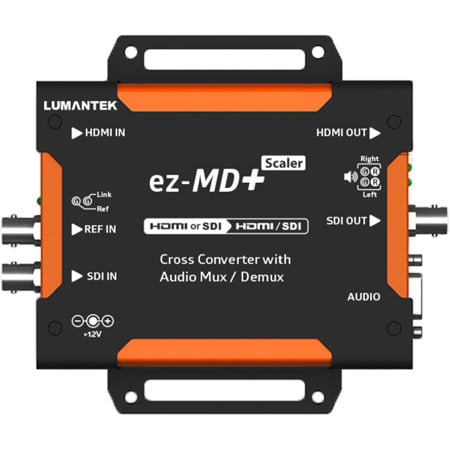

Lumantek ez-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler

ITEM #: LMTK-LUM-EZ-MD-P MFG #: LUM-EZ-MD-P

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$438.90

Availability: In Stock
iAvailability Description Popup


LUM-EZ-MD-P - Overview

HDMI/SDI Cross-Converter

LUMANTEK's ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.

HDMI and SDI Cross-Converting
LUMANTEK's ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.

Up / Down Scaling and Screen Ratio Control
ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'

Audio Delay control
Use the rotary switch to control the audio delay of the video source (50ms Step).

Frame Synchronization
There is a "Free Running", "Input Lock", and "Genlock" mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.

Global Power Adaptor
All ez-Converters come with AC/DC power adaptor. With three different types of replaceable plugs, make your work easy wherever you are.

  • Features:

    • Converts HDMI to SDI & SDI to HDMI
    • Upscales & Downscales Signal
    • Output Resolution up to 1080p60
    • Screen Ratio Control
    • Audio Embedding & De-Embedding
    • Audio Delay Control
    • Frame Synchronization

  • Specifications:

      Data Inputs
    • SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) 1x
    • HDMI Video Input: SD/HD/3G (HDMI Type-A) 1x
    • Reference Input: B.B, TRI (BNC 75Ω) 1x
    • Audio Input: D-SUB 9PIN (Female) 1x
    • Video Formats:
      - [email protected]/60
      - 720x576i@50
      - 1280x720p@50/59.94/60
      - 1920x1080i@50/59.94/60
      - [email protected]/24/25/29.97/30
      - 1920x1080p@50/59.94/60

      Data Output
    • SDI VIdeo Output: SD/HD/3G-SDI (BNC 75Ω) 1x
    • HDMI Video Output: SD/HD/3G (HDMI Type A) 1x
    • Audio Output:
      - D-SUB 9PIN (Female) 1x
      - [email protected] (DIP SW: 1111)
      - 720x576i@50 (DIP SW: 0111)
      - 1280x720p@50 (DIP SW: 1011)
      - [email protected] (DIP SW: 0011)
      - 1280x720p@60 (DIP SW: 1101)
      - 1920x1080i@50 (DIP SW: 0101)
      - [email protected] (DIP SW: 1001)
      - 1920x1080i@60 (DIP SW: 0001)
      - [email protected] (DIP SW: 1110)
      - 1920x1080p@24 (DIP SW: 0110)
      - 1920x1080p@25 (DIP SW: 1010)
      - [email protected] (DIP SW: 0010)
      - 1920x1080p@30 (DIP SW: 1100)
      - 1920x1080p@50 (DIP SW: 0100)
      - [email protected] (DIP SW: 1000)
      - 1920x1080p@60 (DIP SW: 0000)

      Connections
    • Power:
      - DC Power Input (DC Jack) 1x
    • Update: Debus (Micro-USB) 1x
    • DIP Switch: (10 Pole) 1x. Video Output Resolution, Video Output Ratio, Video Input (SDI or HDMI), Audio (INT or EXT). Sync Mode: Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain (0 or -10dB)
    • Rotary Switch: (10 step) 1x
    • Audio Delay Control: (50ms Step)

      Display
    • Link (Green x1): HDMI or SDI Input video Detect
    • Ref (Green x1): REF Input Signal Detect
    • Left (Green x1, Red x1): Input Audio Level Meter (Left)
    • Right (Green x1, RED x1): Input Audio Level Meter (Right)

      Electrical
    • Power Input: DC +11V to +13V
    • Power consumption: 8W (max.)
    • Operation Temperature: 32 to 113°F / 0 to 45°C

      Physical
    • Dimensions: 5.12 x 3.95 x 1.06" / 130 x 100.4 x 26.9 mm
    • Weight: 14.11 oz / 400 g

  • GTIN:

    0887367000283
