West Penn 254246F Plenum 4 Pair Category 6 Cable - 1000 Ft. Black

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

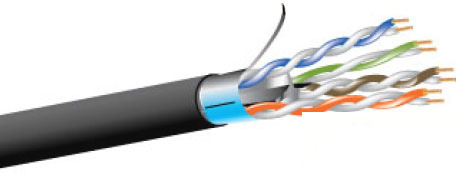

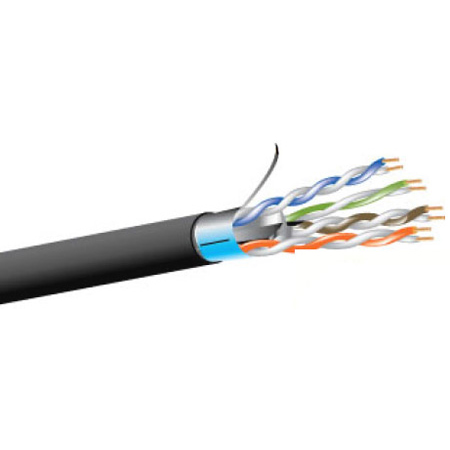

    West Penn 254246F Plenum 4 Pair Category 6 Cable - 1000 Ft. Black

    Manufacturer: West Penn Wire Corp

    Item #: WP-254246F-1000   •   MFG #: 254246F



    List Price:$834.96
    Our Price:$749.95

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    23 AWG.- 4 PAIR Solid bare copper conductors, Shielded with an overall jacket.

    APPLICATION: Indoor - Category 6 Applications- Ethernet, IP Cameras, Digital Integration, DVI,HDMI
    Meets or exceeds TIA/EIA 568C.2 Category 6 Specifications


    • Specifications

      • Construction Parameters:
      • Conductor 23 AWG Bare Copper
      • Stranding Solid
      • Number of Conductors 8 (4 Pair)
      • Insulation FEP
      • Barrier Internal FlexWeb Core Separator
      • Shield-Screen 100% Aluminum Foil -25% overlap
      • Drain 24 AWG Solid Tin
      • Core Separator Yes
      • Jacket Material Plenum PVC
      • Overall Cable Diameter 0.283'' Nom.
      • Approximate Cable Weight 44 Lbs/1M' Nom.
      • Flame Rating UL-NFPA 262

      • Electrical & Environmental Properties:
      • Operating Temperature Rating -20°C To +60°C
      • Operating Voltage Rating 300 V RMS
      • DC Resistance per Conductor @ 20deg C 20.4 ohms/1000ft
      • Mutual Capacitance 14pf/ft Nominal
      • Nominal Impedance 100 Ohms+/-15% (1-100Mhz)
      • Velocity of Propagation 72% Nominal
      • Delay Skew 30ns/100m MAX
      • Standards TIA/EIA568-C.2
      • Insulation Colors 1.Blue/White-Blue, 2. Orange/White-Orange
      • 3. Green/White-Green, 4. Brown/White-Brown
      • Jacket Color Black
      • RoHS Compliant Yes
