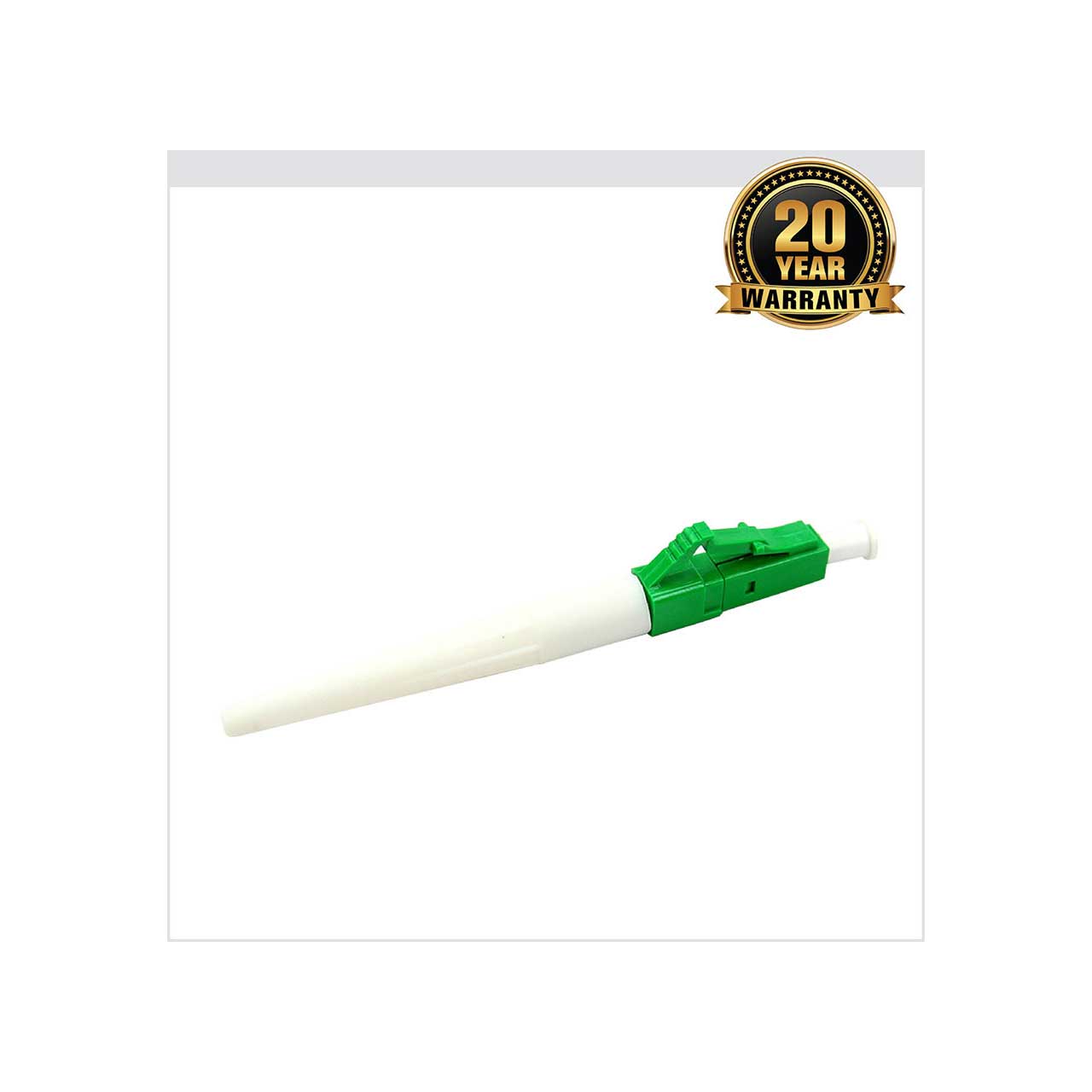

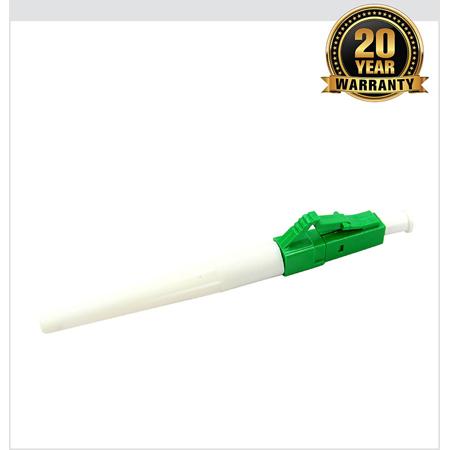

Optix 1XSOC-LCA-SM-09-10 1X 900um Single Mode LC APC Splice-on Connector - Green/White - 10/Pack

ITEM #: 1XSOCLCASM0910 MFG #: 1XSOC-LCA-SM-09-10

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$75.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1XSOC-LCA-SM-09-10 - Overview

    The Optix 1X 900um Splice-on connector is a simple three or four piece design compatible with all brands of fusion splicers on the market today. It features a fast and consistent field termination in less than two minutes. The fiber stub comes stripped, cleaned, and cleaved and ready for splicing on any fusion splicer. Available in LC, SC, and ST styles and made with Prysmian brand fiber cable. Optix's single mode connectors are compliant to Telcordia GR-326 and multimode connectors are compliant to TIA/EIA568C.3. EZ-Open packaging organizes the parts and saves time.

    • Features:

      • Simple, Fast, & Consistent Field Termination
      • Works with ALL fusion splicer brands
      • Field installable in less than two minutes
      • Fiber in connector is stripped and cleaved, ready for splicing
      • No adhesives, crimping, mechanical splices, index matching gels, or polishing
      • True APC performance for LCA & SCA
      • Eliminates the need for splice trays and splice panels
      • EZ Open packaging organizes the parts and saves time
      • Flame Retardant Connector Housings

    • Specifications:

      • Connector Types: 900um LC
      • Polish Types: APC(Singlemode)
      • Fiber Types: Prysmian/Draka G.652.D SM & OM1,OM2, OM3, OM4 MM
      • Cable Types: 900 micron and 250 micron coated fiber
      • Insertion Loss: SM: 0.15 dB(average), 0.3 dB(maximum)
      • Return Loss (APC): ≤ -65dB
      • Operating Temp: -40°C to + 75°C
      • Compliance: SM to Telcordia GR-326

    • Item Includes:

      • 1x Optix 1XSOC-LCA-SM-09-10 1X 900um Single Mode LC APC Splice-on Connector - Green/White - 10/Pack

    • Warranty:

      • Twenty Year
