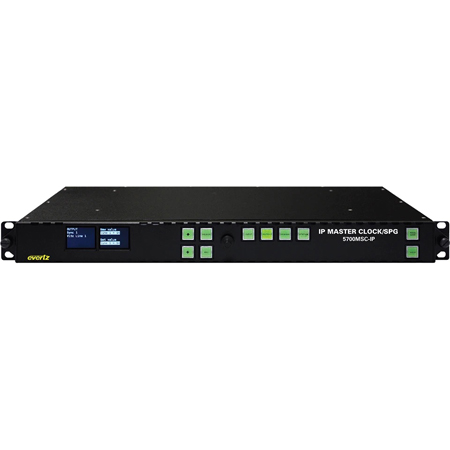

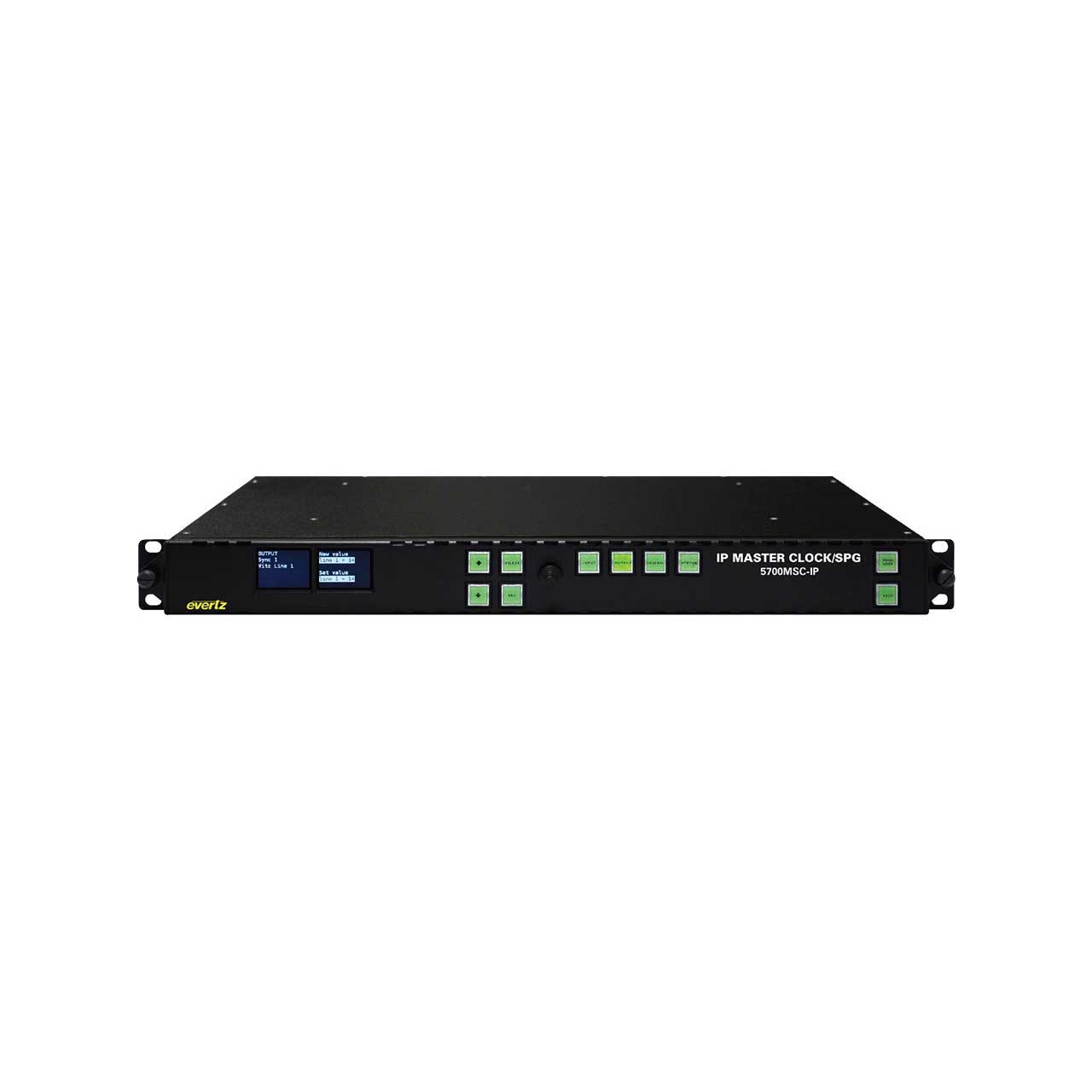

Evertz 5700MSC-IP+2PS+SDITG+AUX Master Sync Generator for an IP or Hybrid Facility with GPS included


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

5700MSCIP2PSSDIT - Overview

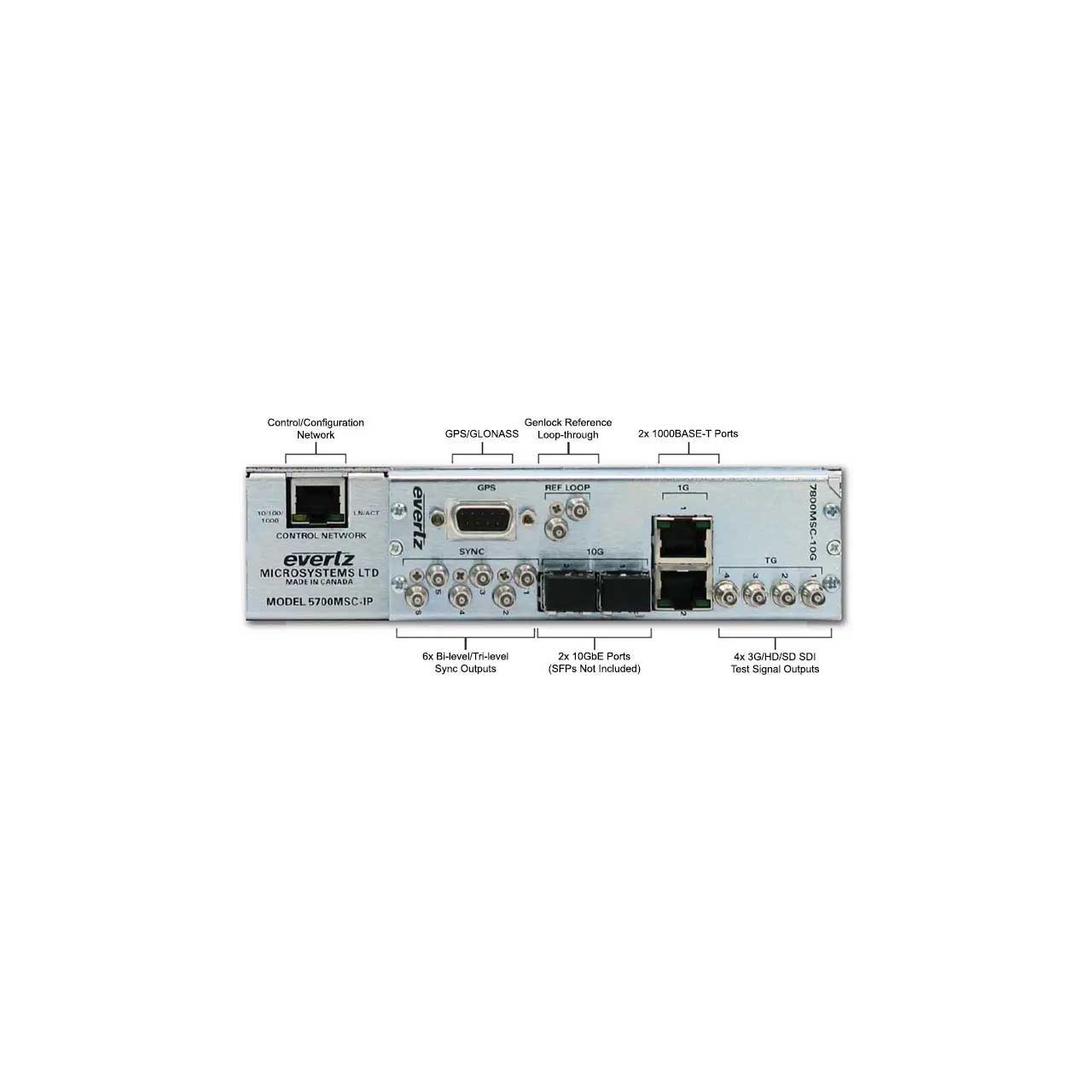

The 5700MSC-IP+2PS+SDITG+AUX is an IP network grandmaster clock and video master sync generator capable of being referenced to GPS and GLONASS global navigation satellite constellations with the included smart antenna, and additionally Galileo and Beidou in L1 and L5 bands with the optional MSC-RF-ADAPT-720 GNSS receiver and MSC-RF-HEAD-720 Dual Band multi-GNSS RF antenna. The system features 2x 1GbE, 2x10GbE ports, 6x independently configurable and fully timeable Sync outputs, 4x SDI video test generator outputs* and a loop-through input. For hybrid plants where LTC outputs, DARS and AES/analog audio test generator signals are required, an optional (+AUX) expansion module is available. This combo IP network grandmaster clock and master sync generator is ideal for timing today's SMPTE 2110 IP-based video broadcast, production and distribution facilities. It provides all the future timing needs of an IP-based plant while providing precision reference to baseband SDI/Analog facilities.

The +SDI-TG test generator option provides several test signals available on the 4x independently configurable SDI (SD/HD/3Gbps) outputs that may be combined to form a 4K UHD test signal generator capable with 2sI or Square Division format.

The +10G-TG test generator option** includes the above SDI test generator feature and adds 6x independently configurable SMPTE 2110 IP outputs in HD and 3G format with SMPTE 2022-7 capability delivering 3 sets of test signals. The +10G-TG option** also supports 4K UHD in 2sI or Square Division by combining four outputs.

As for IP timing formats, the 5700MSC-IP has been designed to be enterprise class, with 4x independently configurable IP timing interfaces (2x 10GbE** and 2x1GbE) for unmatched flexibility and robustness. The architect may now design fault-tolerant meshed timing systems capable of recovering from single points of network failure without resorting to failing over to a degraded grandmaster. PTP profiles include SMPTE 2059-2, AES67 and IEEE1588 Annex J. NTP is supported on all four IP timing interfaces as well as the dedicated control network interface. PCR is supported on 4x IP timing interfaces for workflows where required.

* +SDITG SDI video test signal generator option required

** Optional single-mode and multi-mode 10GbE SFPs not included.

  • Features:

    • Oven Controlled Crystal Oscillator (OCXO) with 0.01ppm free run stability for ultra-stable timing accuracy and reference signal generation
    • IP network grandmaster clock for NTP, PTP (SMPTE 2059-2, AES67 and IEEE1588 Annex J), PCR
    • 6x independently timeable sync outputs and 4x optional SDI test generator outputs (+SDI-TG), supports SD/HD/3G SDI
    • Optional 10GbE video test generator support (+10G-TG), (SFPs not included)
    • Configurable to run in Boundary Clock Mode for larger enterprise scale network designs (with an upstream PTP Grandmaster)
    • GNSS (GPS, GLONASS) referenced system - outdoor antenna and 50ft cable provided, more options available
    • Optional Dual Band (L1 and L5) GNSS receiver supporting GPS, GLONASS, Galileo and Beidou satellite constellations
    • Contact closure output for critical warning
    • Optional AES and analogue audio test generator, LTC, DARS and GPIO functionality (+AUX)
  • Specifications:

    • Analog Sync Outputs:
    • Standards:
    • Black Burst: SMPTE ST170 (NTSC-M), ITU-R BT.1700-1 (PAL-B)
    • Bi-Level: Slo-Pal 625i/48, 625i/47.95, 480p/59.94
    • HD Tri-Level: SMPTE ST274 (1080p/23.98, 1080p/24, 1080i/50, 1080i/59.94, 1080i/60, 1080p/23.98sF, 1080p/24sF, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60); SMPTE ST296 (720p/59.94, 720p/60, 720p/50, 720p/30, 720p/24)
    • Pulse Signals: PAL color frame, 1Hz pulse, IRIG DATUM 1/1.001Hz pulse, 6/1.001Hz pulse
    • CW Signals: 5MHz, 10MHz, NTSC-M subcarrier, PAL-B subcarrier
    • Wordclock: 48kHz wordclock level 5V CMOS (1kΩ) or ±1V (75Ω)
    • 10MHz Output: 1.0V p-p, 2.0V p-p, in 75Ω, SNR > 70dB rms SFDR > 50dBc
    • Connector: 75Ω HD-BNC
    • Number of Outputs: 6
    • DC Offset: 0V ±0.05V
    • Return Loss: > 40dB up to 10MHz
    • SNR: > 75dB rms
    • Output Levels: 1.0V p-p, 2.0V p-p, in 75Ω, selectable

      GPS/GLONASS Receiver:
    • Temperature: -40 to 70°C
    • Humidity: 95% relative humidity, condensing at 60°C

      1000BASE-T Timing Network:
    • Quantity: 2
    • Network Type: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
    • Connector: RJ-45
    • Timing: NTP, PTP (SMPTE 2059-2, AES67 and IEEE1588 Annex J), PCR

      10GbE Timing Network:
    • Quantity: 2
    • Network Type: IEEE 802.3ae (10GbE)
    • Connector: SFP (not included), LC/UPC
    • Timing: NTP, PTP (SMPTE 2059-2, AES67 and IEEE1588 Annex J), PCR

      Genlock Input: Video/10MHz Selectable
    • Type: Auto-detects standard, SMPTE ST170 (NTSC-M), ITU-R BT.1700-1(PAL-B), color black 1V p-p with optional VITC and 10-field pulse HD tri-level sync (same HD standards as sync outputs)
    • Number of Inputs: 2x loop-thru high impedance, isolated, differential external termination required
    • Connector: 75Ω HD-BNC
    • Return Loss: > 40dB to 10MHz (with external 75Ω termination)
    • Input Level Range:
    • Video: -3.5dB (double terminated) to +6dB (un-terminated)
    • 10MHz: 0.3V p-p to 4.0V
    • Frequency Lock Range:
    • Wide Mode: ±15ppm min.
    • Narrow Mode: ±0.1ppm min.

      SDI Test Generators: with +SDI-TG or +10G-TG option
    • Standards: SMPTE ST259-C (270Mbs), ST292-1 4:2:2, ST372 dual link, ST424; quad link ST292-1 4:2:2, quad link ST424 4:2:2; ST425-3 dual link 3GB/s, ST425-5 quad link 3GB/s
    • Number of Outputs: 4
    • Embedded Audio: Up to 4x audio groups as specified in SMPTE ST 299-1 or SMPTE ST272; selectable tone frequencies (from 20Hz to 12kHz) and audio group
    • Connector: 75Ω HD-BNC
    • Signal Level: 800mV nominal drive
    • DC Offset: 0V ±0.5V
    • Rise/Fall Time: 100ps HD/3G, 600ps SD
    • Overshoot: < 10% of amplitude
    • Jitter: < 0.2UI
    • Return Loss: > 15dB to 1.5GHz, > 10dB to 3GHz

    • Voltage: Auto-ranging 100 - 240V AC, 50/60Hz
    • Configuration: Optional redundant supply available
    • Power: 125 watts (all options installed)
    • Safety: CAN/CSA-C22.2 No. 62368-1:14 UL 62368-1 2nd Ed.
    • EMI/RFI: Complies with FCC part 15, Class A; complies with EU EMC directives

    • Dimensions: 19" W x 1.75" H x 11.5" D (483 x 45 x 292 mm)
    • Weight: 8lbs (3.5kg)
