    ALDV104T-IEC - Overview

    Digital video/audio switch and extender to drive up to four remote displays.

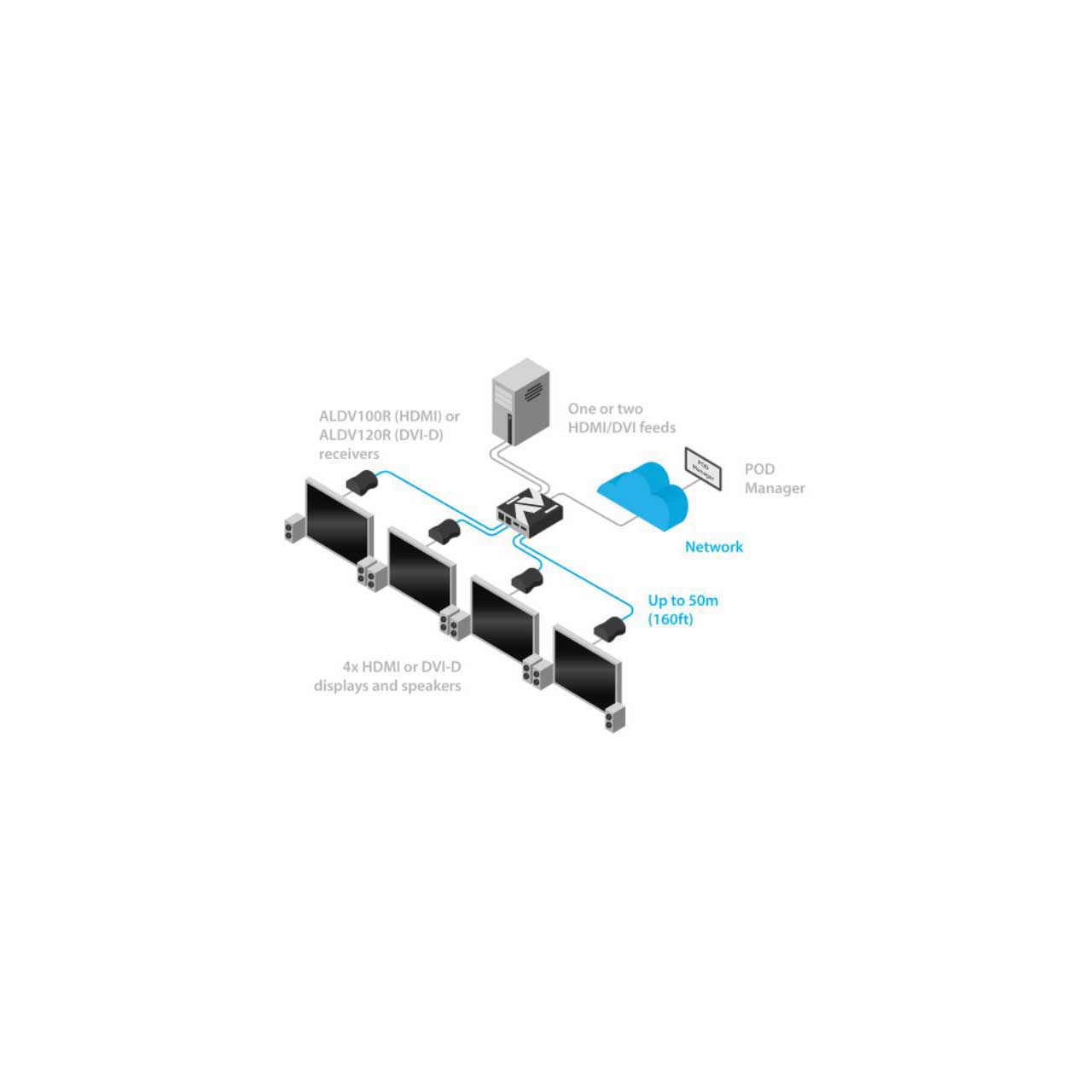

    Two input, four output, video splitter and extender

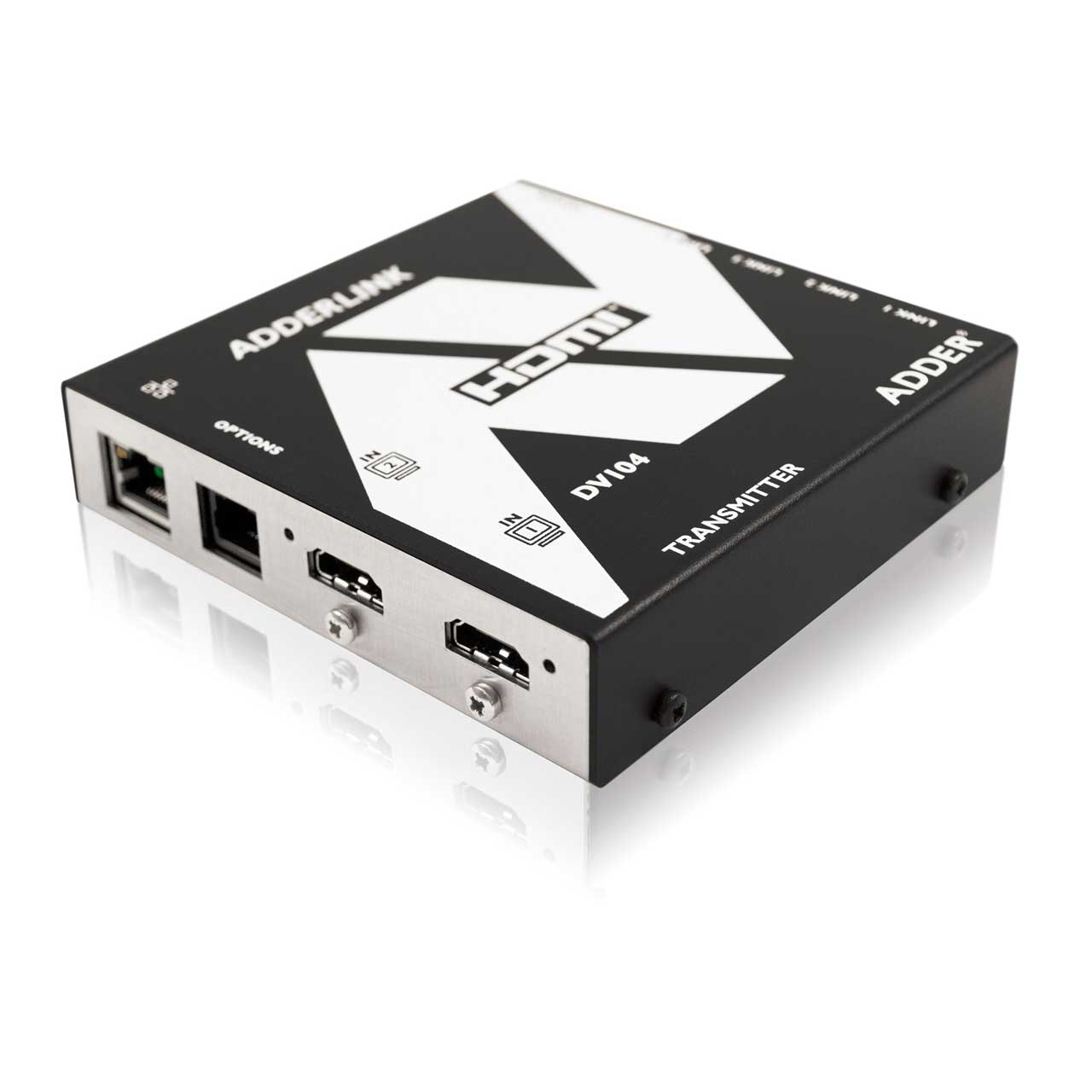

    The ADDERLink DV104T is a intelligent non blocking cross point switch and high performance digital video extender and 1x4 splitter. Configurations can be selected dynamically via the web interface or controlled by a 3rd party control system. The ALDV104T-US is the Transmitter Unit ONLY and requires 1 to 4 ALDV100R HDMI and/or ALDV120R DVI-D receiver units to operate (sold separately).

    Proof of Display via IP network
    The unit determines if the entire system is operating correctly and video is visible on the monitors. It can detect if video is present from the player and whether the cables to the monitors are attached and the monitor is turned on. This information is available by an IP socket thus allowing remote diagnostics and integration into content management systems.

    Security on the web interface is by HTTP digest authentication (RFC 2617) with username and password as requested information.

    Perfect HD Digital Video
    The ALDV104 uses an uncompressed video system where every frame is sent without loss with resolutions up to 1920 x [email protected] (WUXGA) including 1080p, 720p and 480p resolutions.

    50 meters/164 Feet over a single CATx cable
    Video, audio and power all pass along a single CATx cable, providing up to 50m of extension. Distance can be dependent upon CATx cable types and the number of connection breaks for patch panels and wall plates.

    Please Note: Recommended cables are CAT7 shielded with foiled twisted pairs.

    • Features:

      • Perfect HD Digital Video
      • Supports 8 channels of HDMI audio
      • Proof of Display (P.O.D.)
      • 50m/164ft over a single CATx cable!
      • Plug and Play
      • Two video inputs, four video outputs
      • High definition 1920x1200 video @60Hz
      • Line powered receivers
      • Source failover
      • API for 3rd party integration
      • EDID management
      • Highly energy efficient - no external power supplies are required
    • Specifications:

      • Hardware compatibility:
      • All computers with HDMI connections - requirement dependent

      • HDMI interface:
      • The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920x1200) @60Hz and 24 bit color depth. Does not support HDCP

      • Software compatibility:
      • All known operating systems

      • Audio:
      • The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.

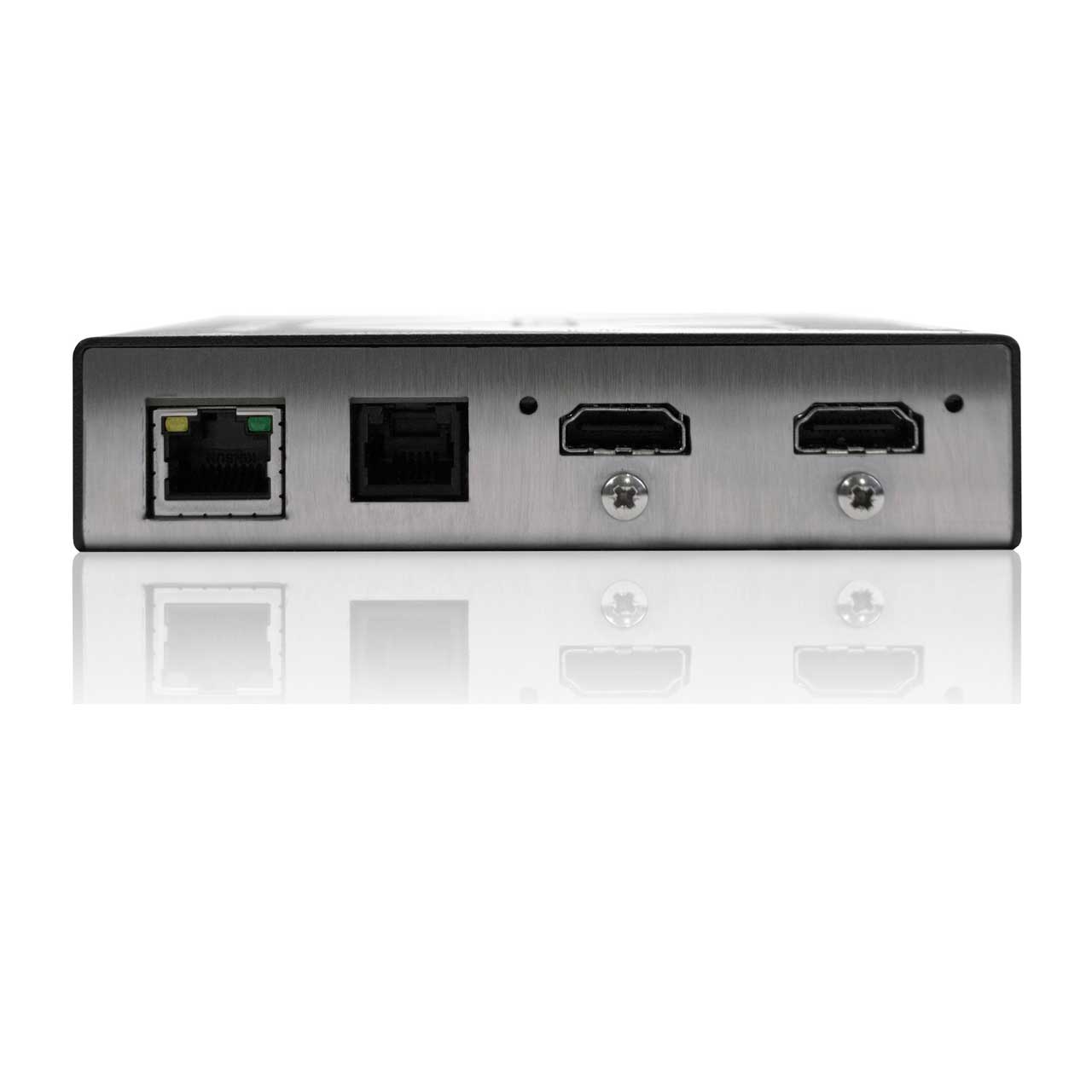

      • Connections:
      • 2 x HDMI type A male
      • 4 x CATx sockets for link outputs
      • 1 x 10/100Base-TX network port (config)
      • 1 x 9-way D-sub RS232C port
      • 1 x 2.5mm DC power jack

      • Operating temperature:
      • 0 to 40°C / 32 to 104°F

      • Physical design:
      • Compact case, robust metal construction: 115mm / 4.5'' (w) x 114mm / 4.5''(d) x 26mm / 1''(h). Weight 440g / 0.97 lb

      • Power:
      • 3pin Toby jack (power adapter included),
      • 100-240VAC 50/60Hz, 0.8A, input to power adapter
      • 12VDC 18W output from power adapter

      • Approvals:
      • CE, FCC
    • Item Includes:

      • 1x ADDER Link DV104T transmitter unit
      • 1x HDMI cable with locking connectors 1.5m
      • 1x Power adapter (18W)
      • 1x US power cord
    • Warranty:

      • 2 Year Limited
    • GTIN:
