Tripp Lite B127A-1A1-BDBD DisplayPort over Cat6 Extender Kit - KVM Support/USB/4K/DP1.2a/PoC/HDCP 2.2 - up to 230 Feet

ITEM #: TRL-B127A1A1BDBD MFG #: B127A-1A1-BDBD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$400.00

Our Price:

$258.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B127A-1A1-BDBD - Overview

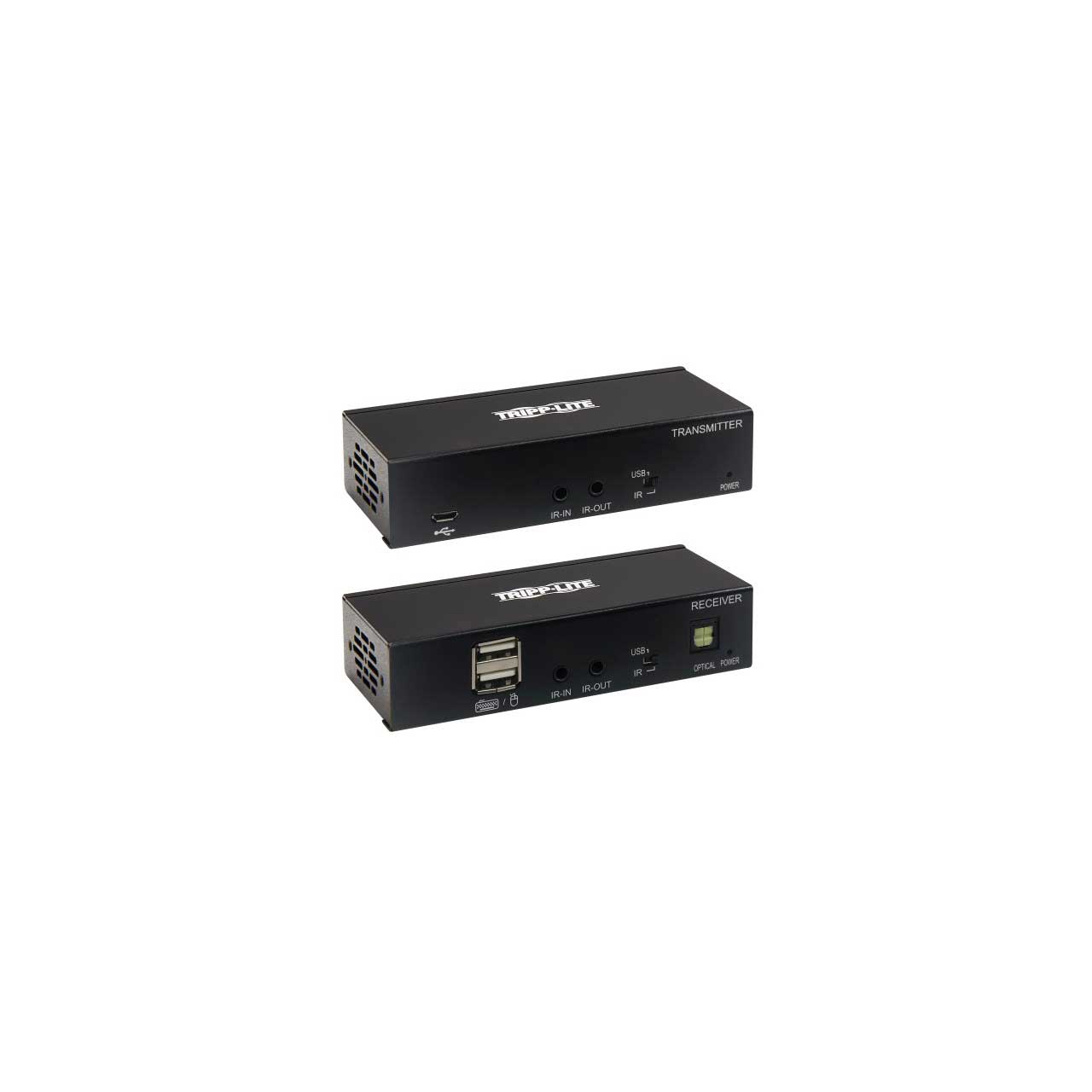

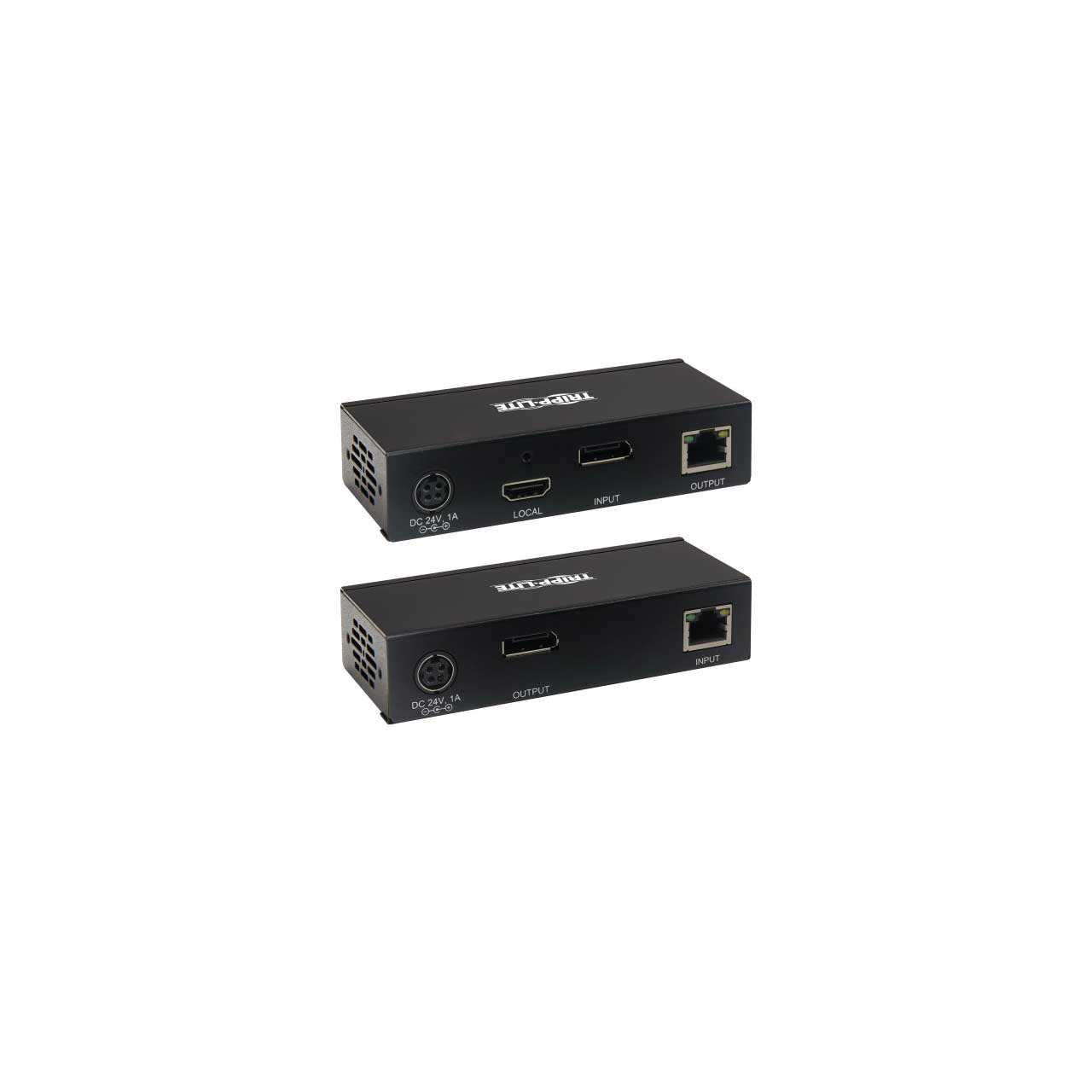

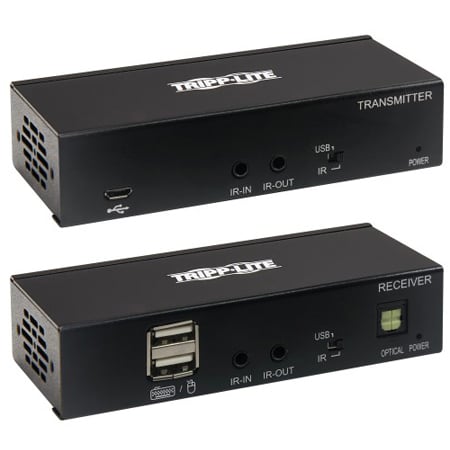

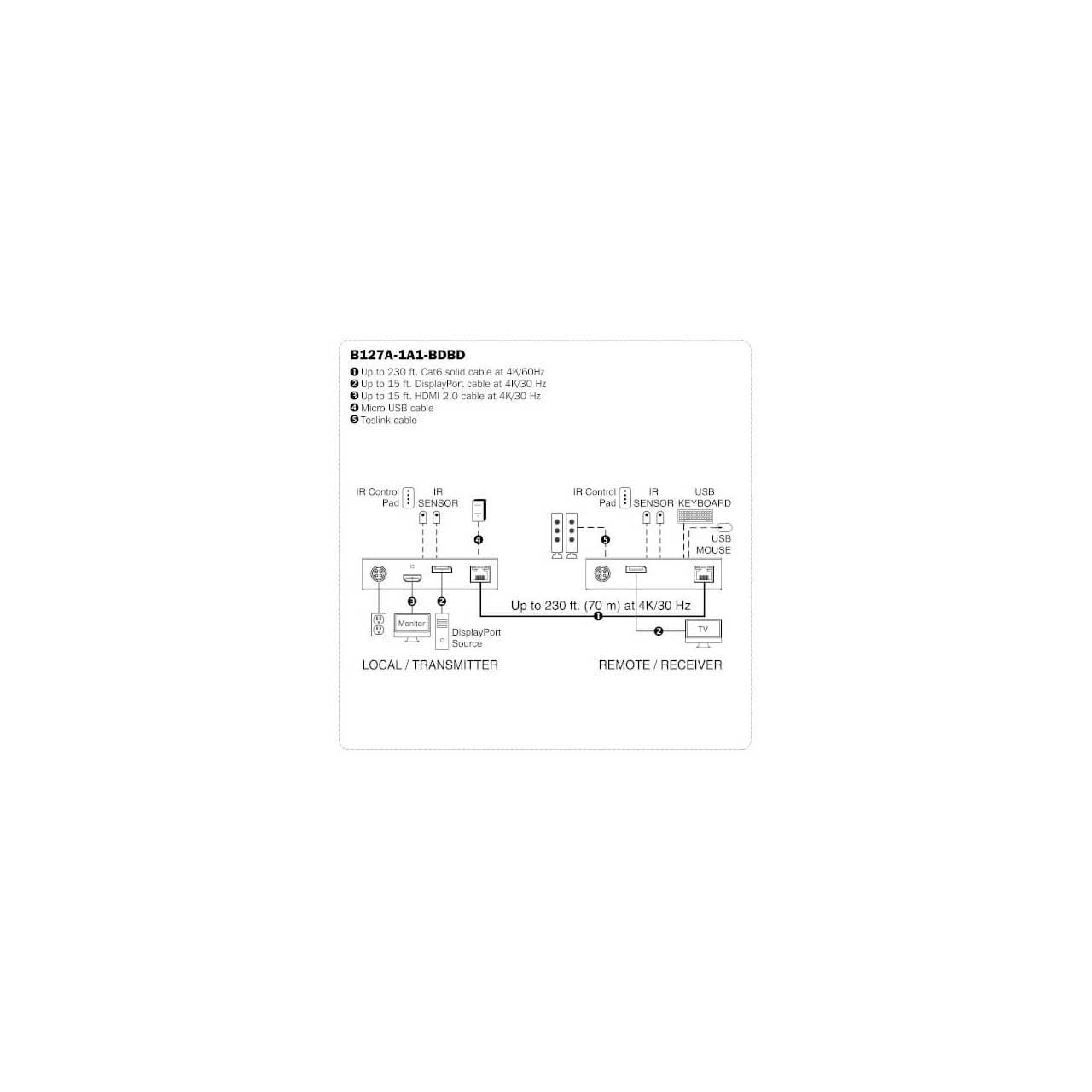

    The Tripplite B127A-1A1-BDBD is a DisplayPort extender kit with transmitter and receiver extends a 4K signal via Cat6 cable to a DisplayPort monitor up to 230 ft. away.

    Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color - The B127A-1A1-BDBD supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

    Local HDMI Port on Transmitter Supports 4K @ 30 Hz Resolution - To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable (such as P568- or P569-Series). This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/30 Hz to function properly.

    • Features:

      • Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
      • Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
      • Transmitter's local port shows you the 4K image being displayed at the other end
      • DIP switch selection allows bi-directional IR or USB function for controlling the source
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • Video
      • Video Input: DISPLAYPORT (FEMALE)
      • Video Output: DISPLAYPORT (FEMALE); HDMI (FEMALE)
      • Number of Monitors Supported: 2
      • Video Ports: DISPLAYPORT (FEMALE); HDMI (FEMALE)
      • Video Ports Details: HDMI 2.0; HDCP 1.4; HDCP 2.2; DisplayPort 1.4
      • Max Supported Video Resolution: 3840 x 2160 (4K @ 30Hz)
      • Transmitter Video Input: DisplayPort
      • Transmitter - Number of Video Outputs: 1
      • Transmitter - Local Display Output: HDMI
      • Receiver/Transceiver Video Output: Display
      • Receiver - Number of Video Outputs: 1
      • Range Extension using other Tripp Lite product: 170 ft. or 230 ft.
      • Recommended Cabling: Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
      • Extended Mode: Yes
      • Mirror Mode: Yes
      • Max Supported Color Depth: 36-bit True Color
      • HDR Support: No
      • 3D Video Supported: Yes
      • Chroma Sub Sampling: 4:4:4
      • Maximum Signal Range (ft): 230

        Audio
      • Audio Ports: DISPLAYPORT (FEMALE)
      • Audio Ports Details: Supports pass-through of audio formats including LPCM2.0/5.1/7.1
      • Audio Input: Displayport
      • Audio Output: Toslink; Displayport
      • Audio Specification: Pass-through audio (LPCM 2.0/5.1/7.1)

        Input
      • AC Power Adapter Plug(s): AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
      • AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.6A
      • AC Power Adapter Output Specs (V / A): 24V / 1A
      • AC Power Adapter Cord Length (ft.): 4.5
      • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240

        Physical
      • Receiver Unit Dimensions (HxWxD): 1.06" x 4.53" x 2.46" (26.92mm x 115.06mm x 62.4mm)
      • Receiver Unit Weight: 1lb
      • Transmitter Unit Dimensions (HxWxD): 1.06" x 4.53" x 2.46" (26.92mm x 115.06mm x 62.4mm)
      • Transmitter Unit Weight: 1lb

        Environmental
      • Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature Range: 5°F to 122°F (-15°C to 50°C)
      • Relative Humidity: 0% to 85% RH, Non-Condensing

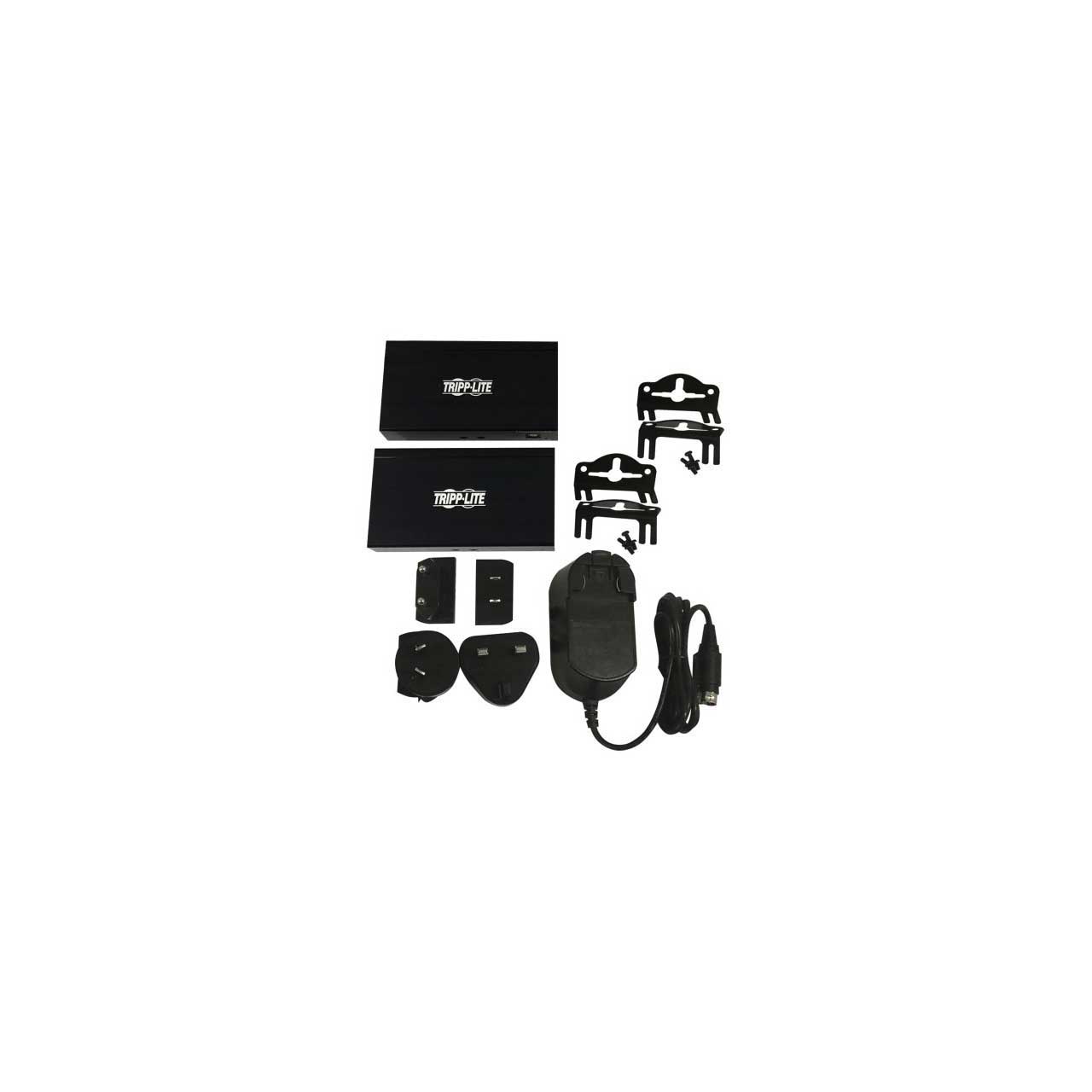

    • Item Includes:

      • 1x Transmitter
      • 1x Receiver
      • 1x External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
      • 4x International plug adapters (North America, Europe, U.K. and Australia)
      • 1x Mounting hardware
      • 1x Owner's manual

    • Warranty:

      • 1-Year Limited Warranty
