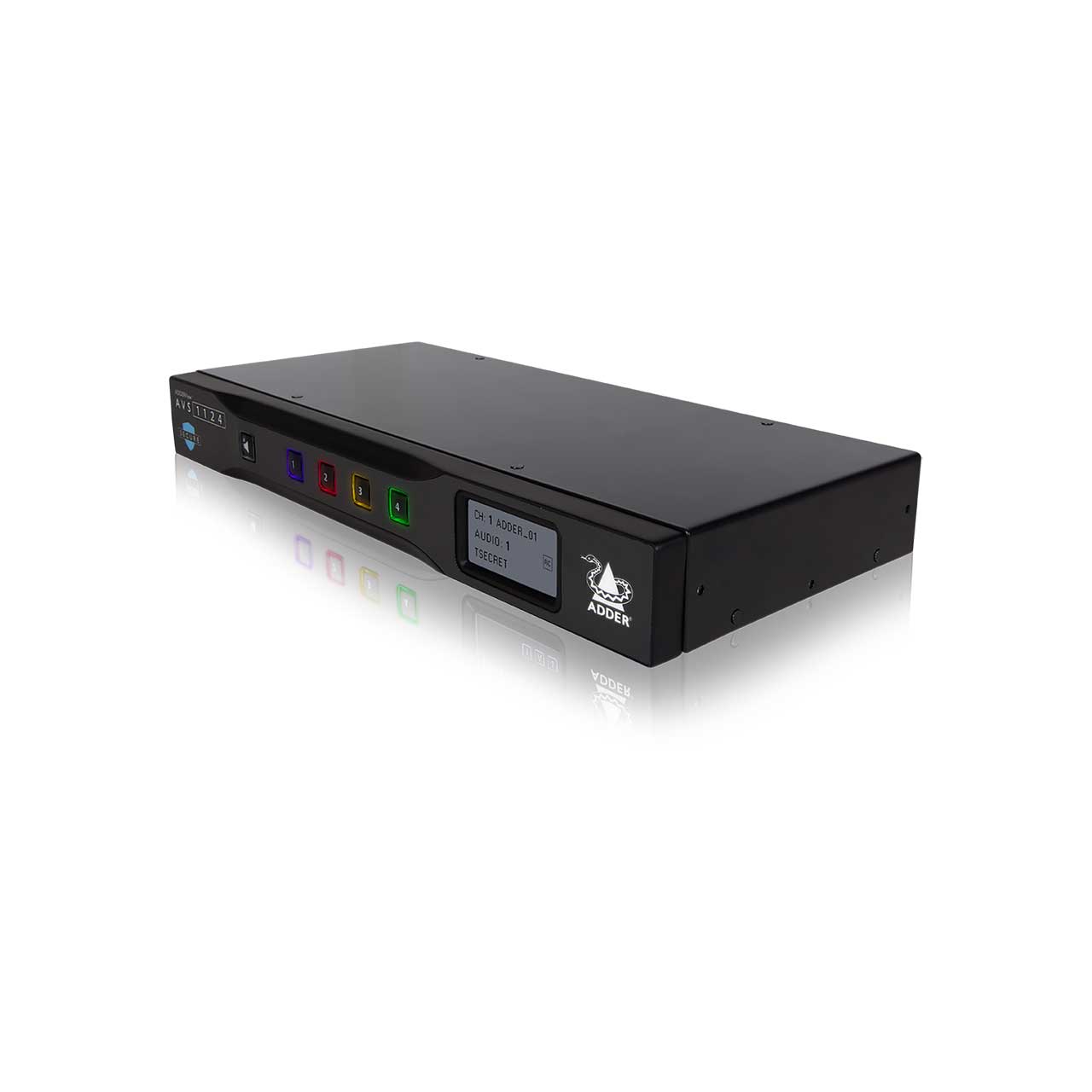

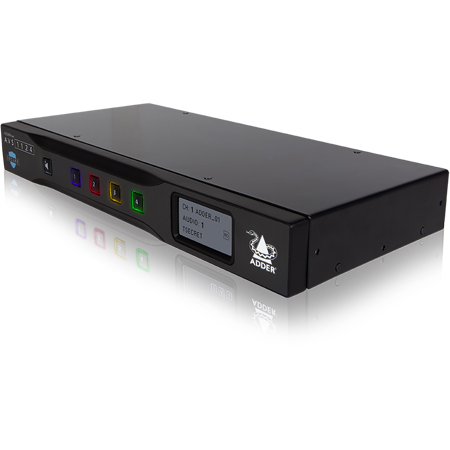

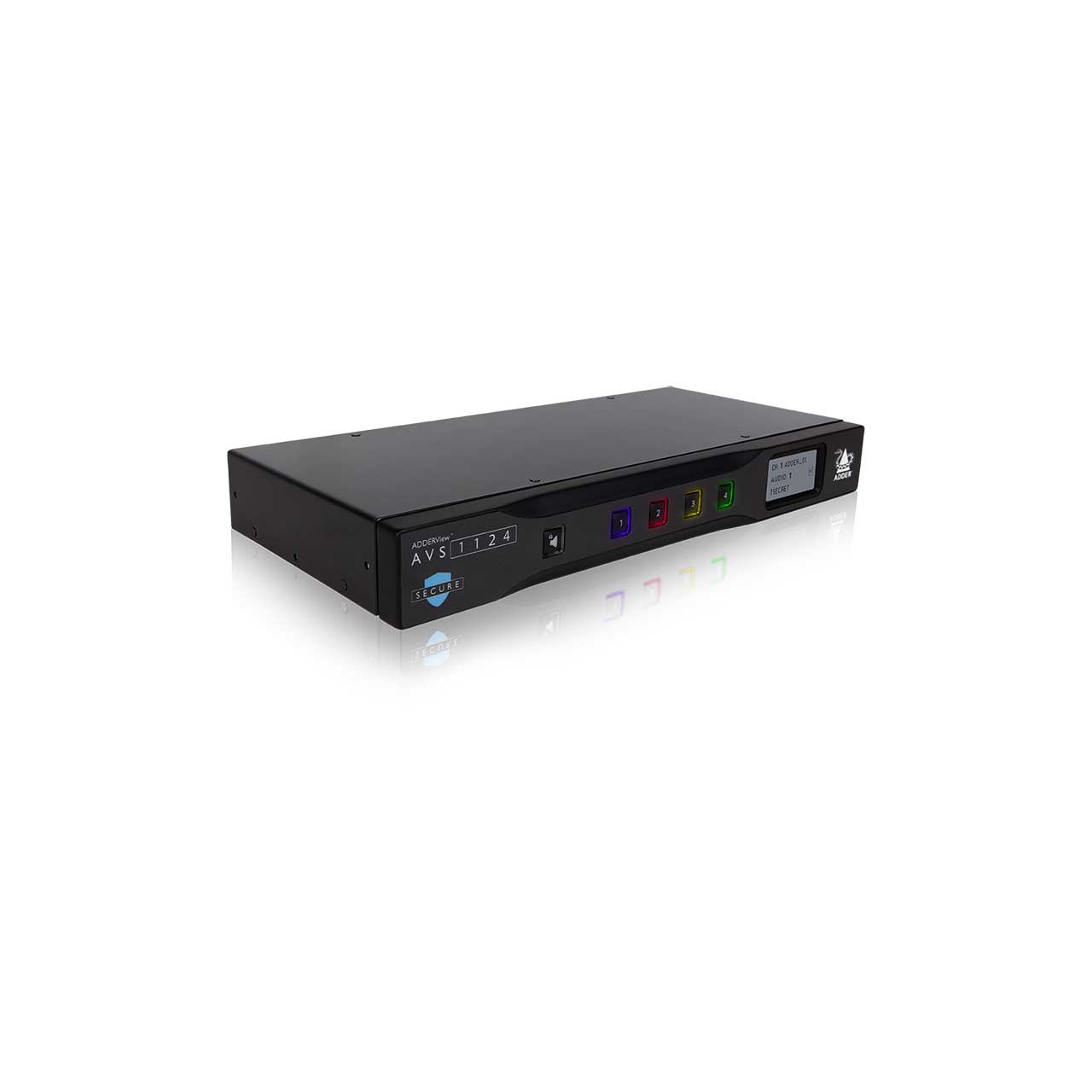

Adder AVS-1124 ADDERView Secure 4-Port Multi-Viewer Switch with UHD 4K Video Output

AVS-1124 - Overview

• Features:

  • Uni-Directional Keyboard and Mouse Data Paths: Uni-directional optical diodes ensure data paths travel in only one direction, thus preventing data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks, and prevents computers influencing the operation of any common circuitry.

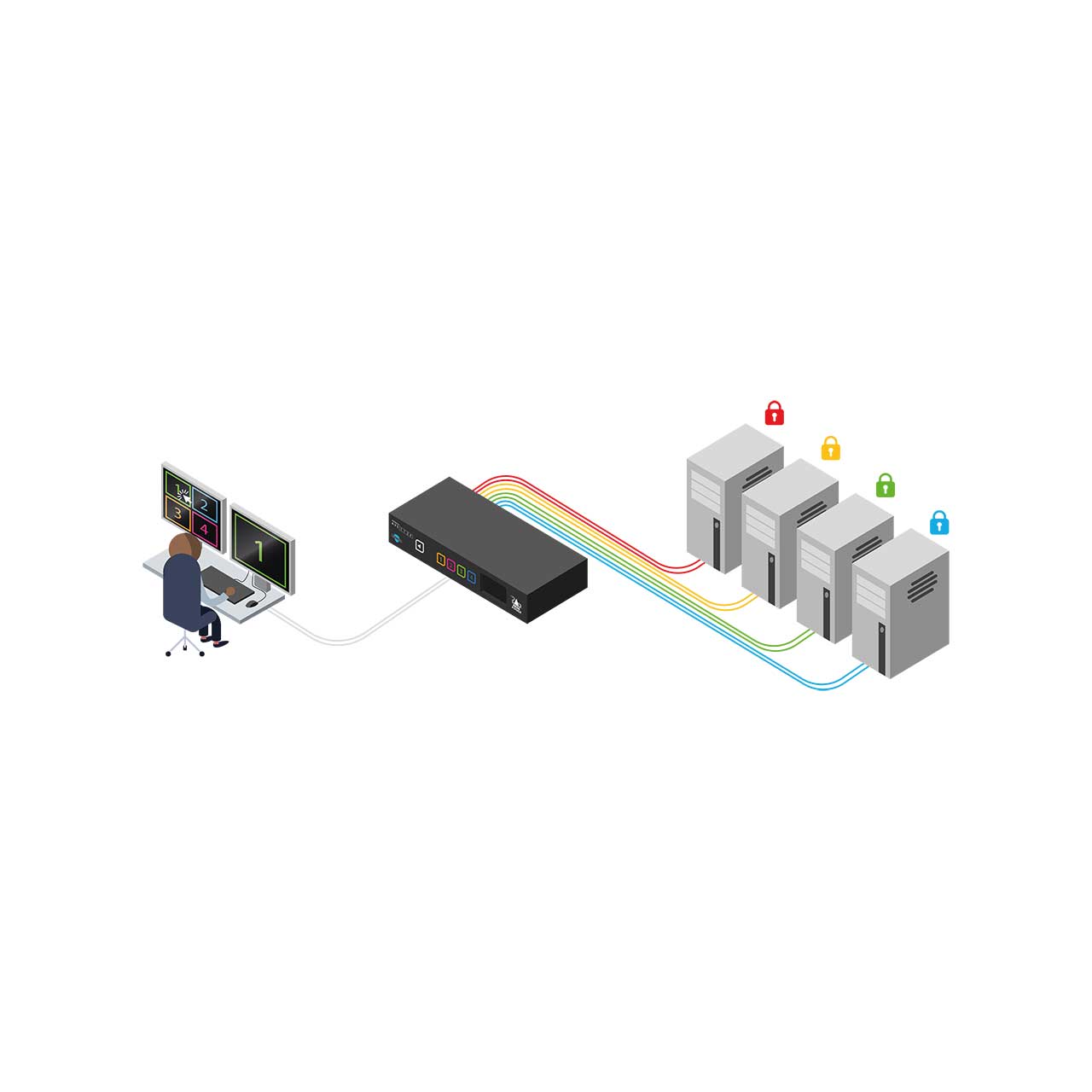

  • Automatic Switching: Switch channels (KVM plus audio) simply by moving the mouse across the screen border, whilst pressing the Ctrl key. This is a security feature to prevent accidental switching.
  • No Shared RAM Between Channels: The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. All data buffers are actively cleared once they have been used.
  • Hardware Anti-Tampering: Holographic anti-tampering labels protect the product's enclosure, providing a clear visual indication if it has been opened or compromised.
  • Channel Identification: Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.
  • Video Performance: Up to UHD 4K video output resolution is generated, thus the input signal quality is preserved, even in tile window layout.
  • Non-Reprogrammable Firmware: There is no access to the product's firmware or memory through any port. Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification. Firmware integrity is verified through a self-test procedure during power up. Detection of a critical failure disables the device and provides a clear visual indication to the user.
  • Restricted USB Function: The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.


• Specifications:

  • Approvals/Compliance: CE, FCC class A, TUV US & Canada - NIAP PP 4.0 Compliant Design for Peripheral Sharing Devices (PSD)


  • Video Resolutions: The system supports input resolutions up to HD (1920 x 1200). It generates output resolutions up to UHD 4K (3840 x 2160 @ 30Hz).


  • Software Compatibility: Windows, Linux, Mac host computer OS's USB HID, including touchscreens compliant with Microsoft Digitizer.


  • Console Connections: 2x digital ports for HDMI, USB type A, Audio 3.5mm; RJ12 for remote control

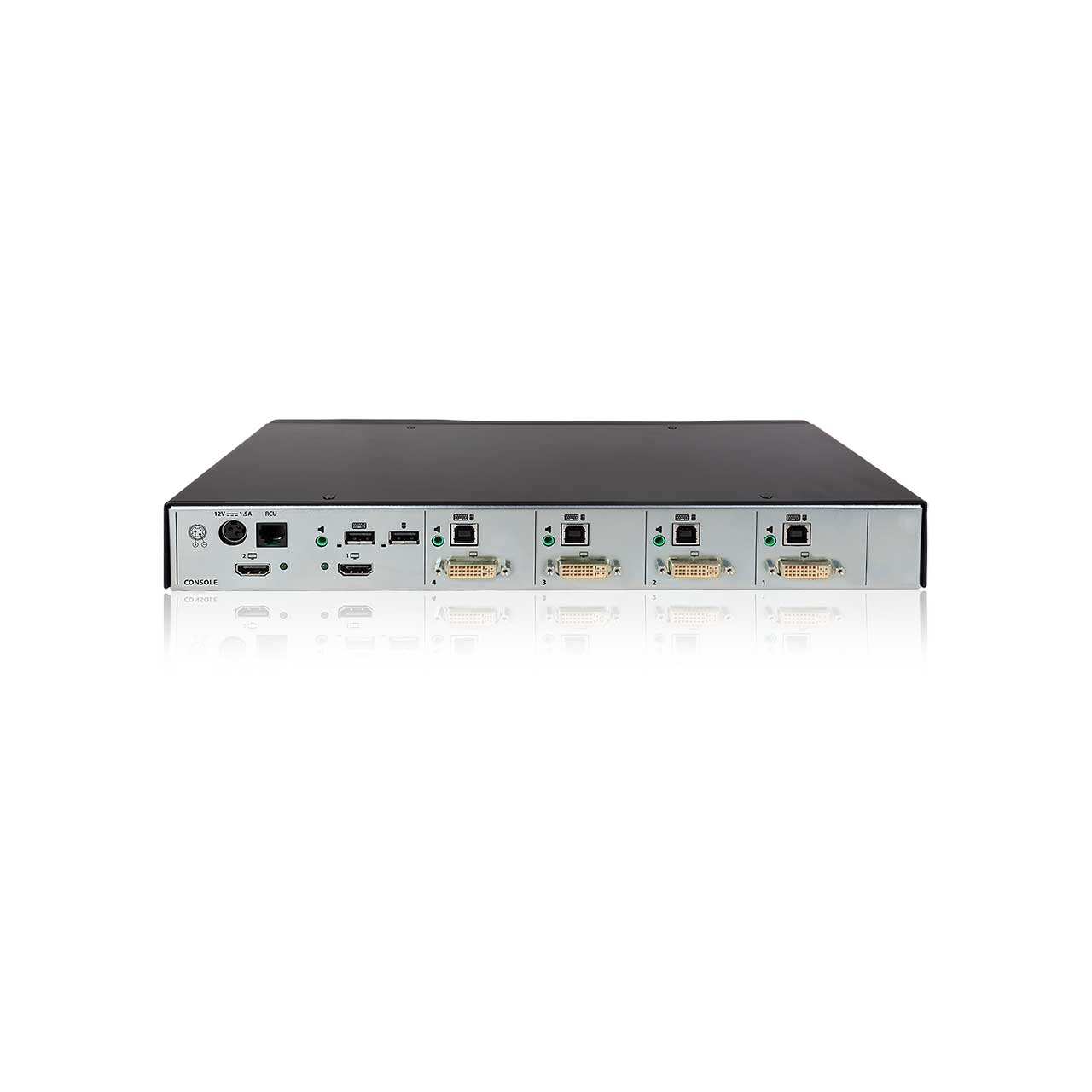

  • Computer Connections: 4x DVI-D, USB type B, Audio 3.5mm

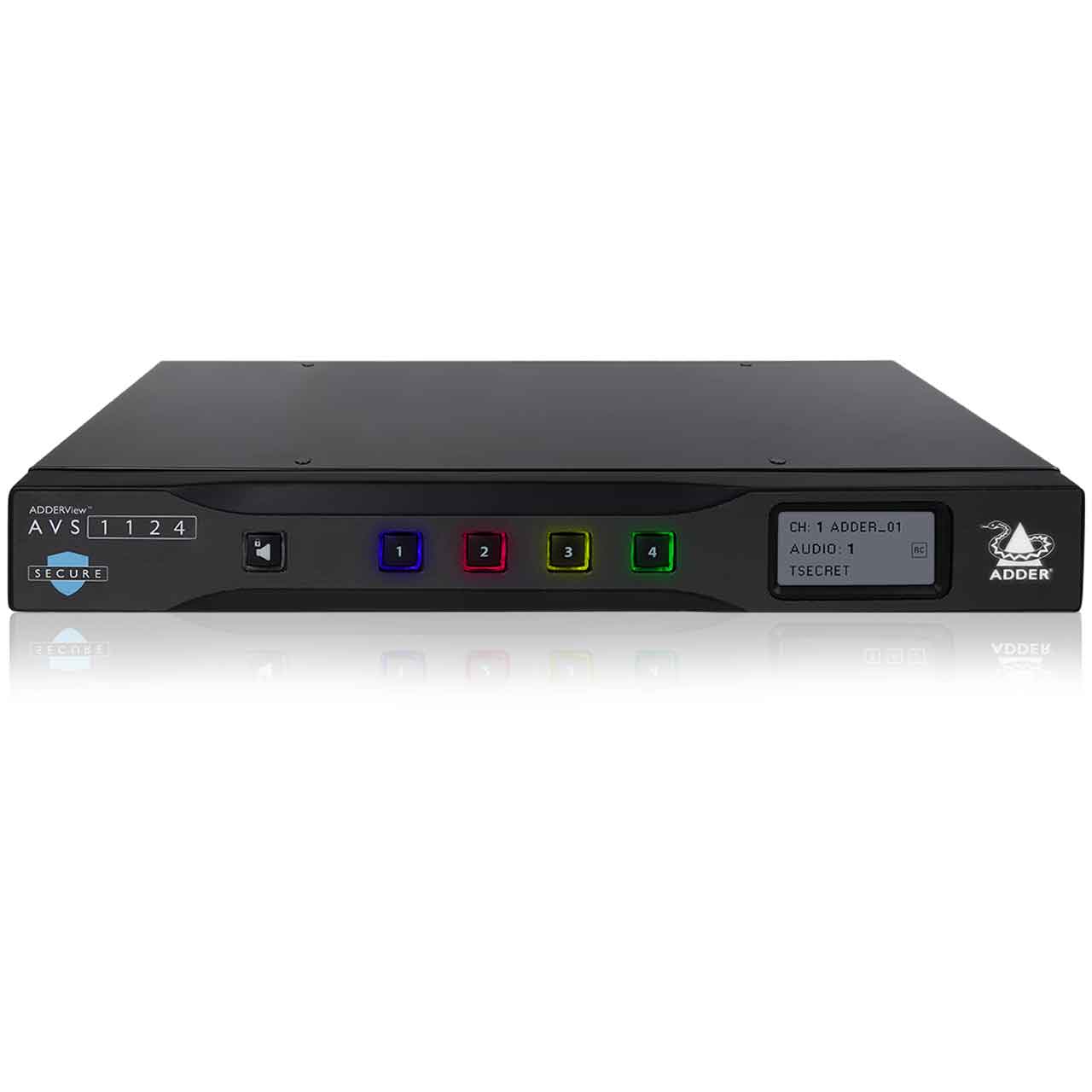

  • Front Panel:
  • 212 x 104 E-paper status display
  • Audio hold button and status LED
  • 4x Channel selection button and status LED


  • Physical Design:
  • Robust Metal Construction
  • Dimensions (WxHxD): 13.54 x 2.32 x 5.98" (344 x 59 x 152mm)
  • Weight: 3.53Lbs (1.6kg)


  • Power Supply:
  • 100 - 240V AC, 47/63Hz
  • 12V DC 30W output from power supply unit


  • Environmental:
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Humidity: 0-80% RH, non-condensing


• Item Includes:

  • 1x 4-Port Multi-Viewer Switch
  • 1x Power Supply Unit with Country Specific Mains Cable
  • 1x Quick Start Guide
