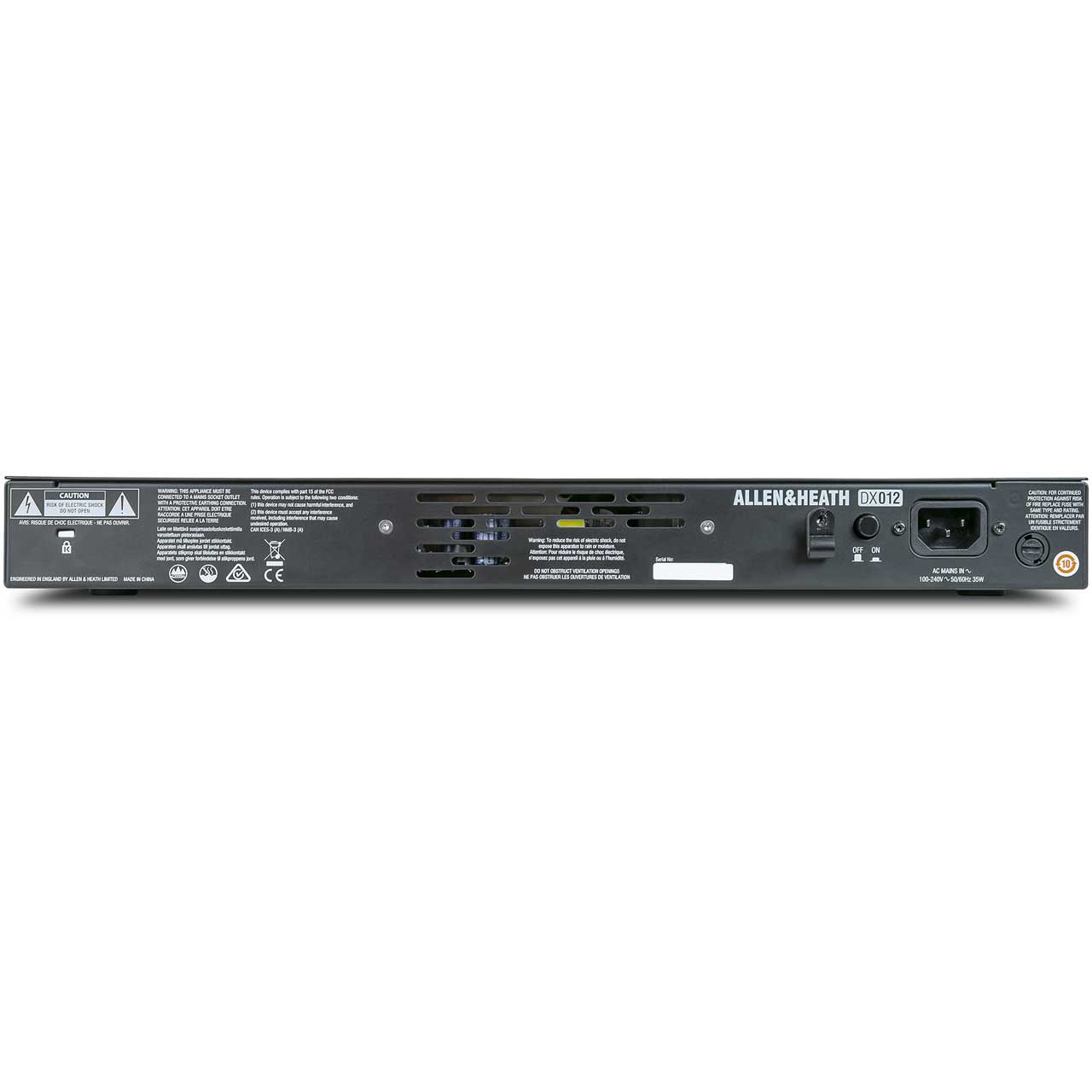

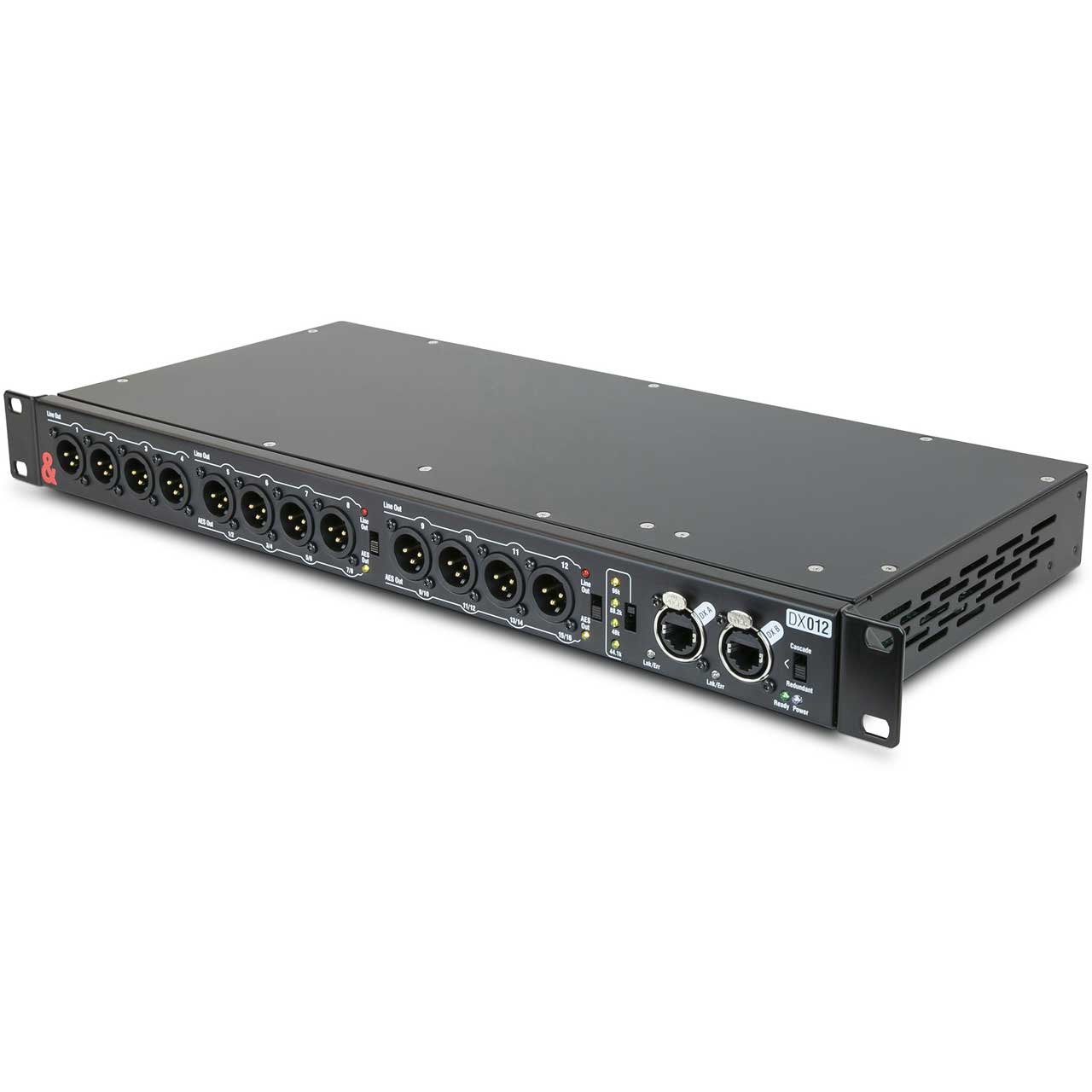

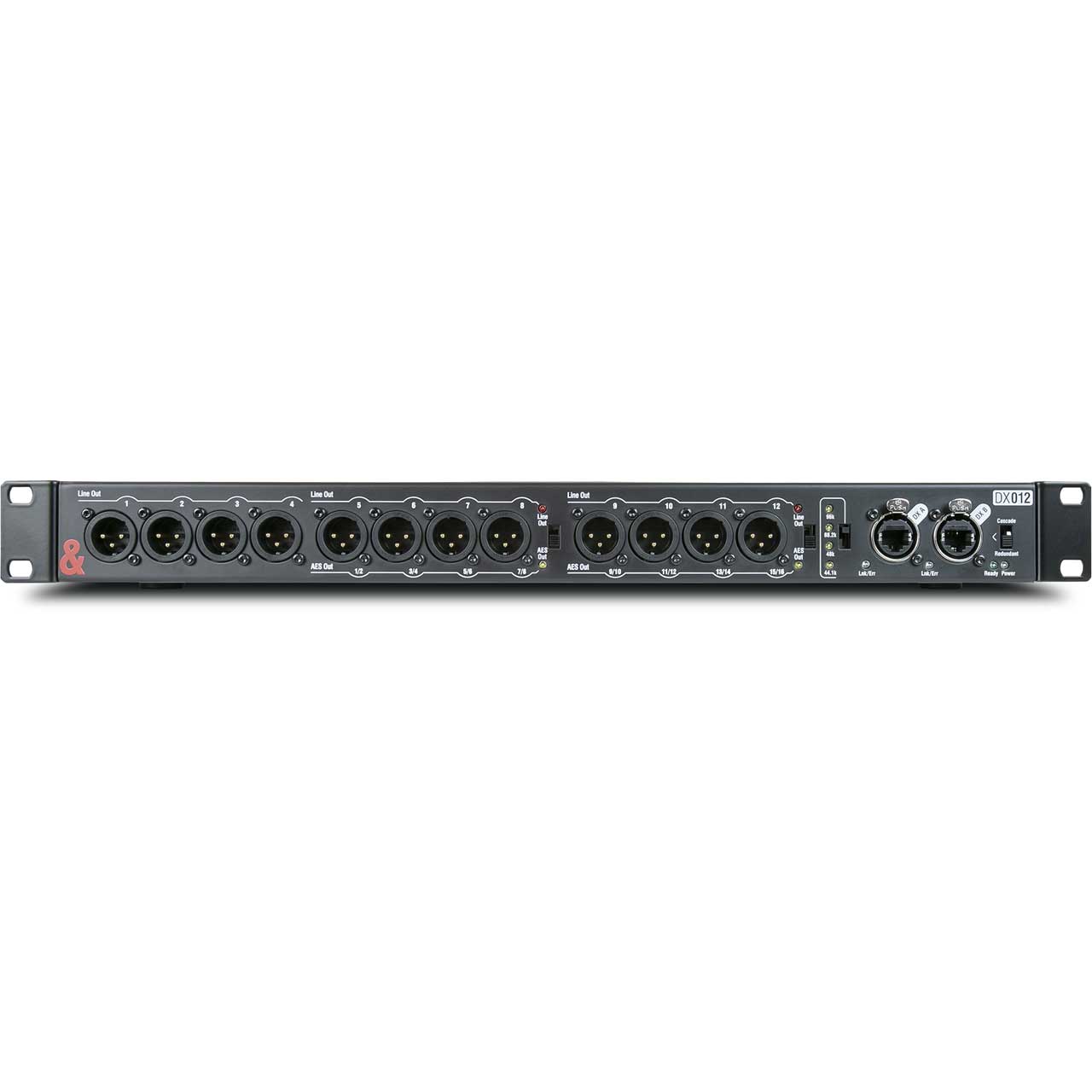

Allen & Heath AH-DX012 12 XLR Output Analog/AES Portable DX Expander

AH-DX012 - Overview

• Features:

  • Compatible with SQ, Avantis and dLive systems
  • 1-4 Analogue Line Out
  • 5-8 Analogue Line out or AES Digital out (switchable)
  • 9-12 Analogue Line out or AES Digital out (switchable)
  • Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
  • Redundant DX connection to compatible hardware
  • Up to 16 DX012 units can be added to a SQ system
  • Up to 16 DX012 units can be added to an Avantis system
  • Up to 46 DX012 units can be added to a dLive S Class system
  • Up to 22 DX012 units can be added to a dLive C Class system
  • Up to 8 DX012 units can be added to an AHM-64 system
  • Rack-mounted (1u) or shelf/floor operation
  • Plug and Play - no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m
  • Locking EtherCon ports


• Specifications:

  • Digital Outputs: AES3 2 Ch XLR, 2.5V balanced, terminated 110Ω
  • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Analogue XLR Outputs: Balanced, Relay protected
  • Output Impedance: <60Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -95dBu (22Hz-22kHz)
  • THD+N: -98dB (0dBu, 1kHz)
  • Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
  • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
  • Mains Power Consumption: 35W max
  • DX012: 482.6 x 48.2 x 214.7 mm x 2.95kg (19" x 1.9" x 8.5" x 6.5lbs)
  • DX012 (boxed): 600 x 335 x 150 mm x 4.1kg (23.6" x 13.2" x 5.9" x 9lbs)
