Allen & Heath AH-M-SQ-SDANTE64-A 64 x 64 SQ Dante Card - 96kHz / 48kHz


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    AH-M-SQ-SDANTE64-A - Overview

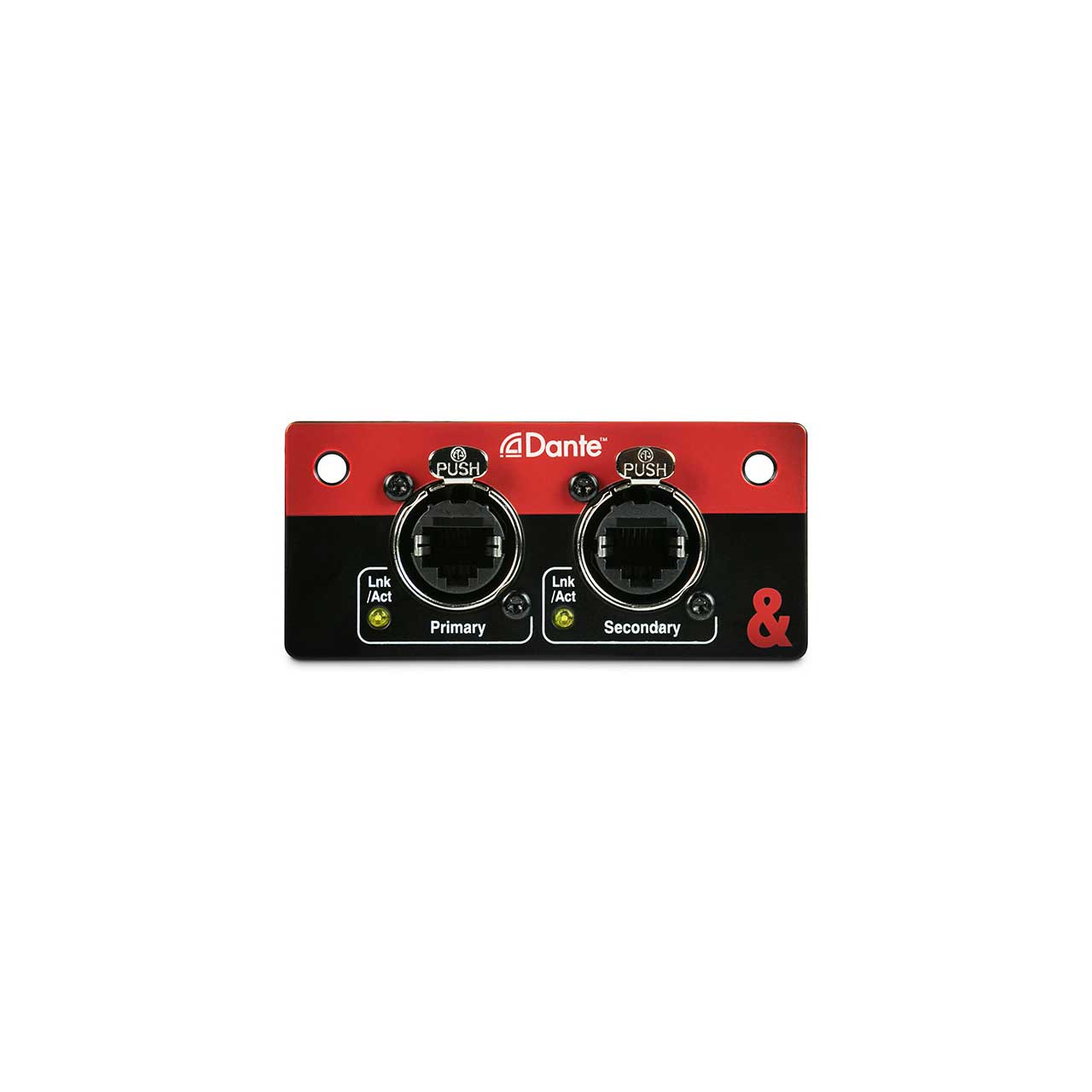

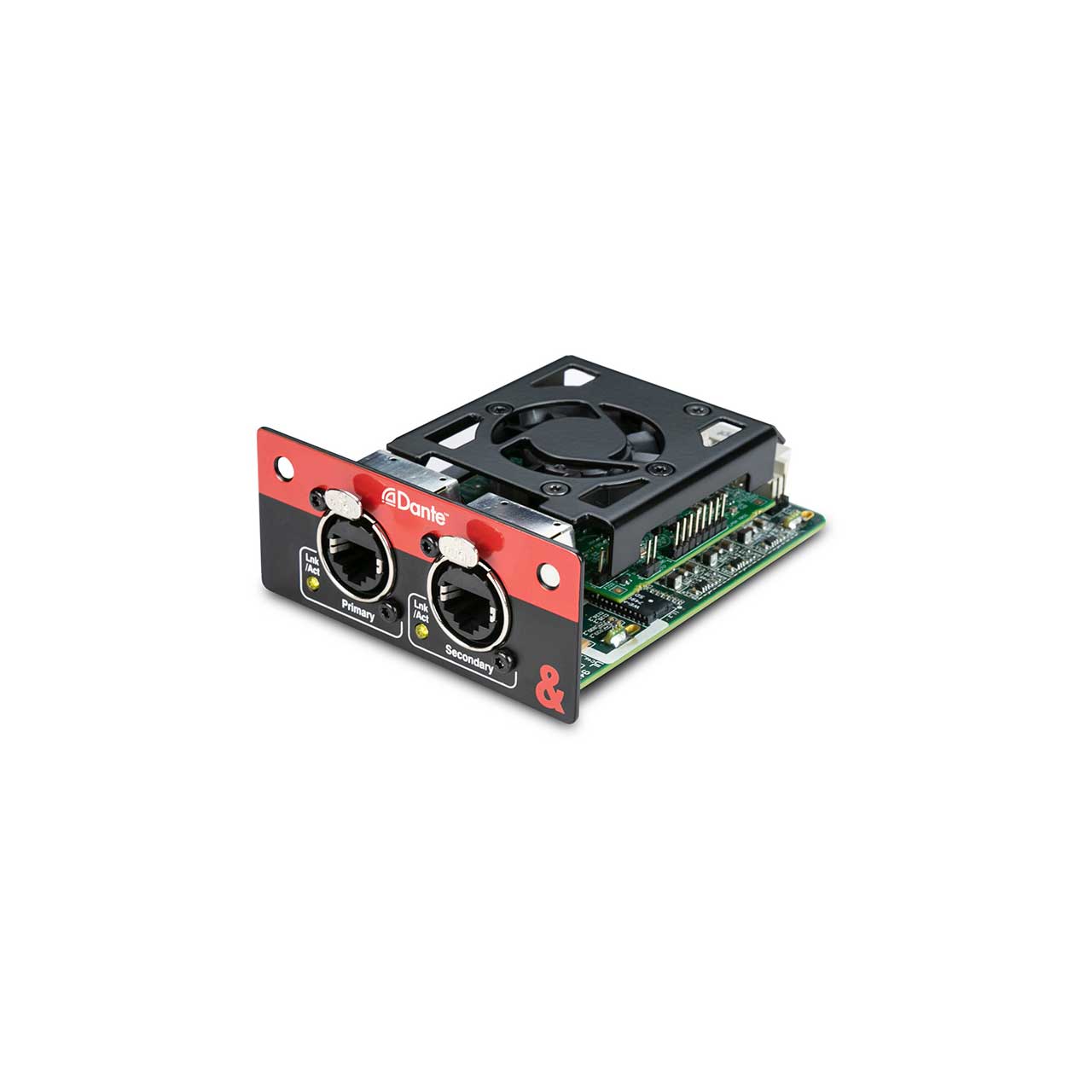

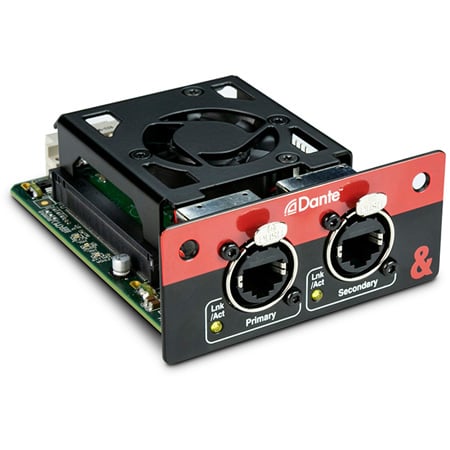

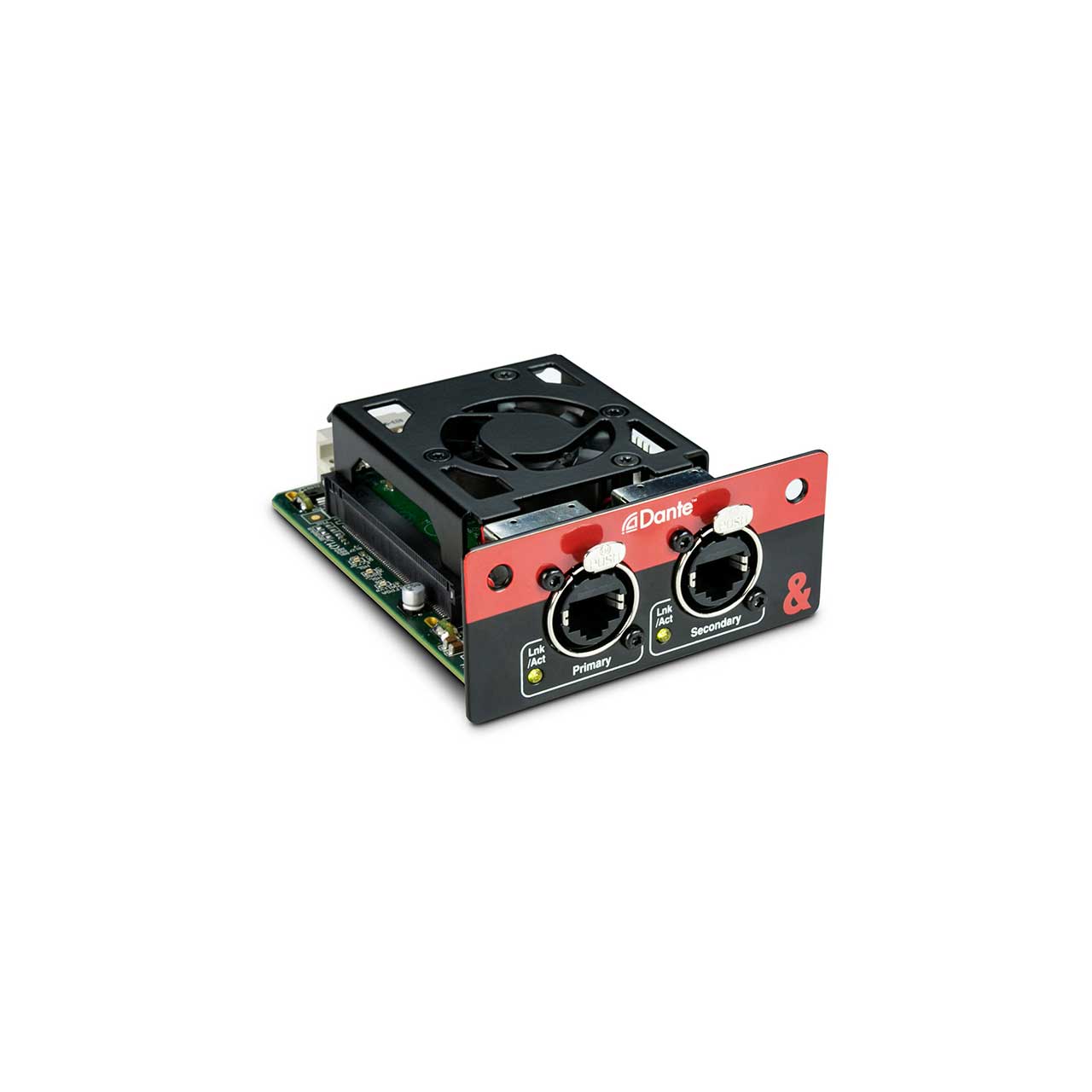

    Allen & Heath AH-M-SQ-SDANTE-A SQ Dante provides any SQ mixer with a full 64×64 channel, 96kHz or 48kHz interface to a Dante network. An SQ fitted with the Dante option card can seamlessly connect to amplifiers, preamps and other devices on the Dante network, making full use of SQ’s high resolution 96kHz audio.

    The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.

    About Dante
    Dante is a ground breaking, Ethernet compliant audio networking technology developed by Audinate to satisfy the increasing demands of the live sound industry for high performance audio, routing flexibility and affordable direct to computer recording. It uses CAT5 cable and standard networking components to distribute multiple streams of audio plus integrated control data with sub millisecond latency.

    Dante Virtual Soundcard is software from Audinate that lets you connect up to 32 channels from your SQ at 96kHz, or 64 channels at 48kHz, directly to your PC or Mac via its Ethernet port, ideal for multitrack recording and playback, or working with popular processing plug-ins. Dante Virtual Soundcard licences can be purchased from Audinate.

    Audio over L3 Ethernet Cat5e or higher
    Sample accurate playback sync
    64 channels of virtual soundcard
    One software for routing audio across brands
    Works with standard networking equipment

    • Features:

      • 64×64 channel audio and control over a network
      • 96kHz or 48kHz operation
      • Multichannel recording / playback using Dante Virtual Soundcard*
      • Two ports with redundant and switch modes
      • Internal Control Network Bridge
      • Locking Ethercon connectors
      • Dante Domain Manager ready
      • AES67 compatible
