AH-QU-5D - Overview

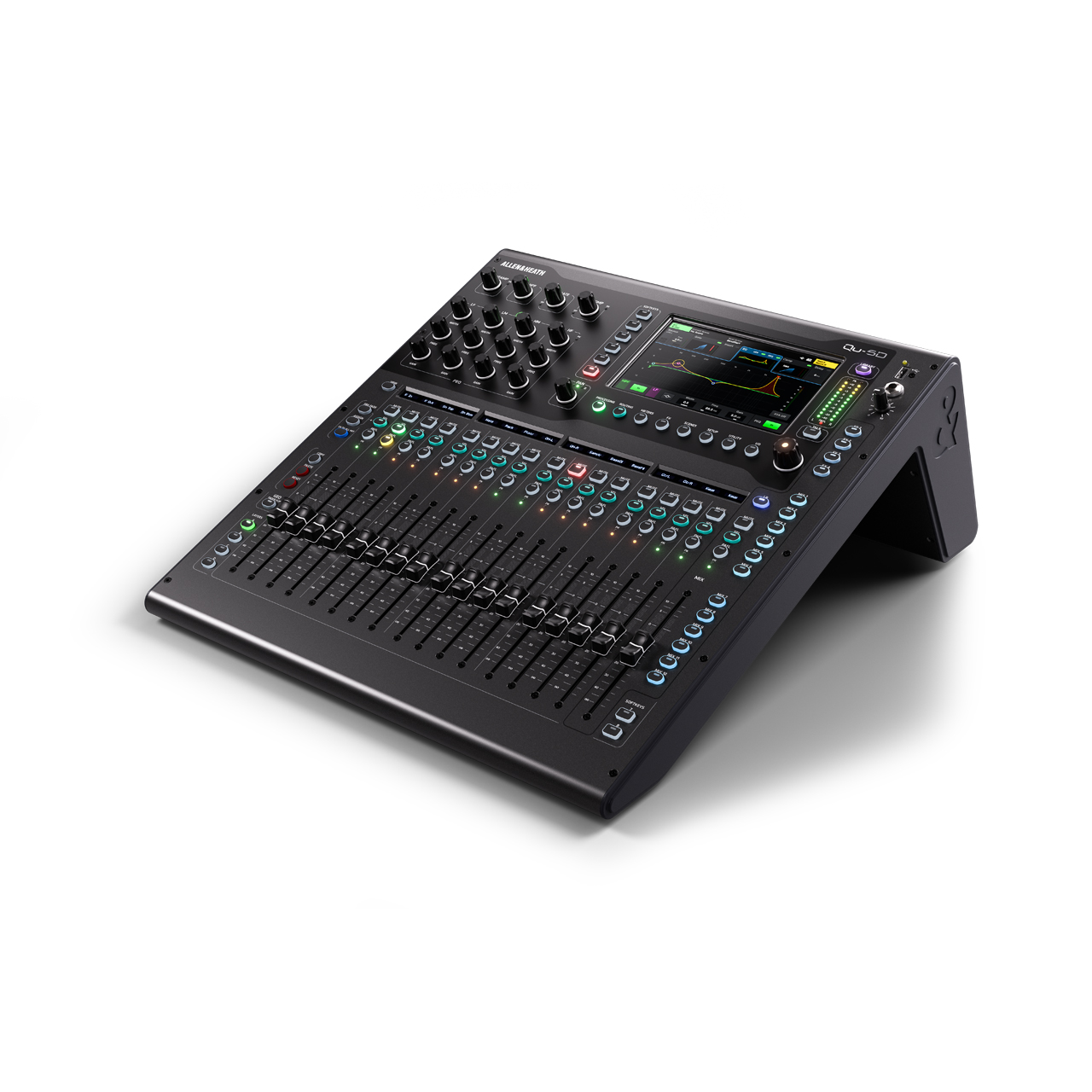

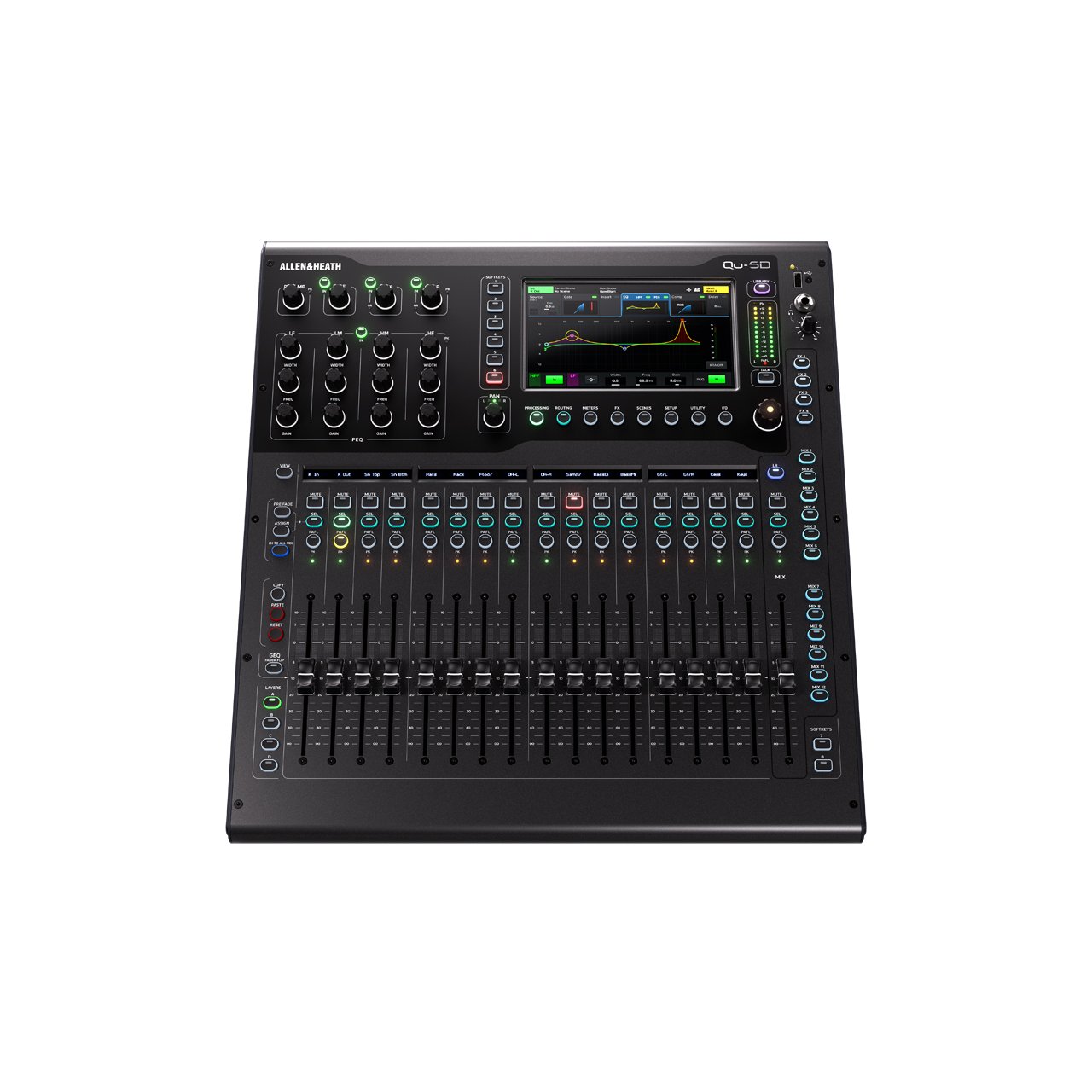

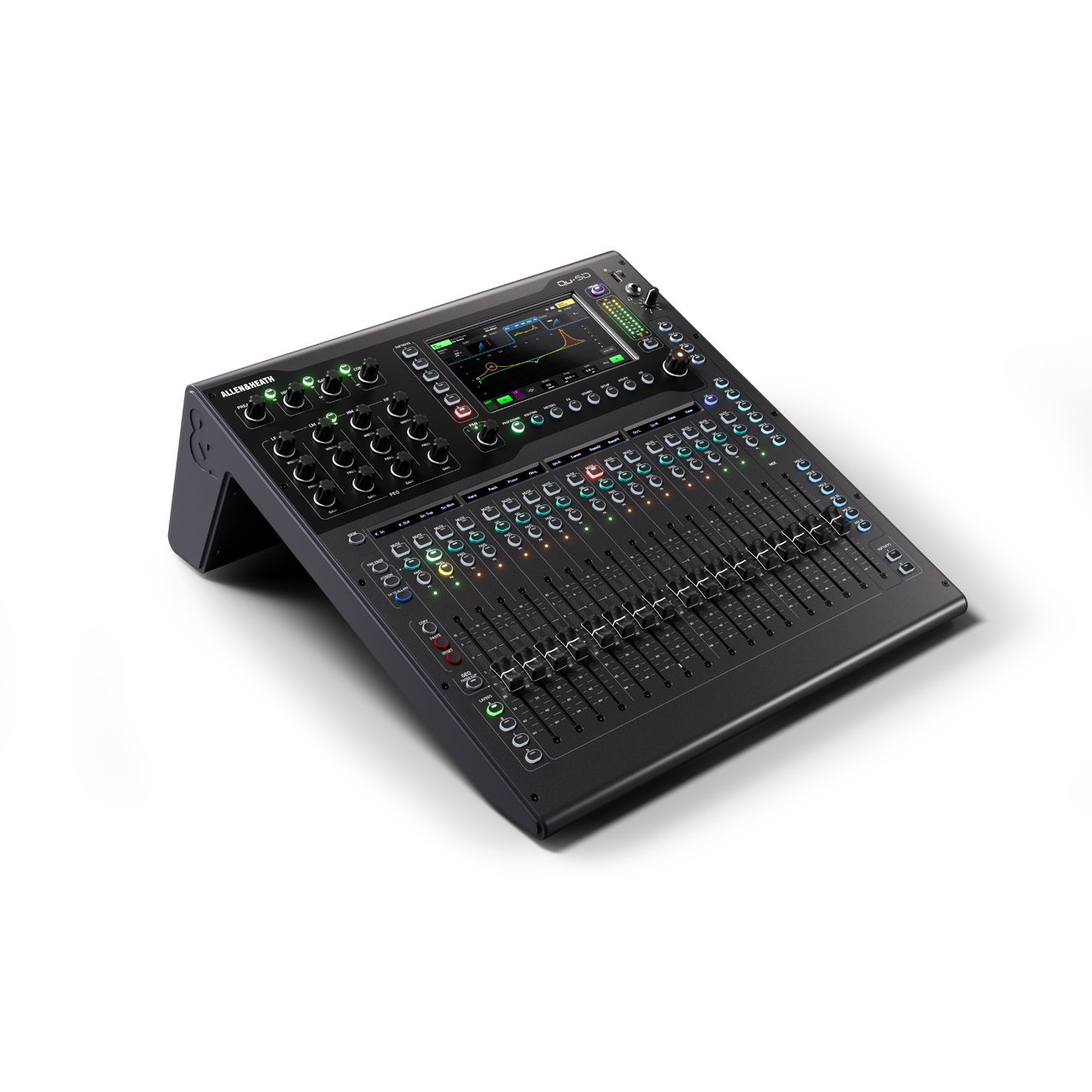

The Allen and Heath Qu-5D takes the ever-popular Qu-16 form factor and adds powerful XCVI processing, new FX engines and Everything I/O connectivity. There's also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.

In addition, the Qu-5D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.

Both the Qu-5 and Qu-5D are rack mountable, 32 input channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.

The Qu-5 and Qu-5D are multi-purpose mixers suitable for live music/band use, AV and install, studio and broadcast. Workflow and UI have been designed to make operation easy for inexperienced users or volunteers, provide familiarity to those transitioning from analogue mixing and give quick access to more advanced features for the experienced engineer.

Reliable Recording and Playback. Anywhere.
Every Qu model is packed with versatile recording and playback options, with an integrated 32x32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.

Dante Enabled
The Qu-5D provides a 16x16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.

Features:
- 96kHz XCVI Core
- 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
- Stereo Main LR Output
- 12x Mixes (6x Mono/Linkable Aux/Group, 6x Stereo Aux/Group)
- 4x Mono/Linkable Matrix

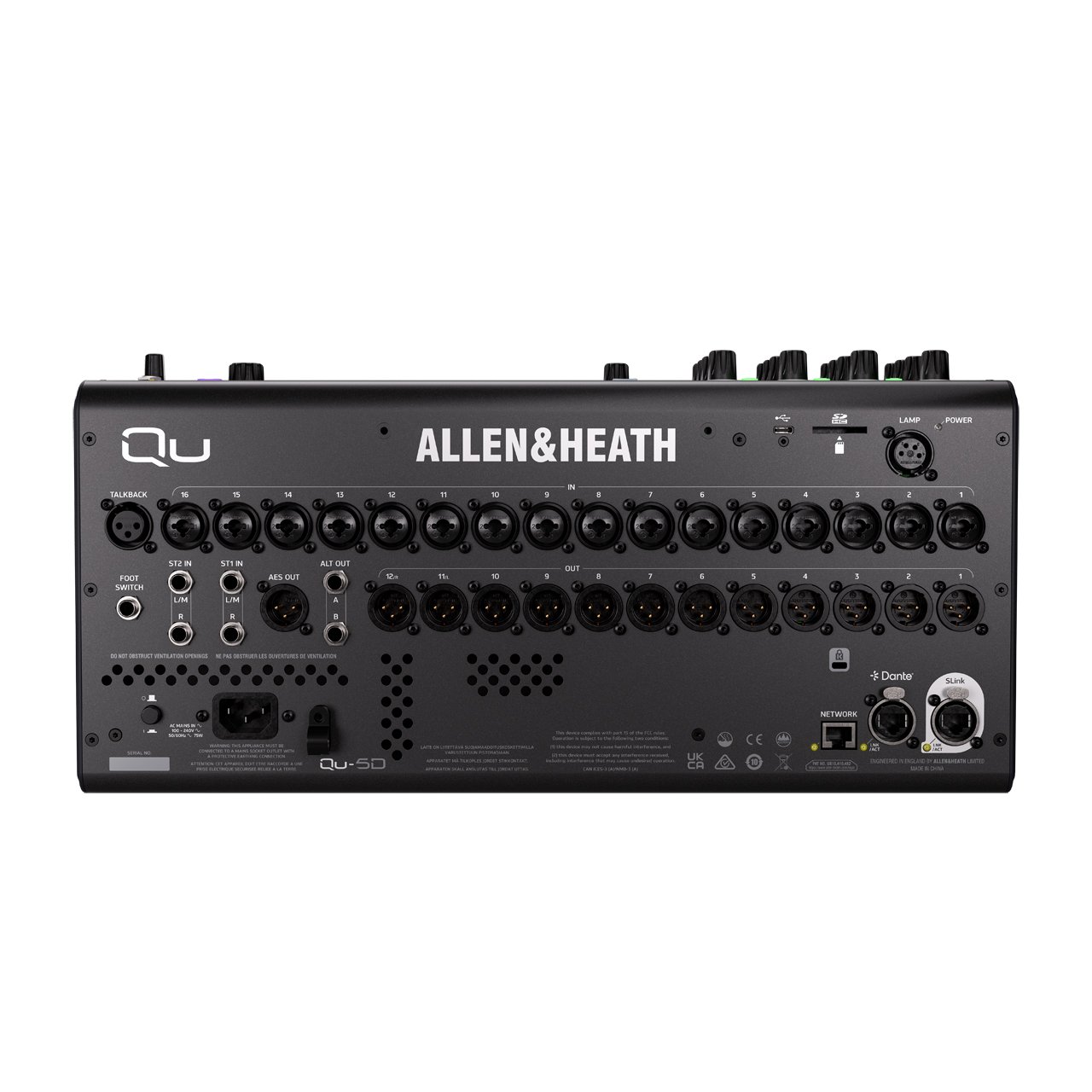

- 16x XLR/Jack `Combi' Mic/Line Input Sockets
- 2x Stereo Line Input Sockets (each 2x TRS)
- 1x XLR Talkback Socket
- 12x XLR Output Sockets
- 2x TRS Output Sockets
- 1x AES3 Stereo Digital Output Socket
- 16x16 48/96 kHz Dante interface (Qu-5D only)
- Stereo Headphone Output
- 6x Multi-FX Engines with dedicated Stereo Return Channels
- 7" Capacitive Touchscreen
- 17x 100mm Motorised Faders
- 4x Customisable Channel Strip Layers
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32x32)
- SD Card Slot for multichannel audio record/playback (16x16@96kHz, 32x32@48kHz)
- 12V Lamp Socket
- Configurable single/dual Footswitch Connection
- Configurable Chromatic Channel Meter LED's
- IEC Mains Connection with Worldwide PSU
- RJ45 Network Socket
- Remote control via free apps
Specifications:
- Mic/Line Inputs: Balanced Combi XLR/Jack, fully recallable preamp
- Input Sensitivity: -60 to +0dBu
- TRS Inputs: -20dB Pad (Fixed)
- Preamp Gain: 0dB to +60dB, 1dB steps
- Maximum Input Level (XLR/Jack): +16dBu Mic input/+30dBu
- Input Impedance: >1.5kΩ MIC/>20kΩ TRS
- THD+N, Unity gain 0dB: 0.002% -92dB (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.004% -88dB (20Hz-20kHz, AES Direct Out, @-30dBu 1kHz)
- Phantom Power: +48V (+3V/-2V)
- Stereo Line Inputs: Balanced, 2x 1/4" TRS jack
- Input Sensitivity: Nominal +4dBu
- Trim: ±24dB
- Maximum Input Level: +21dBu
- Input Impedance: >6kΩ

  Outputs
- XLR Outputs: Balanced, XLR
- Outputs A and B: Balanced 1/4" TRS Jack
- Source: Fully patchable
- Output Impedance: < 75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -88dBu (muted, 20Hz - 20kHz)
- AES Digital Output:
  - Balanced XLR 2 channel
  - 96kHz sampling rate (Default with SRC Bypassed)
  - Switchable output sample rates, 44.1/48/88.2/96kHz
  - 2.5Vpp balanced terminated 110Ω

  SLINK
- Connection: Neutrik EtherCON (RJ45)
- dSnake Mode: 40 input, 20+40(ME) output channels, 48kHz
- DX Mode: 32 input, 32 output channels, 96kHz
- GigaACE/GX: 128 input, 128 output channels, 96kHz
- Inputs: Fully patchable
- Outputs: Fully patchable
- Sync/SRC: Assignable as audio clock source, 48kHz - 96kHz SRC

  USB Audio
- Qu-Drive: USB-A or SD Card, recording or playback
- Stereo Record (USB-A): 2 channel, WAV, 48/96kHz, 24-bit, fully patchable
- Stereo Playback (USB-A): 1/2 channel, WAV, 44.1/48/96kHz 16/24-bit, fully patchable
- Multitrack Record (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable
- Multitrack Playback (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable
- SD Card: SDHC, 32GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
- USB Audio Streaming: USB-C connection, USB 2.0 Core Audio compliant, ASIO/WDM for Windows
- Send (upstream): 32 channels, 48/96kHz, 24-bit
- Return (downstream): 32 channels, 48/96kHz, 24-bit

  Control
- Touch Screen: 7" Capacitive, 800 x 480 resolution, 24-bit RGB
- SoftKeys: 8
- Mute Groups/DCA Groups: 8/8
- Network: TCP/IP Ethernet for Control and MIDI
- MIDI: USB-C, TCP/IP
- Footswitch: Single or Dual, Momentary or Latching

  Dante
- Dante: 16 input, 16 output channels, 48/96kHz operation
- Inputs: Fully patchable
- Outputs: Fully patchable
- Sync/SRC: Assignable as audio clock source, 48kHz - 96kHz SRC

  System
- 38 input, 28 bus, XCVI Core: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 110dB
- Frequency Response: +0/-0.5dB 20Hz - 20kHz
- Headroom: +18dB
- Internal Operating Level: 0dBu
- THD+N, Mic/Line Routed to Main L/R Out: Unity gain, 0.005%, -87dB (20Hz-20kHz)
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Main Meter Type: 2x 12 segment, fast (peak) response, follows PAFL
- Channel Meter Type: Chromatic Channel Metering, fully programmable color/brightness
- Peak Indication: -3dBFS (+19dBu at XLR out), Multi-point sensing
- Sampling Rate: 96kHz
- Bit Depth: XCVI custom bit depths, up to 96-bit
- Latency: <0.7ms, Local Mic Input to Main L/R
- Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
- Mains Power: 100V - 240V AC, 50/60Hz
- Max Power Consumption: 70W/75W

  Dimensions & Weights
- Unit Only Dimensions: 17.3" x 18.7" x 8.4" (440mm x 476mm x 213mm)
- Packed in Shipping Box: 22.5" x 25.2" x 12.2" (570mm x 640mm x 310mm)
- Unpacked Weight: 22lbs (10kg)
- Packed Weight: 27.8lbs (12.6kg)
Item Includes:
- 1x Allen & Heath Qu-5D Digital Mixer
- 1x Power Cord
Warranty:
- 1 Year Limited
GTIN:
0505675690117
