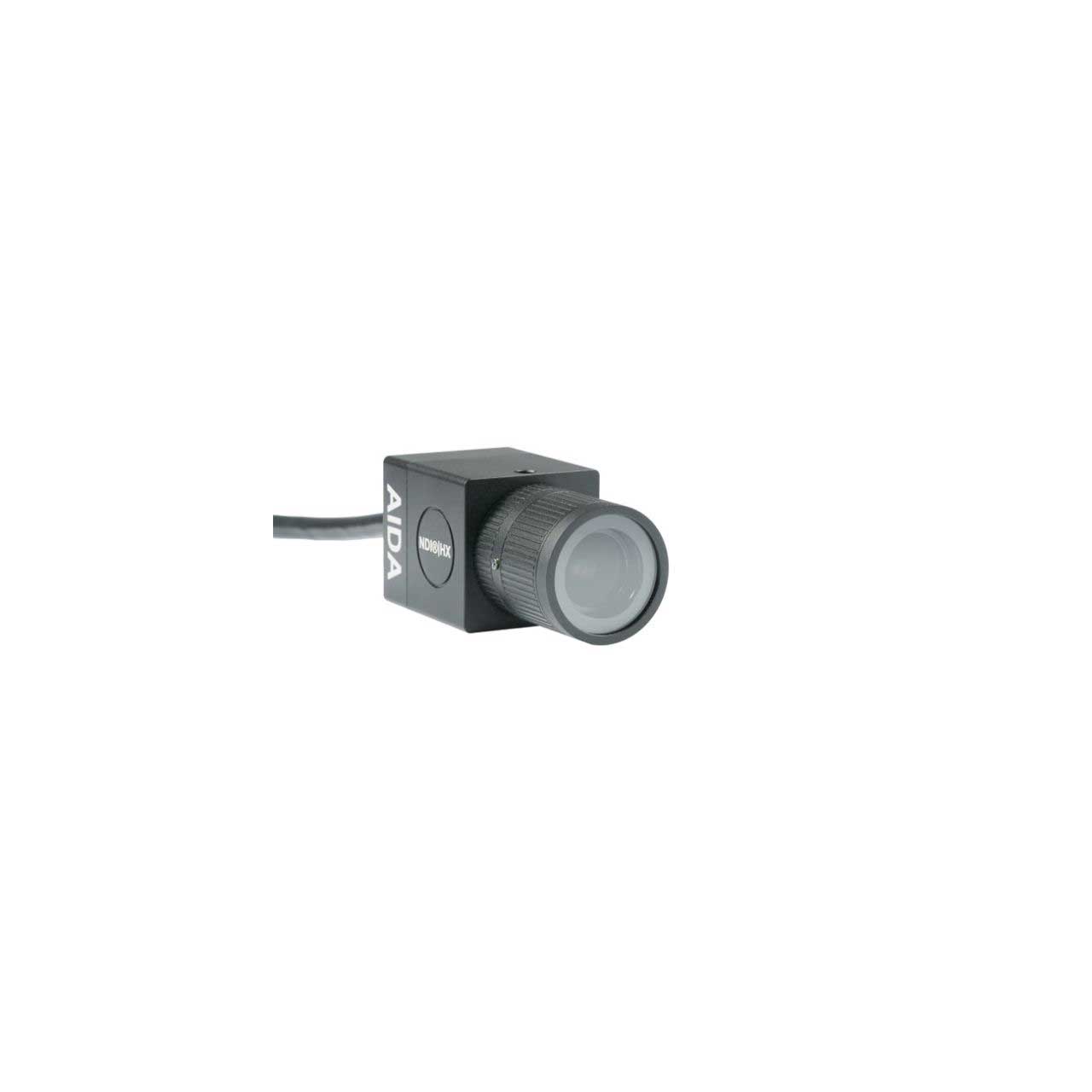

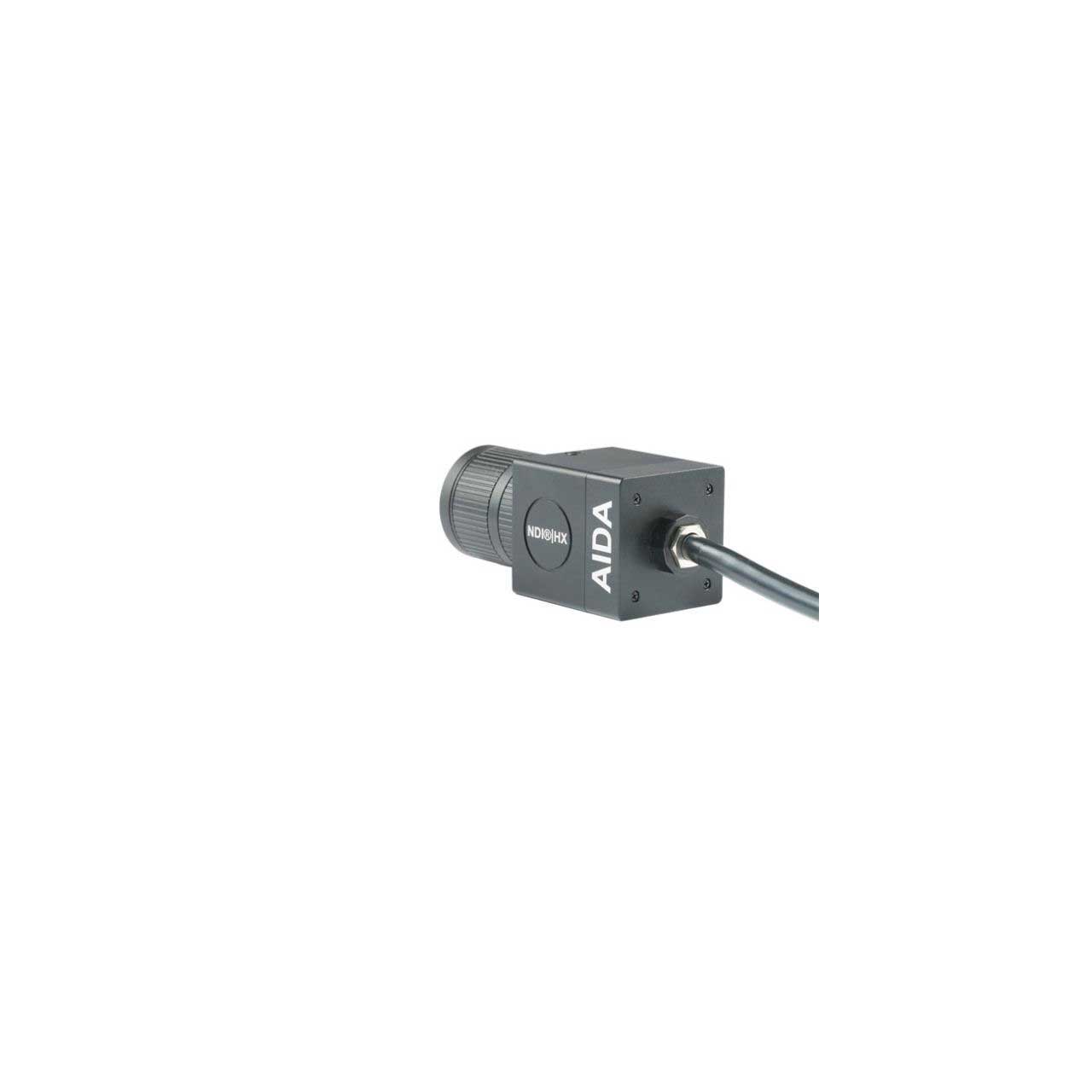

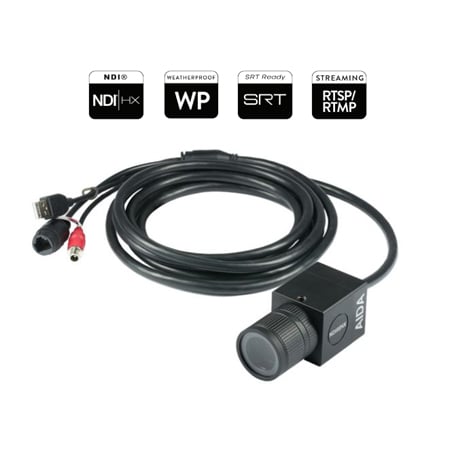

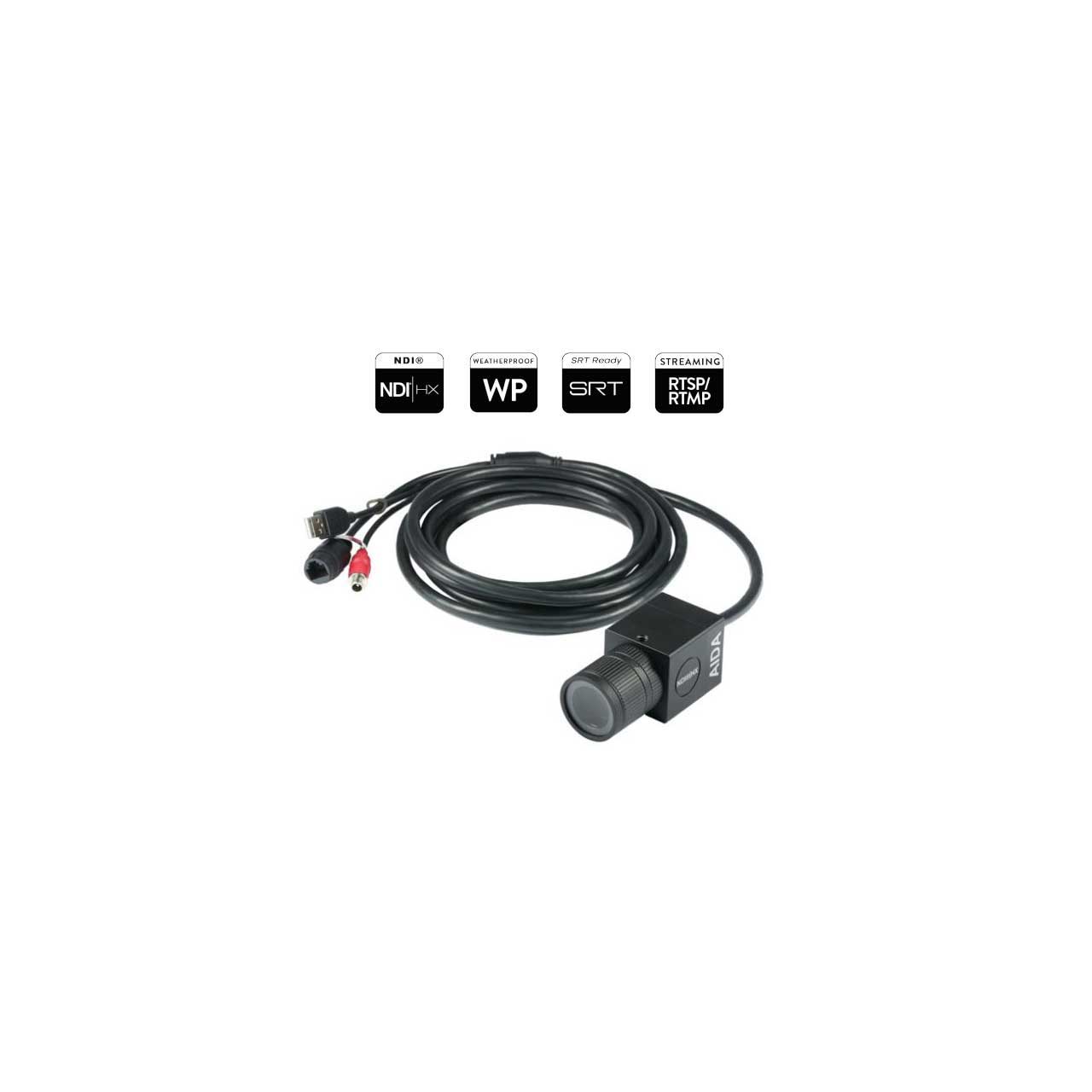

AIDA Imaging HD-NDI-VF FHD NDIHX/IP/SRT PoE Weatherproof Varifocal Lens 2.8-12mm POV Camera

ITEM #: AIDA-HD-NDI-VF MFG #: HD-NDI-VF

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$475.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HD-NDI-VF - Overview

    Bold, Adventurous, Versatile.
    The HD-NDI-VF is sorta like the big brother of the HD-NDI-IP67. They are both courageous, and adventurous where they go. However, sometimes older brothers know what's best. The HD-NDI-VF showcases a beautifully crafted IP54 rated lens, which can adjust both the zoom, and focus. That way, you can get that perfect shot you need, regardless of the position.

    With great versatility, comes great power, and we all know that great power comes with great responsibility. So expand the vision and leave it up to the HD-NDI-VF to get that shot wherever it is, when you need it most.

    No-Hassle Integration
    Is it any question that the HD-NDI-VF comes pre-loaded with its NDIHX license key? No, its just plain facts.

    IP54 Battle Tested
    The camera's rated IP54, which gives it great protection in the outdoors! Just don't submerge the little guy, he can't swim!

    NDIHX Perfected
    The HD-NDI-VF will always bring you the best NDIrHX performance per dollar, giving you the best looking stream no matter the workflow!

    Premium Outputs, as Always
    The camera is capable of simultaneously streaming NDIrHX, SRT, RTSP and RTMP. There is just no compromise for this!

    1-of-a-kind lens
    The HD-NDI-VF varifocal lens that comes on the camera is custom made in Aida's South Korea factory, so you know its serious! Enjoy FOV's from 120°~36°, WIDE and TELE respectively.

    • Features:

      • Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDI®HX Video.
      • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
      • Versatile design with top and bottom tripod mounts for uniques shot creation.
      • PoE+ adaptable with adapter (comes with purchase of the camera)
      • Custom IP54 rated Varifocal lens providing a FOV of 120° wide, and 36° tele to help get that perfect shot.
      • Weatherproof rating allows for extra protection against enviromental elements
      • Small form-factor and rugged designed makes all video streaming applications possible
      • Perfectly suited for outdoor shots any new or existing NDI®HX setup.

    • Specifications:

      • Video
      • Image Sensor: 1/3" Progressive CMOS
      • Sensor Size: 5.346mm x 3.003mm (16.9)
      • Effective Pixels Horizontal: 1920, Vertical: 1080
      • Pixel Size: 2.75 µm (H) x 2.75 µm (V)
      • Resolution: 1080p, 1080i, 720p
      • Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p / 24p: 1080 60i/59.94i/50i, 720 60p/59.94p/50p
      • Output: IP (NDI/HX/SRT/RTMP/RTSP)
      • Color Space: 4:2:2 (YCbCr) 10bit
      • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
      • White Balance: Auto & Manual (9000 - 11,000 K)

        Lens
      • Lens 2.8mm ~ 12mm Custom Lens / FOV Wide: 120° Tele'd: 36°

        Standard
      • IP Protocol UDP/IP, RTSP/RTMP, SRT, NDIHX

        Physical
      • Camera Control Protocol: VISCA Over IP
      • Operation Temp: 32°F - 104°F

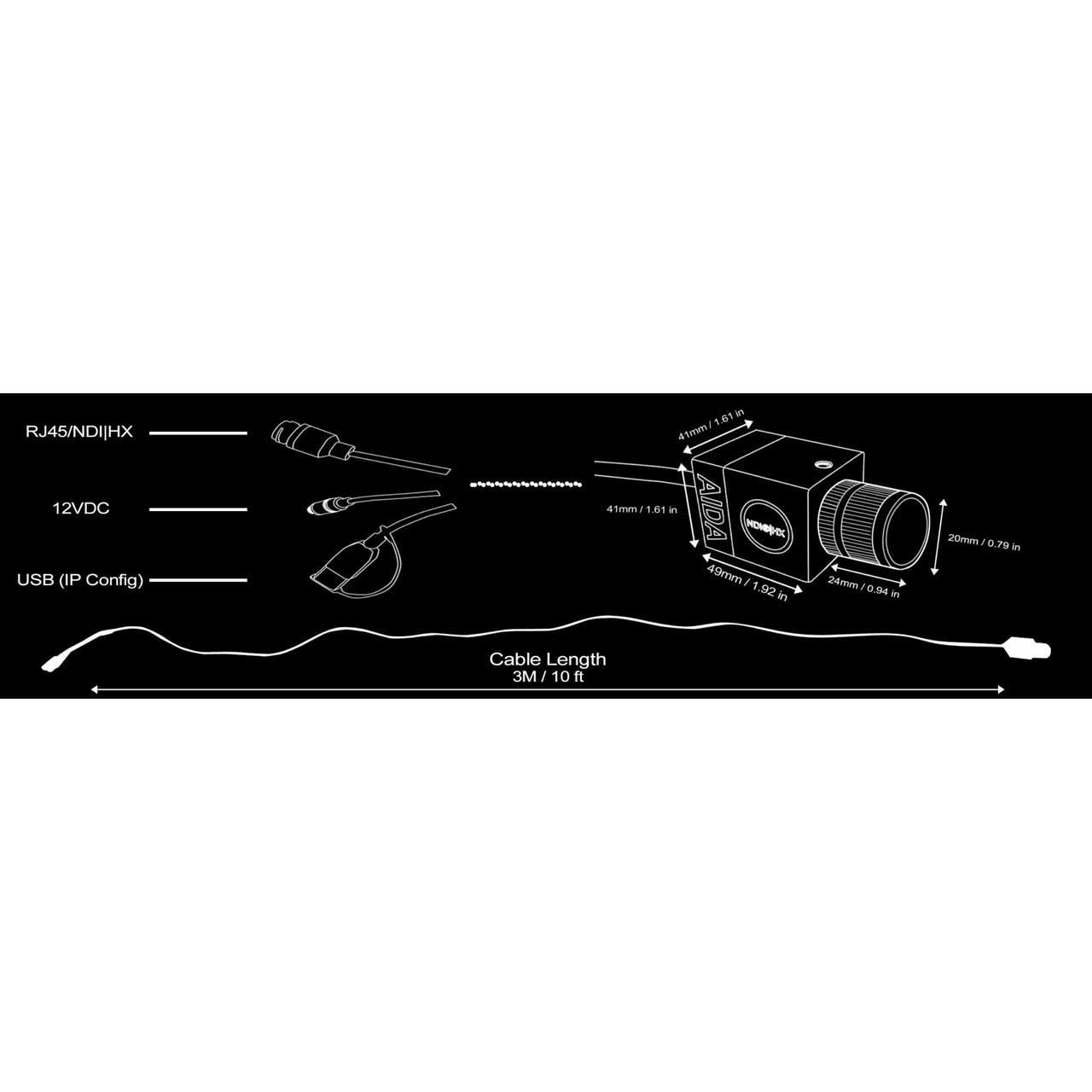

      • Dimension: 2.86" x 1.61" x 1.61" (With added lens)
      • Weight: 454g / 1 lb
      • Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)

    • Item Includes:

      • 1x PoE Dongle Adapter
      • 1x DC 12v Power Supply & Sockets Adapter
