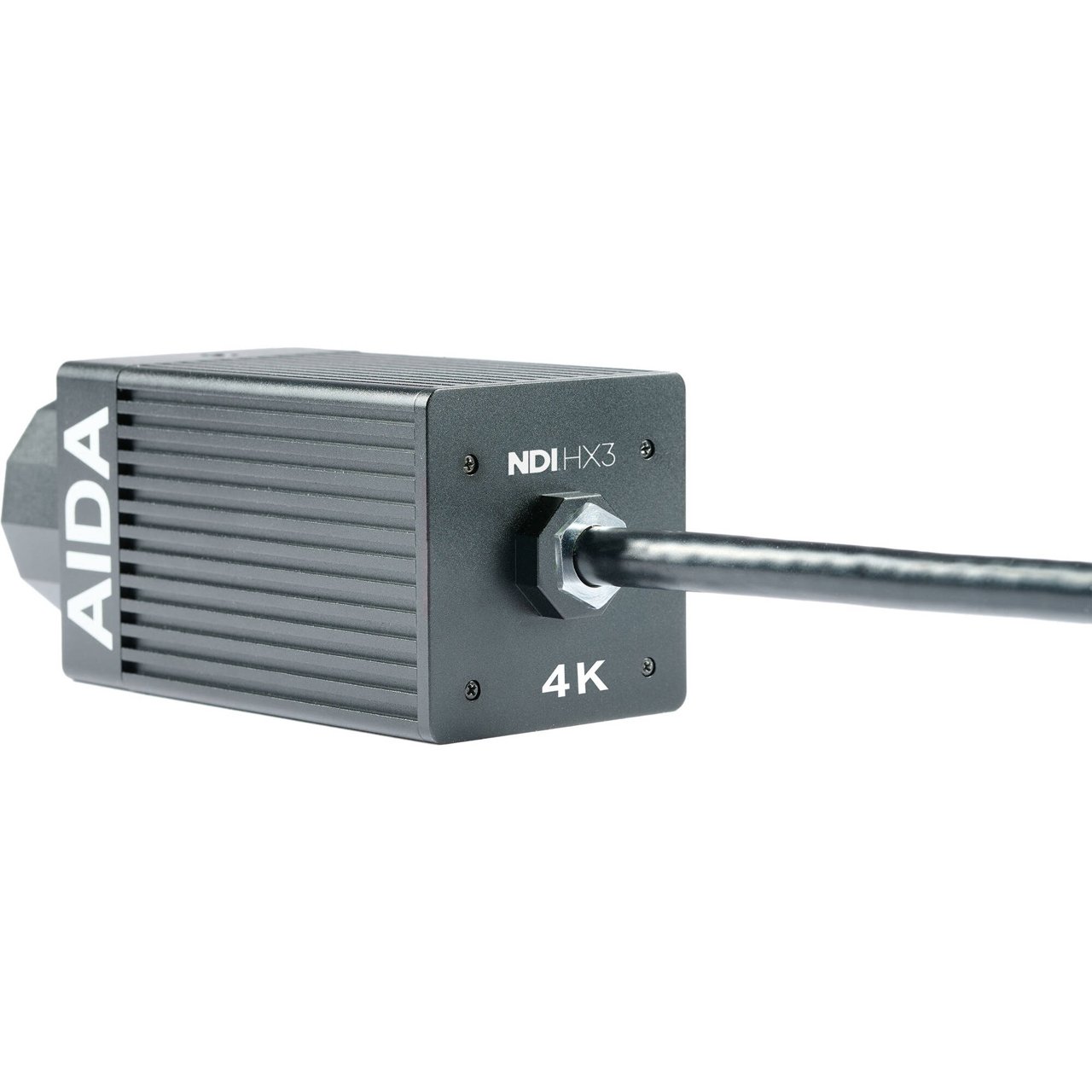

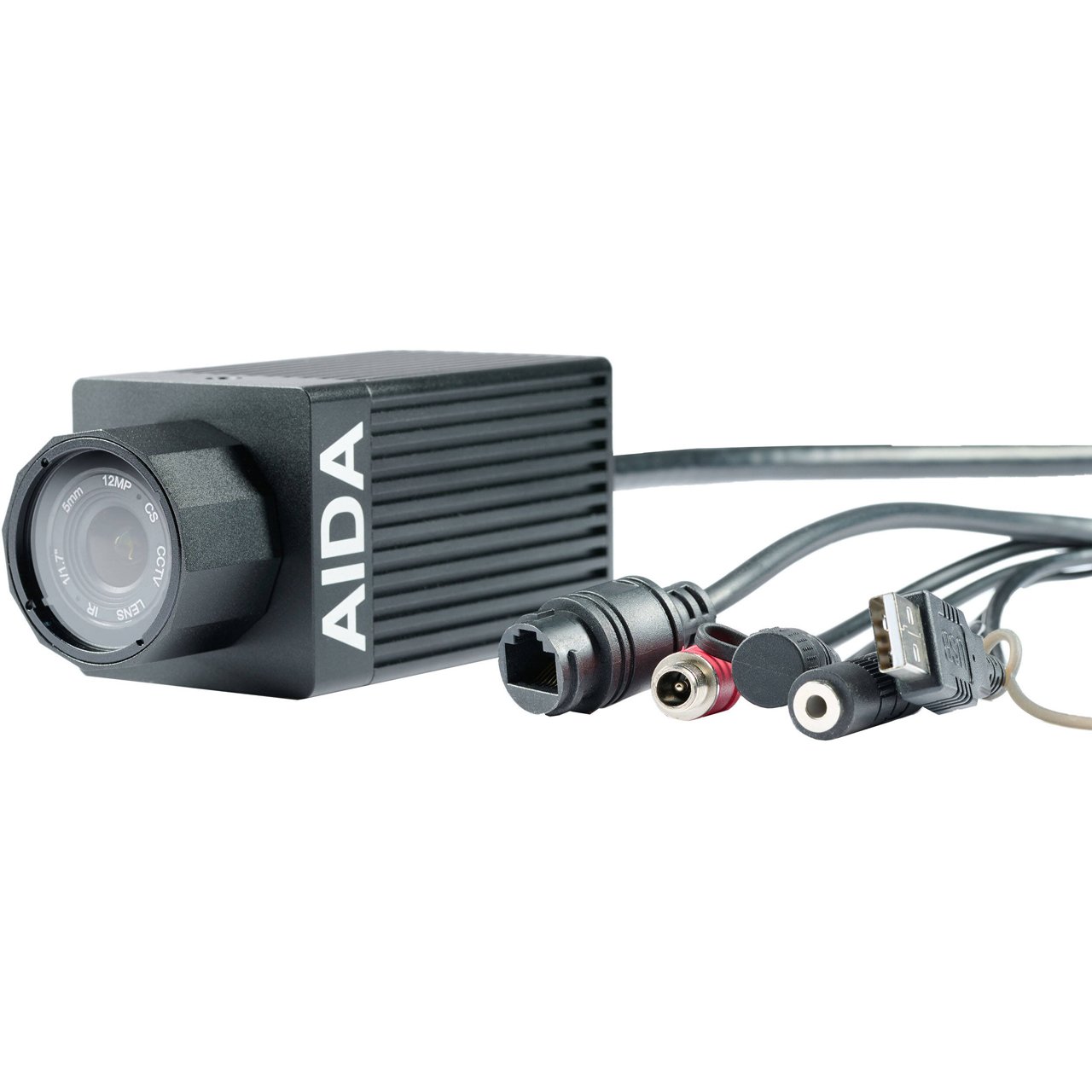

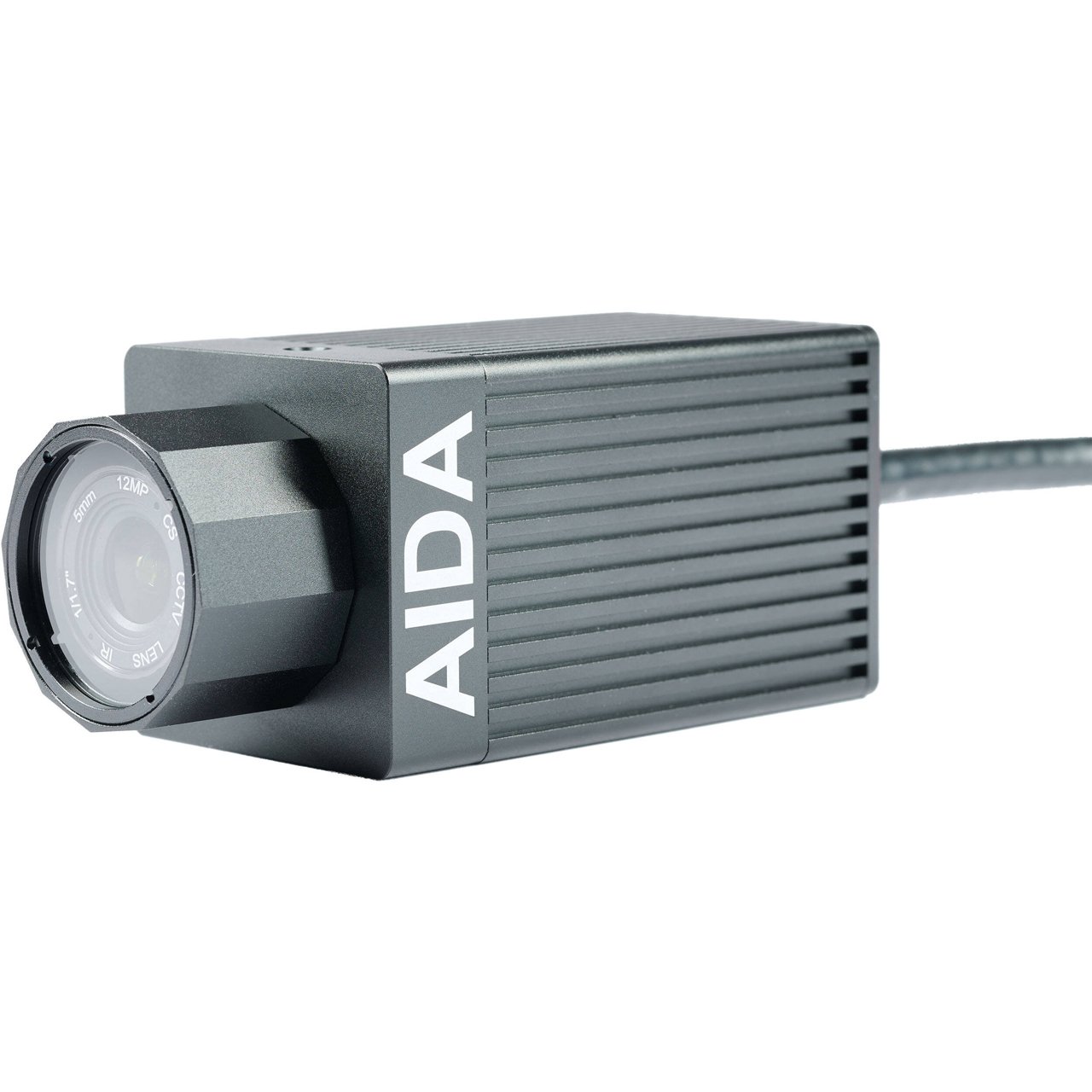

AIDA Imaging UHD-NDI3-IP67 NDI HX3 POV Camera - 2160 60FPS Streaming - Black

ITEM #: AIDA-UHDNDI3IP67 MFG #: AIDA-UHD-NDI3-IP67

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,050.00

After Savings:

$840.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Aida Imaging Instant Savings!Enjoy Instant savings on select Aida Imaging equipment this holiday season! Get yours today through Markertek while the savings last!


AIDA-UHD-NDI3-IP67 - Overview

Exhibit the Beauty Outdoors has to offer with AIDA's next GEN HX3 Cams

The AIDA Imaging UHD-NDI3-IP67 has already been established as the golden ratio for HX, paving a way for new generational workflows involving NDI. In many cases however having 4K quality cameras in the wild has always proven to be an issue. Until the UHD-NDI3-IP67 came along. Packed with a 4K Sony CMOS sensor, you can say goodbye to limitations, and hello to creative visions. With the ability to capture stunningly clear HX3 with a 4K sensor, to relaying gorgeous 2160P over HX, this camera has the ins and outs of HX covered! So go out and elevate your streams to the next level using the UHD-NDI3-IP67, the world's first 4K IP67 NDI HX3 camera! The UHD-NDI3-IP67 is pushed to its limits with HX3 by allowing the NDI stream to run at up to 60mb/s (4x the bitrate of NDI HX). To further enhance the HX3 experience, the camera's ability to utilize its 4K Sony CMOS sensor to downscale to 1080p makes any stream better than a camera with a HD CMOS sensor. The UHD-NDI3-IP67 brings an unparalleled weatherproof experience, resulting in crisp 2160p 60fps streaming, or beautiful 1080p 60fps HX3.

Applications Include:
- Outdoor Sports
- Machine Vision
- Security
- Outdoor Events
- Music Venues

  • Features:

    • 4K 1/2.8" Progressive Scan CMOS sensor capable of capturing 2160p 60fps.over NDI|HX.
    • HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX! Looks even better with a 4K CMOS sensor than HD!
    • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
    • Versatile design with top & bottom tripod mounts for uniques shot creation.
    • Camera is PoE+ Capable. Just plug in one wire for power, control and video!
    • Small form-factor and rugged designed makes all video streaming applications possible.
    • Small tally light on front of camera to ensure talent of when camera is live or about to be.
    • Weatherproofing IP67 rating for protection against the outdoors, as well as a short submersion time under water!

  • Specifications:

    • Image Sensor: 1/2.8" Progressive CMOS
    • Effective Pixels: Horizontal: 3840, Vertical: 2160
    • Pixel Size: 2.0µm (H) x 2.0µm (V)
    • Resolution: 2160p, 1080p, 1080i, 720p
    • Resolution Rate:
      - NDI HX ONLY: 2160p 60p/59.94/50p/30p/29.97p/25p/24p
      - HX 3: 1080 60p/59.94/50p/30p/29.97p/25p/24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
    • Output: IP (NDI HX3/SRT/RTMP/RTSP)
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
    • White Balance: Auto & Manual (9000K - 11,000K)

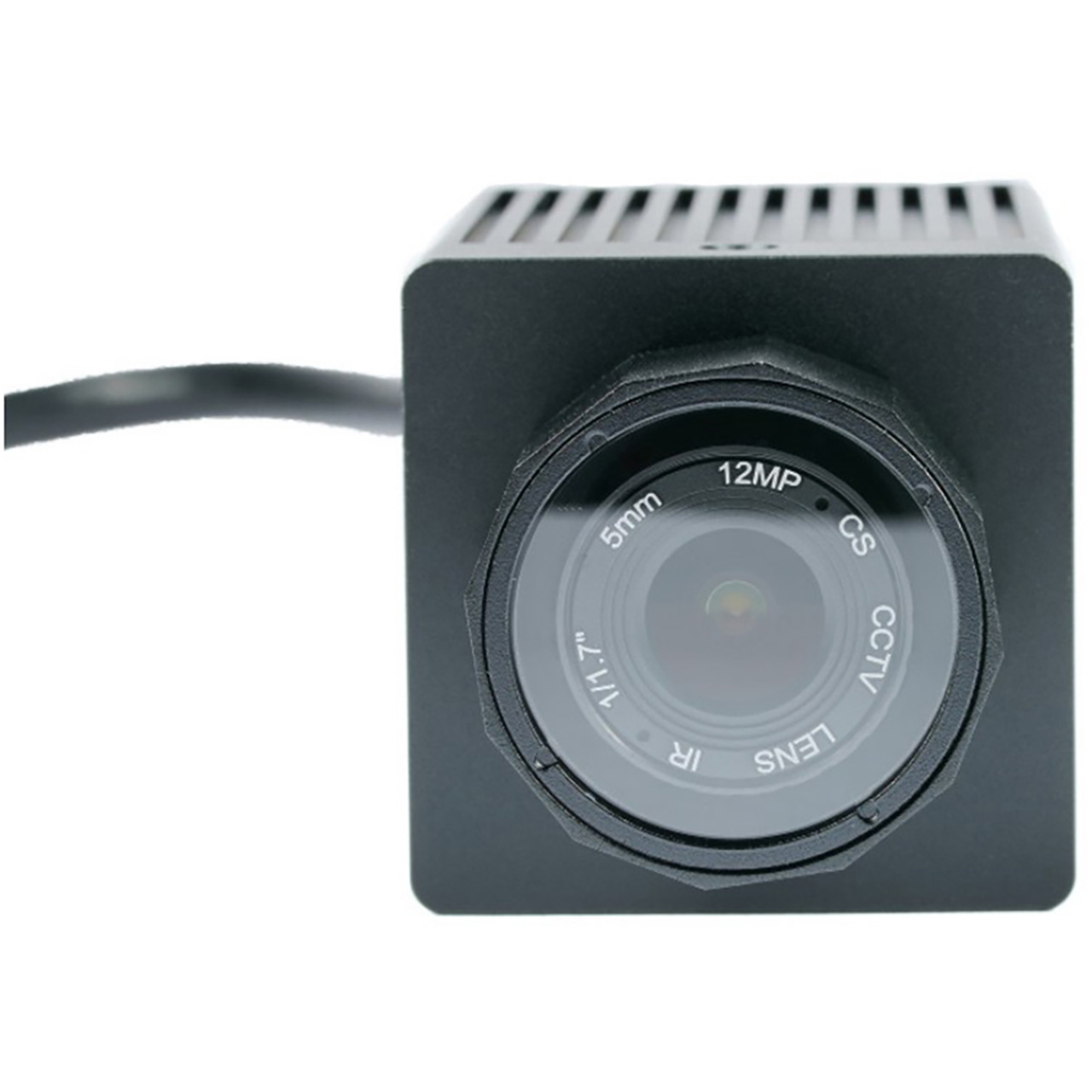

    • Lens: 12MP 5mm CS Mount HD Lens FOV: 78°
    • Audio Embed: Embed over HDMI and IP streaming
    • Input: 3.5mm Line Input
    • Camera Control Protocol: VISCA Over IP
    • Operation Temp: 32°F - 104°F

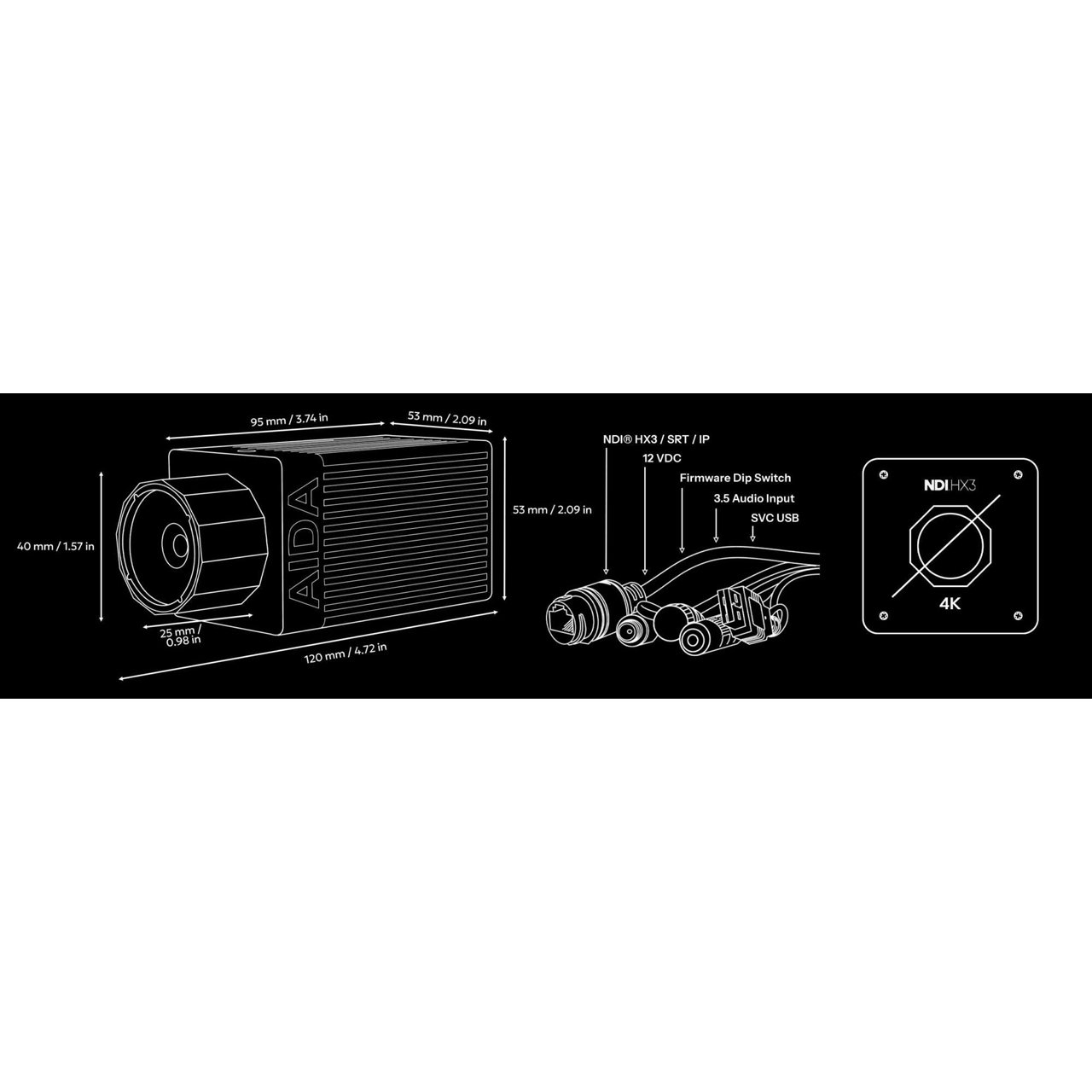

    • Dimension: 4.72" x 2.09" x 2.09" (120mm x 53mm x 53mm)
    • Weight: 800g / 1.76 lb
    • Power: 12VDC (+9V - +15VDC), PoE+ (standard IEEE802.3at)

  • Item Includes:

    • 1x UHD-NDI3-IP67 NDI HX3 POV Camera
    • 1x 5mm 12MP Lens (Pre-Installed)
    • 1x DC 12v Power Supply & Sockets Adapter
