CV356-10X - Overview

Suitable for a wide range of professional broadcast applications!

The Marshall CV356-10X is a versatile POV broadcasting camera featuring a 10x optical zoom (with an additional 12x digital zoom). It provides simultaneous 3G-SDI and HDMI outputs, delivering crisp Full HD images at resolutions up to 1920x1080 and frame rates up to 60fps.

Designed for flexibility, the Marshall CV356-10X excels in sports broadcasting, live events, and houses of worship. The camera now supports neutral close-up adapters and ND(Neutral Density) filters, expanding creative possibilities for close-up shots in diverse and challenging environments. This capability ensures reliable operation in bright, sunny conditions. Combining reliability, adaptability, and high performance, the CV356-10X is an excellent choice for demanding video production needs.

Unmatched Versatility
Presenting 3GSDI and HDMI simultaneous outputs, a remotely adjustable optical zoom range, and stereo audio embedding capability. Get closer to the action with the CV356-10X, featuring a threaded ring adapter that supports 49mm diopter lenses. The CV356-10X delivers crystal-clear close-up FHD images up to 1920x1080p at all usable framerates, combining ultra-low light performance with industry-leading low noise.

Durable Build Construction

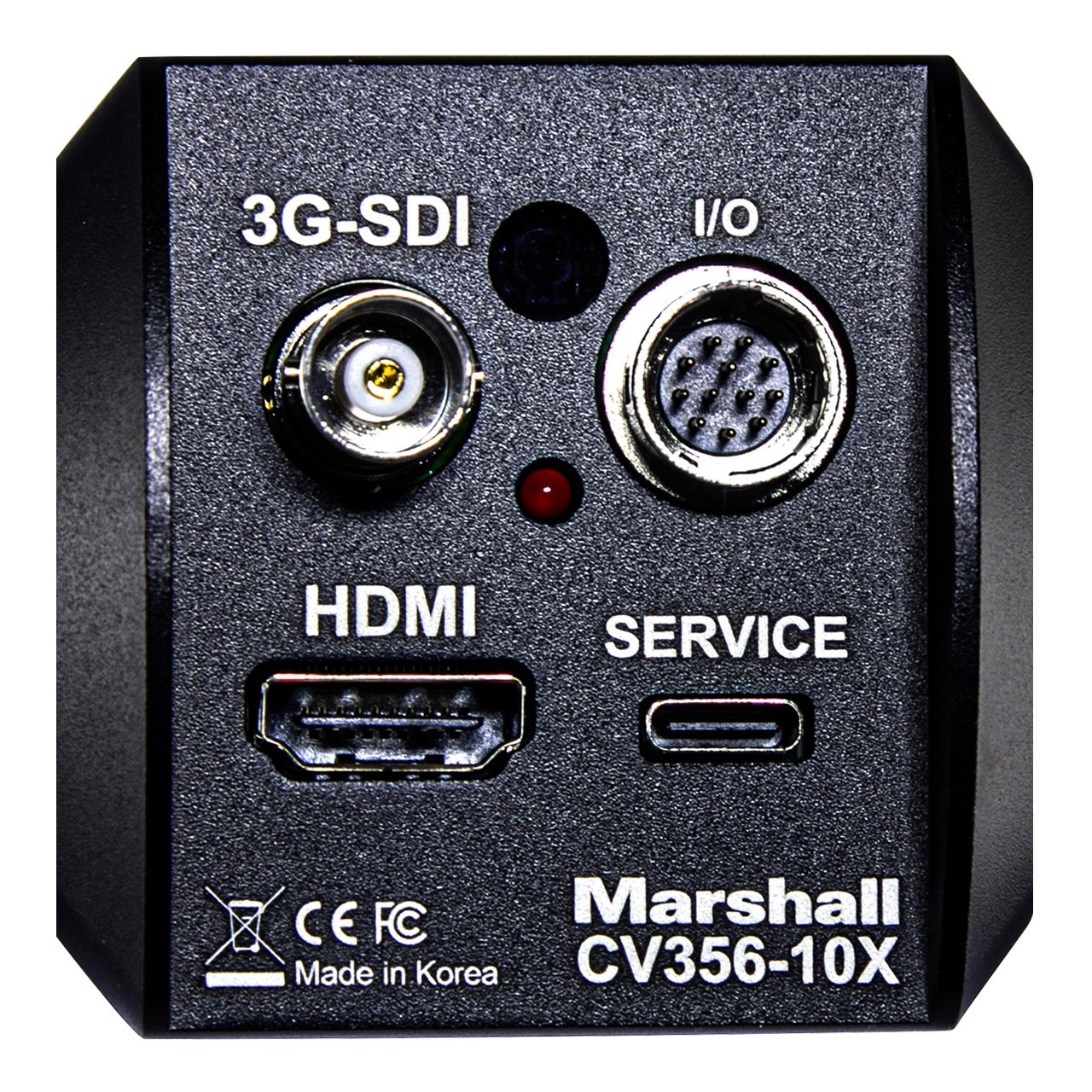

Constructed with a durable aluminum alloy body, full-sized 3G-SDI and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

Universal Use Cases
Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.

Broadcast Performance
Marshall cameras combine reliability, durability, flexibility, and most importantly affordability. With remote adjustment capabilities for settings like iris, white balance, exposure, and pedestal, users can fine-tune image quality over long distances or during setup. Advanced auto settings enable the camera to adapt to changing environmental conditions, ensuring consistent performance.

Applications:
• Broadcast
• Production
• Live Events
• Sportscast
• Government
• Courtroom
• House of Worship
• College/University
• Front of Stage
• Confidence
• Observation applications

  • Features:

    • 2.13 Megapixel 1/2.8" FHD sensor
    • 10x optical zoom lens with additional 12x digital zoom
    • Ring Adapter included perfect for any 49mm close-up lens and ND filters
    • Up to 1920 x 1080p60 video output over SDI and HDMI simultaneously
    • Audio input for embedding audio to video output
    • Breakout cable with small joystick for quick OSD menu access
    • VISCA over RS485 control
    • 12VDC Power Supply Included
    • Easy firmware upgrade in the field
    • Standard 1/4"-20 mount hole for easy installation

  • Specifications:

      Sensor
    • Image Sensor: 1/2.8" Progressive CMOS (Approx. 2.1 Megapixels)
    • Effective Pixel: 1920(H) x 1080(V)
    • Pixel Size: 2.9 (µm) x 2.9 (µm)
    • Min. Illumination: 0.1Lux (Day), 0.01Lux (Night), 0.001Lux (DSS on)

      Optics
    • Lens: 10x Optical Zoom, f=4.7mm - 47mm, F1.6 - F3.0
    • Zoom:
      - 10x optical zoom
      - 12x digital zoom
    • Angle of View (H): 57.7° (wide end), 6.4° (tele end)
    • Min. Working Distance: 100mm (wide), 900mm (tele)

      Functions
    • Focus: Auto/Manual
    • Exposure: Auto/Shutter Priority/Iris Priority/AGC Priority/Manual/Bright
    • White Balance: AWB (3,000°K - 8,000°K)/ATW (1,900°K - 11,000°K)/INDOOR/OUTDOOR/ONE PUSH/Manual
    • Day & Night System: DAY, NIGHT, AUTO
    • Electronic Shutter:
      - NTSC: 1/30 - 1/10000
      - PAL: 1/25 - 1/10000
    • Functions: Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct

      Video Outputs
    • HDMI:
      - 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
      - 1920 x 1080i: 60, 59.94, 50
      - 1280 x 720p: 60, 59.94, 50
    • SDI:
      - 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
      - 1920 x 1080i: 60, 59.94, 50
      - 1280 x 720p: 60, 59.94, 50

      Audio
    • Input: 3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
    • Sample Rate: 16/24/32 Bits

      Control Interface
    • RS485: SONY-VISCA protocol, PELCO-P/D

      General
    • Operation Temperature:32°F - 122°F (0°C - 50°C)
    • Power Input: 12VDC (7V - 15VDC)
    • Power Consumption: 12V power supply, can operate 12V ±10% with a 6W draw
    • Weight: 0.80lbs (camera only)
    • Dimensions (DxWxH): 10.5" x 5" x 4" (104.55mm x 56mm x 56mm)

  • Item Includes:

    • 1x Marshall CV356-10X Compact 3G-SDI / HDMI Full HD POV Camera with 10x Zoom & RS-485 Control
    • 1x 12VDC Power Supply

  • GTIN:

    0801813235272
