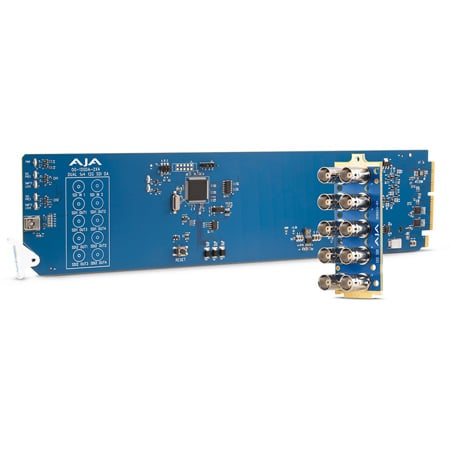

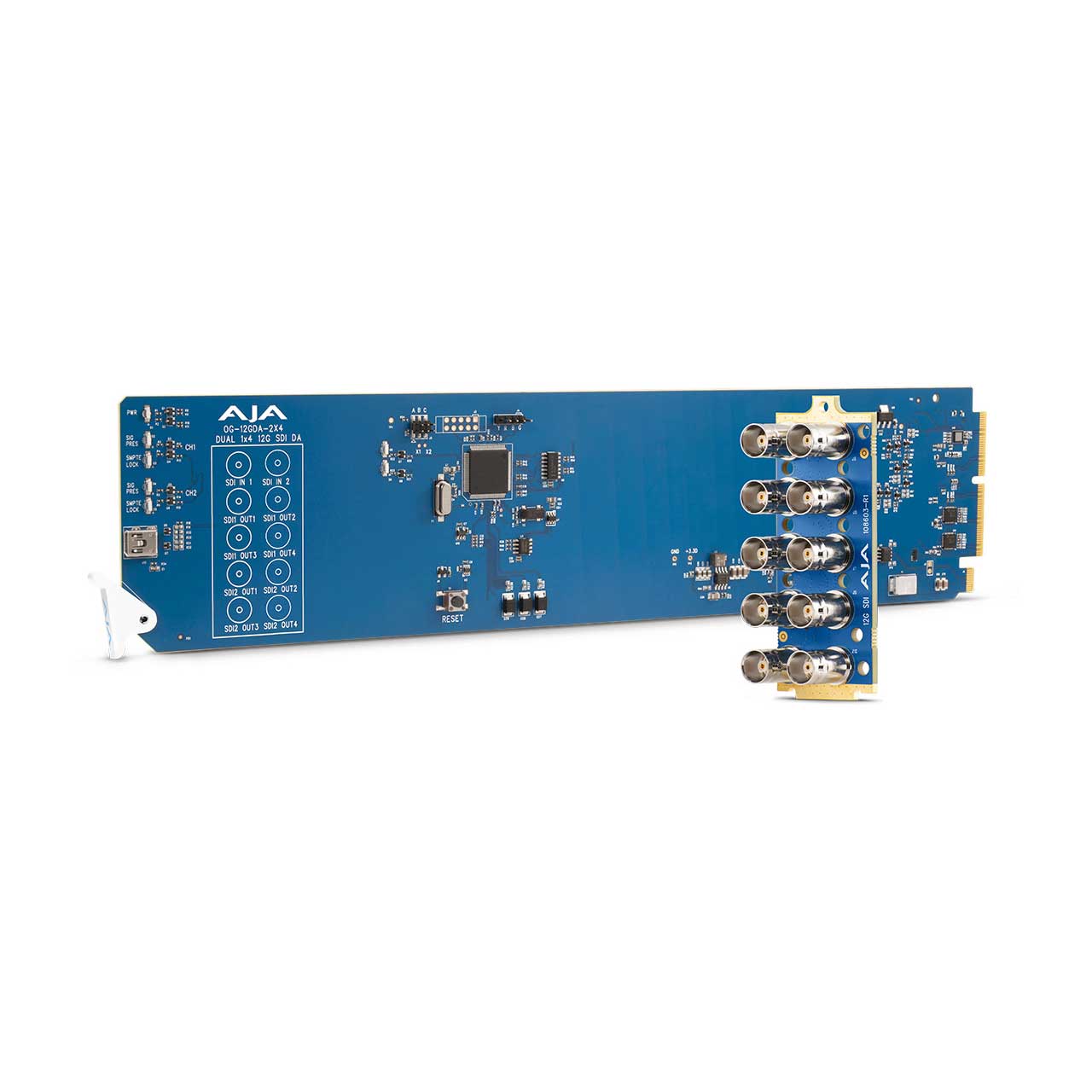

AJA OG-12GDA-2x4 openGear Dual 1x4 3G/12G-SDI Splitter Distribution Amplifier

ITEM #: AJA-OG-12GDA-2X4 MFG #: OG-12GDA-2X4

Primary Image
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    OG-12GDA-2X4 - Overview

    The AJA OG-12GDA-2x4 is an openGear compatible, state of the art 12G-SDI distribution amplifier. The incoming 12G-SDI signals on the dual input channels are automatically equalized and the outputs are automatically reclocked to four 12G-SDI outputs each. This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included.

    Designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

    The 12G-SDI inputs are automatically equalized and the outputs are automatically reclocked with best in class input jitter tolerance. SDI rates of 270Mb, 1.5Gb, 3Gb, 6Gb and 12Gb are supported. Two SDIs inputs and eight SDI outputs are provided.

    • Features:

      • Dual 1x4 12G-SDI openGear Distribution Amplifiers
      • 2x 12G-SDI BNC inputs
      • 8x noninverting 12G-SDI BNC outputs
      • Format agnostic 270 Mbps - 12 Gbps video formats
      • Automatic input equalization and output reclocking
      • Support for HDR video
      • Passes embedded audio, all ancillary data including closed caption and time code
      • Input Present and Input SMPTE Lock LEDs
      • 10x 12G-BNC rear connector module included
      • Power: 4.5 watts
      • Hot swappable
      • DashBoard Support with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
    • Specifications:

      • Video Formats
      • 150 Mbps - 12 Gbps, format agnostic

        Video Input Digital
      • 2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

        Video Output Digital
      • 8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, noninverting

        Cable Equalization (Belden 1694A coax)
      • 12 Gbps, 45m
      • 6 Gbps, 90m
      • 3 Gbps, 140m
      • 1.5 Gbps, 185m
      • 270 Mbps, 365m

      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        User Interface
      • openGear DashBoard network control software via Windows, macOS or Linux

        Size (w x d x h)
      • openGear standard form factor, front slot and rear card
      • Two slots required for each card

      • 0.5 lb (0.3 kg)

      • openGear frame compatible, 4.5 watts max per card

      • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
      • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
      • Operating Relative Humidity: 10-90% noncondensing
      • Operating Altitude: <3,000 meters (<10,000 feet)
    • Warranty:

      • 5 Years
    • GTIN:
