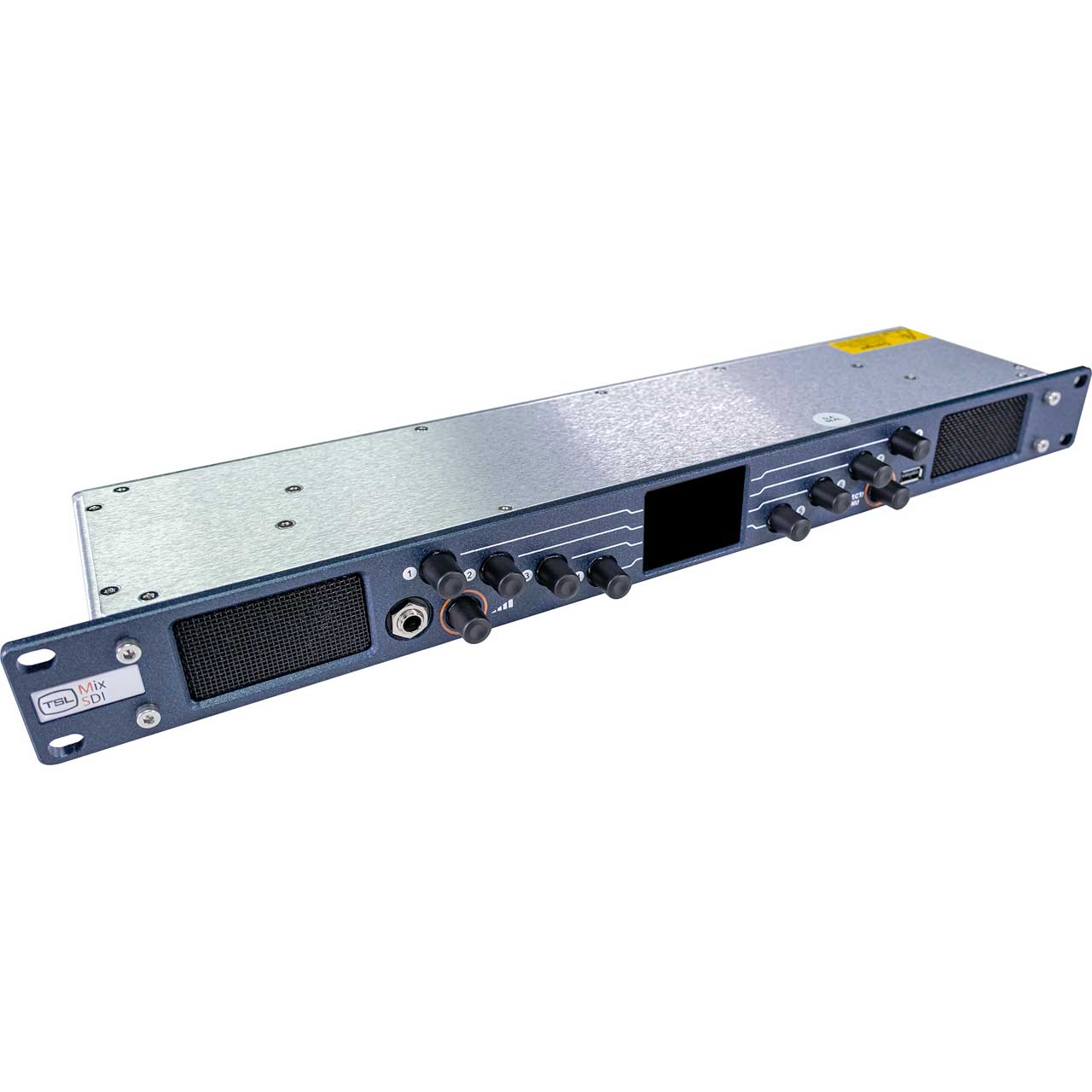

TSL Products MPA1-MIX-SDI-V-1 1RU 3G-SDI Audio Mixing Monitor with 1x SDI/1x Stereo Analog Pair/1x AES Input/HDMI Output

MPA1-MIX-SDI-V-1 - Overview

• Features:

  • High quality audio monitoring of SDI, AES and Analog audio sources.
  • Fast and intuitive stereo monitor mixing of up to 8 SDI Embedded Audio Pairs, AES and Analog audio pairs.
  • Audio level meter display of up to 8 audio pairs.
  • Quick store and recall of up to 16 monitor mixes.
  • Source Label and Monitor Mix Label display.
  • Headphone and External Loudspeaker monitoring Outputs.
  • Headphone output with selectable loudspeaker muting behaviour.
  • Built in web server allows remote configuration, control and monitoring over an Ethernet network.
  • SNMP control allows for tight integration with TSL Tallyman and 3rd Party Control Systems.
  • Free software updates


• Specifications:

  • General
  • Height: 1RU
  • Dimensions: 483mm x 45mm x 100mm
  • Display: Audio Metering
  • Audio Channels: 16
  • Signal To Noise Ratio: TBA
  • Peak Acoustic Output: 90dB @ 1foot
  • Frequency Response: TBA
  • Weight: 1.4kg
  • Unit Control: SNMP; webpage
  • Inputs: 1 x Dante/AES7 + 1 x MADI Coax
  • Balanced Analogue Inputs: >60k Ohms
  • Balanced Analogue Outputs: Fixed or Variable
  • SFP Cages: 1 x MADI Optical
  • Upgrades: Via USB

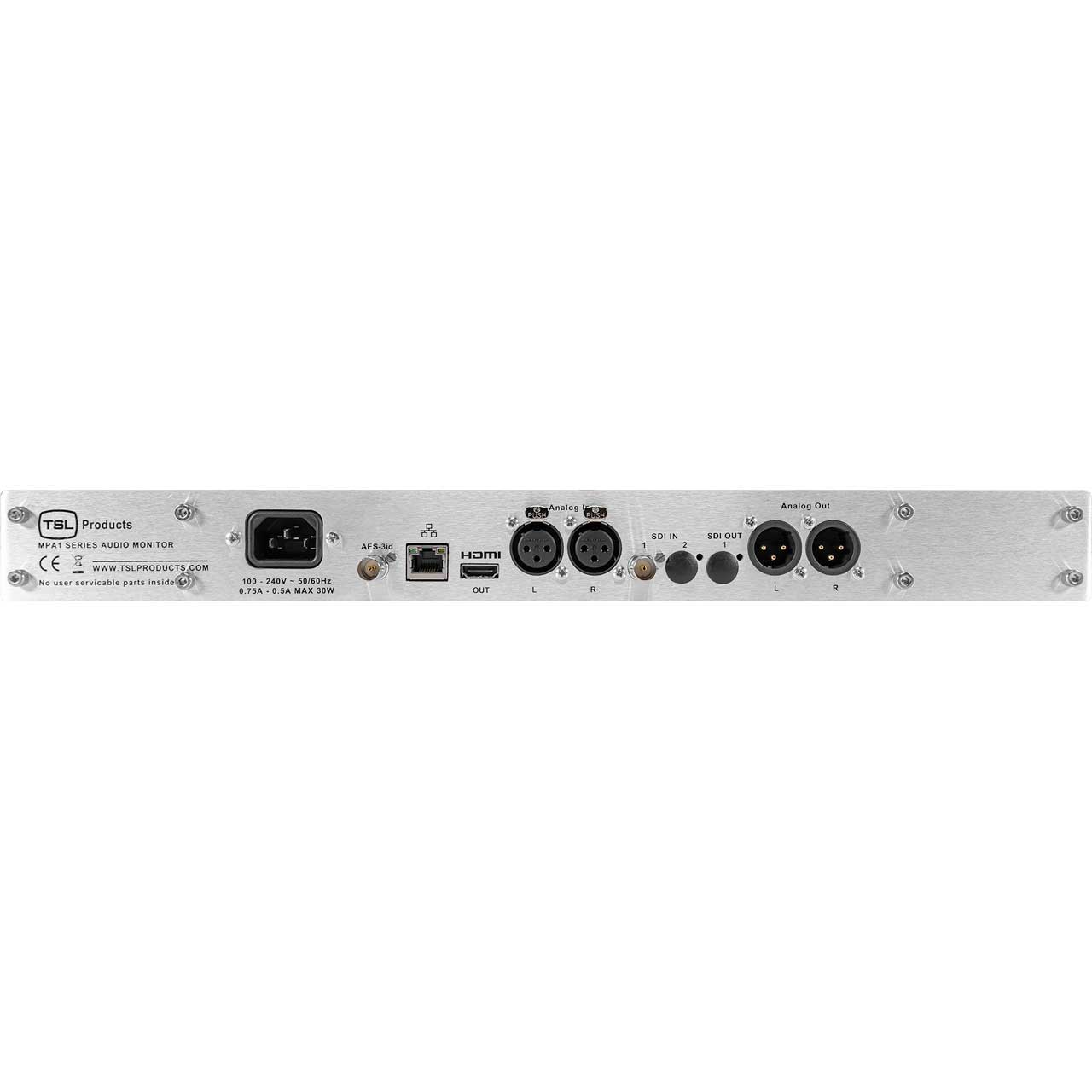

    I/O
  • 2 x 3G-SDI Coaxial Inputs
  • 1 x AES3id Coaxial Input
  • 1 x Balanced Analogue Input Pair
  • 1 x 3G SDI Output (with Embedded Audio)
  • 1 x HDMI Output
  • 1 x Balanced Analogue Output Pair
  • 1 x 1/4 inch Headphone Output
  • 1 x Front Panel USB
  • 1 x RJ45 Ethernet control and monitoring port
  • 100-240V 50/60Hz mains input on IEC
  • 1RU 100mm unit depth
