Alfatron ALF-IPK1HD H.264/H.265 4K30 Networked AV Over IP Encoder with MPEG4-AAC and LPCM Stereo Audio

ALF-IPK1HE - Overview

• Features:

  • Works easily with an Ethernet switch, no need to configure; real plug and play solution
  • Supports high-efficiency H.264/265 video codec, HDMI 1.4, HDCP 2.2
  • Supports MPEG4-AAC and LPCM stereo audio
  • Effortless preview management: drag-and-drop sources to the desired displays for visual control

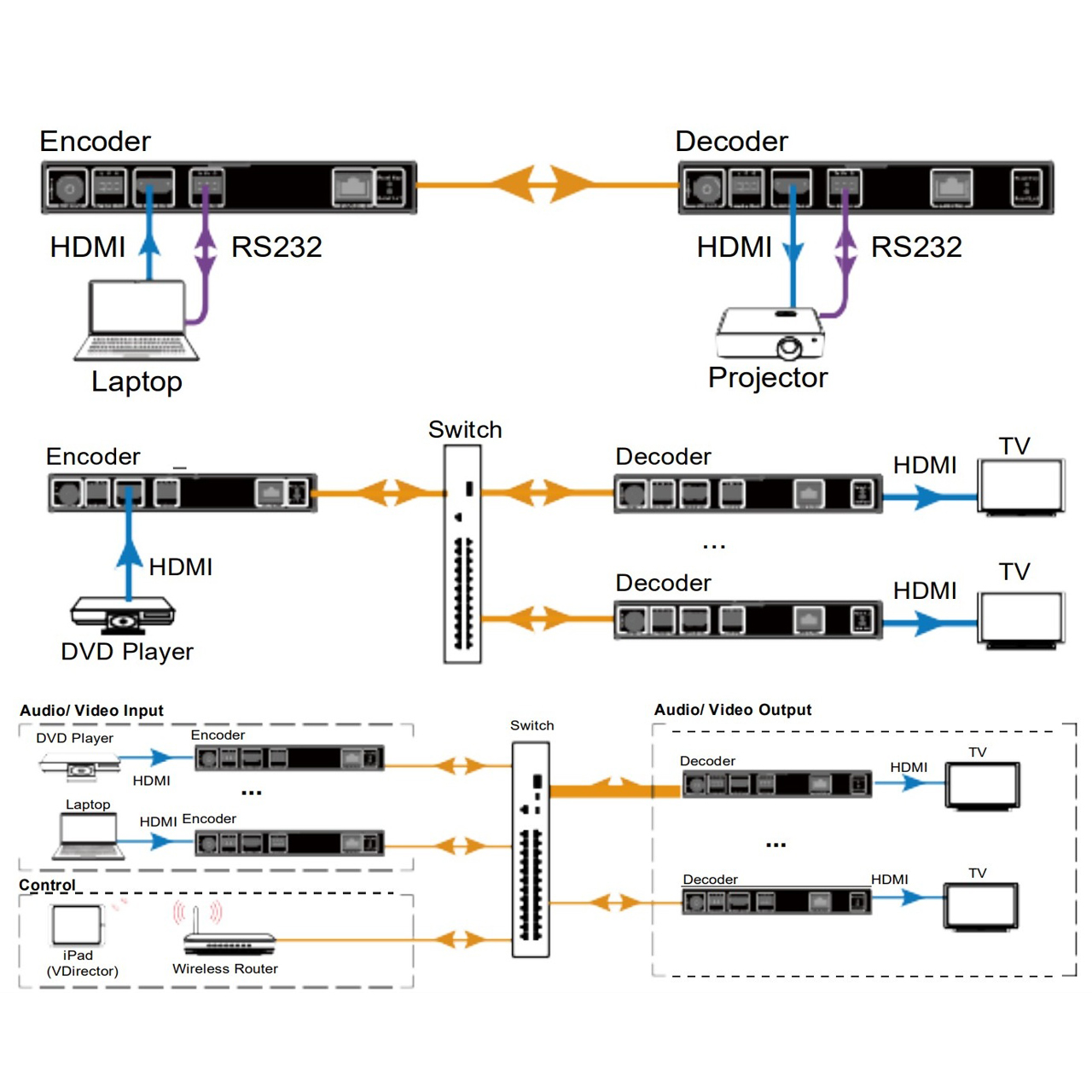

  • Easy to build an IP matrix or a video wall
  • The decoder has a built-in scaler to achieve fast and seamless switching
  • The RS232 route follows the switching of video source.


• Specifications:

  • Dimensions: 6.9" x 0.98" x 3.9" (175mm x 25mm x 100.2mm)
  • Weight: 1.32lbs (0.60kg)
  • Video:
    - Input Port: 1x HDMI
    - Input Resolutions: Up to 4K@30Hz
    - Output Port: 1x LAN
    - Output Resolutions: Up to 4K@30Hz
    - Video Protocol: H.265 Video Compression
  • Audio:
    - Input Port: 1x HDMI
    - Output Port: 1x LAN (PoE) and 1x Line Out
    - Audio Format: MPEG4-AAC and LPCM Stereo
  • Power Supply: DC12V 1A/PoE
  • Power Consumption: 5W (Max)
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)


• Item Includes:

  • 1x ALF-IPK1HE H.264/H.265 4K30 Networked AV over IP Encoder
  • 1x Power Supply


• Warranty:

  • 1 Year Limited Warranty
