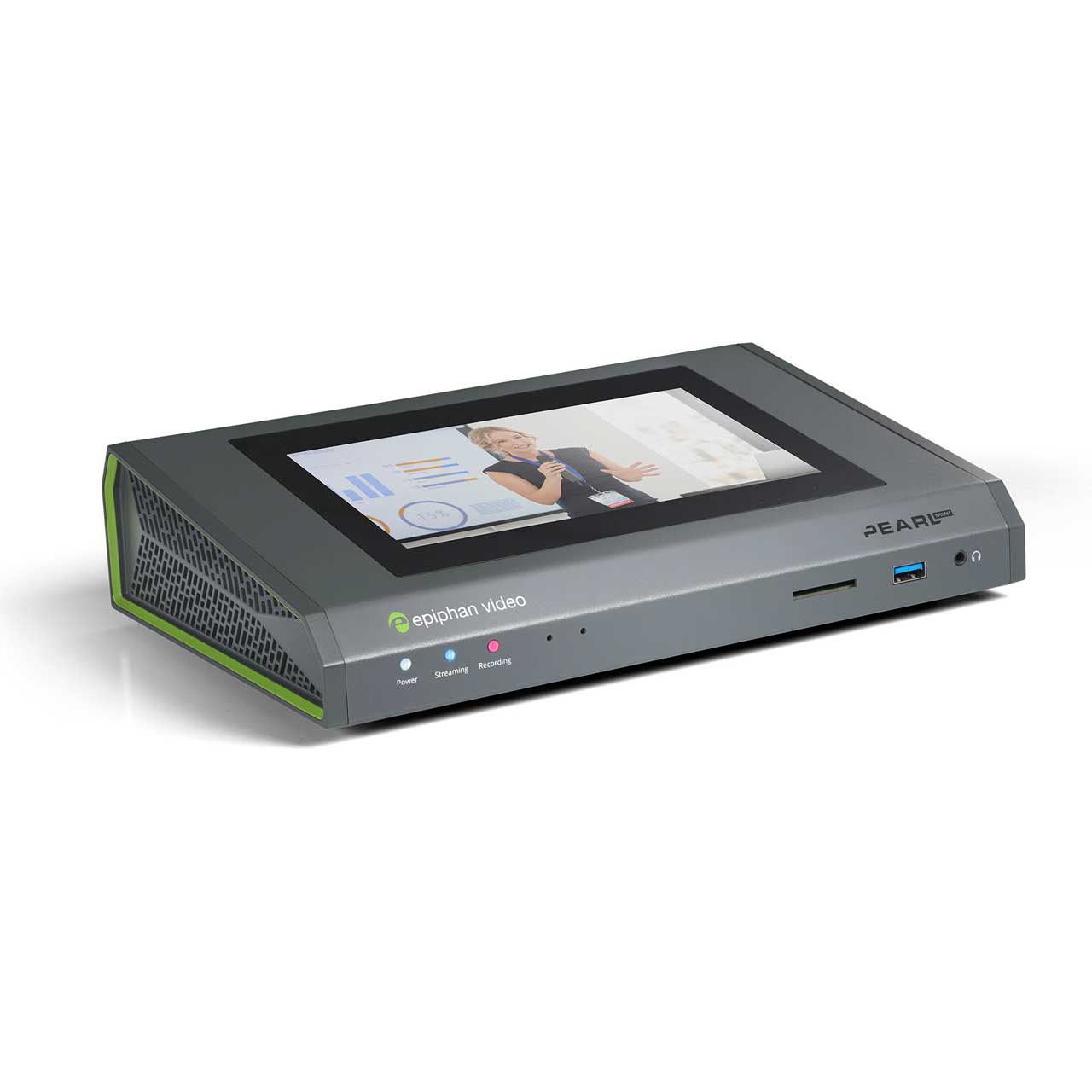

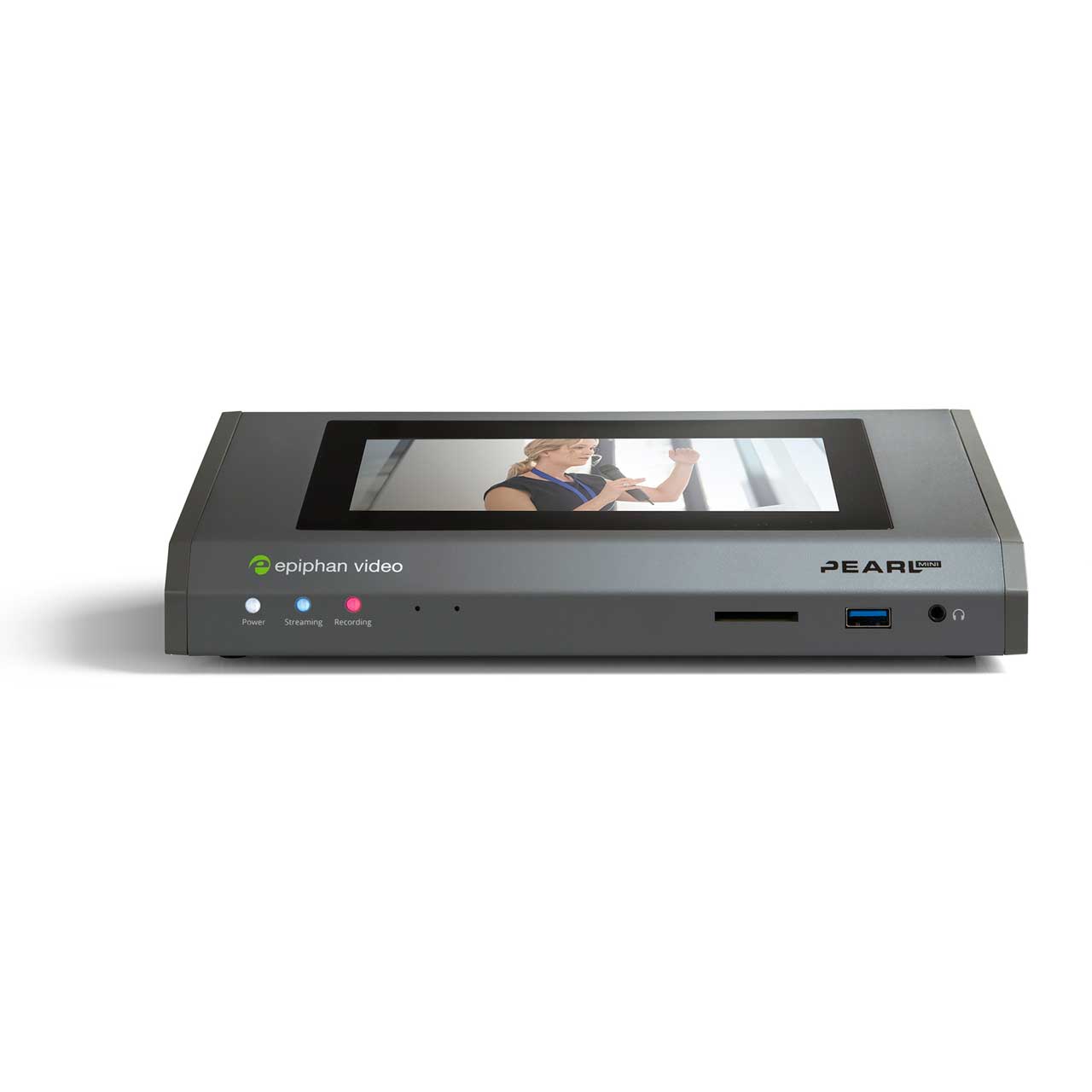

Epiphan ESP1440 Pearl Mini All-In-One Live Video Mixing & Streaming Production System 3G-SDI/USB 3.0

ITEM #: EPIP-ESP1440 MFG #: ESP1440

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    ESP1440 - Overview

    Bring your video production studio with you!

    The Epiphan Video Pearl Mini is the most reliable, all-in-one video portable production system that's small in size and big on pro features. Record, stream, and switch up to 3 HD inputs simultaneously and take your video production to the next level with Pearl Mini.

    Live event workhorse
    Setting up for a live event has never been easier than with Pearl Mini. Get up and running in minutes to stream, record, and switch your event. Pearl Mini is built for durability in the field and delivers high quality results in any situation.

    Simplified lecture capture
    Trusted by the world's leading academic institutions, Pearl Mini is the ultimate lecture capture device. While it's incredibly easy to use for operators and professors, it also has a robust set of features designed for integration into an LMS or CMS. Now you also get direct integration with Panopto and Kaltura CMSs!

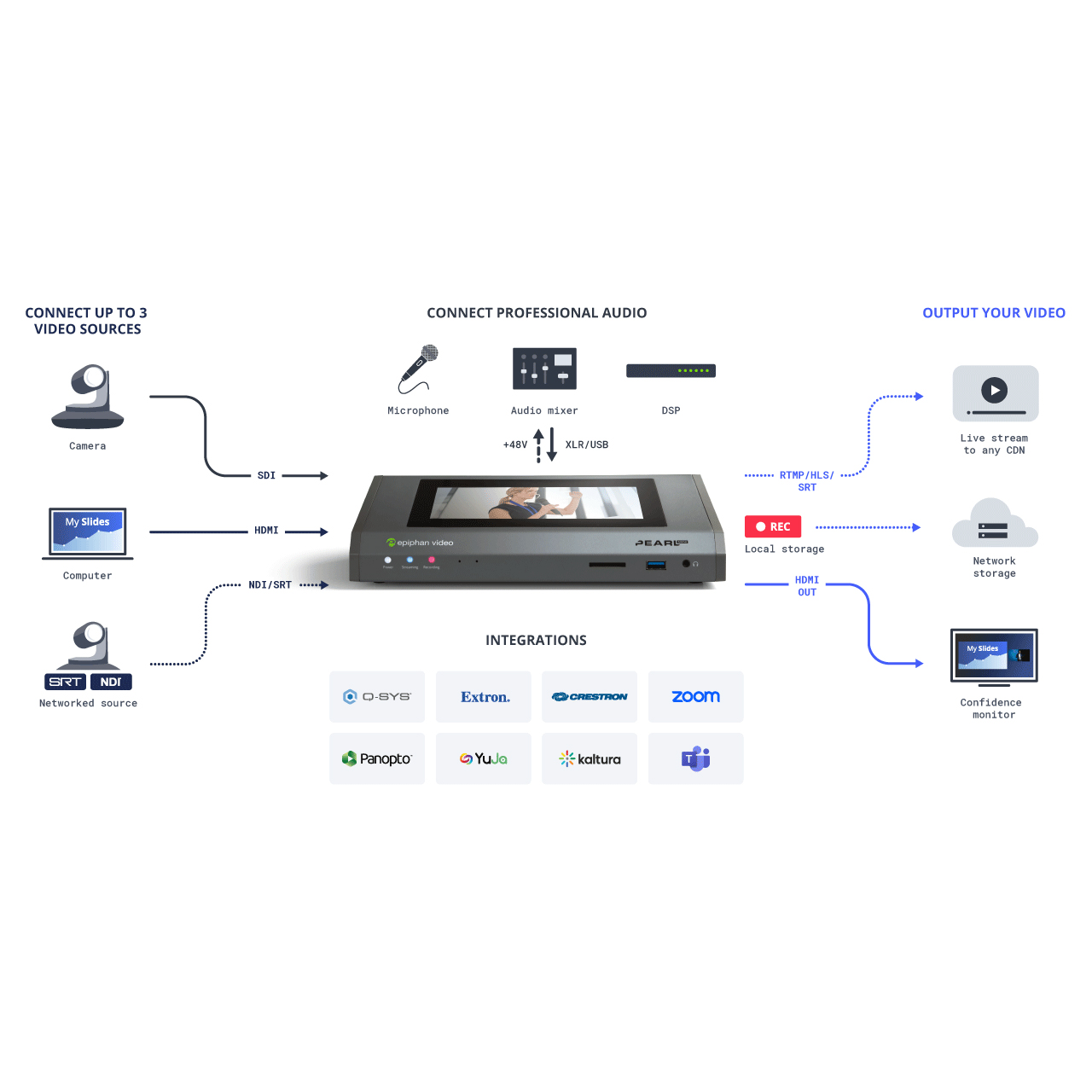

    Connect any camera or video source
    Be ready for anything. Pearl Mini allows you to work with HDMI, SDI, USB, DVI, SRT, and RTSP sources. No signal converters or scalers necessary!

    Custom layout designer
    Design your own custom layouts, including picture in picture and image overlays, using the drag-and-drop editor in Pearl Mini's web-based Admin panel. Combine, crop, and scale HD video sources. Add overlay images, text, timestamping, and more.

    Pro audio support
    Use mic-level XLR (phantom) and 3.5mm inputs or line-level 1/4-inch TRS and RCA inputs. Built-in attenuation and gain control mean you get perfect sound fidelity.

    Stream to viewers everywhere
    Simultaneously live stream to YouTube, Facebook or any other CDN. Supported protocols include SRT, HLS, MPEG-DASH, RTMPS and more. At the same time, use the built-in streaming server to stream locally to web browsers and set-top boxes.

    Multiple Streaming Protocols Supported
    Pearl units support multiple streaming protocols including MPEG-TS, and FLV, RTSP over TCP/UDP, SRT (push) over UDP, HLS (push) over HTTP/HTTPS, Multi-publish to streaming server / CDN (SRT, RTSP, RTMP, RTMPS), HLS (pull) - Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch. It makes the Pearl a universal streaming production system.

    Get an Edge with Remote Cloud Management
    Epiphan Edge is where remote teams can conveniently manage and control all Pearl devices together in one place. An Internet connection and a free Epiphan Cloud account is all you need to get started. When Pearl-2 is paired with your Epiphan Cloud account, you can start/stop video recording and streaming, monitor the health of Pearl-2 with status alerts and a diagnostics dashboard, monitor video feeds, update firmware remotely, and even remotely configure channel encoding. Configure and monitor hundreds of Pearl devices on campus from a centralized admin panel in a web browser. This autonomous remote functionality is perfect for educational facilities with multiple lecture halls and sport venues as well as house of worship and live event producers. The power of remote cloud control is completely in your hands.

    • Features:

      • Video inputs
      • HDMI output
      • 7-inch Touchscreen
      • One-Touch control
      • 1080p HD recording
      • Local video output
      • Remote login
      • Removable storage
      • Headphone Jack
      • Seamless CMS support for Kaltura and Panopto
      • VESA mount
    • Specifications:

      • Video inputs

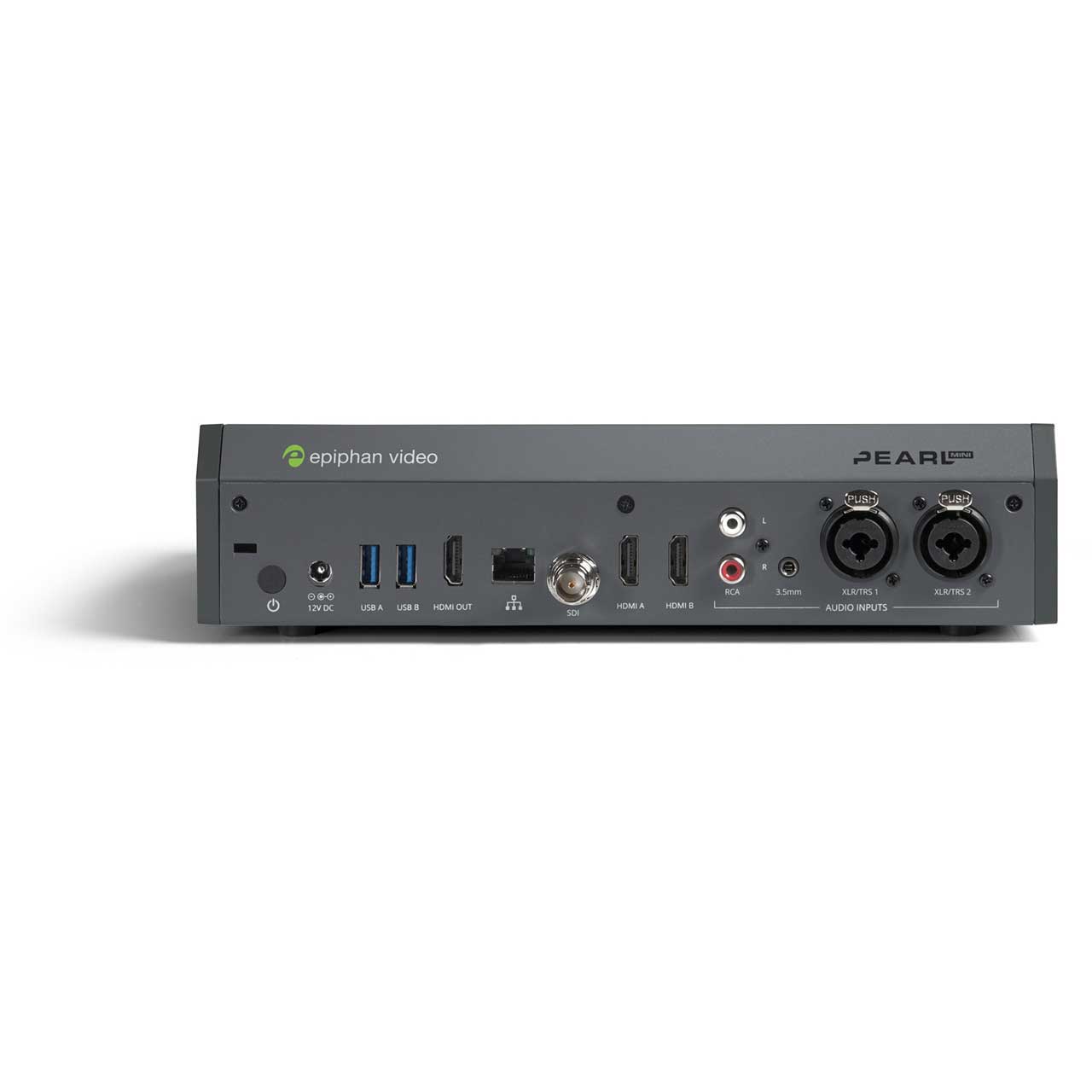

      • Connectors: 2 x HDMI ™, 1 x 3G SDI, 2 x USB 3.0
      • Network inputs: SRT and RTSP

        Audio inputs
      • Connectors: Mic-level: 2 x XLR, 1 x 3.5mm Line-level: 1 x stereo RCA, 2 x 1/4" TRS
      • Input level max: 26 dBu

        Video outputs
      • On-board touch screen and 1 x HDMI for video output

        Video switching
      • During live streaming and recording via the touch screen or web UI

        Video encoding
      • Codecs: H.264, Motion JPEG
      • Color resolution: 4:2:0
      • Resolution: User selectable up to 1920 x 1200

        Streaming protocols

        Encoded channels
      • Up to three 1080p programs at 30 fps (one full HD source per channel)

        Audio encoding
      • MP3, PCM, and AAC (sampling 16 to 48 kHz with bitrate up to 320 kbps)

      • 1 x 10/100/1000 Ethernet port (RJ45)
      • 802.1x network security and certificate management

      • Storage
      • Local SD card: Up to 512 GB EXT4 (user supplied)
      • Local USB: Automatic or manual copy via 3 USB 3.0 ports
      • Network storage: FTP, SFTP, SCP, RSYNC, CIFS, AWS, or WebDav servers

        Recording formats
      • AVI, MP4, MOV, or MPEG-TS

      • Browser-based Admin panel, Epiphan Live portal, touch screen, remote login, HTTP, and RS-232 APIs
    • Item Includes:

      • 1x Epiphan Pearl Mini
      • 1x Power Supply
      • 1x Quick Start Guide
    • Warranty:

      • One-year phone support
      • One-year limited warranty
      • Free firmware upgrades
    • GTIN:
