ADJ PAR220 PAR Z MOVE 200Watt Warm White LED on Moving Head Base with DMX & RDM Control

ITEM #: AMDJ-PAR220 MFG #: PAR220

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMDJ-PAR220

PAR220 - Overview

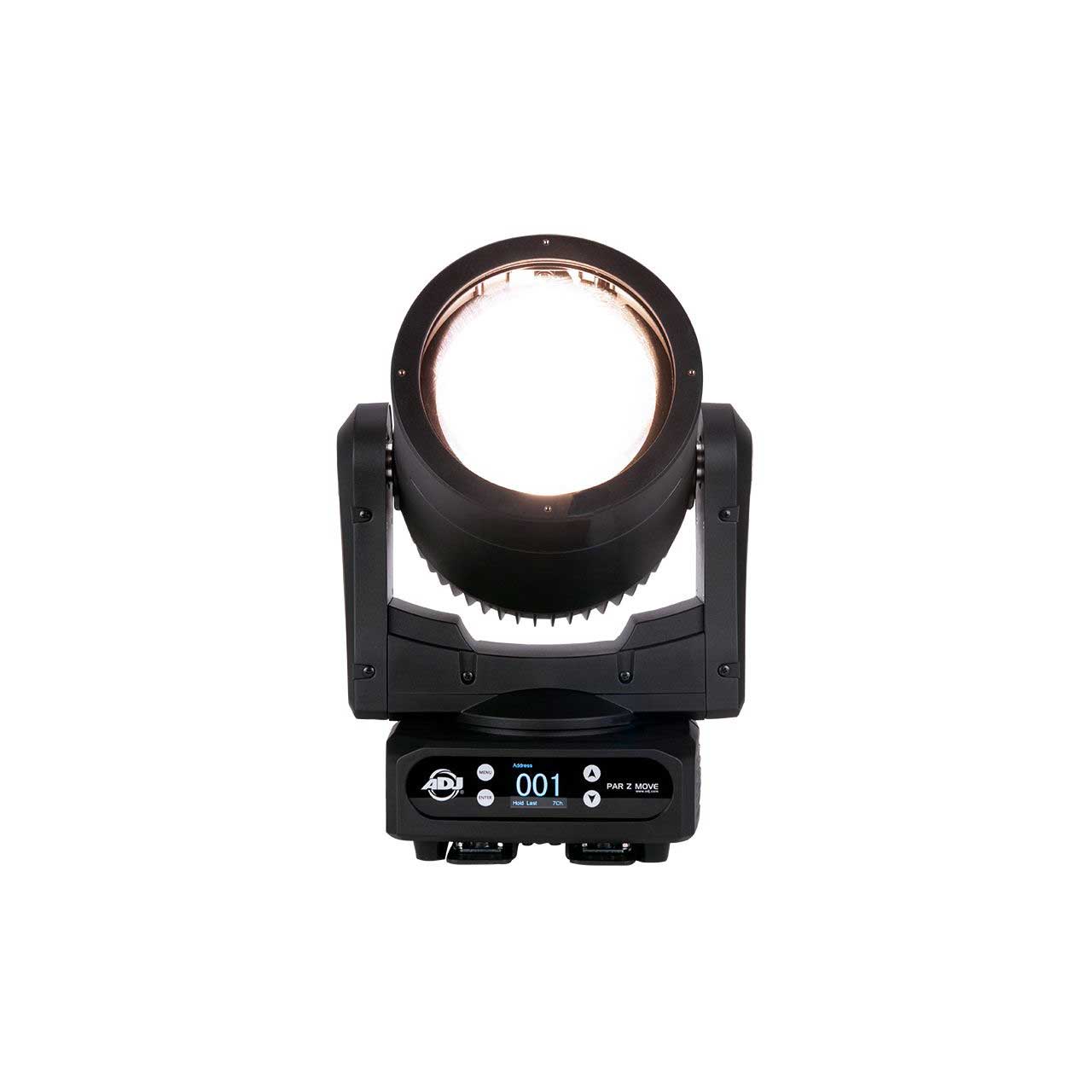

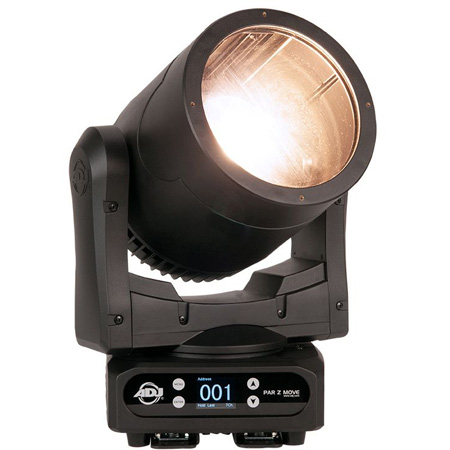

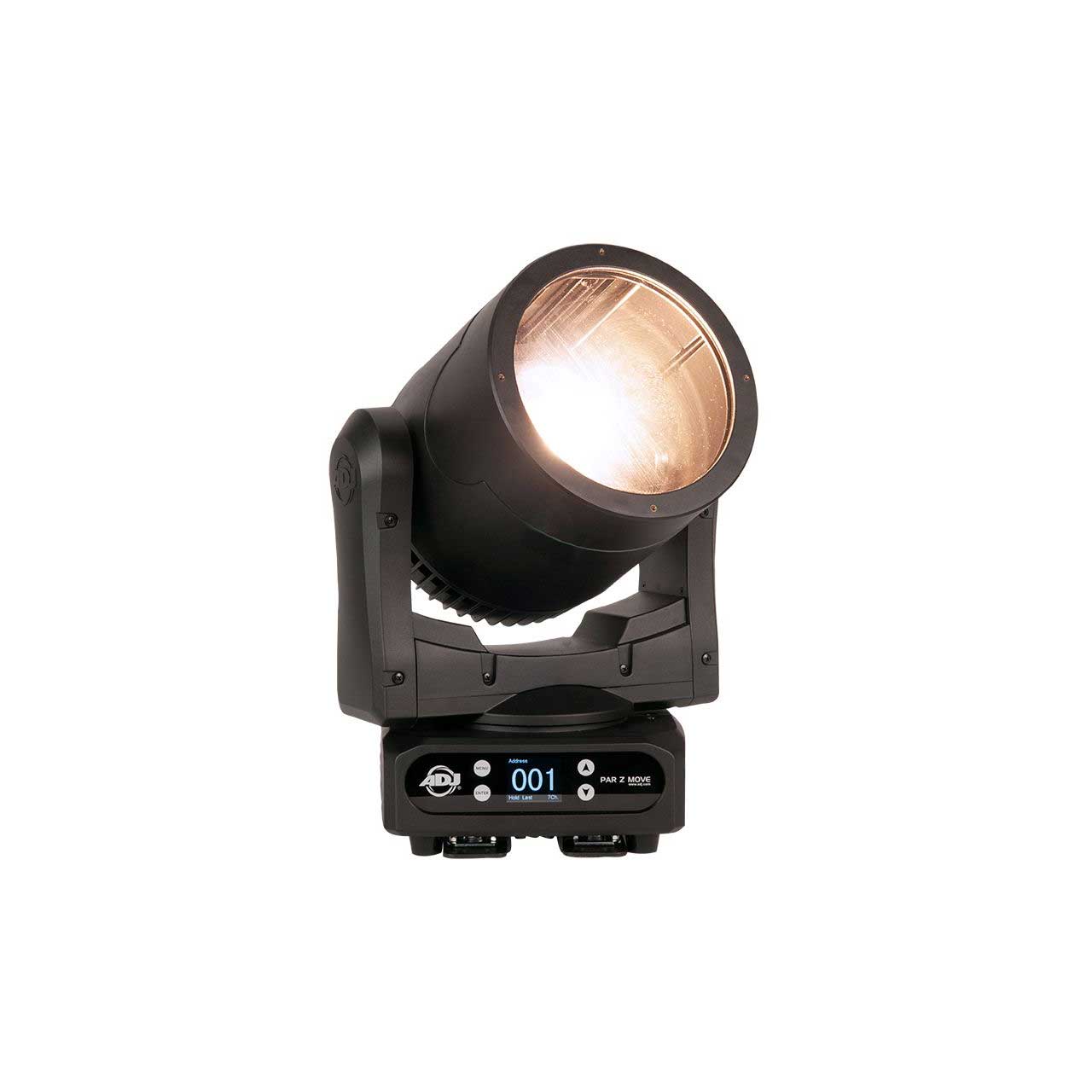

The ADJ PAR220 Par Z Move is the next generation fixture in ADJ's popular PAR Z100 Series of C.OB. LED Pars. It's powered by a high output 200W C.O.B. (Chip on Board) warm white LED on a moving head base. Featuring motorized zoom (9 ~ 43-degrees) and 0-100% dimming plus 16-bit fine dimming for stages, theaters, churches, nightclubs, concert venues and event productions.

There are a variety of professional features such as: DMX and RDM control, pan & fine pan, tilt & fine tilt and a color display with 4 buttons to easily access all the built-in functions. Locking power In/Out to daisy chain the power and 3-pin and 5-pin XLR, DMX In/Out give lighting designers the best, most reliable connections on the market. There is also a built-in USB port to easily update the software if needed.

  • Features:

    • 3 DMX Channel Modes: 7, 9, & 11-channels
    • Color display with touch button
    • DMX-512 & RDM
    • Pan: 540-degrees (plus 16-bit Fine Pan)
    • Tilt: 200-degrees (plus 16-bit Fine Tilt)
    • 6 Dimmer Curve Modes + 16-bit Fine Dimming
    • Strobe & Shutter Control

  • Specifications:

    • Optical
    • 200W Warm White COB (Chip On Board) LED engine (3000K)
    • Motorized Zoom: 9 ~ 43-degrees
    • CRI: 96
    • 15391 LUX @ 1M; 616 LUX @ 5M (zoomed out)
    • 234685 LUX @ 1M; 9387 LUX @ 5M (zoomed in)

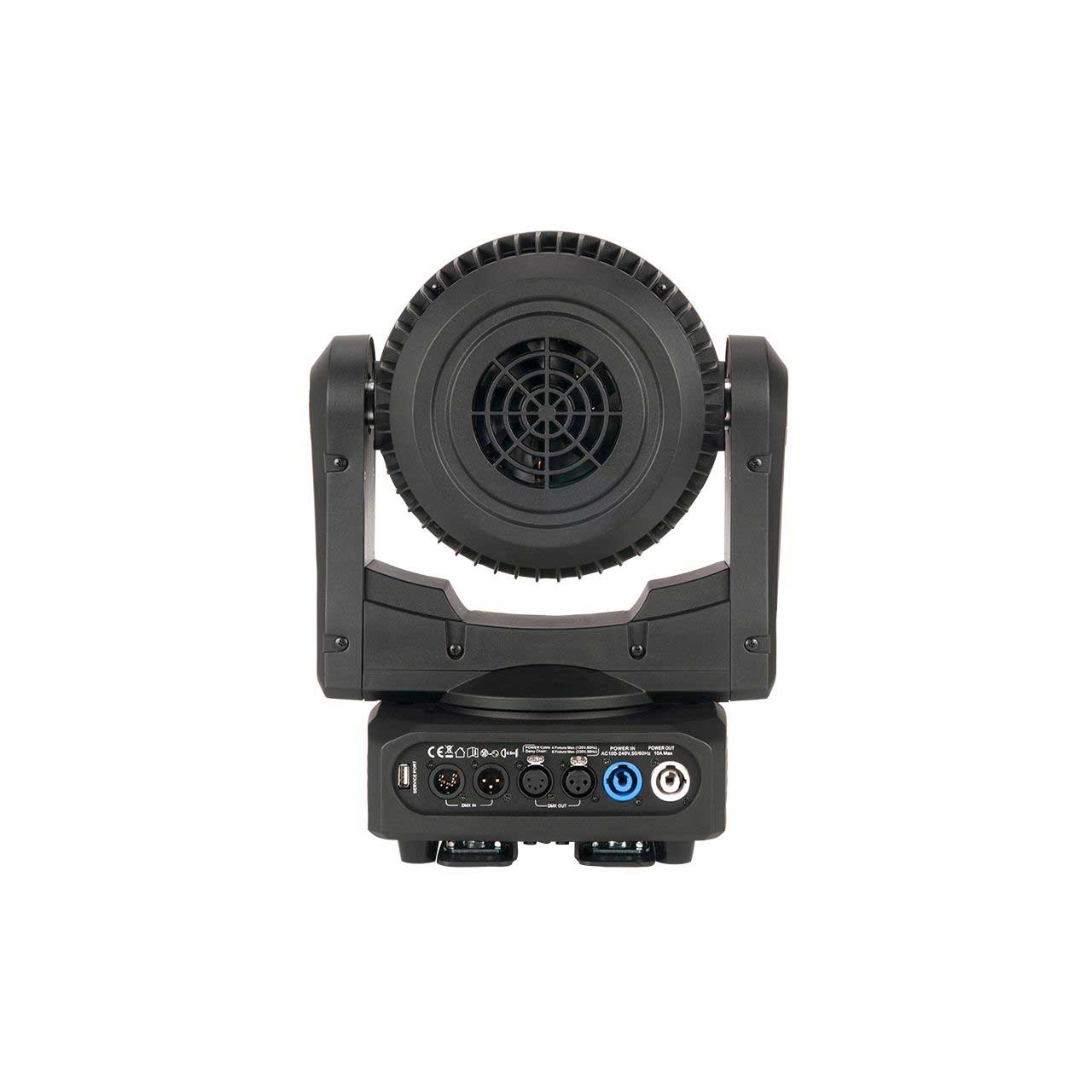

      Connections
    • Locking power In/Out to daisy chain power
    • 3-pin & 5-pin XLR, In/Out DMX Connections
    • Built-in USB software upgrade port With Wired Digital Communication Network

      Electrical
    • Multi-voltage operation: 100-240V, 50/60Hz
    • Power Consumption: 233W max

      Dimensions / Weight
    • Dimensions (LxWxH): 12.05"x 8.6"x 17.63" / 306x218x448mm
    • Weight: 25 lbs. / 11.3 kg.

      Approvals
    • ETL Approved

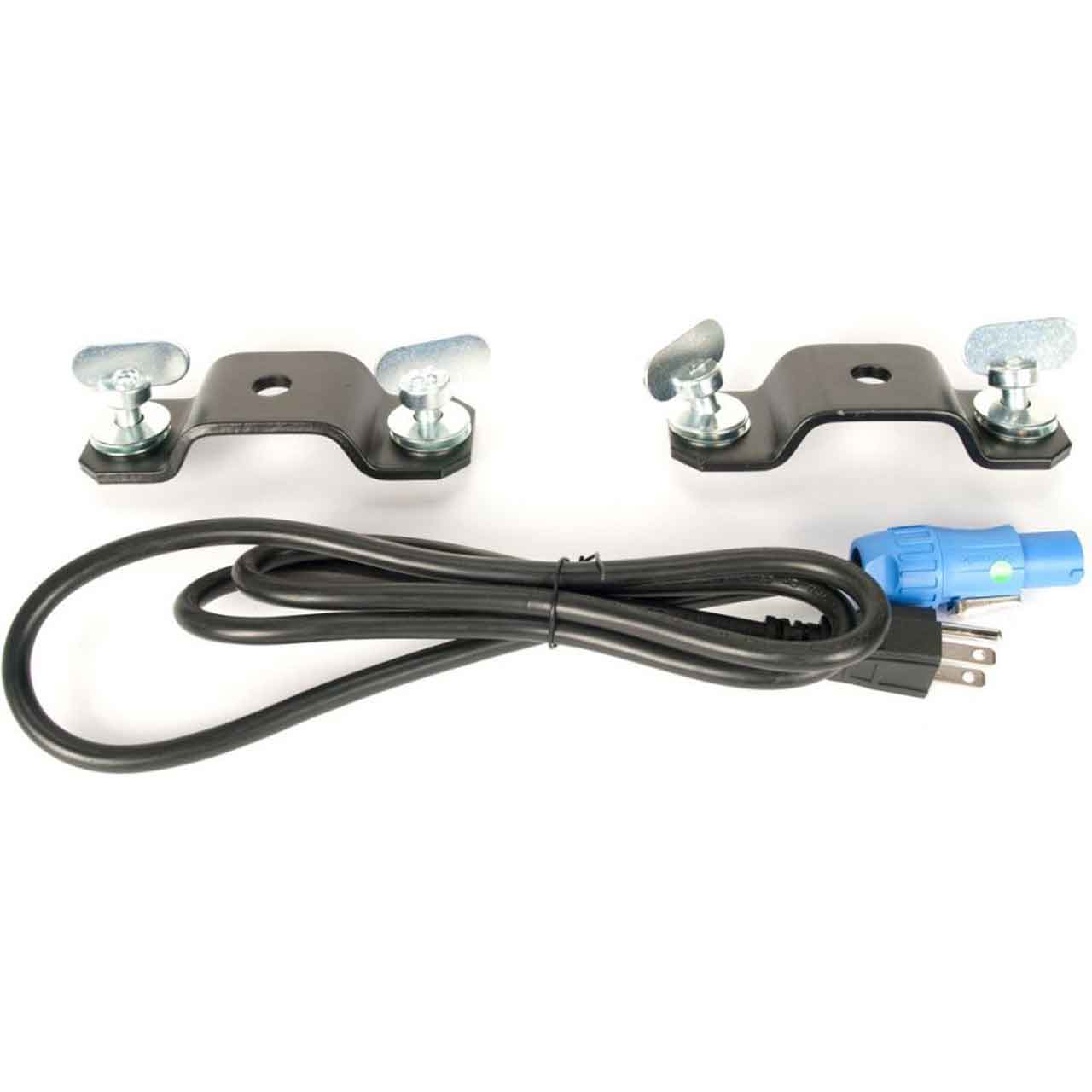

  • Item Includes:

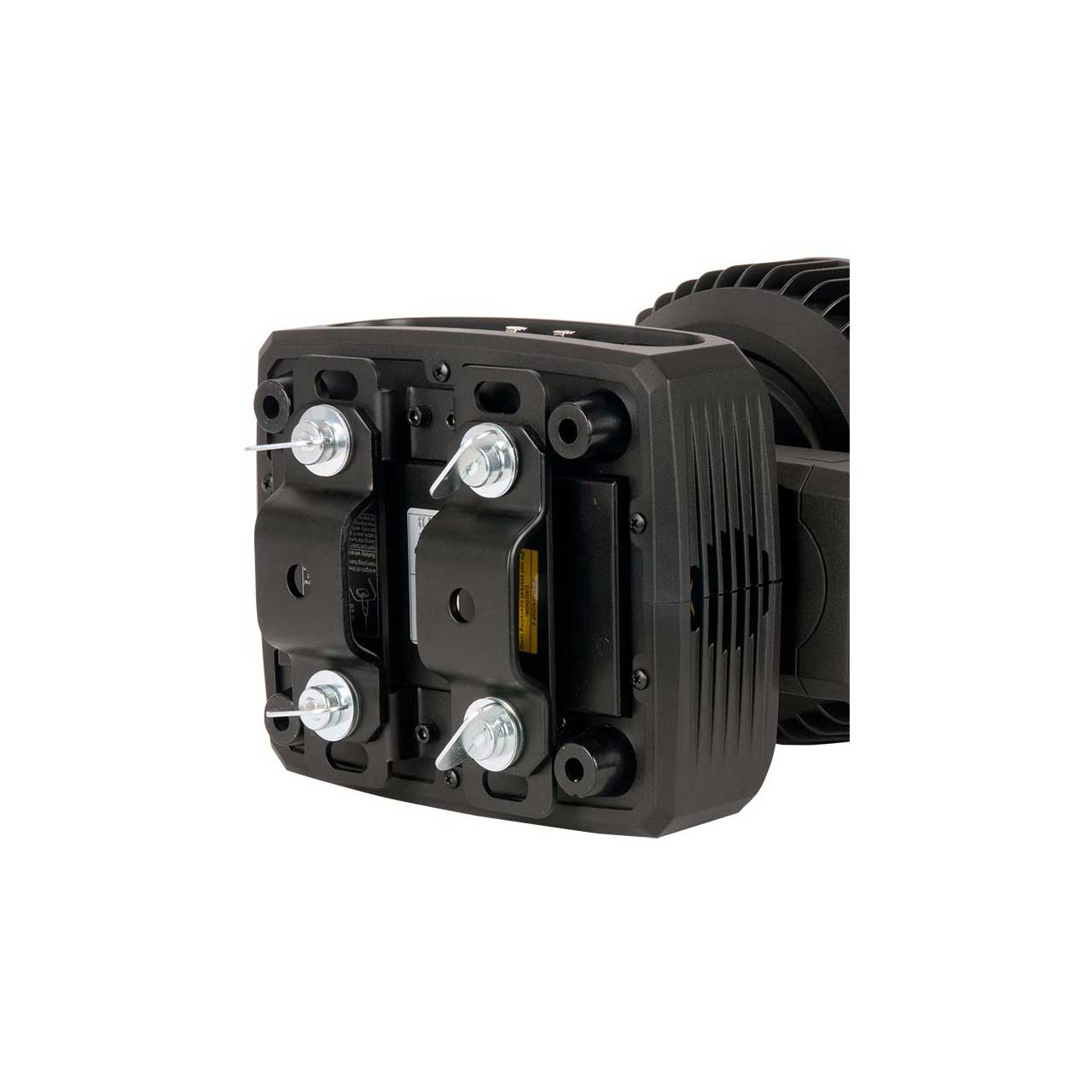

    • 2x Omega Brackets
    • 1x Locking power cable

  • Warranty:

    • 2 years

  • GTIN:

    0818651026016
