Perfect compact and easy to use control solution for small stages at live events, venues, churches, theaters, bars and lounges!

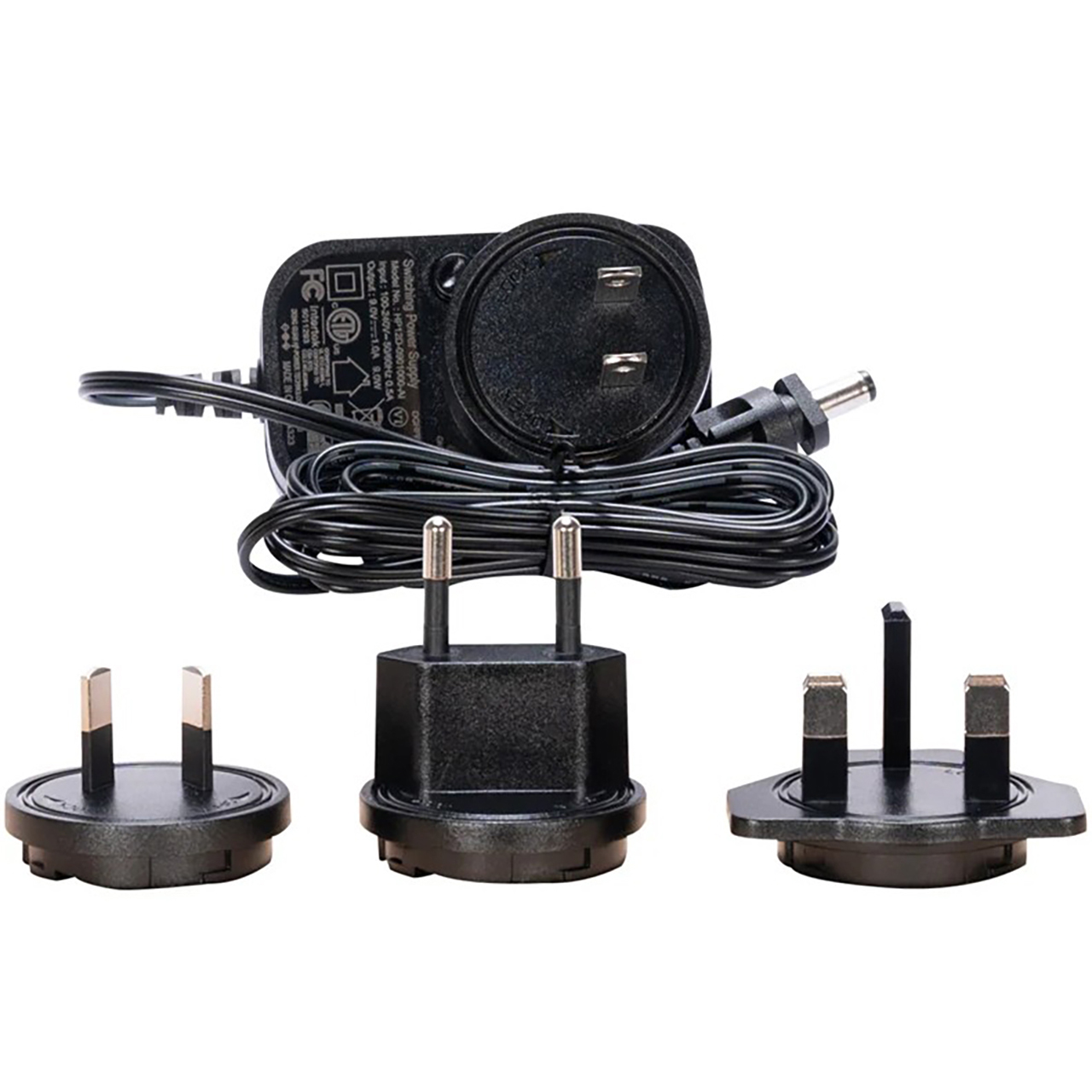

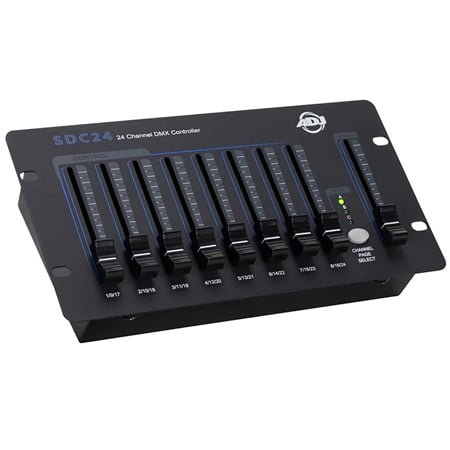

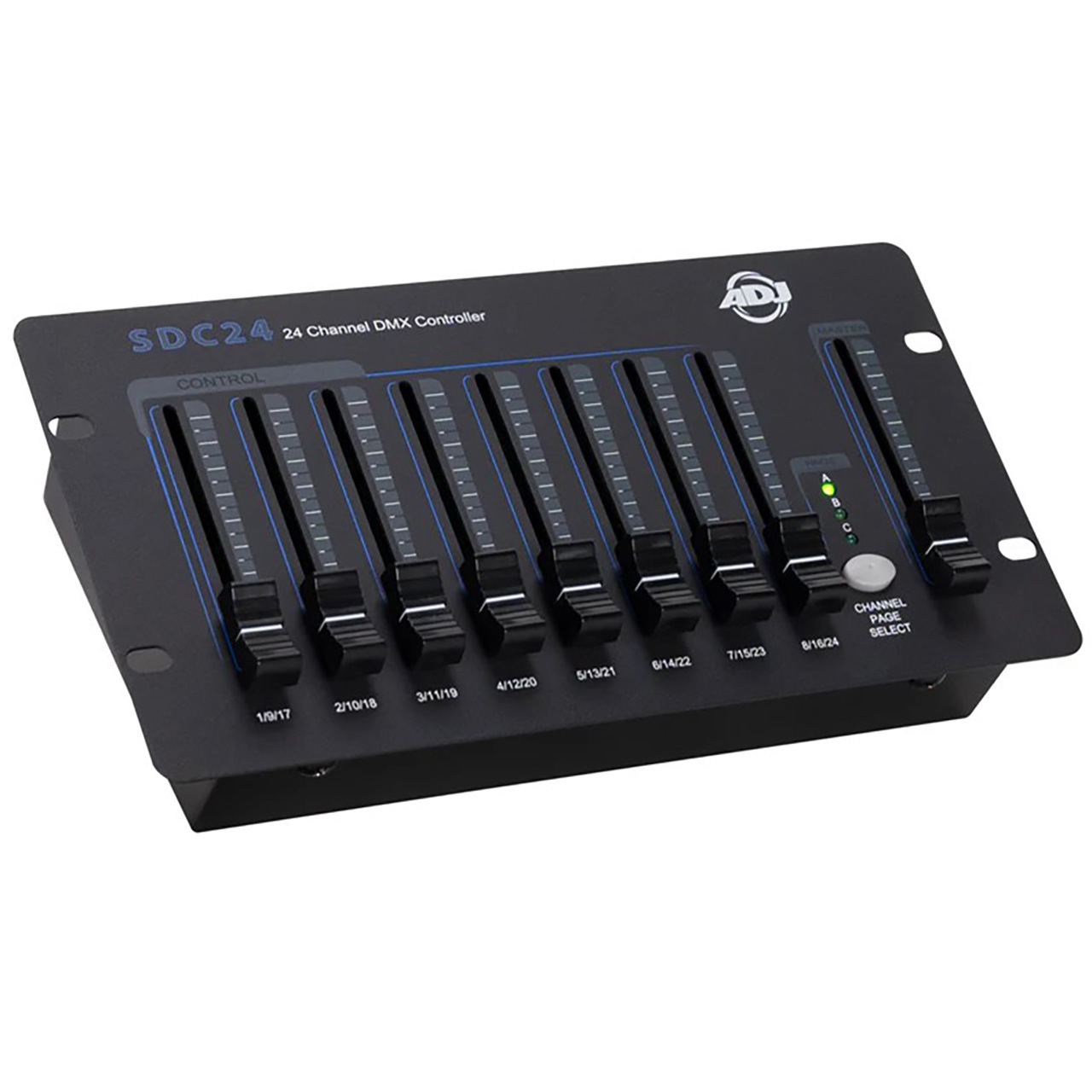

The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (sold separately). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs. The SCD24 is a great compact controller for product demos or for manual control of LED and conventional fixtures.
-
- 8 individual channel faders and 1 master fader
- 24 DMX channels
- Compact, portable design
- 3-Pin and 5-Pin XLR output
- Battery Type: PP3 9V (not included)
-

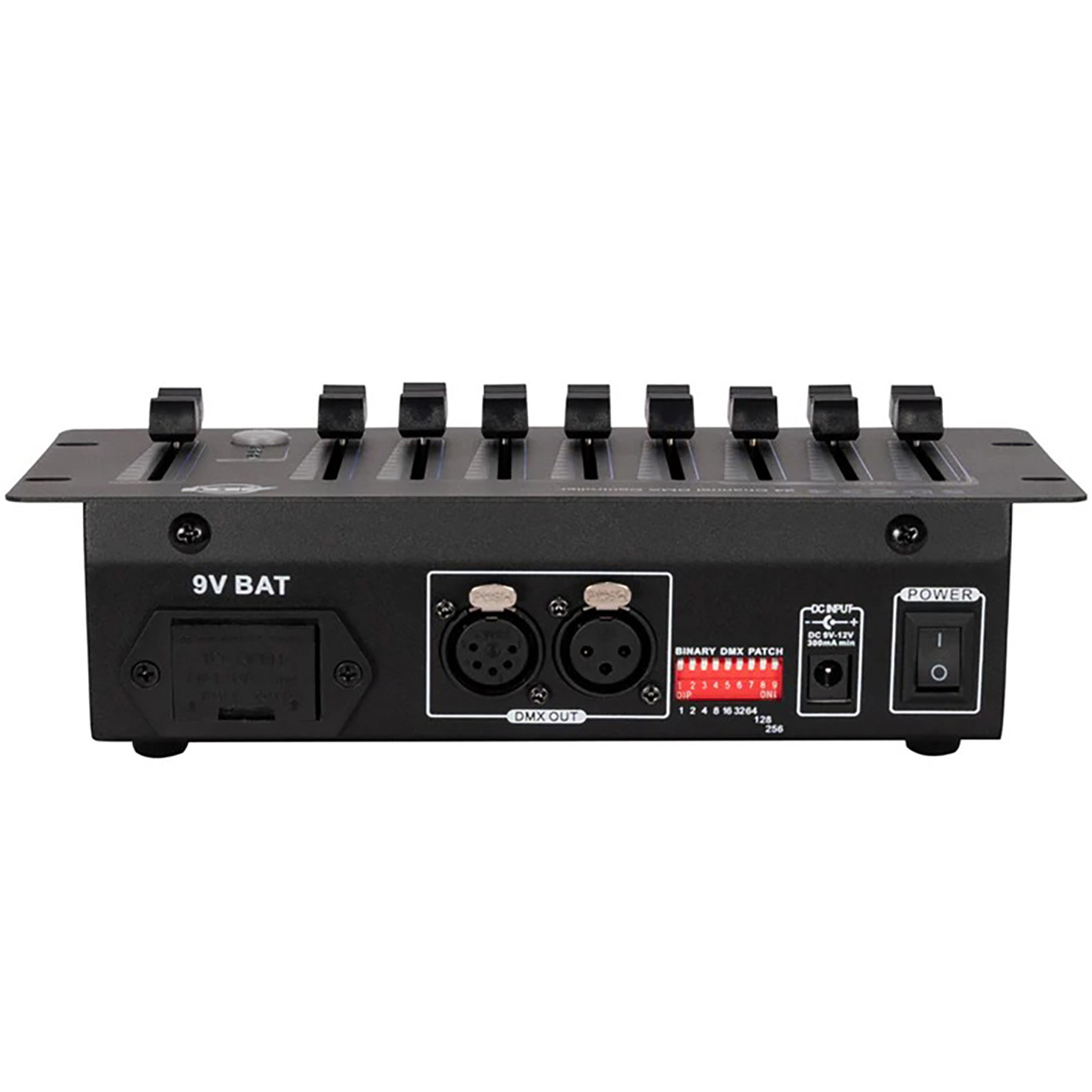

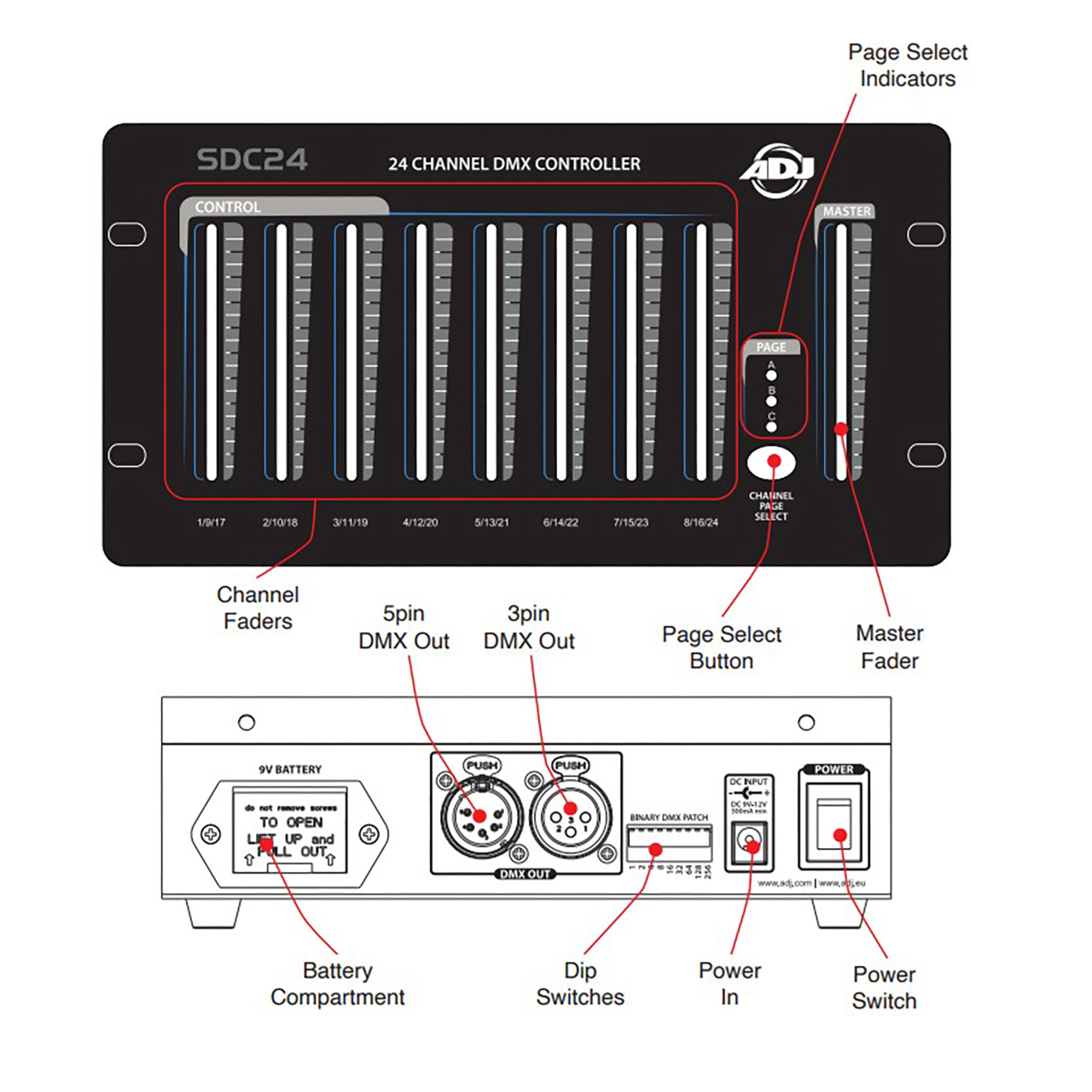

Control/Connection- DIP Switches To Set Starting DMX Channel
- 3-pin & 5pin DMX Outputs
- On/Off Switch
- Channel Page button with Indicator LED's
- DC9V - 12V Power Supply Input
- 9V Battery slot
Size/Weight - Length: 4.7" (120mm)
- Width: 9.1" (230mm)
- Height: 2.2" (56.66mm)
- Weight: 1.86lbs (0.84kg)
Electrical - DC9V - 12V 300mA min or 9V Battery (Not Included)
- Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W
Approvals/Ratings - CE Approved
- ETL approved
- IP20
- UKCA
