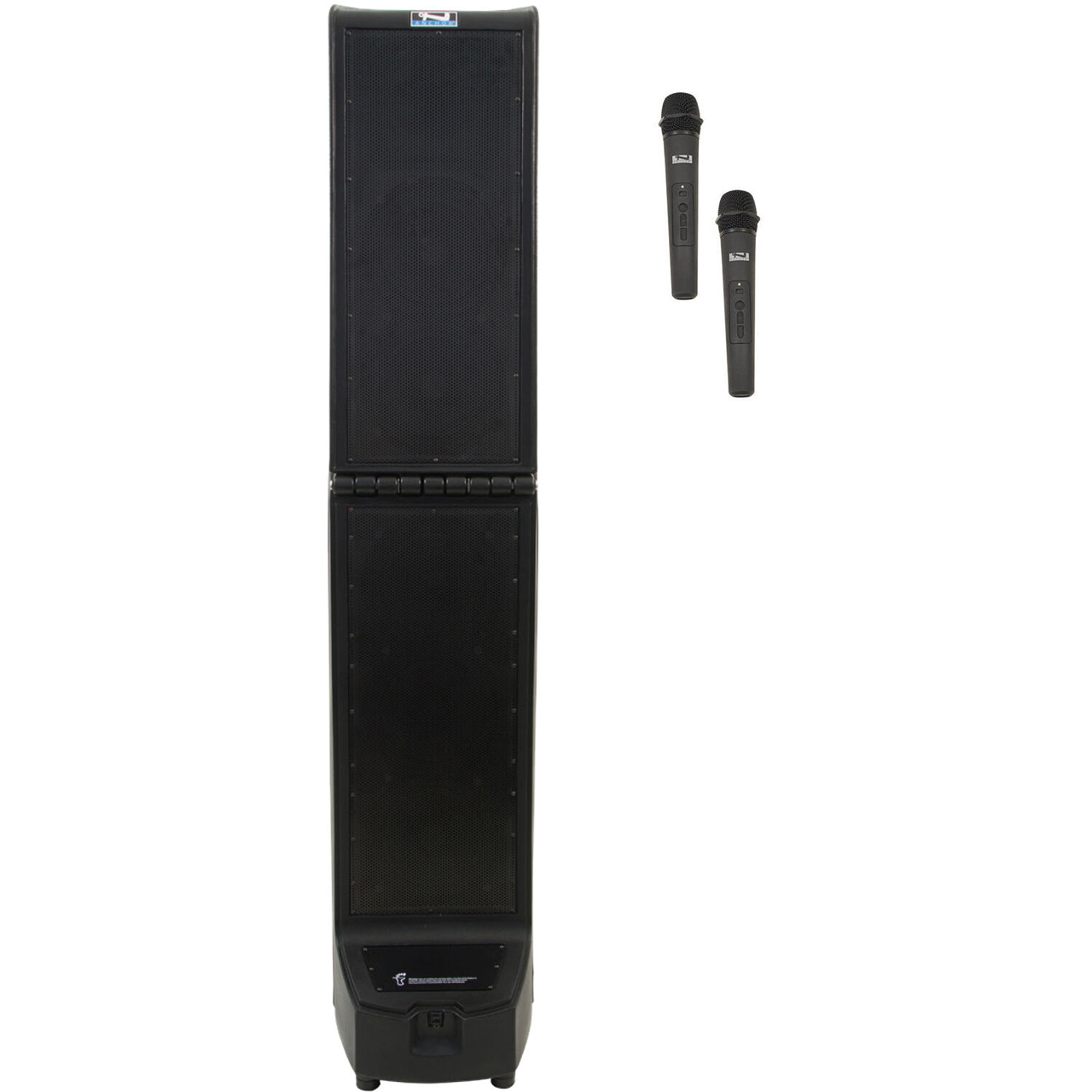

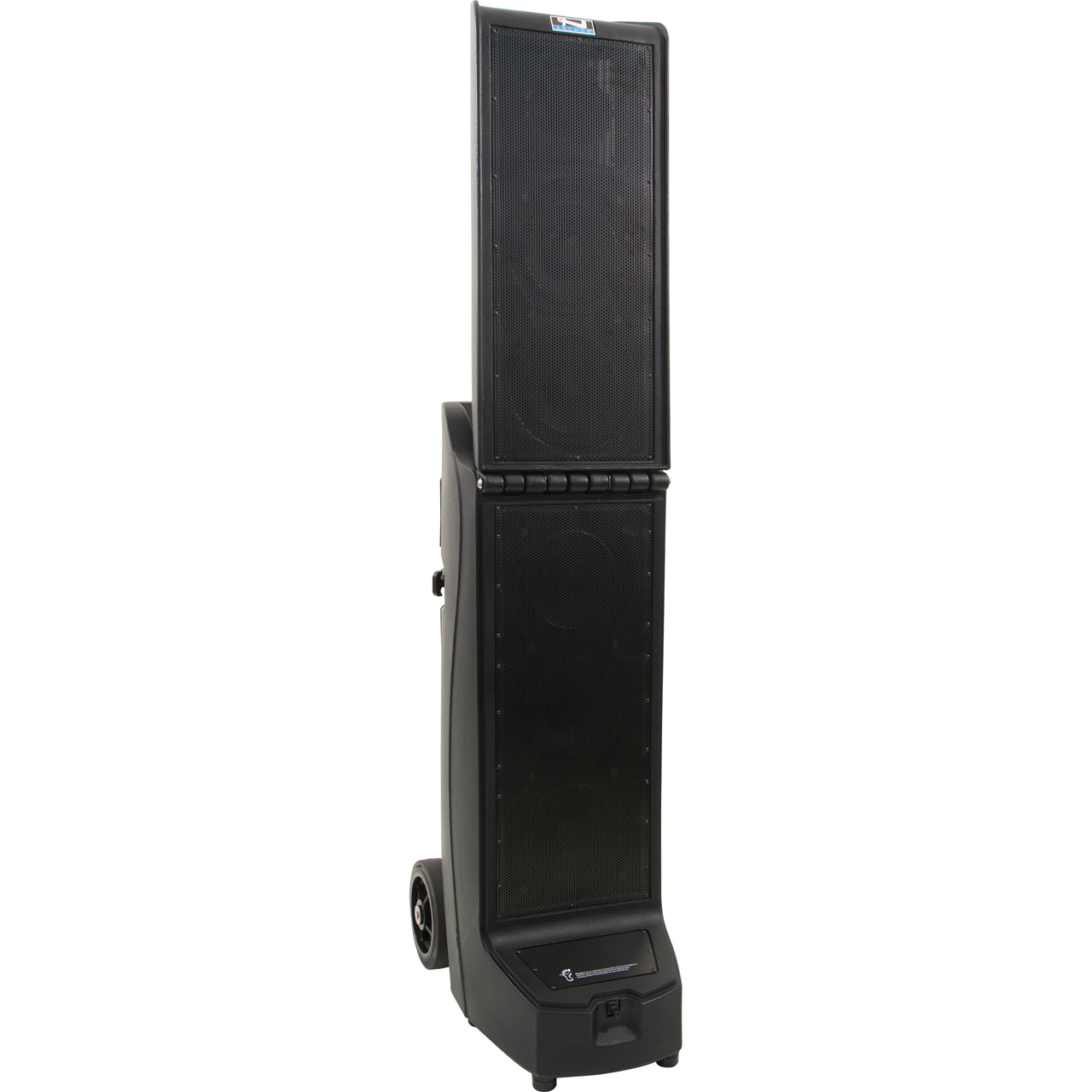

Designed to deliver versatile and powerful amplification to crowds of up to 2500 people, the Anchor Audio Bigfoot 3 Hub with AnchorLink and AnchorFlex is a portable line-array PA system that's built to dominate crowds while amplifying to anywhere with deeper bass, seamless connectivity, and limitless flexibility. With a 150ft x 150ft coverage area, the Bigfoot 3 Hub is well suited for sports venues, educational facilities, and various indoor and outdoor events. The 300W amplifier drives five 8" neodymium woofers and a single neodymium compression driver, which combine to provide a 100Hz to 15kHz frequency response and a maximum 130dB SPL, plenty of volume to cover your audience.
AnchorLink is a wireless microphone receiver that can accept up to two microphones at a distance of up to 300ft. AnchorFlex is a transceiver that allows you to connect up to 1000 speaker systems in stereo or mono, with a distance up to 300ft.

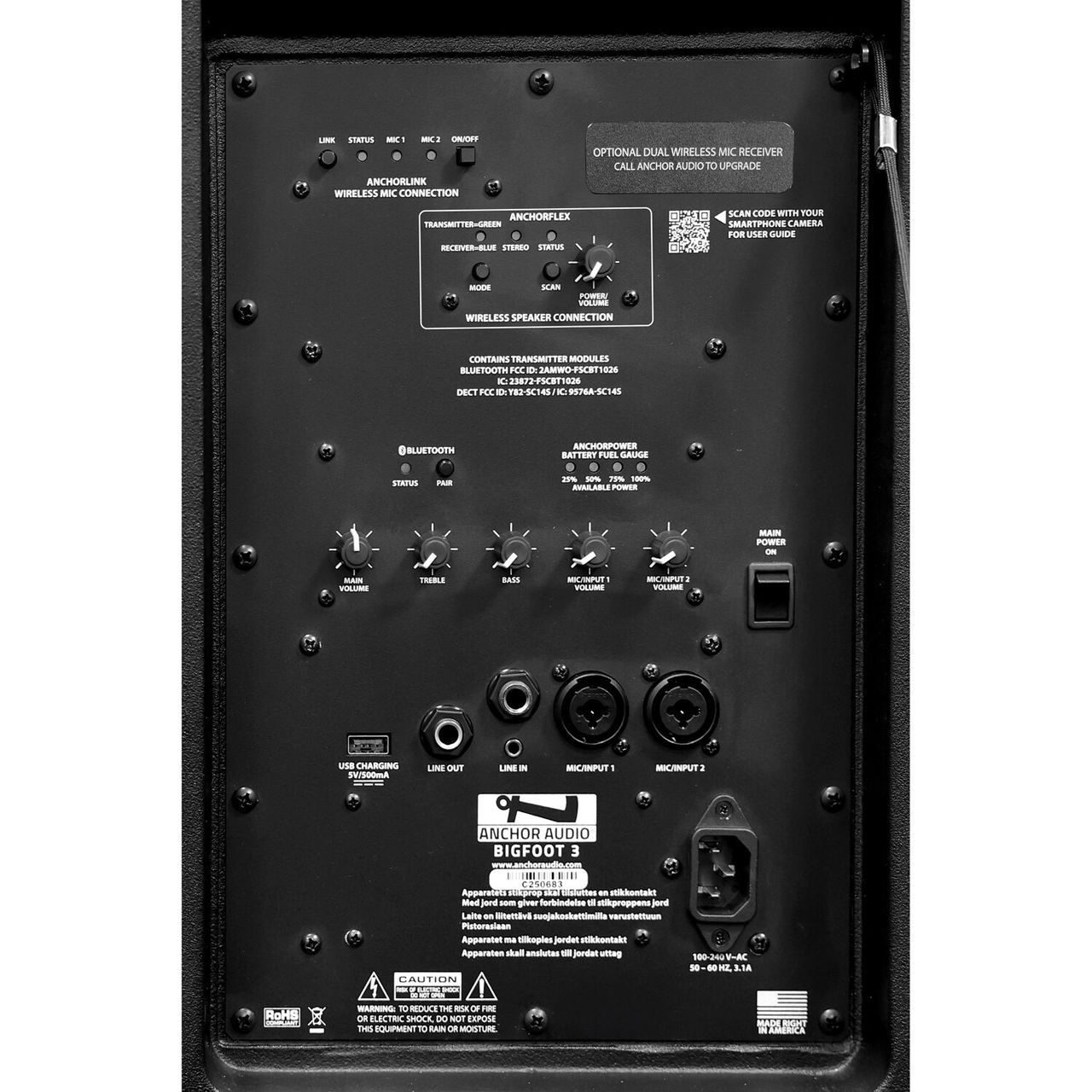

The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two combo XLR-¼" inputs accommodate wired microphones, while a ¼" TS input accepts line level and Hi-Z inputs. A 3.5mm input is also available for connecting your favorite portable devices. The balanced ¼" output can be routed to another PA system or an audio recorder. The integrated mixer functions include volume controls and a 2-band equalizer. Power the via AC power or the three 12V lithium iron phosphate (LiFePo4) rechargeable batteries, which offer a playback time of 7" hours and a 5 hour recharge time. The large, oversized wheels ensure easy transport across fields and gymnasiums.
AnchorLink 3 Wireless Microphone Receiver:
AnchorLink 3 operates like miniature radio stations, broadcasting sound from the wireless mics to the PA system. Like radio stations, the mics broadcast on a specific channel in a specific frequency band. It hops on 60 channels at 1.9GHz, adopting an auto-select secure algorithm based on detected RF noise/interference. This keeps your mics communicating with your speakers in a 300ft range.
Separate frequency range 1.9GHz
Long range, 300ft
High level of security against interception
Encryption 64-bit
Can have up to 30 systems in one room
Very energy-efficient
Better quality of audio frequency response 60Hz - 12kHz
Latency 14ms
Battery operating time min 10 hrs - up to 20 hrs depending on volume
Average output 10mW
AnchorFlex:
Switch speakers from transmitting to receiving mode on the go
Switch between mono and stereo with the push of a button
Use only one transmitting speaker to feed 1 stereo connection or up 1000 receiving speakers, all with crystal-clear sound
AnchorFlex is available on Series 3 Connect models
Compatible with the following systems equipped with AnchorLink Series receivers:
- Bigfoot
- Beacon
- Liberty
- Go Getter
- MegaVox
- MiniVox
- AN-Mini
- AN-1000X+
- AN-130+
- CouncilMAN
- Acclaim
