Apantac DA-SDI-DE SDI Audio De-embedder

ITEM #: APA-DA-SDI-DE MFG #: DA-SDI-DE

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$850.00

Our Price:

$796.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DA-SDI-DE - Overview

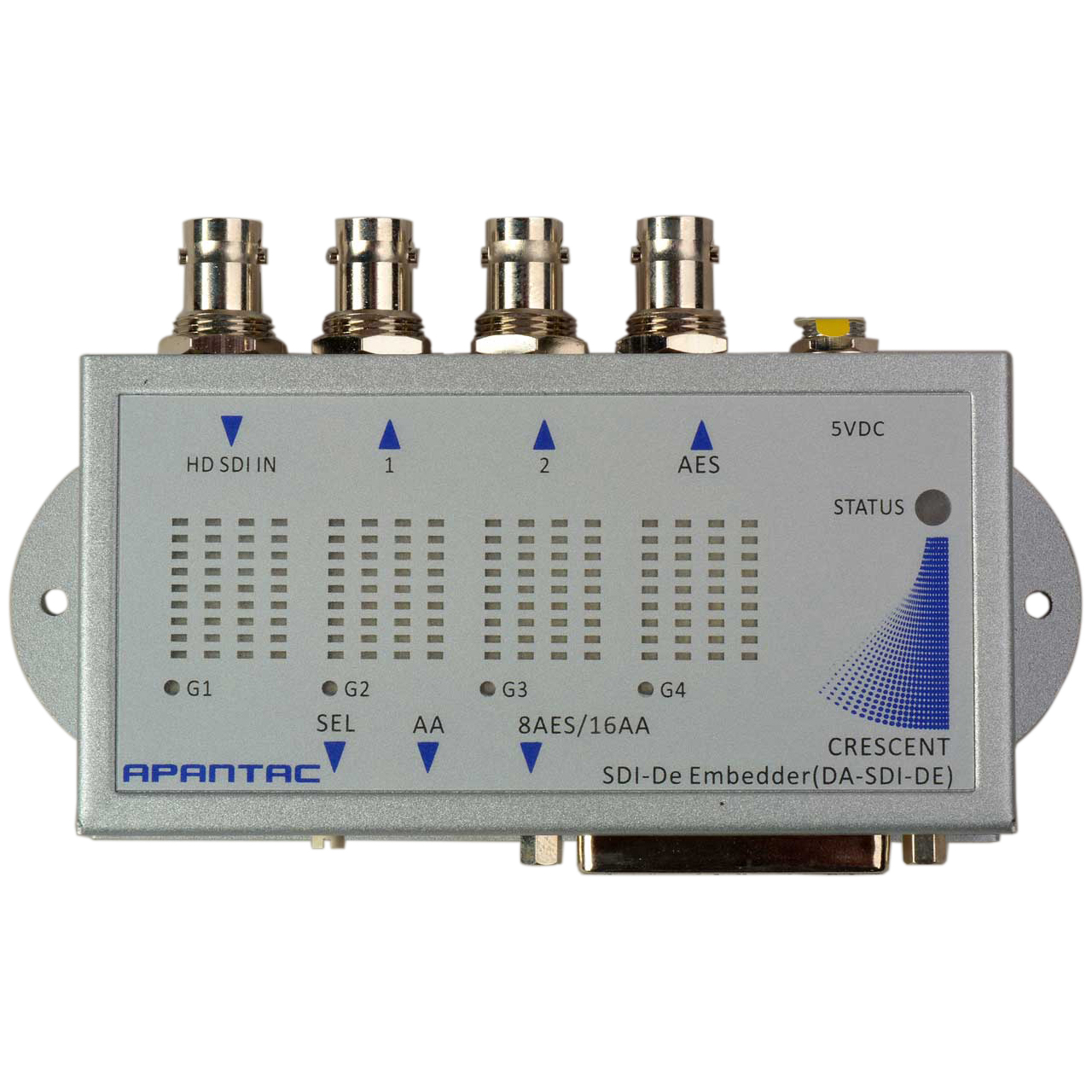

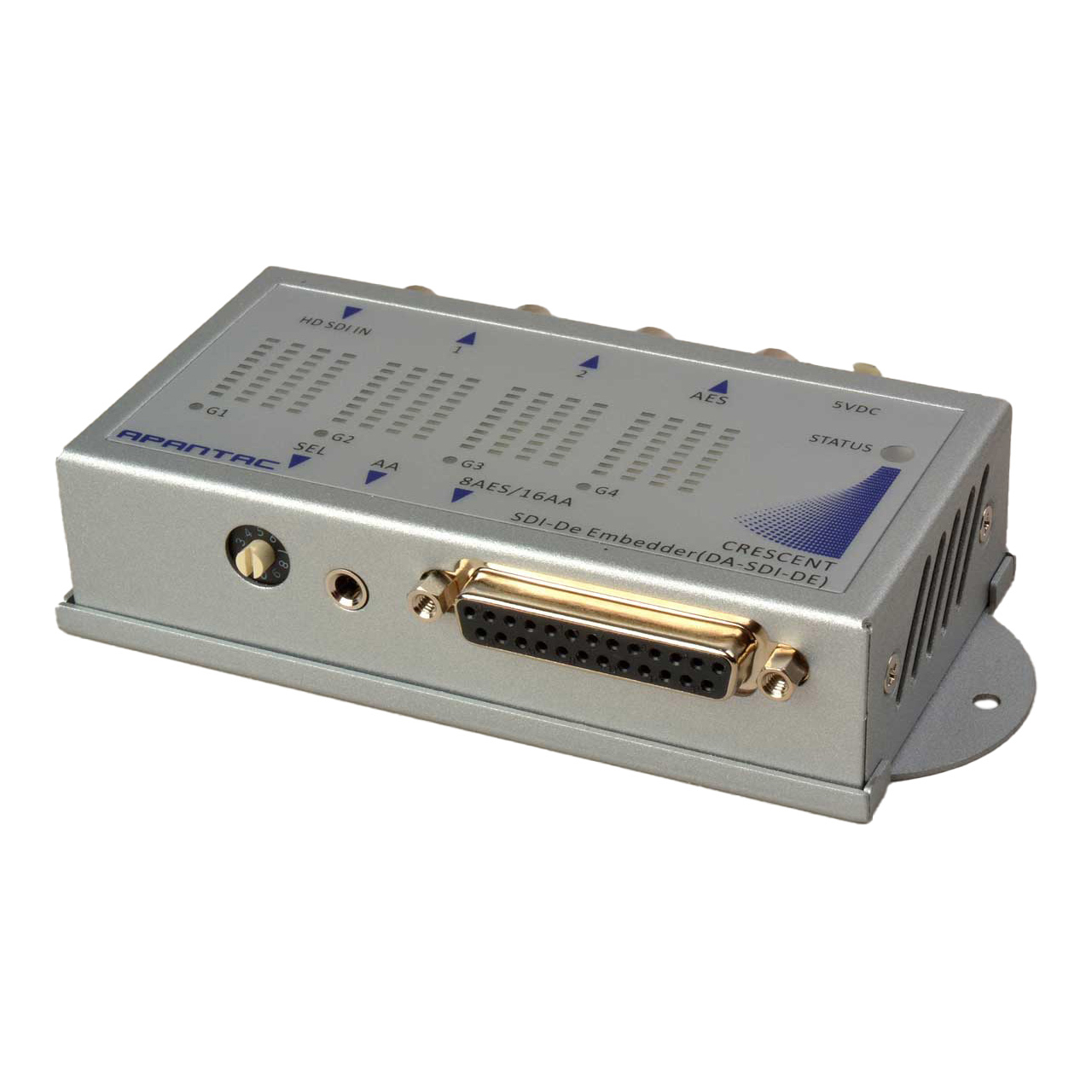

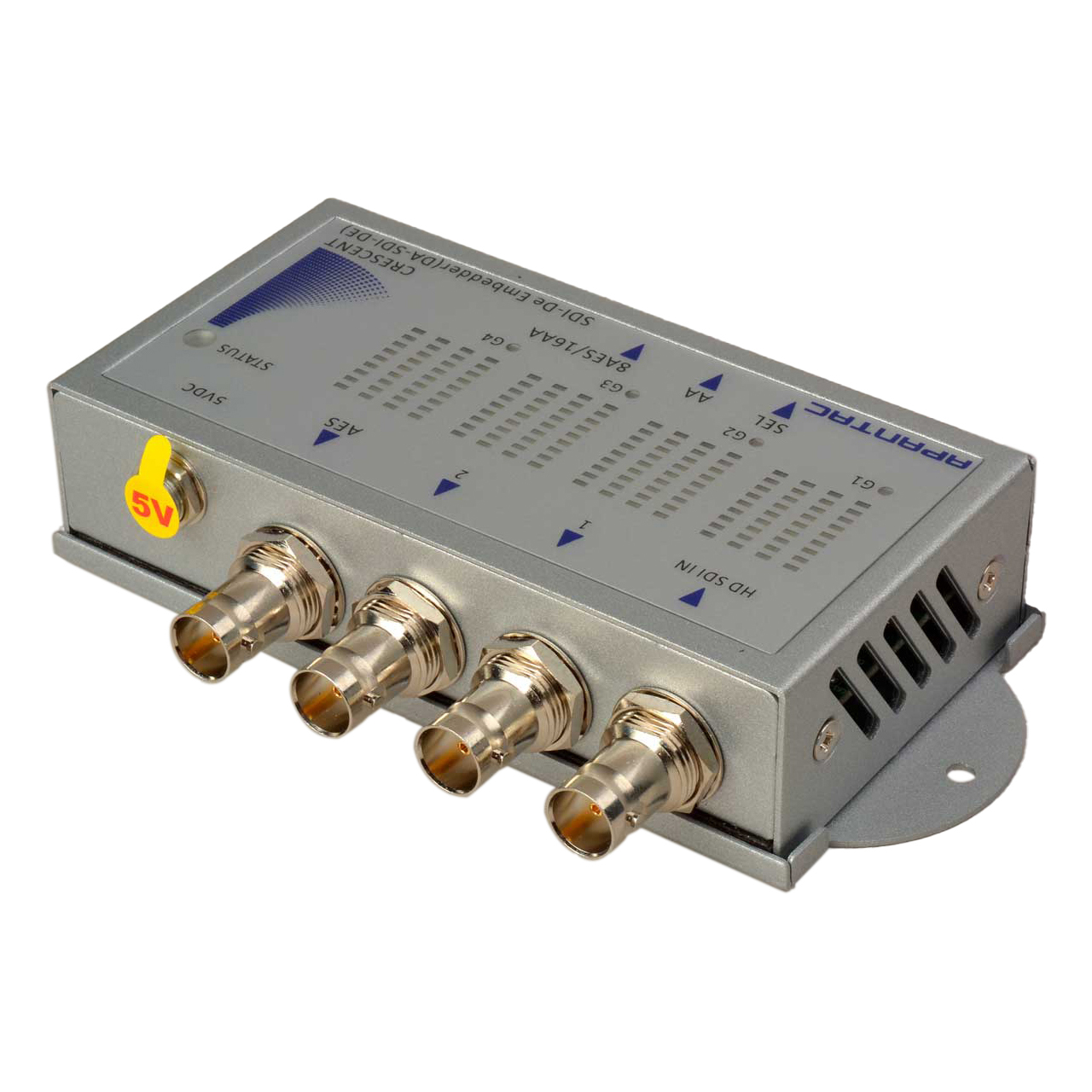

SDI De-embedder with 1 x 2 SDI Distribution Amplifier (with reclocking). Auto detects 3G SDI (1080p - SMPTE-425M Level A) HD SDI (720p, 1080i) or SD SDI (525, 625). Dsub 25 Output with 8 AES and 16 Analogue Audio signals (Unbalanced). Order breakout cables separately. One AES output (75? - BNC) and one Analogue Stereo Audio output (Jack 3.5 mm). One rotary switch allows selecting one of the 8 embedded AES pairs and send it to the AES and the Analogue Stereo Audio outputs. Bargraphs on top display the 16 embedded audio signals. 62x113x29 mm (WxDxH) - Magnetic base

  • Features:

    • De-Embeds 3G/HD/SD-SDI with 16 channels of audio
    • Outputs 8 AES pairs or 16 mono analog audio
    • Onboard LED meters for display audio presents
    • Onboard LED for display of group association

  • Specifications:

    • Supports up to 16 channels Analog audio and 8 pairs of AES
    • INPUTS: 1 x SDI
    • Data rates: 125 Mbps to 2.97 Gbps
    • OUTPUTS: 2 SDI out
    • Up to 16 channels of analog audio and 8 pairs of AES audio
    • POWER: DC 5V, 1000 mA
    • WEIGHT: 1 lb (0.45 kg)
    • DIMENSIONS: 62 W x 113 D x 29 H (mm)
