    APB-008-IW-EX-WH - Overview

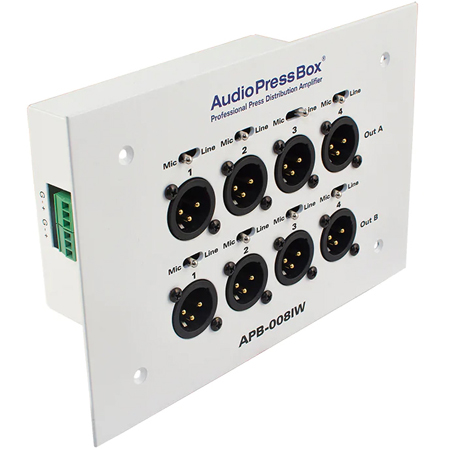

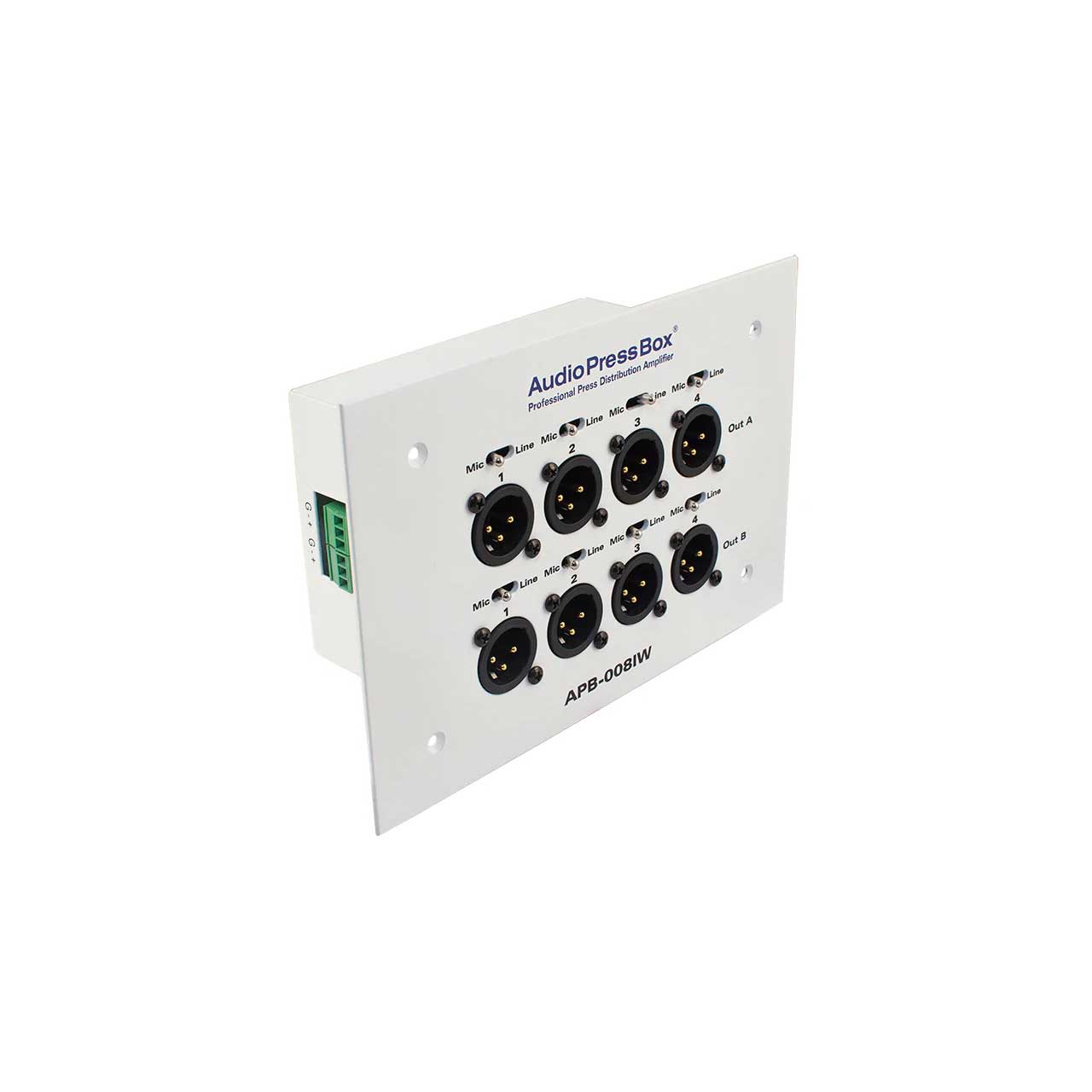

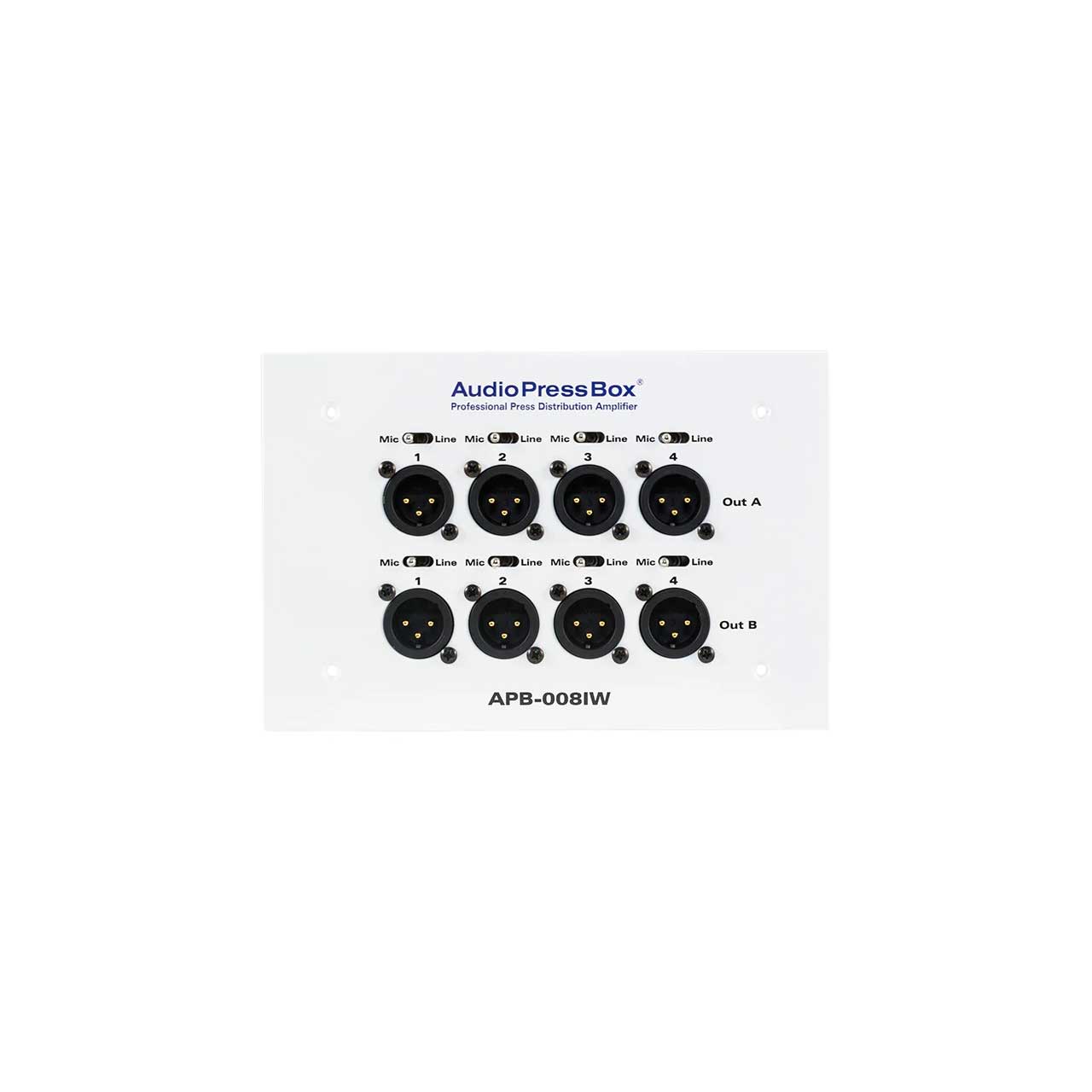

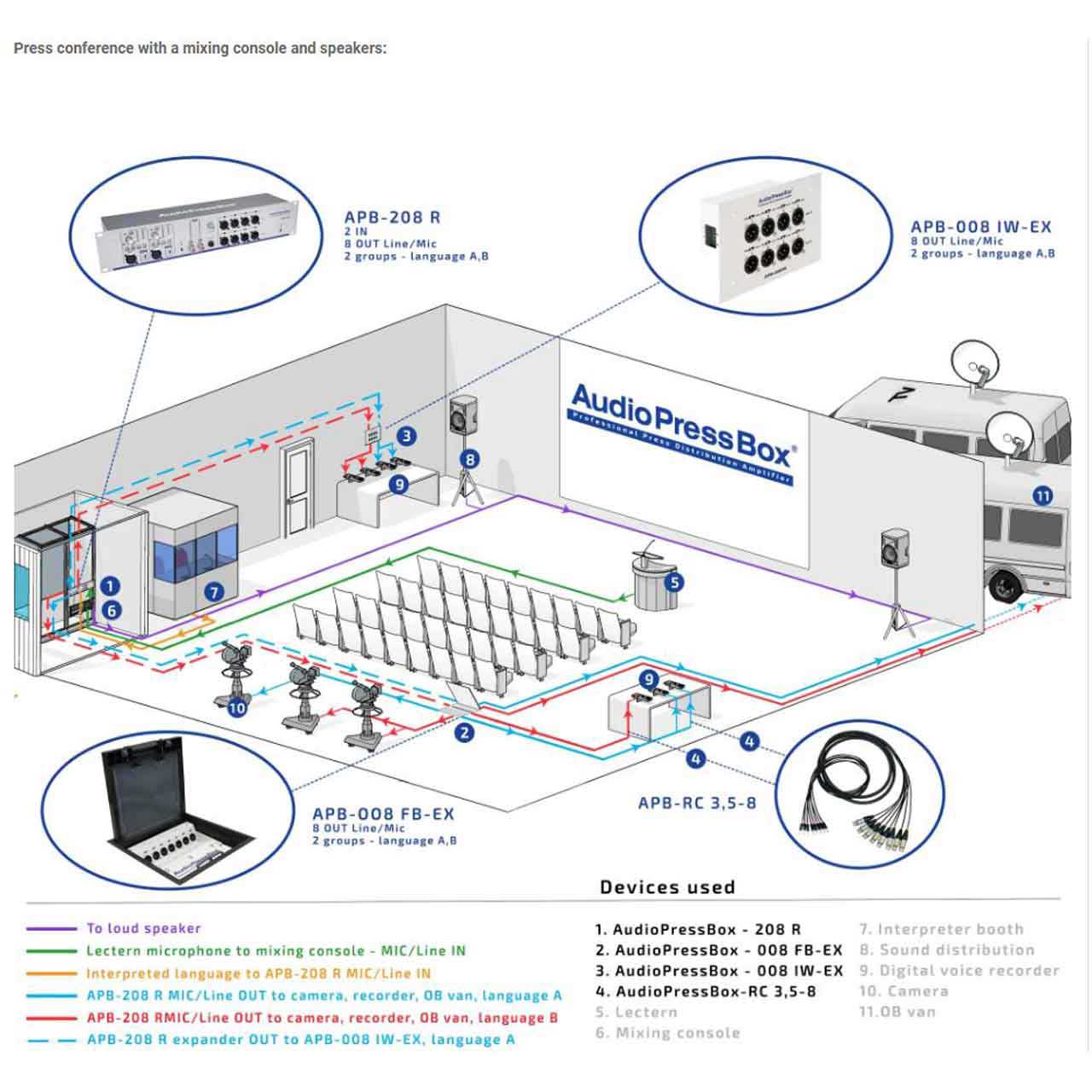

    The AudioPressBox APB-008 IW-EX WH is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The IW stands for IN WALL as it is for flush mounting. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences. Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel. You can route each Input to Output Channel A or B or both via jumpers.

    The expander must be fed with an APB-Drive unit in order to function properly.

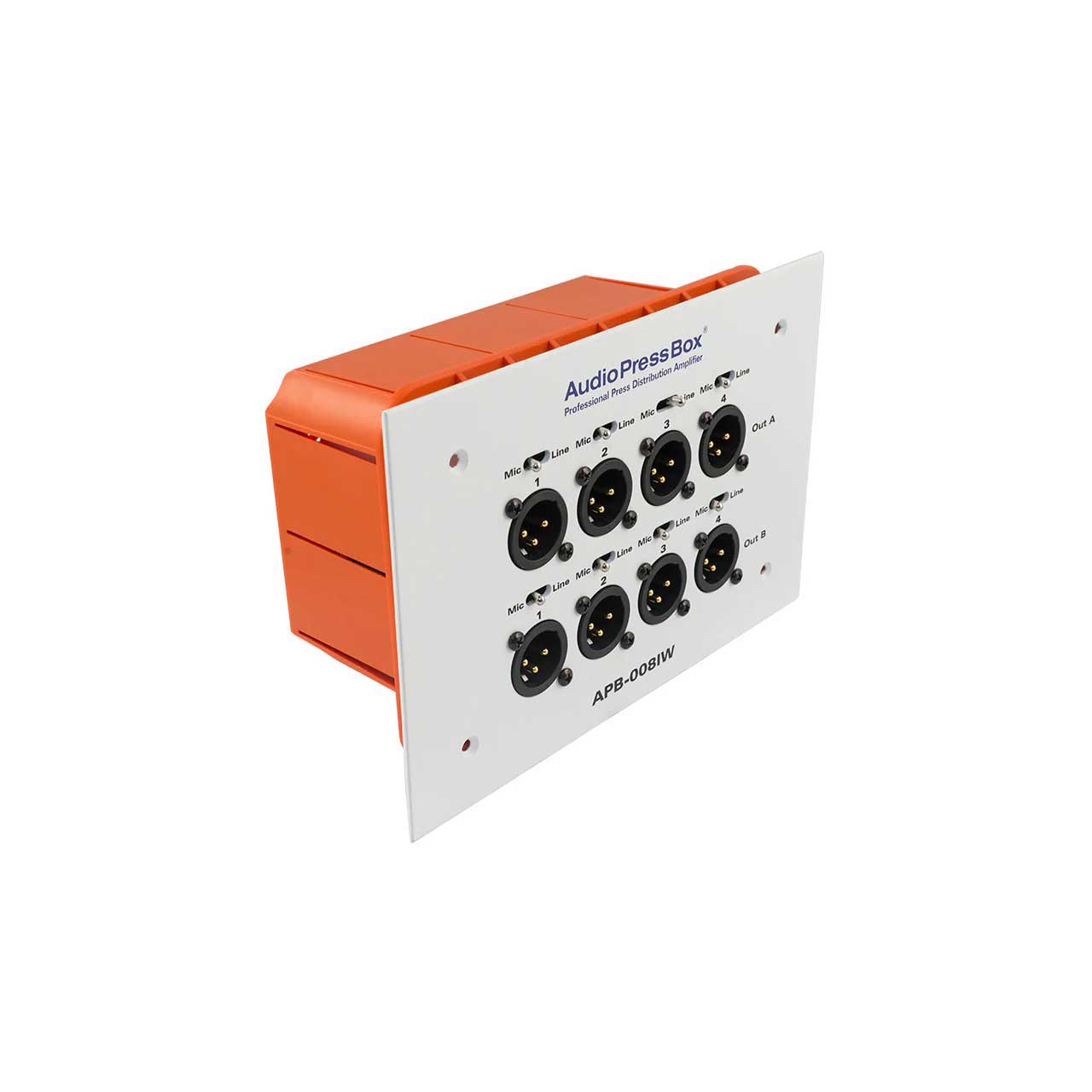

    Flush mounting junction box is included in the APB-008 IW-EX package.

    Note: Requires drive unit as a source.

    • Features:

      • 8 High quality balanced Outputs, each Output is independent transformer isolated
      • Each Output is switchable between LINE or MIC Output level.
      • 2 internal Output Groups: 4x Output A and 4x Output B
    • Specifications:

      • Type: Expander
      • Groups: 2
      • Inputs: 1x Bus A / 1x Bus B
      • Input Connectors: ballanced, 3-pin phoenix connector
      • Ouputs: 4x Bus A, Line/Mic level / 4x Bus B, Line/Mic level
      • Output Connectors: Ballanced, XLR-M connector
      • Transfomer Isolated Outputs: Yes (each output)
      • Nominal Output Level: Mic: -20dBu / Line: +6 dBu
      • Output Impedance: Mic - 220Ω / Line - 600Ω

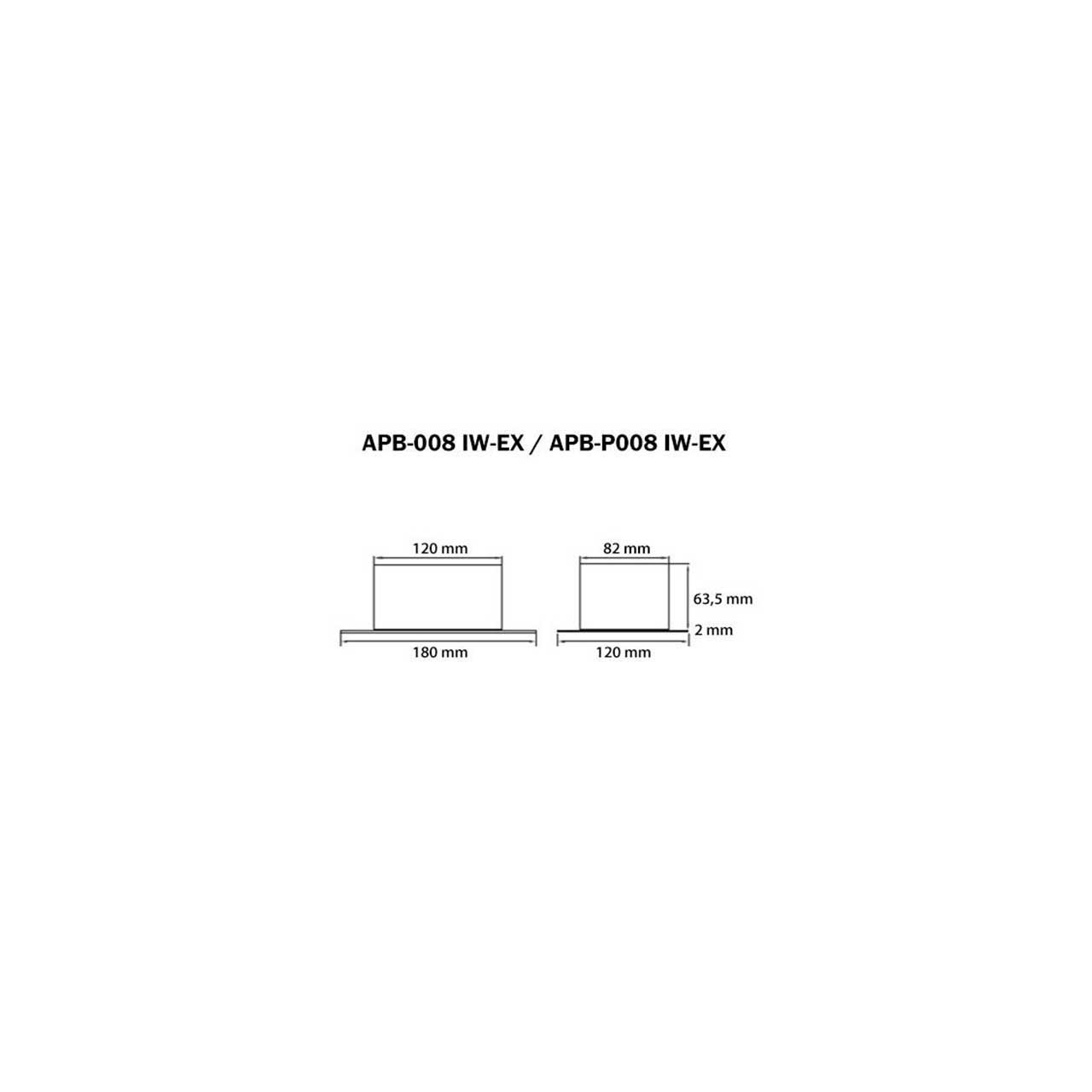

      • Dimensions (WxHxD): 7.08 x 4.72 x 2.48" (180 x 120 x 63mm)
      • Weight: 2.13lbs (970g)
    • Item Includes:

      • 1x APB-008-IW-EX Passive In-wall AudioPressBox with 1 Line Input and 8 Mic Outputs - White
      • 1x Flush mounting junction box
