AudioPressBox APB-112-IW-D AudioPressBox Unit - Active/In Wall - 1-Channel DANTE Input - 12 Line/Mic Outputs

ITEM #: APB-112-IW-D MFG #: APB-112-IW-D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AudioPressBox
Free Shipping with $49 Minimum Order

Our Price:

$2,345.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    APB-112-IW-D - Overview

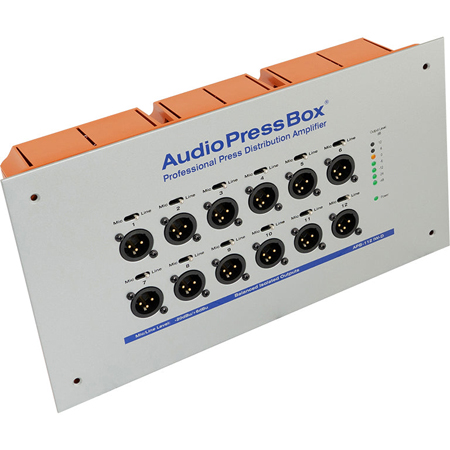

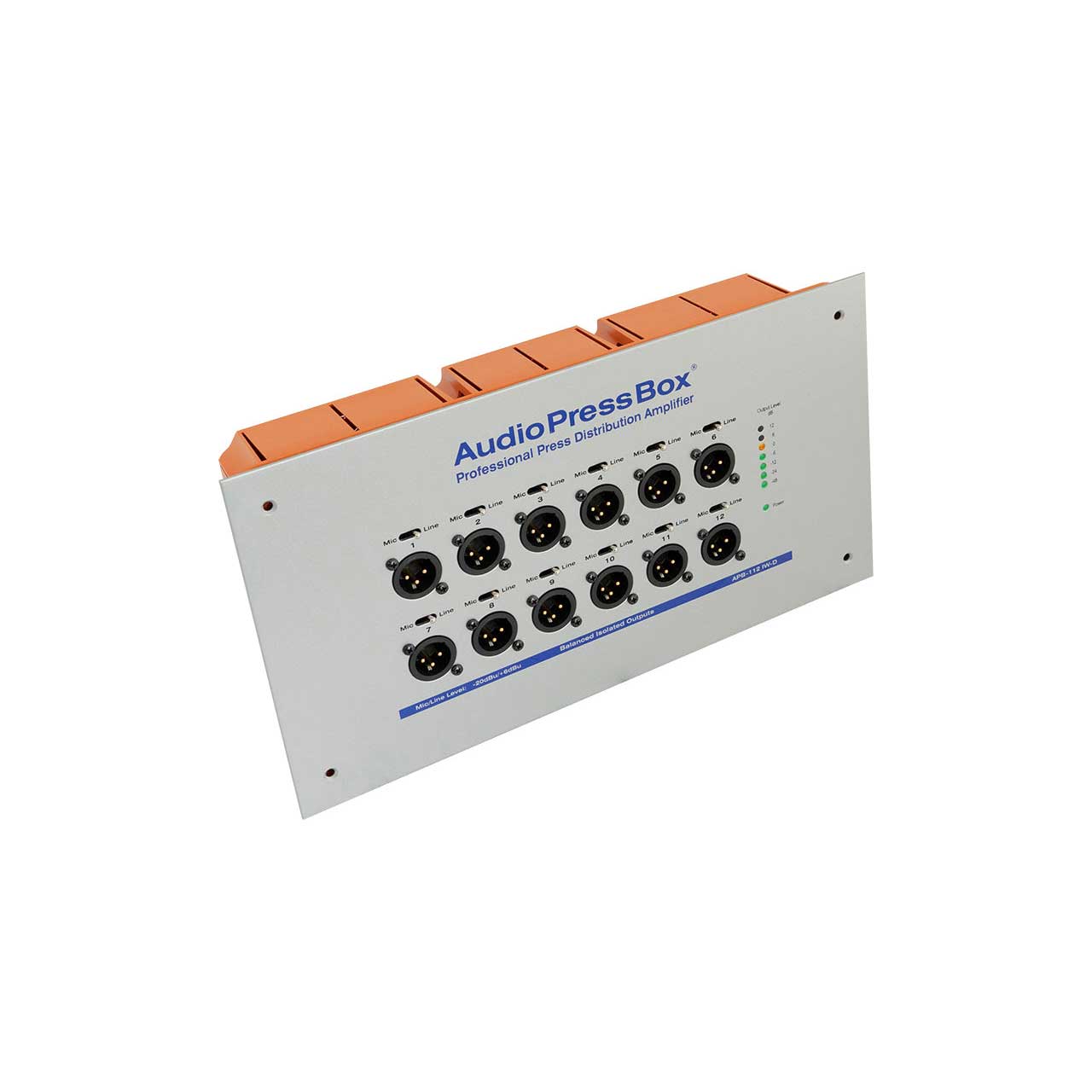

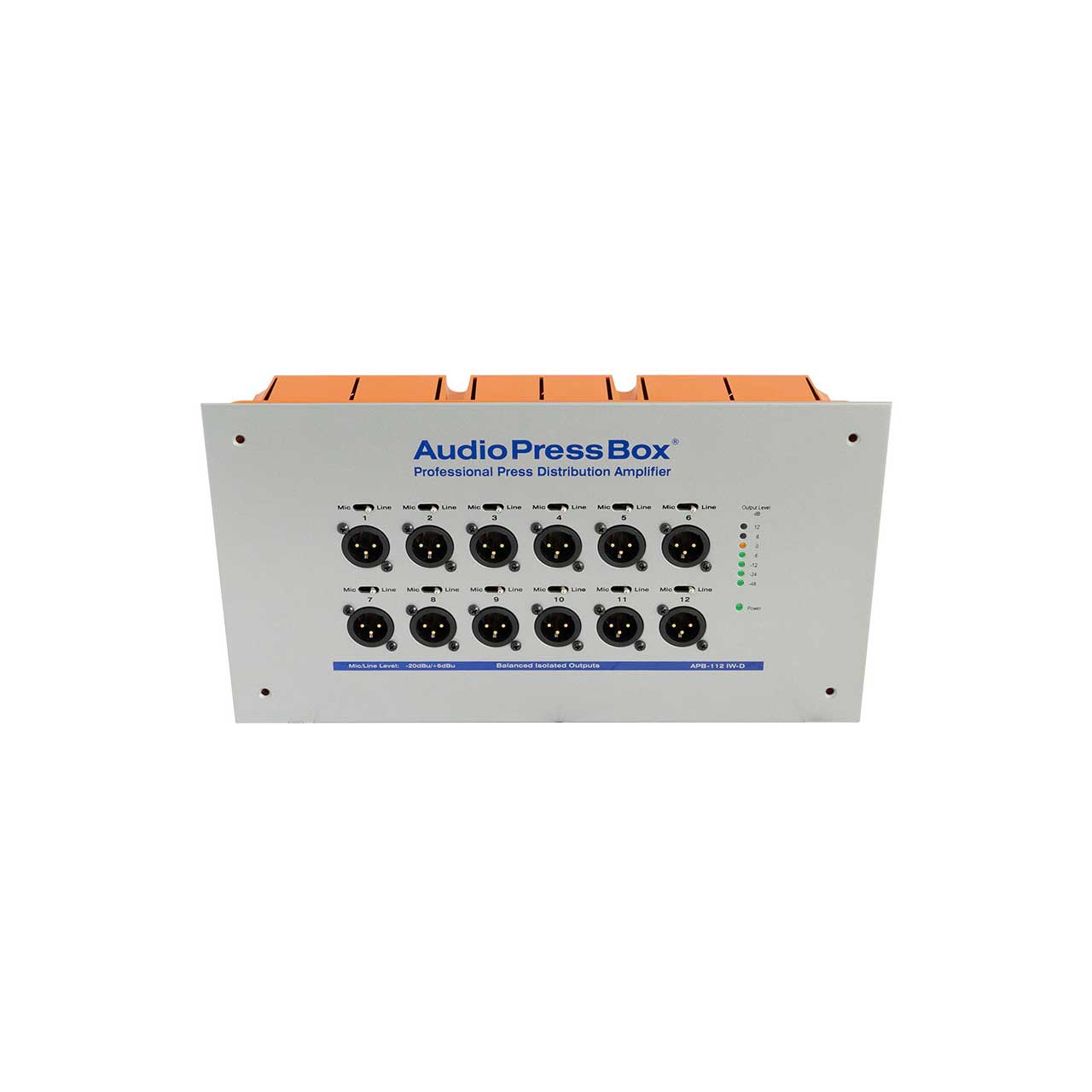

    Professional, in wall, active, AudioPressBox APB-112 IW-D unit with 1 channel DANTE input and 12 LINE/Mic outputs. It is powered via PoE so you need only 1 cable for the signal and power.

    The easy install allows for quick setup. 1 channel DANTE input - RJ45. 12 high quality balanced and individually transformer isolated outputs. Each Output is switchable between MIC or LINE output level.

    The unit is powered only via PoE from DANTE network

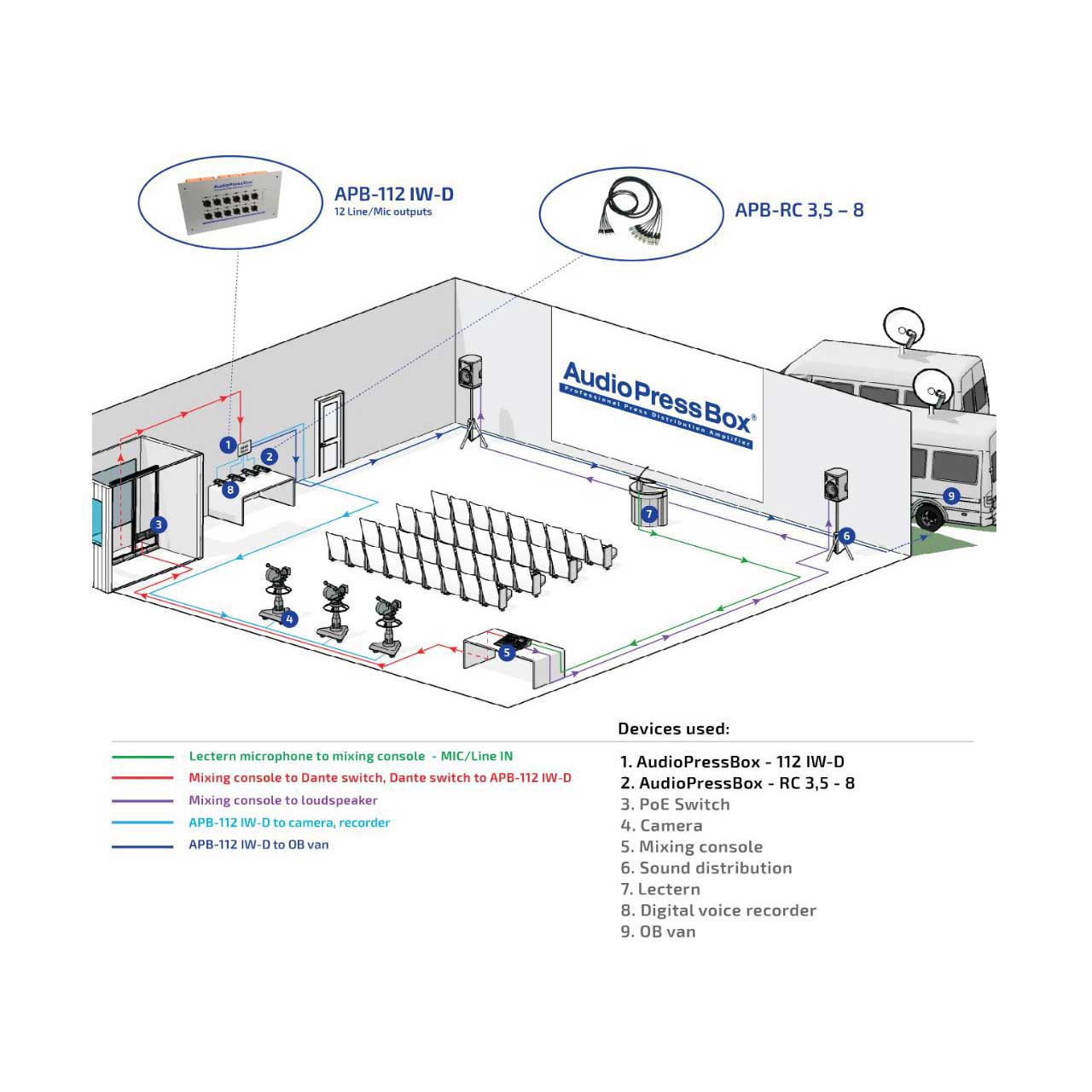

    Thanks to Dante patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D

    • Specifications:

      • Type: 1 In 12 Out
      • Groups: 1
      • Inputs: 1

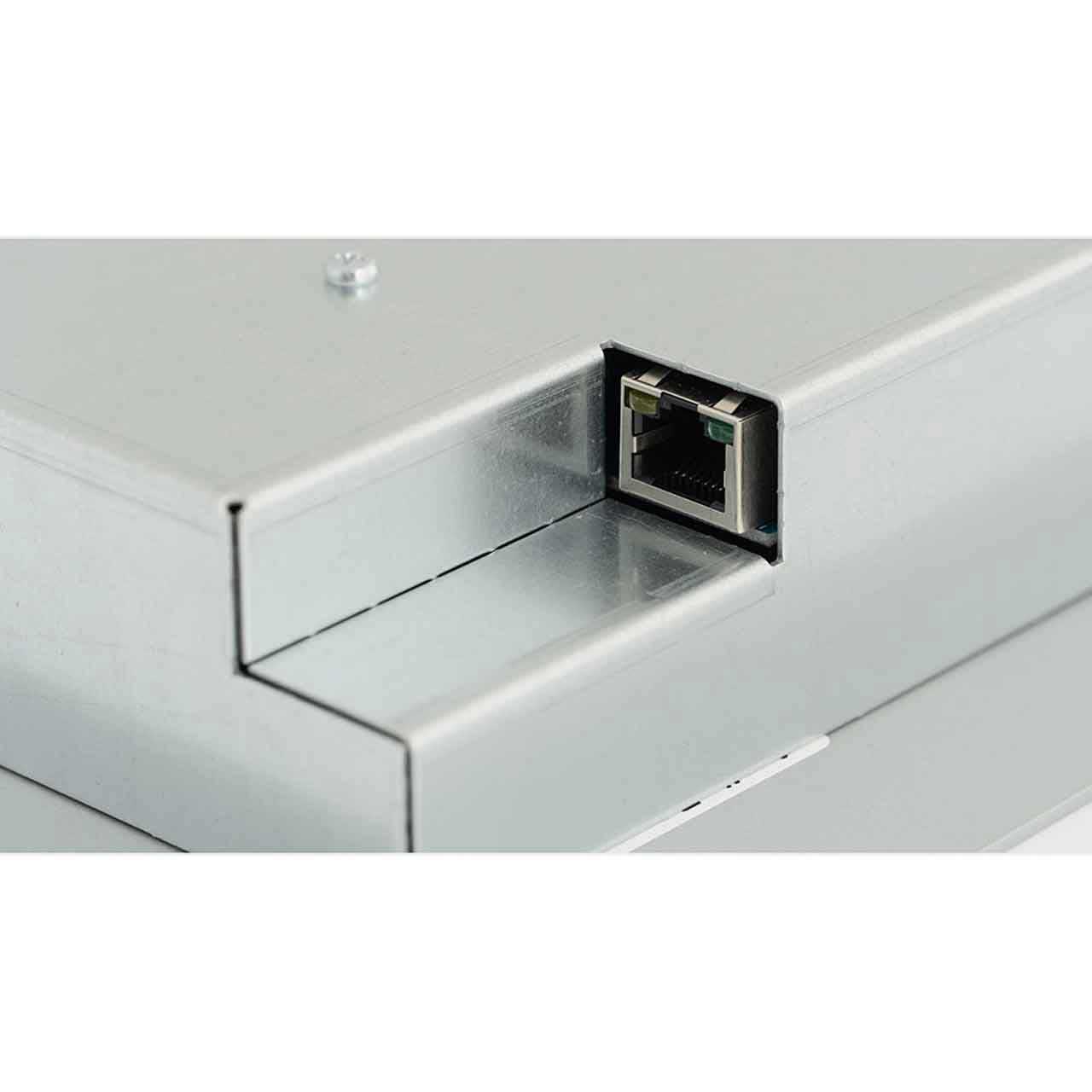

      • Input connectors RJ45 - Dante
      • Outputs: 12 Line/MIC level
      • Output connectors: Balanced, XLR
      • Nominal Output Level: +6dBu (front outputs)
      • Maximum Output Level:+20dBu (no load), +14dBu (600Ohm)
      • Output impedance: Mic: 220 Ohm, Line: 600 Ohm
      • Individually transformer isolated outputs:Yes (each output)
      • SNR: >70 dB
      • Frequency Response: 20Hz to 20kHz/-3dB
      • Indicators:Output level, Power
      • Power Supply: PoE, Class 3
      • Dimensions (WxHxD): 280x138x50mm
      • Weight 2750 g


    • Item Includes:

      • 1x AudioPressBox unit
