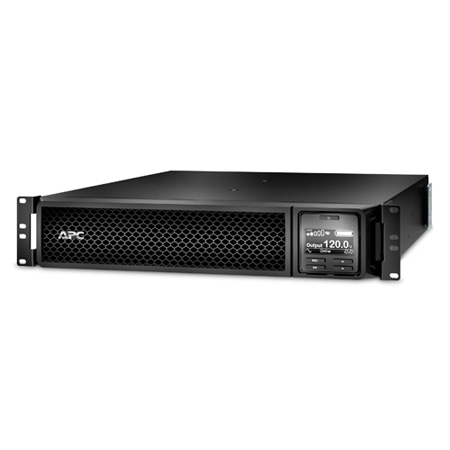

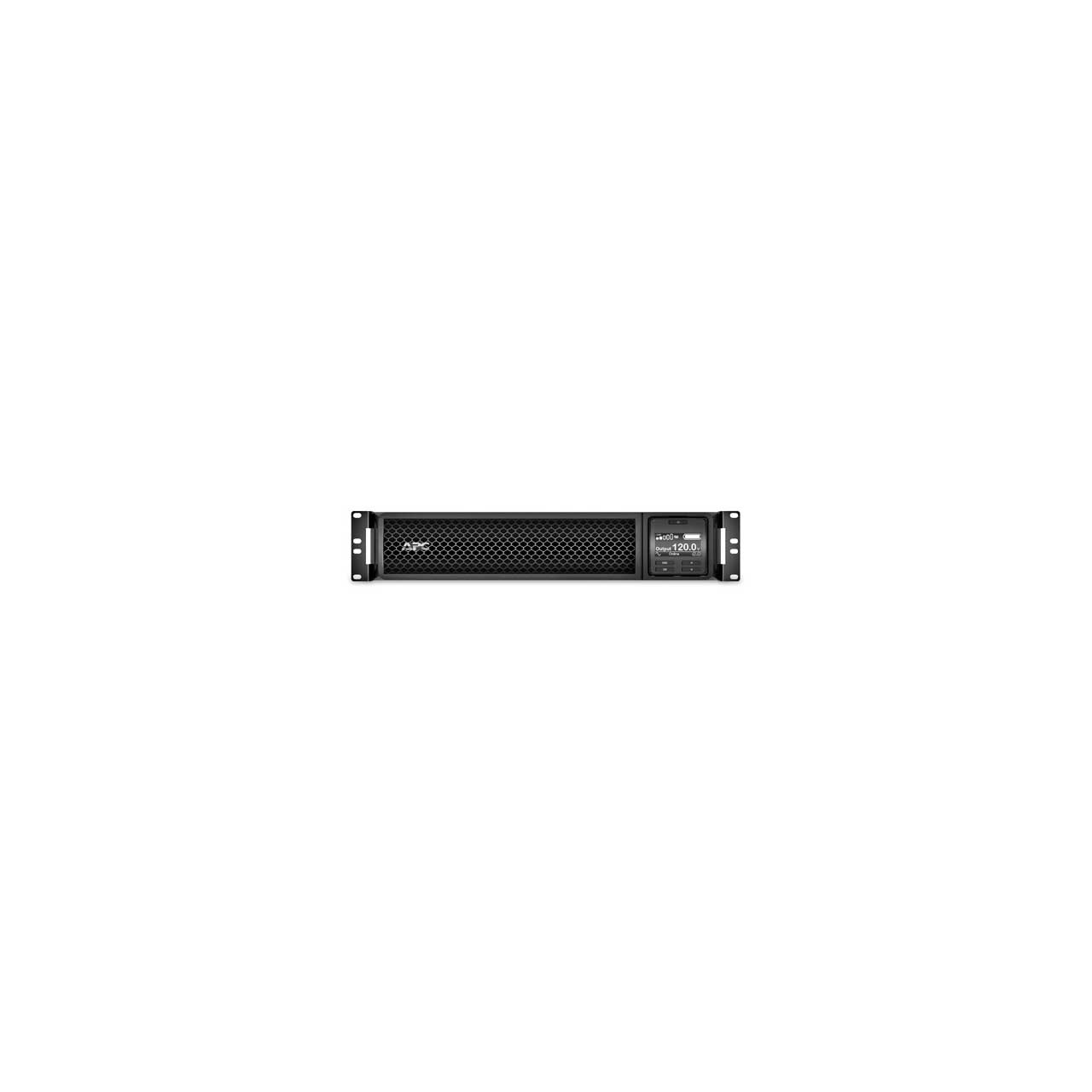

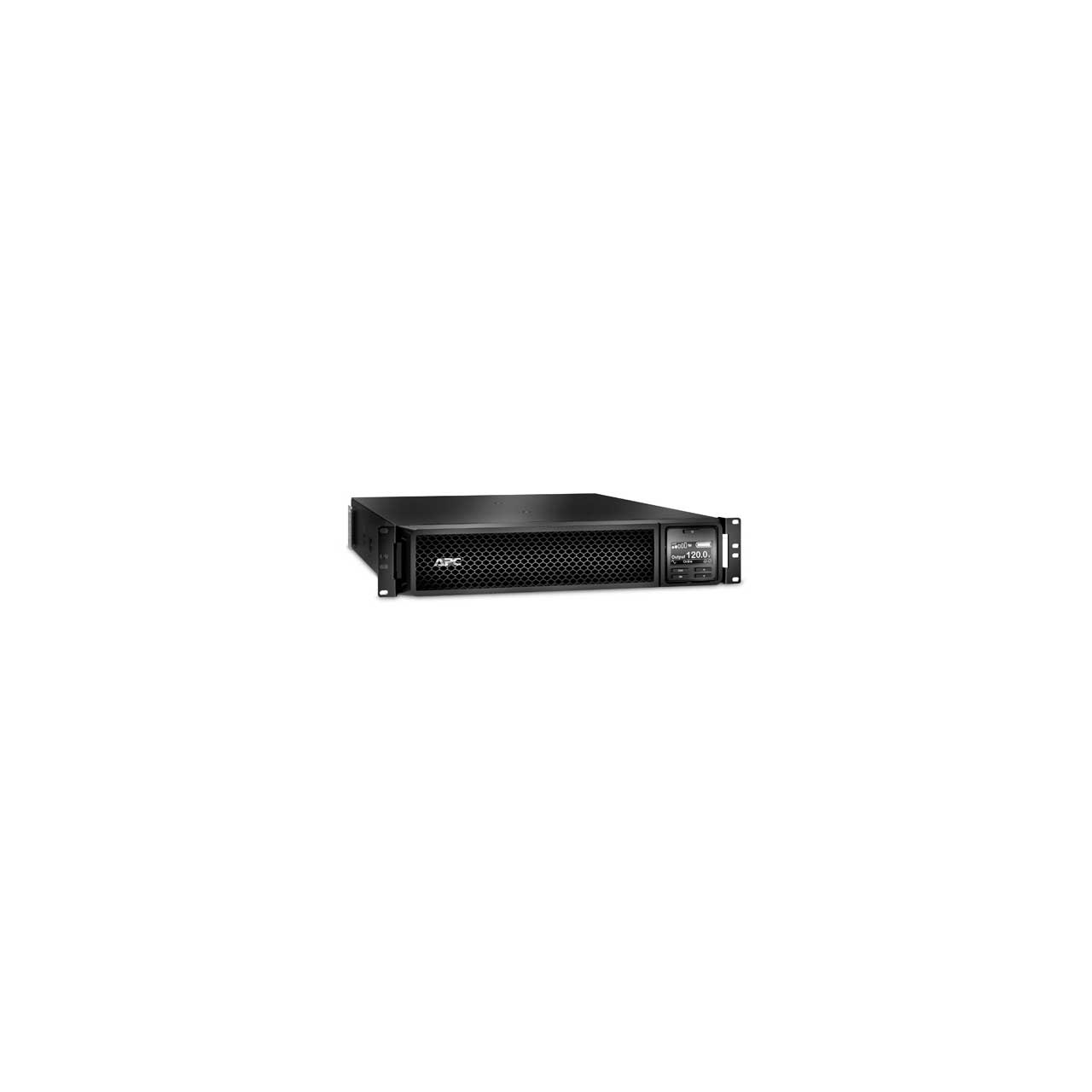

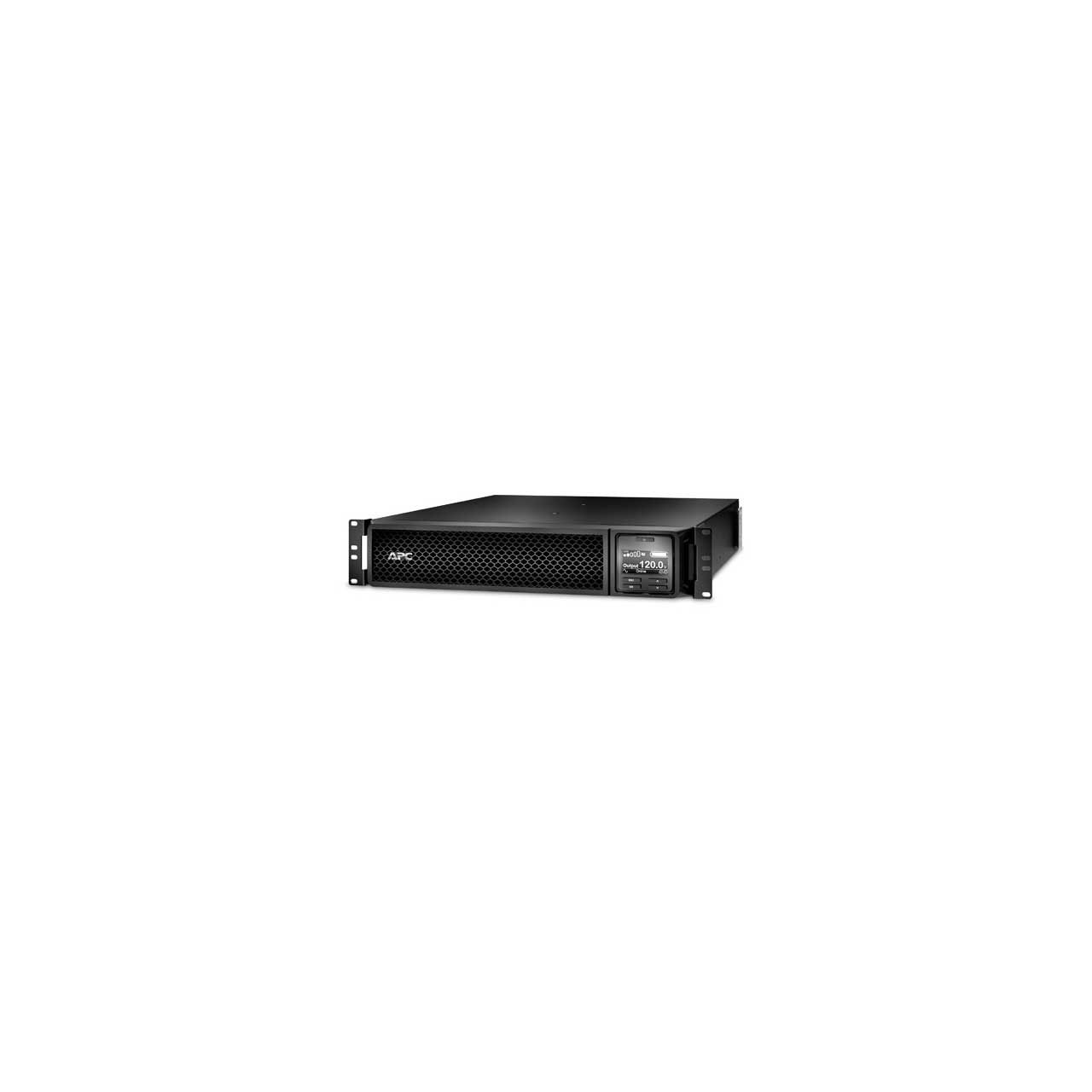

APC SRT3000RMXLA Smart-UPS On-Line SRT 3000VA RM 120V Power Supply

ITEM #: APC-SRT3000RMXLA MFG #: SRT3000RMXLA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$5,365.00

Our Price:

$3,875.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SRT3000RMXLA - Overview

    The next generation Smart-UPS On-Line models are for customers who want a more Powerful and Efficient UPS with smart management options. The SRT3000RMXLA models feature Unity Power Factor and a unique Graphical LCD Interface that provides detailed information for a better customer experience. The next generation on-line exemplify why APC is the worldwide market leader in server class UPS’s and ensure that APC’s Smart-UPS On-Line will remain the benchmark of the industry.

    Power and protection for network closets, server rooms, retail offices, banking, medical labs, and industrial applications.

    • Specifications:

      • Output
      • Output power capacity: 2.7 KWatts / 3.0 kVA
      • Max Configurable Power (Watts): 2.7 KWatts / 3.0 kVA
      • Nominal Output Voltage: 120V
      • Output Voltage Distortion: Less than 2%
      • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
      • Load Crest Factor: 3 : 1
      • Topology Double: Conversion Online
      • Waveform type: Sine wave
      • Output Connections: (8) NEMA 5-20R (Battery Backup); (1) NEMA L5-30R (Battery Backup)
      • Bypass: Internal Bypass (Automatic and Manual)

        Input
      • Nominal Input Voltage: 120V
      • Input frequency: 40 - 70 Hz (auto sensing)
      • Input Connections: NEMA L5-30P
      • Cord Length: 8 feet
      • Number of Power Cords: 1

        Batteries & Runtime
      • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
      • Included Battery Modules: 1
      • Typical recharge time: 3 hour(s)
      • Replacement Battery: APCRBC152
      • Expected Battery Life (years): 3 - 5
      • RBC Quantity: 1
      • Extendable Run Time: 1

        Communications & Management
      • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
      • Control panel: Multi-function LCD status and control console
      • Audible Alarm: Audible and visible alarms prioritized by severity
      • Emergency Power Off (EPO): Yes
      • Available SmartSlot Interface Quantity: 1

        Physical
      • Dimensions (H x W x D): 3.35" x 17.0" x 25.0"
      • Rack Height 2U
      • Net Weight 69.0lbs.
      • Shipping weight: 88.0lbs.
      • Color: Black
      • Operating Temperature: 0 - 40° C
      • Operating Relative Humidity: 0 - 95% non-condensing %
      • Operating Elevation: 0-10000ft ( 0-3000meters )
      • Storage Temperature: -15 - 45° C
      • Storage Relative Humidity: 0 - 95% non-condensing %
      • Storage Elevation: 0-50000ft ( 0-15000meters )
      • Audible noise at 1 meter from surface of unit: 55.0dBA
      • Online thermal dissipation: 805.0BTU/hr
      • Protection Class: IP 20

    • GTIN:

      0731304323068
