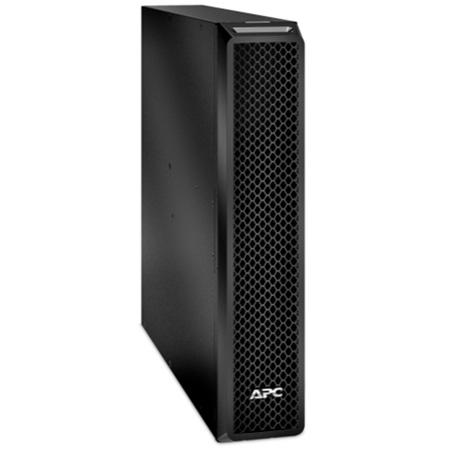

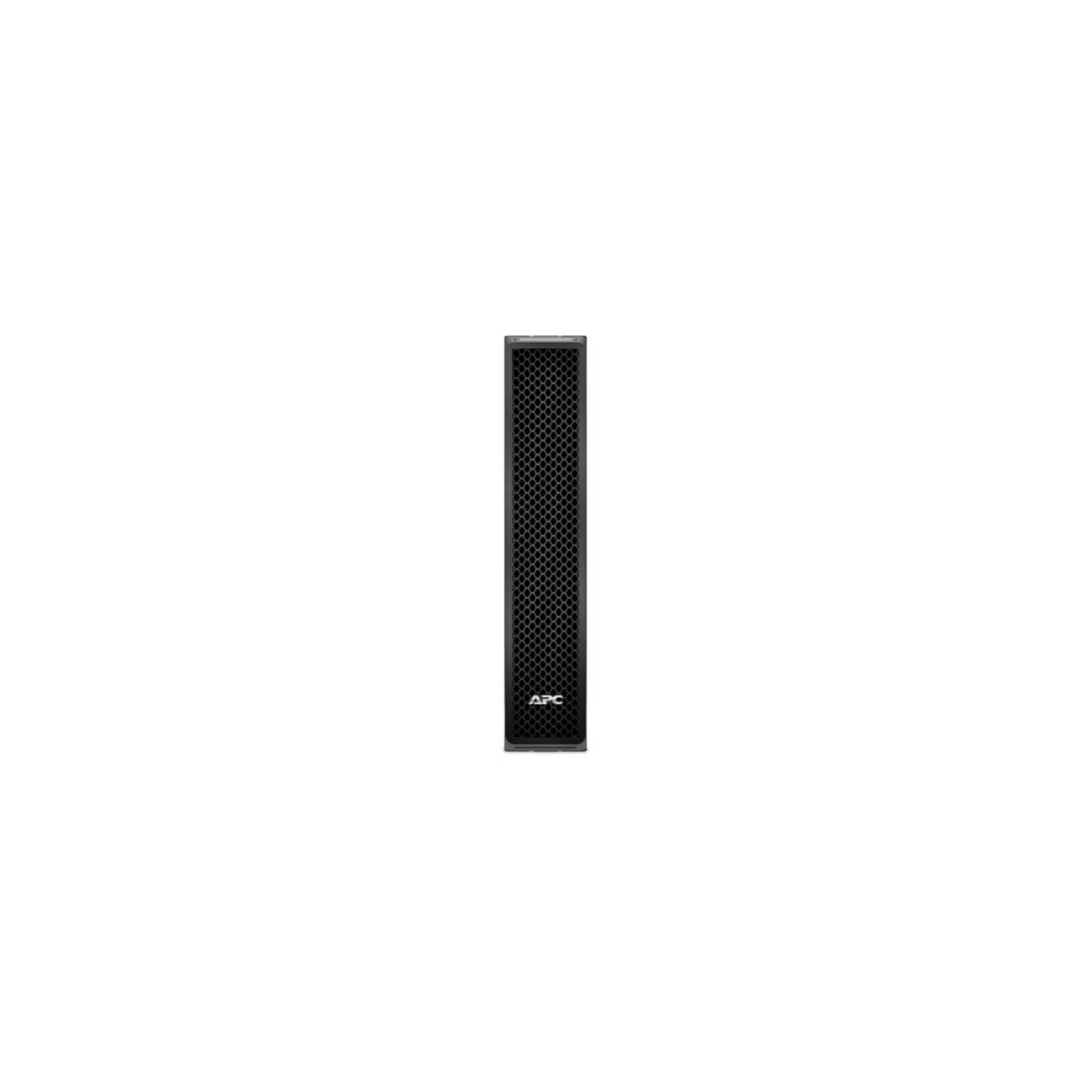

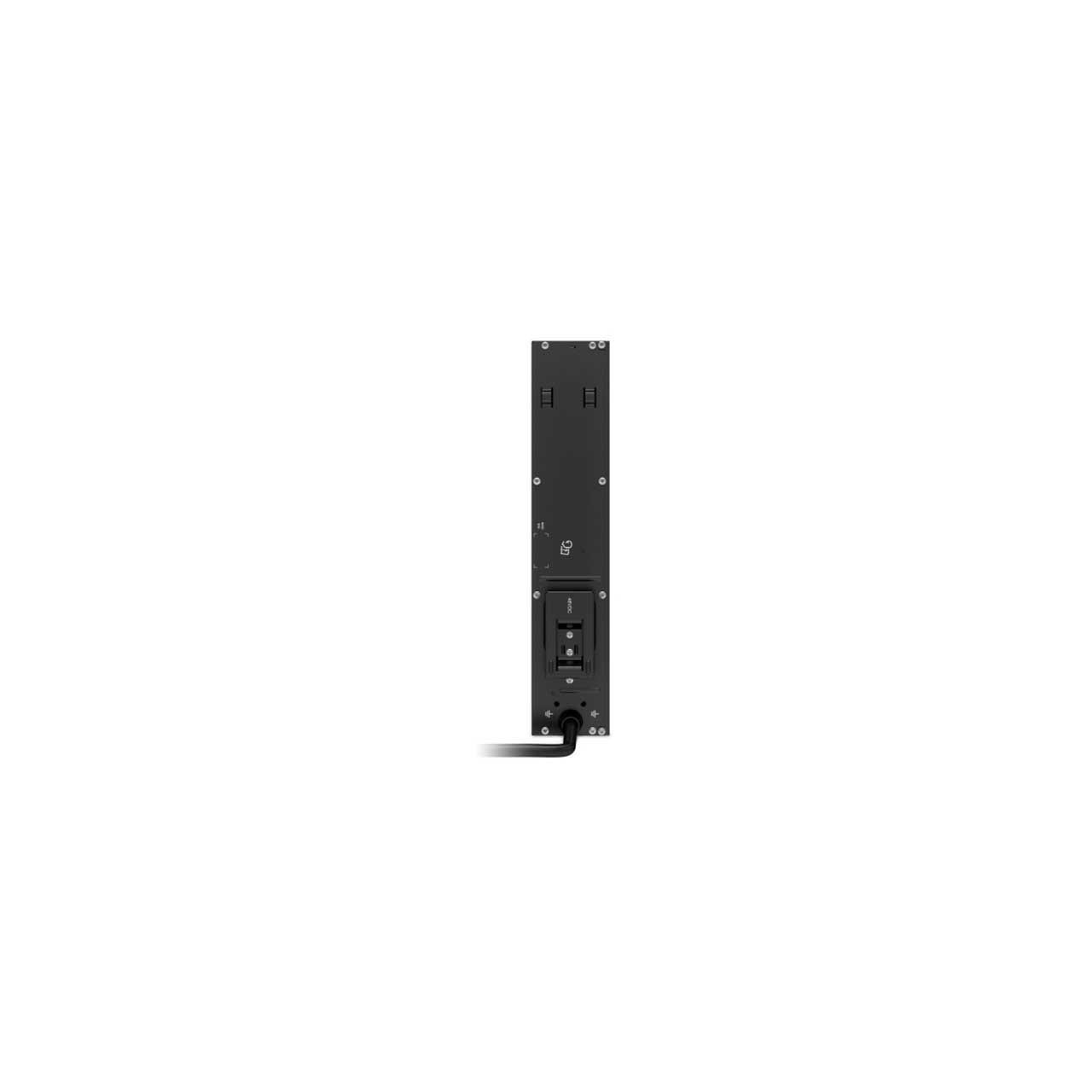

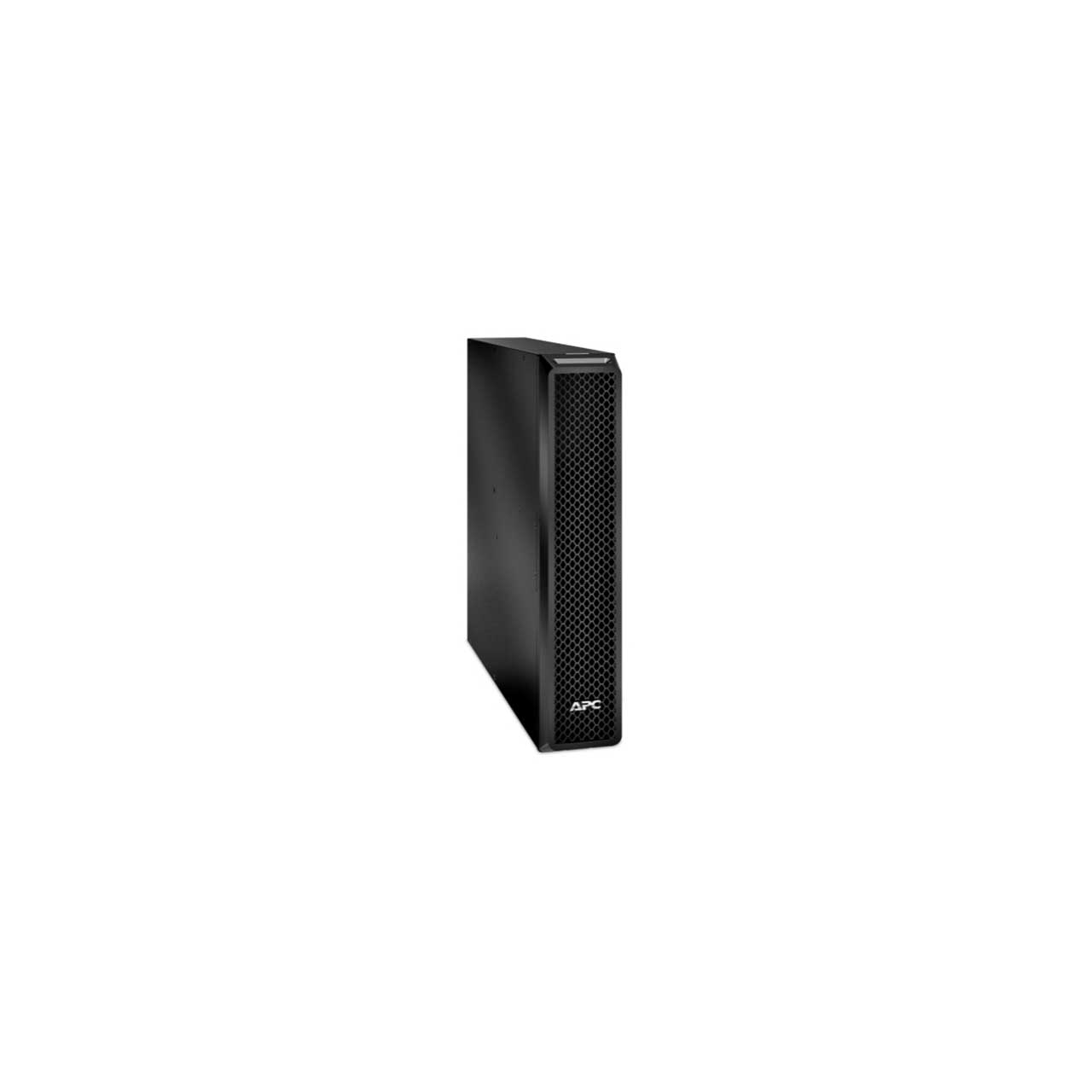

APC SRT48BP External Battery Pack For SRT1500 VA Series

SRT48BP - Overview

• Features:

  • Multiple battery pack configuration
  • Advance Battery Management Included
  • Extended-run battery systems provide flexible runtime to critical Smart-UPS applications


• Specifications:

  • Output
  • Battery Output Voltage: 48

    Batteries & Runtime
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Battery Mounting: Stand alone battery stack
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 2
  • Battery Volt-Amp-Hour Capacity: 594

    Physical
  • Maximum Height: 17.0" (432mm, 43.2cm)
  • Maximum Width: 3.35" (85mm, 8.5cm)
  • Maximum Depth: 21.1" (536mm, 53.6cm)
  • Net Weight: 65.92Lbs (29.9kg)
  • Shipping Weight: 81.57Lbs (37kg)
  • Shipping Height: 9.6" (244mm, 24.4cm)
  • Shipping Width: 23.4" (594mm, 59.4cm)
  • Shipping Depth: 29.5" (749mm, 74.9cm)
  • Color: Black
  • Units per Pallet: 6

    Environmental
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Operating Relative Humidity: 0 to 95% (non-condensing)
  • Operating Elevation: 0 to 10000' (0 to 3000m)
  • Storage Temperature: 5° to 113°F (-15° to 45°C)
  • Storage Relative Humidity: 0 to 95% (non-condensing)
  • Storage Elevation: 0 to 50000' (0 to 15000m)

    Conformance
  • Standard warranty: 2 years repair or replace

    Sustainable Offer Status
  • RoHS: Compliant
  • REACH: Contains SVHCs


• Item Includes:

  • APC SRT48BP External Battery Pack
  • Documentation CD
  • Installation guide
