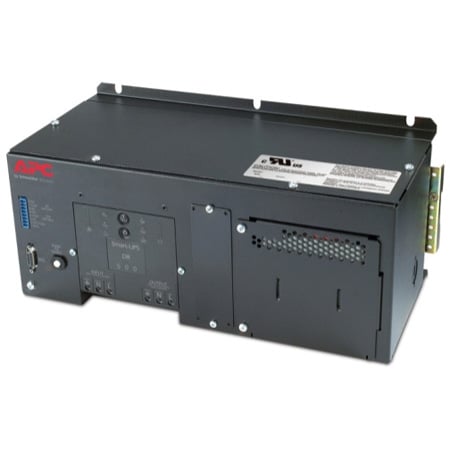

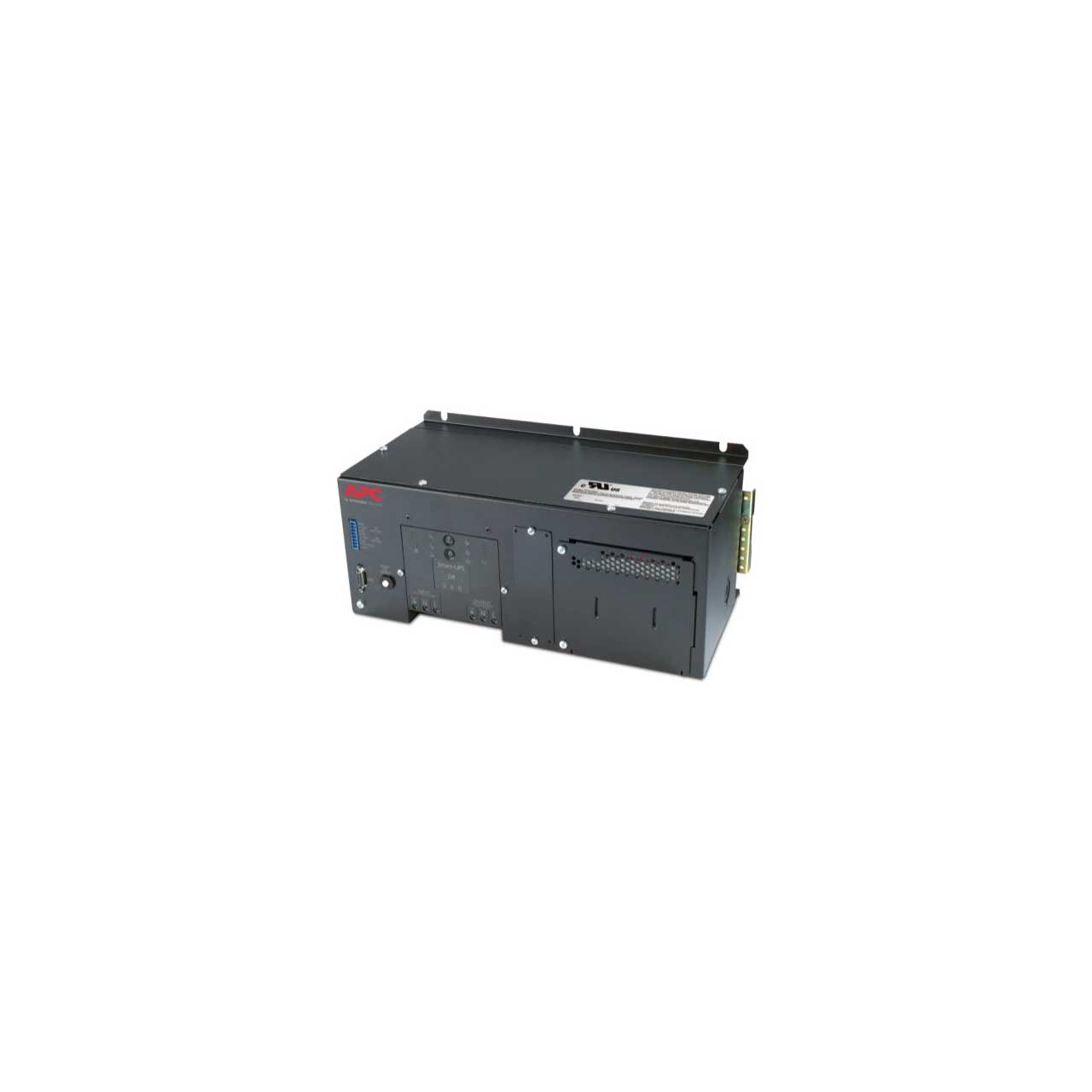

APC SUA500PDR-S DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V

SUA500PDR-S - Overview

• Features:

  • Hot-swappable batteries
  • Technical support
  • User-replaceable batteries
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Wide input voltage range
  • Power conditioning
  • Cold-start capable
  • LED Indicators
  • Intelligent battery management
  • SmartSlot
  • Optional Dry Contact I/O Accessory


• Specifications:

  • Physical
  • Dimensions (DxHxW): 6.73 x 5.83 x 14.25" (17.1 x 14.8 x 36.2cm)
  • Net Weight: 28.35Lbs (12.86 kg)


  • Input
  • Input Frequency: 50/60 Hz ±3 Hz auto-sensing
  • Number of Input Connectors: 1 Hard Wire 3-wire (1PH+N+G)
  • Efficiency at Full Load: 75...154 V adjustable, 82...144 V
  • Nominal Input Voltage: 120 V

    Output
  • Kw Rating: 325W
  • Max Configurable Power: 325W
  • Harmonic Distortion: Less than 5%
  • Output frequency: 47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connector Type: Hard Wire 3-wire (H N + E) 1
  • Output voltage: 120 V

    Environmental
  • Ambient Air Temperature for Operation: 32° to 104°F (0° to 40°C)
  • Relative Humidity: 0 to 95 %
  • Operating Altitude: 0 to 10,000'
  • Ambient Air Temperature for storage: 5° to 113°F (-15° to 45°C)
  • Storage Altitude: 0 to 50000' (0 to 15240m)
  • Acoustic Level: 55 dBA
  • Heat Dissipation: 90 Btu/h
  • IP Degree of Protection: IP20

    Batteries & Runtime
  • Battery Type: Lead-Acid battery
  • Included Battery Modules: 1
  • Battery Slots Empty: 1
  • Typical Recharge Time: 2 h
  • RBC Quantity: 1
  • Liquid Electrolyte Value: 0

    Communications & Management
  • Free Slots: 1
  • Control Panel: LED status display with load and battery bar-graphs
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO): Yes


• Item Includes:

  • 1x CD with Software
  • 1x Documentation CD
  • 1x Installation Guide
  • 1x Smart UPS Signaling RS-232 Cable


• GTIN:

  0731304289982
