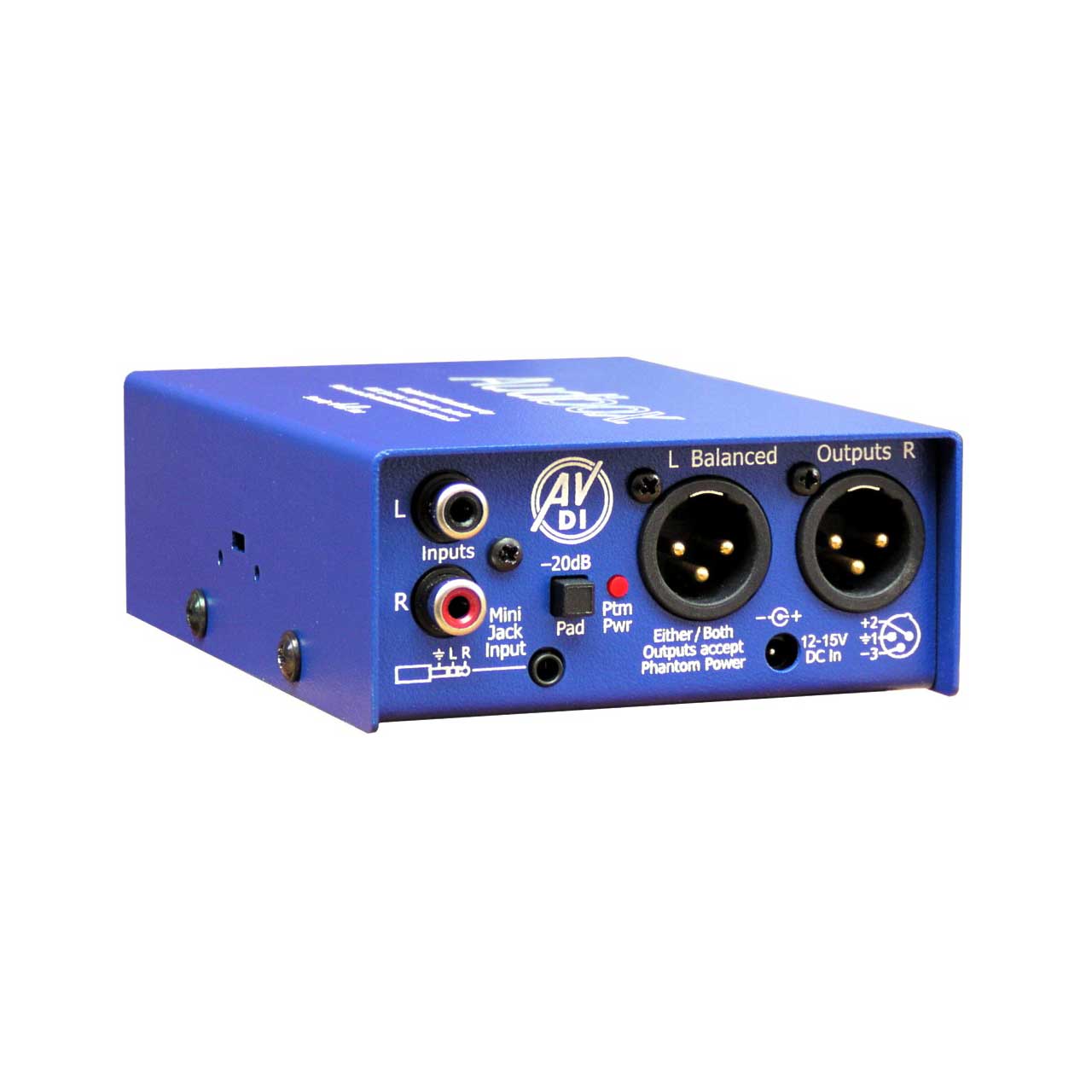

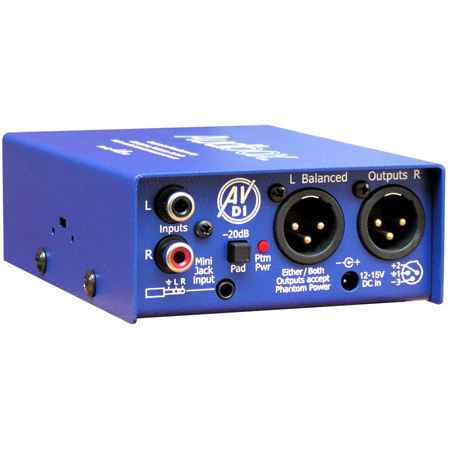

ARX AV-DI Audibox AV DI Stereo AV Active DI Box Stereo Converter


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Stereo AudioVisual Active Direct box, with dual RCA or stereo mini jack input and dual XLR outputs. The AV DI is ideal for interfacing computer sound cards with pro sound systems. Heavy duty all-steel chassis, -20 dB Pad switch, plus Phantom or 12 - 15V DC power options. Permanent soft audio ground network prevents ground loops, providing pristine audio quality. Ideal for interfacing any consumer stereo audio signal (especially notebook computer sound cards) with the balanced inputs of professional sound systems. Available in Dual Channel format only. Requires Phantom or DC power.

  • Features:

    • full-time soft audio ground.
    • -20dB Pad.
    • Dual XLR outputs.
    • Dual RCA inputs.
    • Stereo mini jack input.
    • Phantom or
    • DC power options.
  • Specifications:

    • Input Impedance: 47K Ohms unbalanced, on both RCA connectors and Mini Jack.
    • Max Input Level: Line +8 dB with Pad switch Out, + 28dB with Pad switch In.
    • Gain through Unit: 6dB, Pad switch Out.
    • Output Noise: -90 dB Unweighted, -97 dB 'A' weighted, inputs loaded.
    • Frequency Response: 20 - 20 KHz ± 0.3 dB.
    • Power Requirements: 48V Phantom power on XLR pins 2 and 3; 12-15V DC from external supply.
    • Input Connectors: Left and Right RCA (phono) connectors, plus Tip-Ring-Sleeve Mini Jack.
    • Output Connectors: Dual 3 pin XLR wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold.
    • Construction: All-steel chassis, fibreglass PCB.
