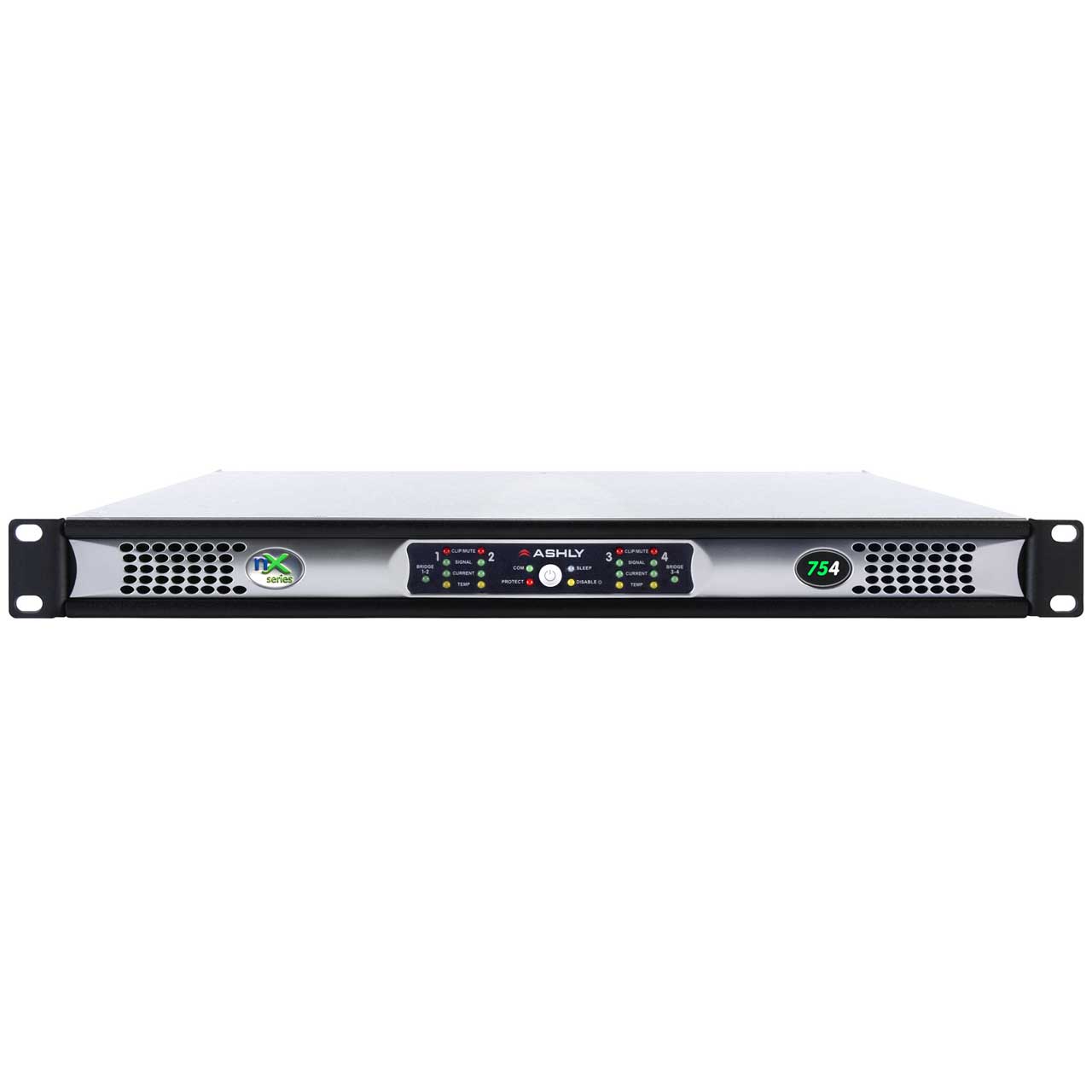

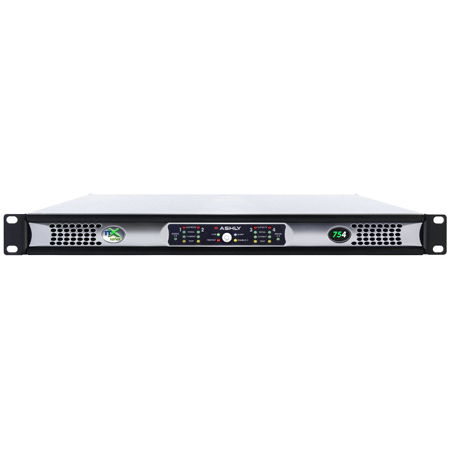

Ashly nX754 Network Audio Power Amplifier with Ethernet - 4-Channel x 75 Watts

ITEM #: ASH-NX754 MFG #: NX 754

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    NX 754 - Overview

    Introducing the Ashly series of nX, nXe, or nXp power amplifiers. These products use state of the art, light weight, high power, high efficiency switching technology developed through years of design and field testing. nX amplifiers are available in three series, designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers as well as schools, store fronts,and worship spaces.

    Available in three amplifier series, NX offers 2 or 4-channel models as NX (base model series), NXE (networkable), or NXP (networkable + DSP).

    Class-D Switching Amplifier Technology.
    NX features a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC.

    Multi-Mode Operation.

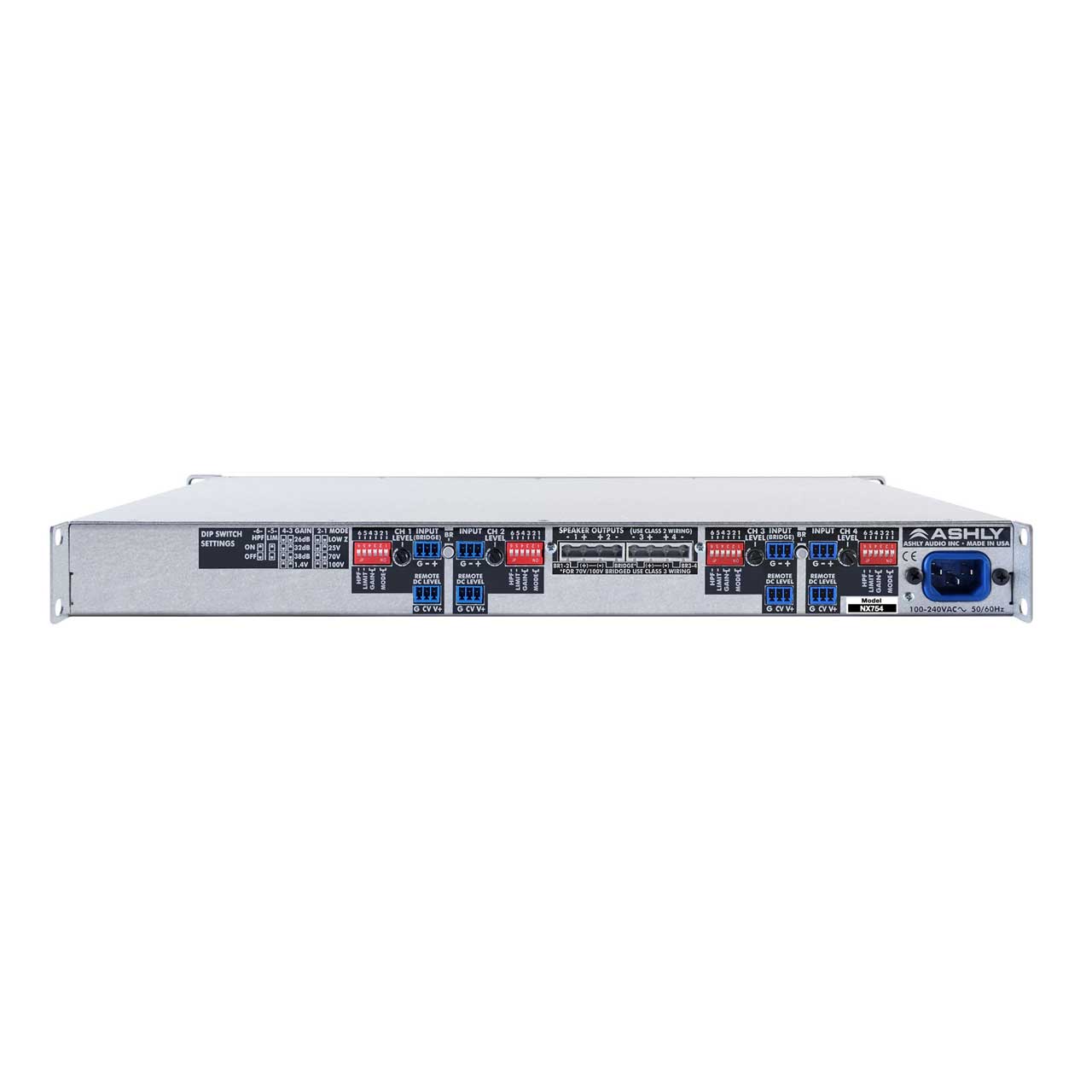

    Selectable Outputs allow you to choose the desired output mode on each channel. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage and you’re set to go.

    Energy Efficiency.
    NX has power-saving Ashly EMS™ (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).

    Please Note: All Ashly nX, nXe & nXp amps include the appropriate power cable that corresponds with the amps power connector.

    • Features:

      • Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
      • Remote DC level control per channel
      • Extensive protection circuitry, continuously variable cooling fan
      • Euroblock input connectors
      • Euroblock loudspeaker connectors
      • Detachable AC mains line-cord connector
      • Safety/Compliance: cTUVus (pending), CE, FCC, RoHS
    • Specifications:

      • Voltage Gain: Selectable at 26dB, 32dB, 38dB, or 1.4V
      • Damping Factor: >250 (8 Ohm load <1kHz)
      • Input High Pass Filter: 80Hz 2nd order
      • Distortion (SMPTE, typical): <0.5%
      • Distortion (THD-N, typical): <0.5% (8 Ohms, 10dB below rated power, 20Hz–20kHz)
      • Channel Separation: -75dB (dB from full output, 1kHz)
      • Signal-to-Noise (unweighted) 20Hz-20kHz, Gain@26dB: >99dB (all 150x models), >96dB (all 75x models)
      • Frequency Response: 20Hz-20kHz, +/-0.05dB
      • Balanced Input Connector: Euroblock 3.5mm
      • Input Impedance: 10k Ohms
      • Maximum Input Level: +21dBu
      • Speaker Output Connector: Euroblock 7.62mm
      • Remote DC Level Control: Euroblock 3.5mm – Gnd, CV, V+ per input
      • Attenuators (per channel): Rear panel, Fully off = Mute
      • Amplifier Protection: Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses & inrush-current limiting
      • Cooling: Continuously variable temperature controlled fan
      • Environmental:32°F-120°F, (0°C-49°C) non-condensing
      • Unit Dimensions: 19”W x 1.75”H x 14.54”D (483mm x 45mm x 369mm)
      • Unit Weight: 1504/754 12.1lbs (5.5kg), 1502/752 11.3lbs (5.1kg)
      • Power Requirements (@ 50/60Hz): Nominal Voltage Input: 120VAC – 240VAC, Operating Range: 70VAC – 270VAC
      • Power Cable Connector Requirements: Detachable Nema 5-15 for USA (cable included)
    • Warranty:

      • 5 Years
