Ashly Audio NXP4002 Network Multi-Mode Power Amplifier 2 x 400 Watts @ 2/4/8 Ohms or 25V/70V with Protea DSP

NXP4002 - Overview

• Features:

  • 2-channel high-output, lightweight amplifiers with programmable output on each channel (High-Z or Low-Z, selected via rear panel DIP switches)
  • Power-saving, Energy Management System + (Ashly EMST) automatic <1W sleep-mode (defeatable)

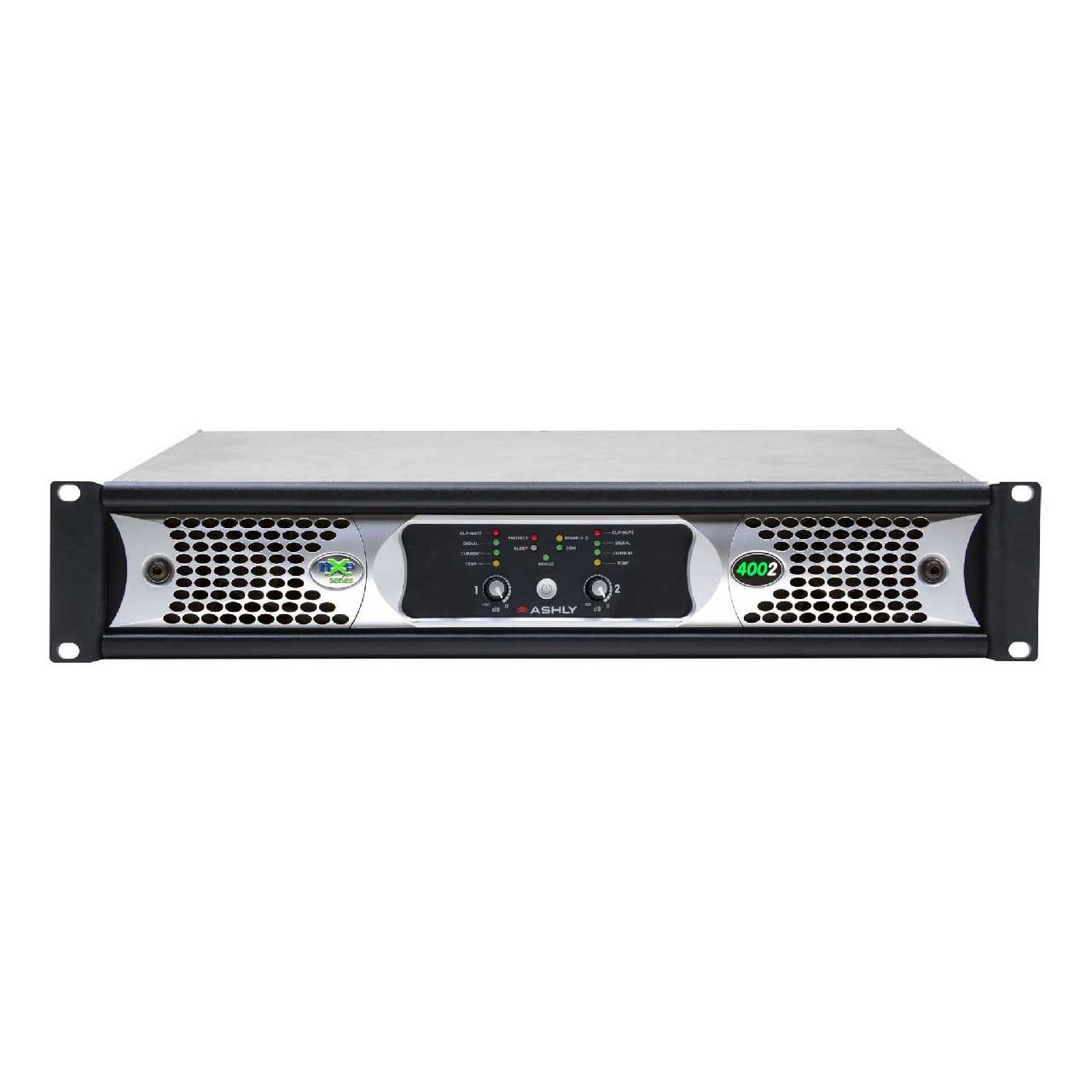

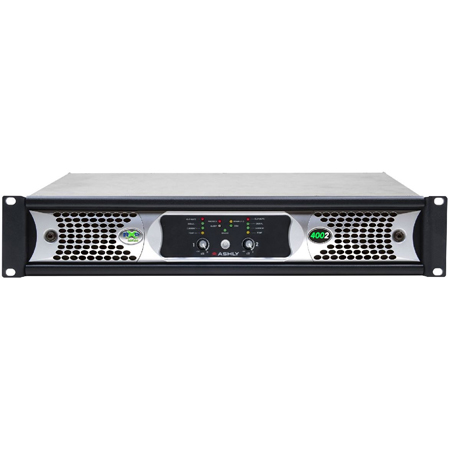

  • Front panel power switch and level controls (can be disabled for security)

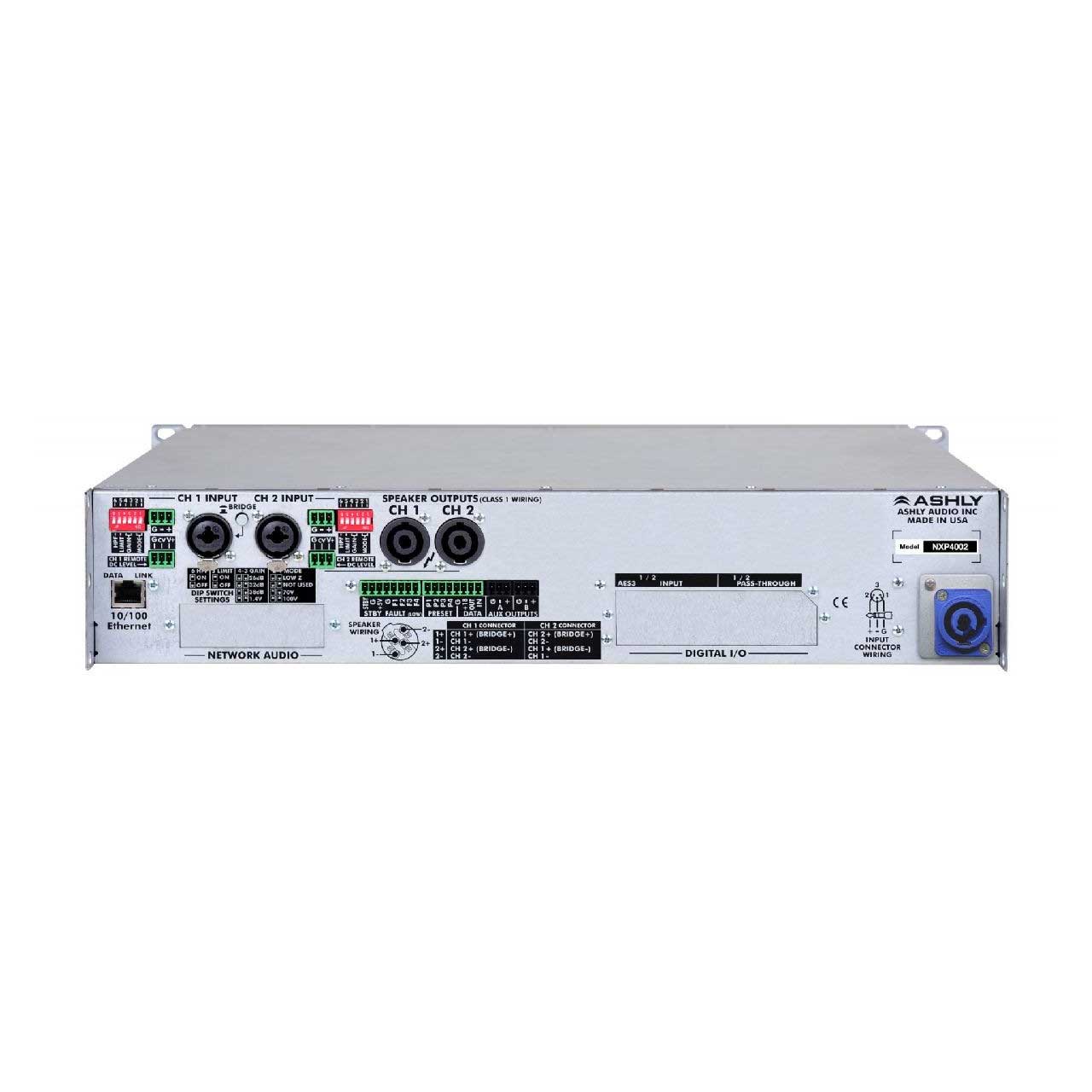

  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Remote DC level control on each input channel
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry, continuously variable cooling fans
  • Multiple independent internal power supplies provide increased channel separation and reliability
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS-232 converter for third party controllers (INA-1)
  • Use Protea Software to remotely disable all front panel controls, including the on/ off switch, for a tamper-proof installation


• Specifications:

  • Voltage Gain: Selectable at 26, 32, or 38 dB, and 1.4V
  • Damping Factor: >250 (8 Ω load <1 kHz)
  • Filter: Input High Pass Filter: 80 Hz 2nd order
  • Distortion: <0.5% SMPTE, typical 0.5% THD-N, typical (8 Ω, 10 dB below rated power, 20 Hz to 20 kHz)
  • Channel Separation: -75 dB (dB from full output, 1 kHz)
  • Signal/Noise: 20 Hz to 20 kHz, un-weighted >105 dB
  • Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
  • Connector: Balanced Input Connector: Euroblock 3.5 mm, 1/4" TRS and XLR combo jack.
  • Input Impedance: 10 kΩ
  • Maximum Input Level: 21 dBu
  • Speaker Output: Connector: Neutrik speakON.
  • Network: Control Network: Compatible with standard 100 MB Ethernet.
  • AUX Outputs: Connector: Balanced Euroblock 3.5 mm - Maximum Output Level: 21 dBu.
  • Contact Closure: Remote Standby: Euroblock 3.5 mm, close contact to GND for standby mode - Preset Recall: Euroblock 3.5 mm, close contact to GND for preset 1-4 recall.
  • Data: Data Connection: Euroblock 3.5 mm - Gnd, 18 V, in, out.
  • Outputs: Fault Condition Logic Outputs: 4 x 3.5 mm Euroblock
  • Attenuation: Front panel, software, offset link group, and remote per channel, fully off = mute
  • Protection Circuits: Inrush current limitation, temperature monitoring, output over-power protection, and mains fuses
  • Cooling: Continuously variable temperature controlled axial fans
  • Environmental: Non-condensing 32 to 113°F (0 to 45°C)
  • Dimensions: 19.0 x 3.5 x 16.8" (48.3 x 8.9 x 42.8 cm)


• Item Includes:

  • 1x Ashly nXp Series NXP4002
  • 1x powerCON Cable.


• Warranty:

  • 5 Year Manufacturer Warranty


• GTIN:

  0818252021823
