Atlona AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output - Black
  • Atlona AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output - Black
  • Atlona AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output - Black

Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlona AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output - Black

Manufacturer: Atlona Technologies

Item #: AT-HDVS200TXWPBK   •   MFG #: AT-HDVS-200-TX-WP-BLK




Our Price:$700.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

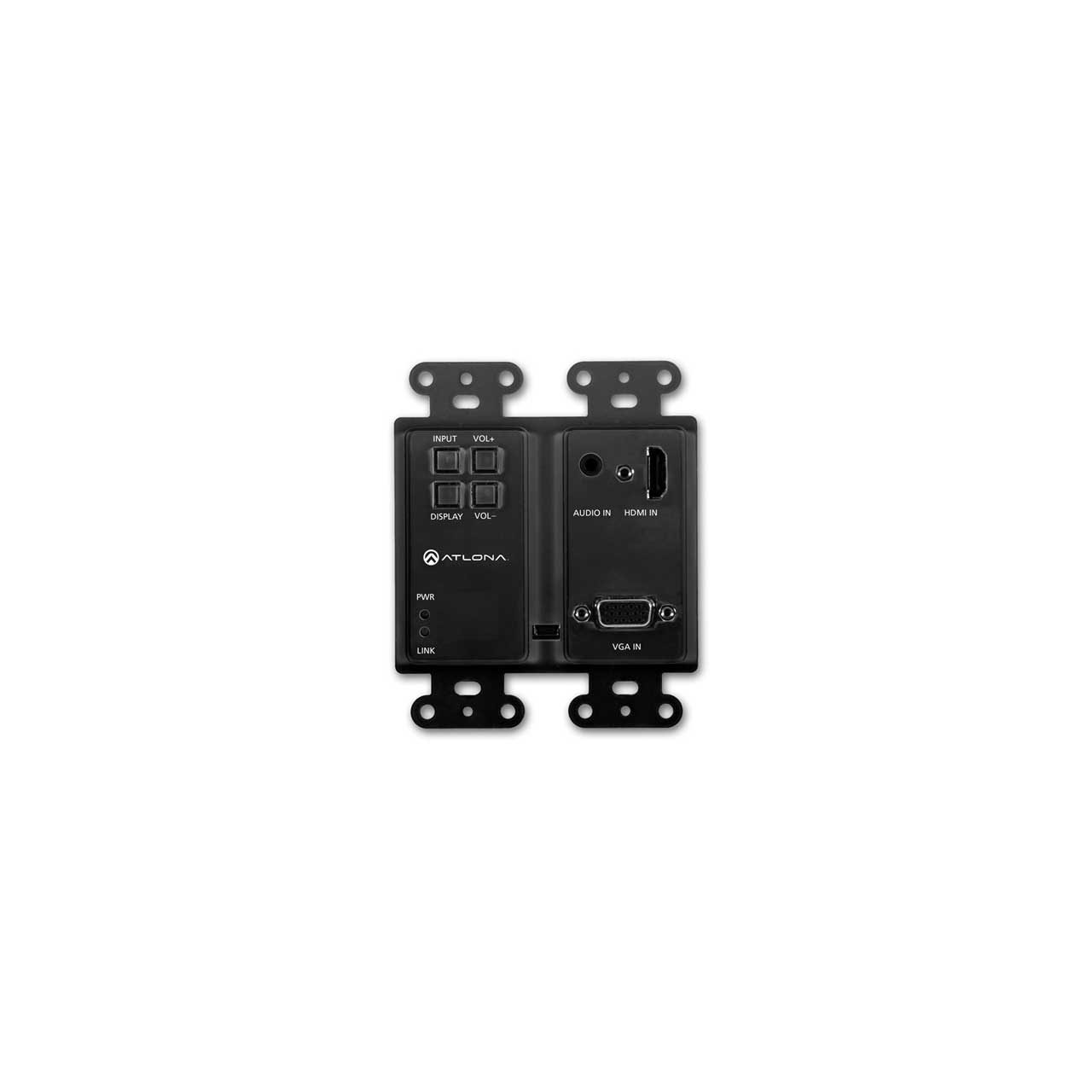

    The Atlona AT-HDVS-200-TX-WP is a 2x1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, Decora-style wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP is designed for use with the AT-HDVS-200-RX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

    All-in-One Switcher, Controller, and Extender
    The HDVS-200-TX-WP combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

    Automatic Display Control
    The HDVS-200-TX-WP provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-WP display control capability can also be triggered by an external control system.

    A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-WP or the display. Front panel volume controls are also available to control the display's internal audio, or another device with volume control, such as a DSP or another switcher.

    Applications:

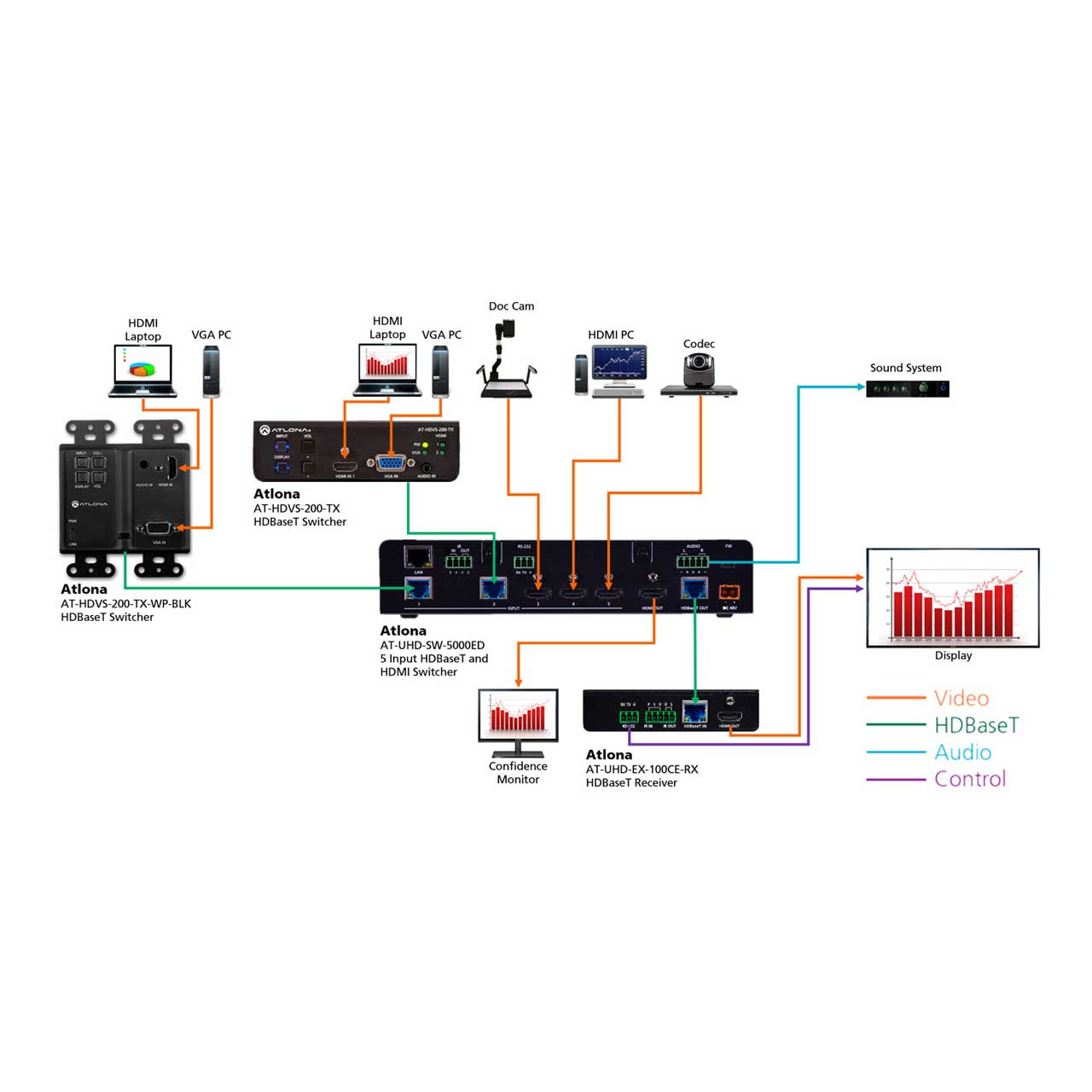

  • Complete system applications - The HDVS-200-TX-WP and HDVS-200-RX together provide a compact, yet comprehensive and cost-effective system integration solution with automatic input selection, HDBaseT extension, display control capabilities, room control, and essential audio processing. (See this featured application as an example.)
  • Larger system applications - The HDVS-200-TX-WP is ideal for extending AV connectivity from a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system. (See these featured applications as examples: small conference room, larger conference room, and divisible room.)
  • Configured and Managed by AMS
    The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-200-TX-WP and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.


    • Features

      • US two-gang enclosure for Decora®-style wallplate openings
      • 2x1 HDBaseTTM switcher with HDMI® and VGA inputs
      • Ideal for the AT-HDVS-200-RX scaling receiver and Atlona HDBaseT-equipped switchers
      • HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE receiver)
      • Remotely powered via PoE (Power over Ethernet)
      • Automatic input selection and automatic display control
      • Front panel input selection, display on/off, and volume control
      • TCP/IP and RS-232 control
      • Interchangeable faceplate included with port opening

    • Specifications

      • Resolution
      • Video: [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
      • Color Depth: 8-bit, 10-bit, 12-bit

        Audio
      • Analog IN: PCM 2Ch
      • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: up to 24-bit

        Distance
      • CAT5e/6 @ 4K: up to 70 meters: up to 230 feet
      • CAT5e/6 @ 1080p: up to 100 meters: up to 330 feet
      • CAT6a/7 @ 4K: up to 100 meters: up to 330 feet

        Signal
      • Bandwidth: 10.2 Gbps
      • CEC: Yes
      • HDCP: 1.4

        Temperature
      • Operating: 0°C to 50°C: 32°F to 122°F
      • Storage: -20°C to 60°C: -4°F to 140°F
      • Humidity: 20 to 90% non-condensing

    • Warranty

      • 10 Years
