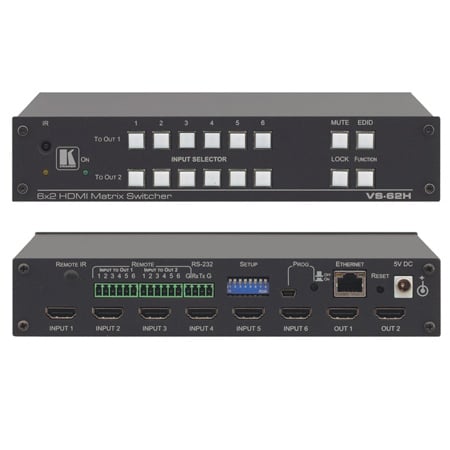

Kramer VS-62H 6x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

VS-62H - Overview

VS-62H - Overview

HDCP 1.4 Compliant

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - [email protected] (4:2:0) and WUXGA.
  • HDCP 1.4 Compliant.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Programmable Step-In Functionality - When used in conjunction with compatible step-in devices, such as the SID-X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • True Video Clock Detection.
  • Auto Switching Option - For either or both outputs, last-connected or priority switching.
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Lock Button - Prevents unwanted tampering with the front panel.
  • Internal Pattern Generator.
  • Kramer Protocol 3000 Support.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Static or Dynamic DHCP IP Addressing.
  • Flexible Control Options - Front panel buttons, IR remote (available upon request) , optional external remote IR receiver, RS-232, Ethernet, contact closure, embedded Web server.
  • USB Port - For upgrading firmware.


• Specifications:

  • INPUTS
  • 6 HDMI connectors


  • OUTPUTS
  • 2 HDMI connectors


  • PORTS
  • 1 Ethernet on an RJ-45 connector, 1 IR on a 3.5mm mini jack, 12 remote selection contact-closure switches on 13 terminal block pins, 1 serial port on a 3-pin terminal block, 1 program port on a mini USB connector


  • MAX DATA RATE
  • 8.91Gbps data rate (2.97Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • HDMI and HDCP 1.4


  • MAX. RESOLUTION
  • WUXGA, [email protected] UHD (4:2:0), 4Kx2K


  • SUPPORTED BAUD RATES
  • 9600, 115200bps


  • SUPPORTED WEB BROWSERS
  • Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
  • Windows XP: Google Chrome v25, FireFox v15
  • Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6


  • POWER CONSUMPTION
  • 5V DC, 880mA


  • CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, remote input selection switches


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • 1 VS-62H 6x2 HDMI Matrix Switcher
  • 1 Power Cord
  • 1 Set of Rack Ears
  • 1 Quick Start Guide
  • 1 Kramer RC-IR3 Infrared Remote Control
  • 4 Rubber Feet


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063064938
